2011 Ford Edge FWD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Power Trunk / Liftgate Control Module: Service and Repair

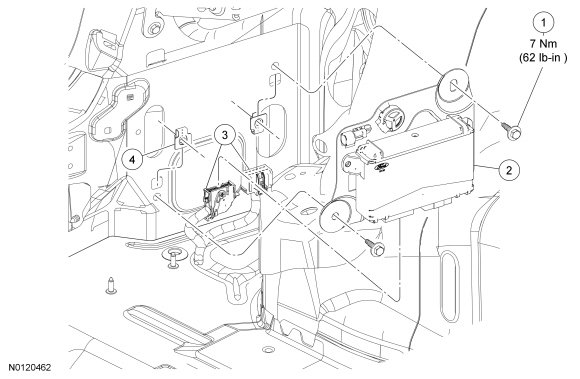

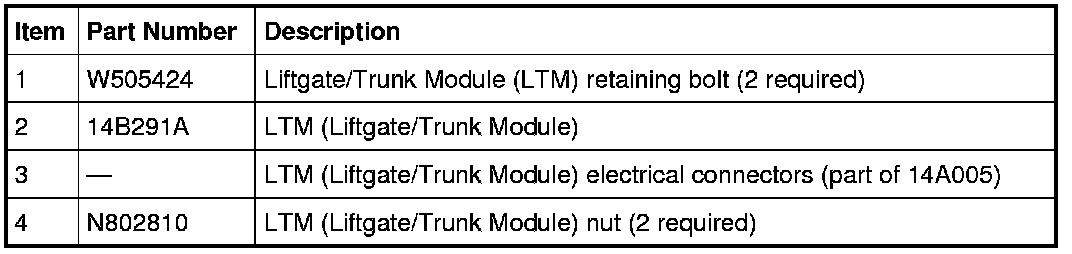

Liftgate/Trunk Module (LTM)
Removal and Installation
1. Remove the LH quarter trim panel.
2. Disconnect the 2 Liftgate/Trunk Module (LTM) electrical connectors.
3. Remove the 2 LTM (Liftgate/Trunk Module) retaining bolts and remove the LTM (Liftgate/Trunk Module).
- To install, tighten to 7 Nm (62 lb-in).
4. To install, reverse the removal procedure.
- Initialize the power liftgate. For additional information, refer to Power Liftgate Initialization Programming and Relearning.
