2011 Ford Edge FWD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Generator Current Sensor

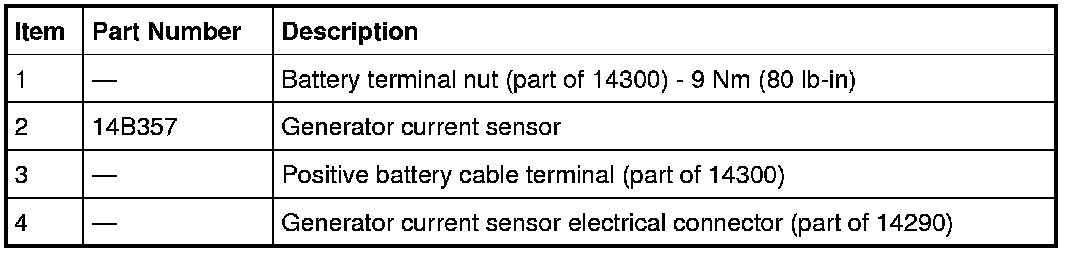

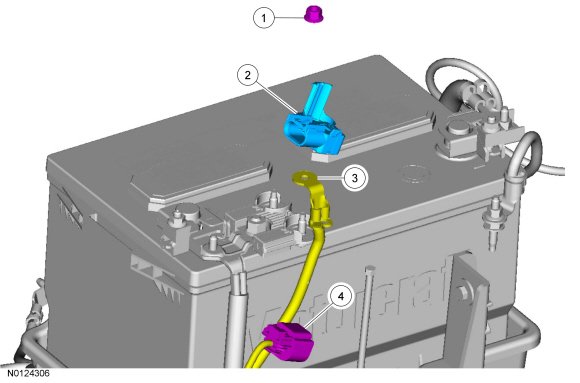

Generator Current Sensor
Removal
1. Disconnect the battery. For additional information, refer to Battery Disconnect Battery Disconnect.
2. Remove the nut and position the positive battery cable terminal aside.
3. Disconnect the generator current sensor electrical connector.
4. NOTE: Note the orientation and position of the generator current sensor tape tab.
Index-mark the battery cable at the generator current sensor. Remove and discard the tape securing the generator current sensor to the battery cable and remove the generator current sensor.
Installation
1. NOTE: The generator current sensor must be installed in the proper position and orientation to function correctly.
With the generator current sensor tape tab pointing upward, position the generator current sensor to the index-mark on the battery cable and secure with electrical tape.
2. Connect the generator current sensor electrical connector.
3. Connect the positive battery cable terminal to the battery terminal and install the battery terminal nut.
- Tighten to 9 Nm (80 lb-in).
4. Connect the battery. For additional information, refer to Battery Disconnect Battery Disconnect.
