2011 Ford Edge FWD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Timing Component Alignment Marks: Locations
Timing Component Alignment Marks

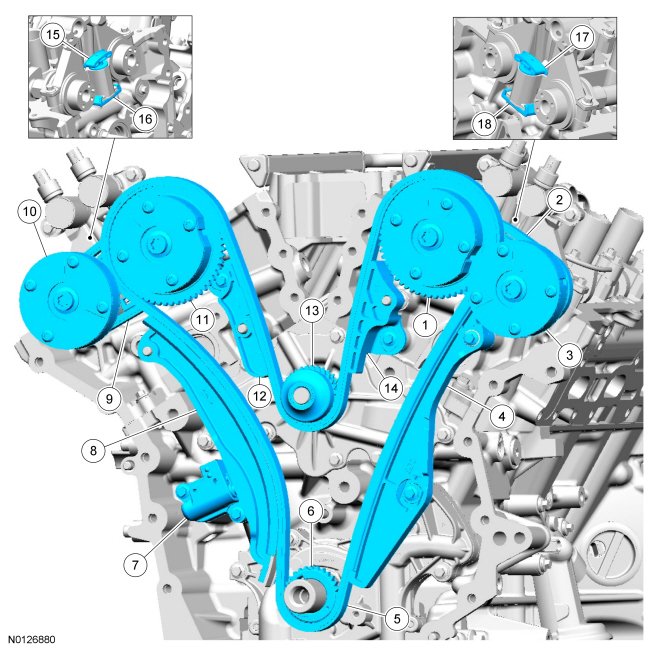

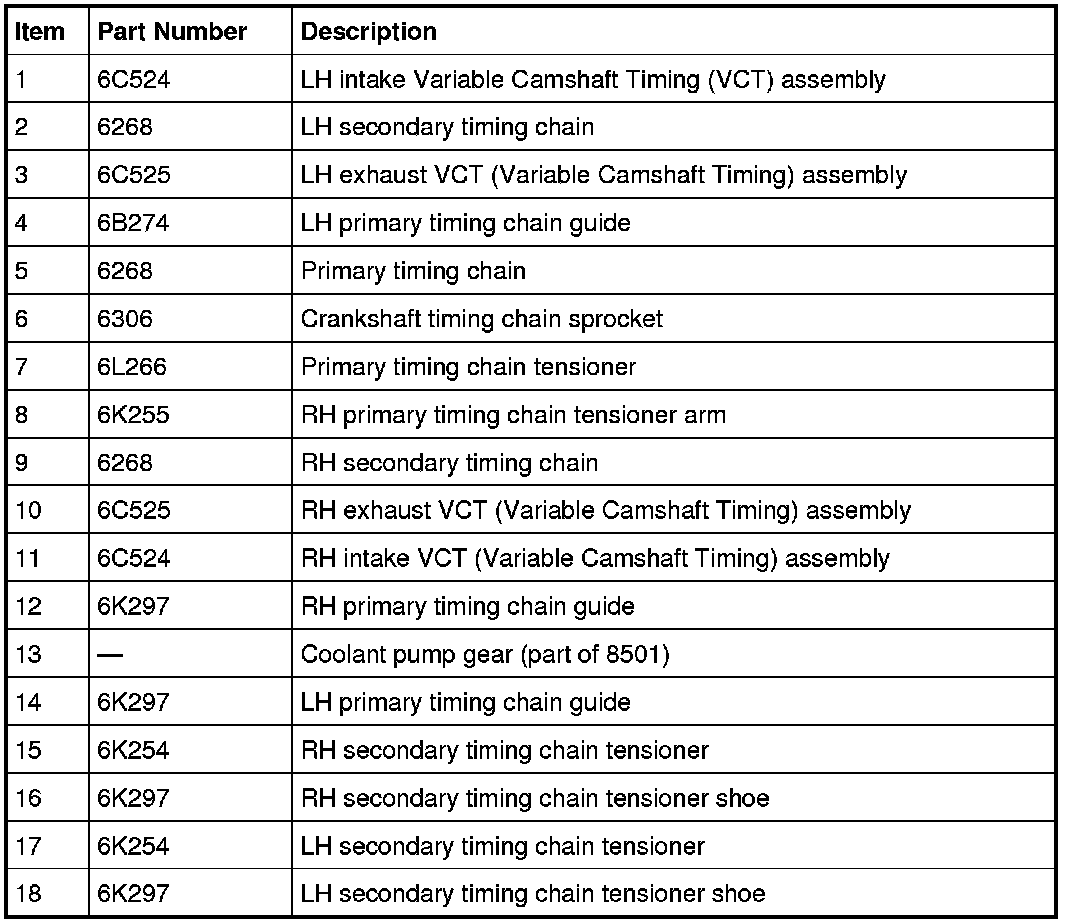

Timing Drive Components
Note: For detailed instructions see Timing Drive Components Installation
RH Variable Camshaft Timing (VCT) assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
- Align the colored links with the timing marks.
LH VCT (Variable Camshaft Timing) assemblies and the LH secondary timing chain.
- Align the colored links with the timing marks.
Post-check, verify correct alignment of all timing marks.

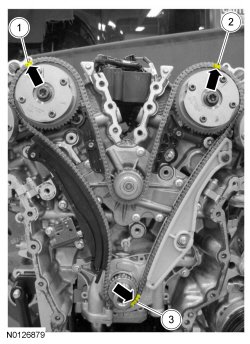

- There are 48 links in between the RH intake VCT (Variable Camshaft Timing) assembly colored link (1) and the LH intake VCT (Variable Camshaft Timing) assembly colored link (2).
- There are 35 links in between LH intake VCT (Variable Camshaft Timing) assembly colored link (2) and the 2 crankshaft sprocket links (3).
