2011 Ford Edge AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Test H: Fuel Control
PINPOINT TEST H: FUEL CONTROL

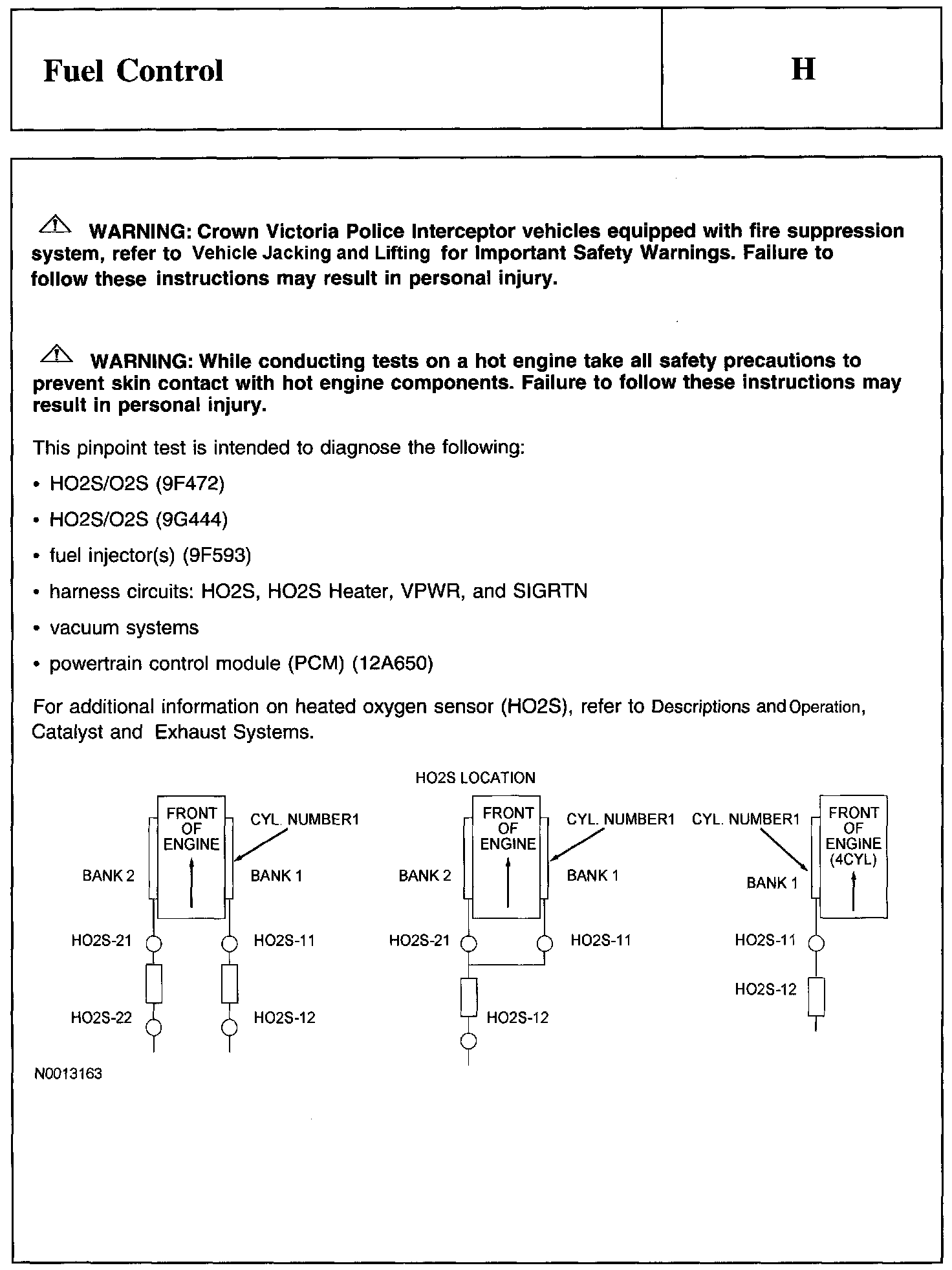

Warnings:

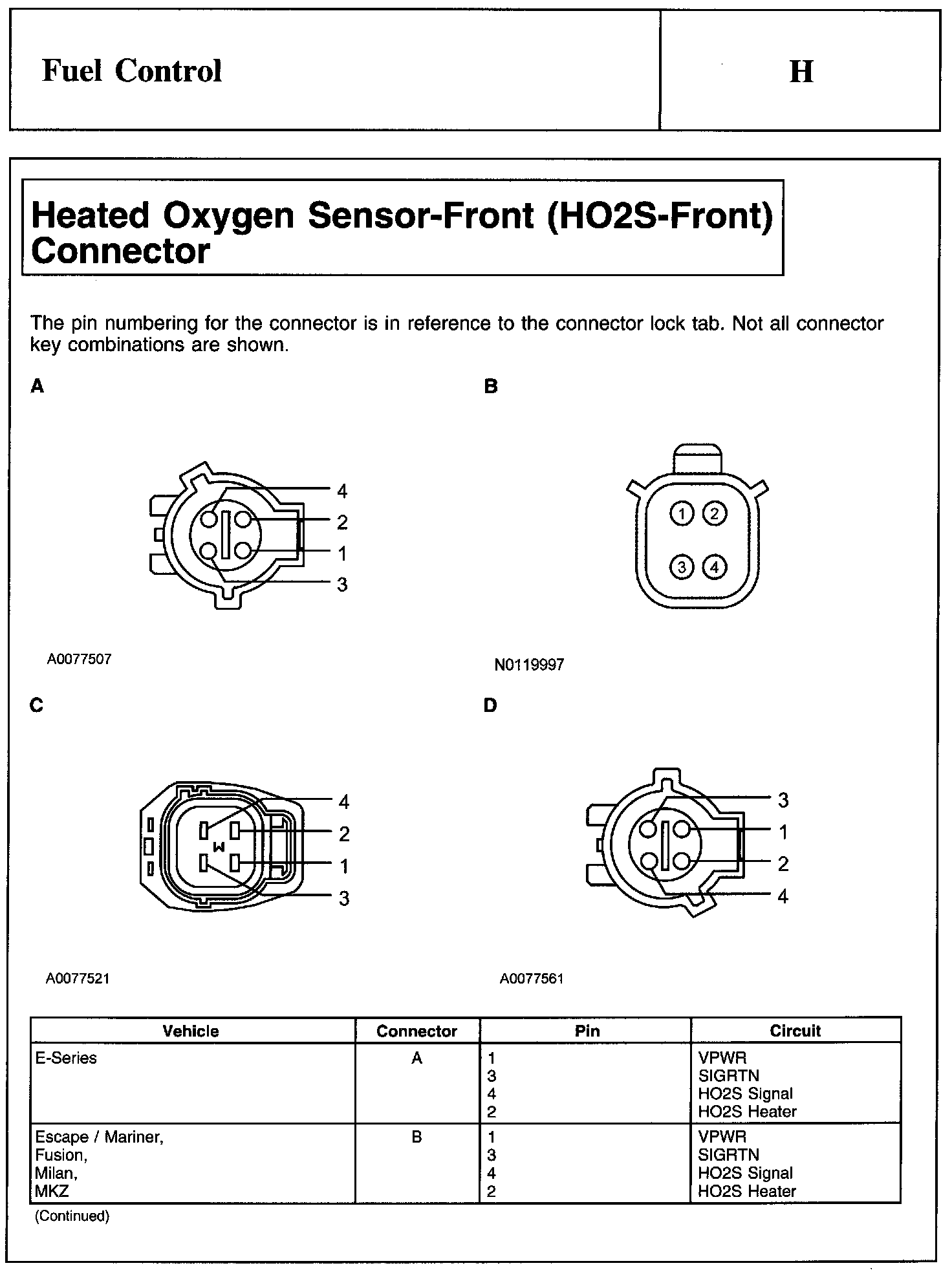

Heated Oxygen Sensor-Front (HO2S-Front) Connector:

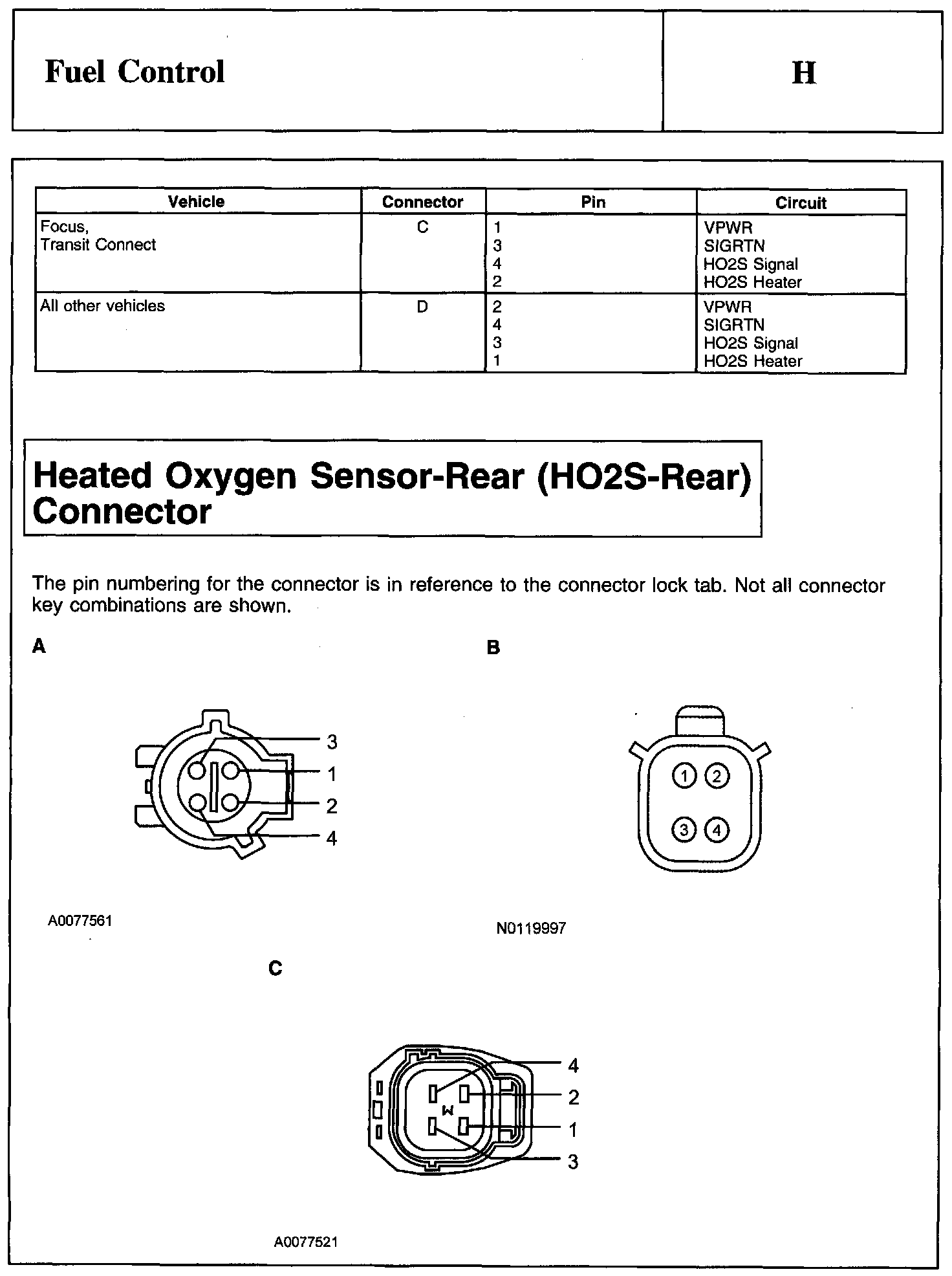

Heated Oxygen Sensor-Front (HO2S-Front) Connector And Heated Oxygen Sensor-Rear (HO2S-Rear) Connector:

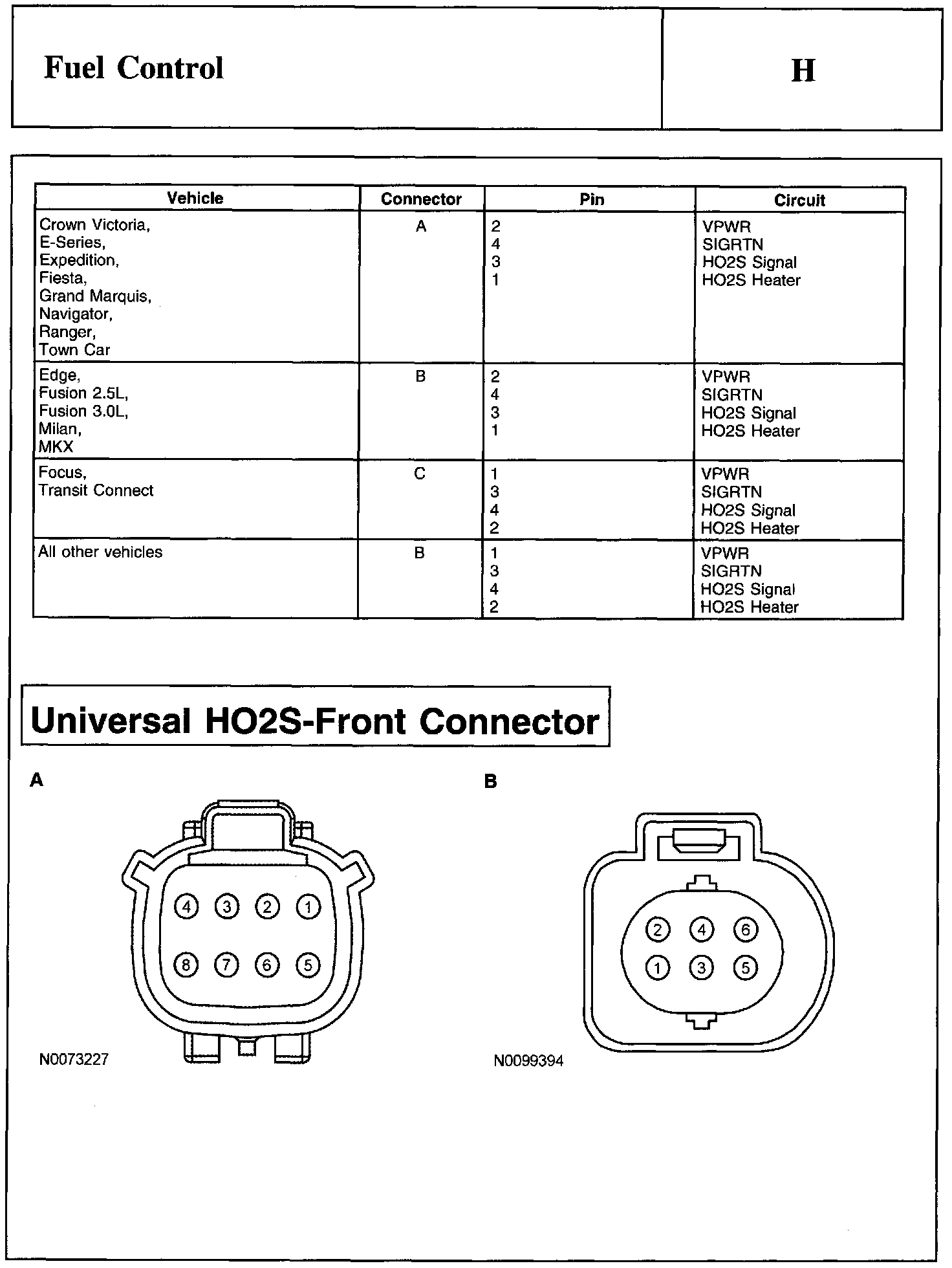

Heated Oxygen Sensor-Rear (HO2S-Rear) Connector And Universal HO2S-Front Connector:
Universal HO2S-Front Connector And Powertrain Control Module (PCM) Connector:

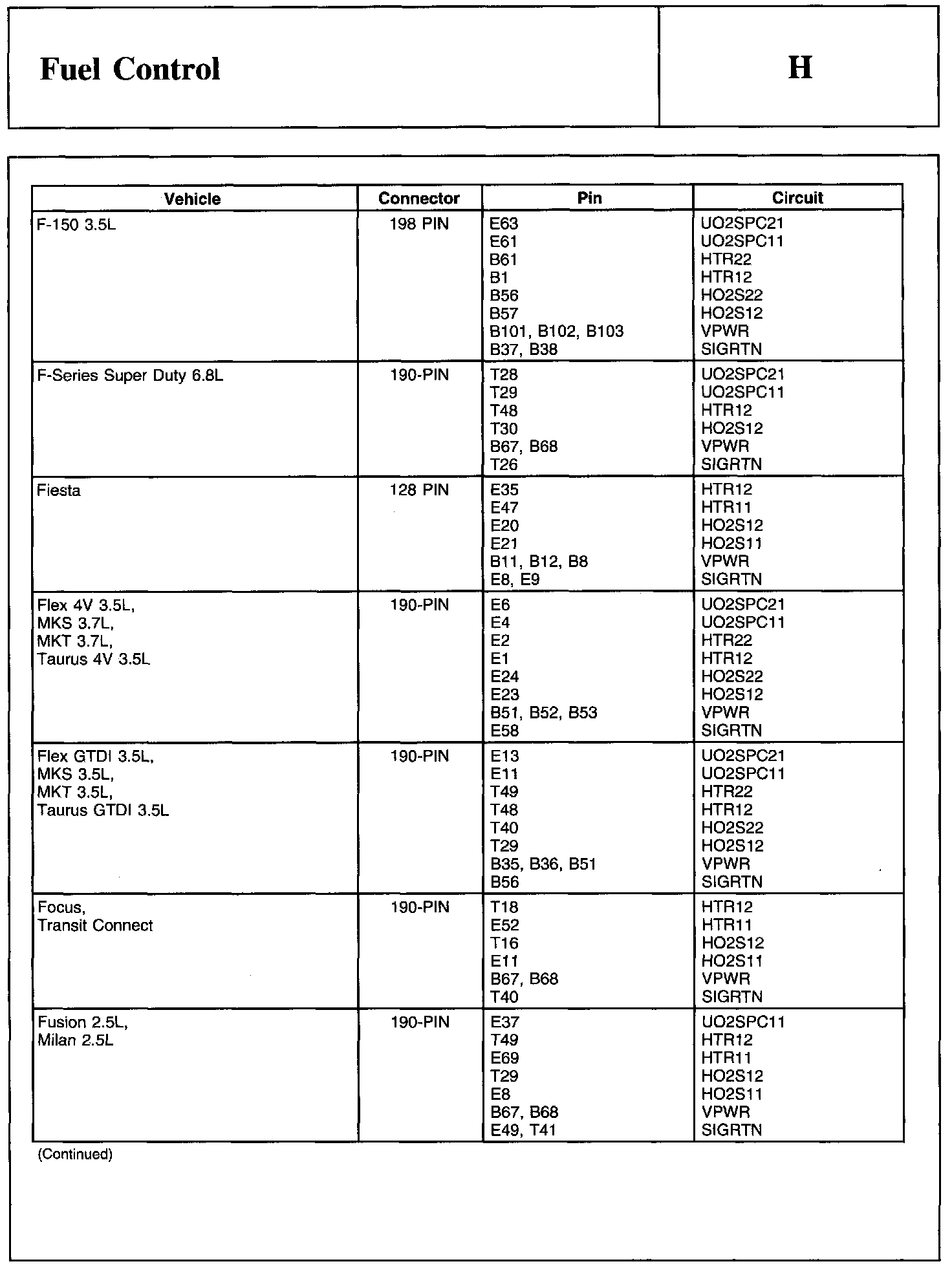

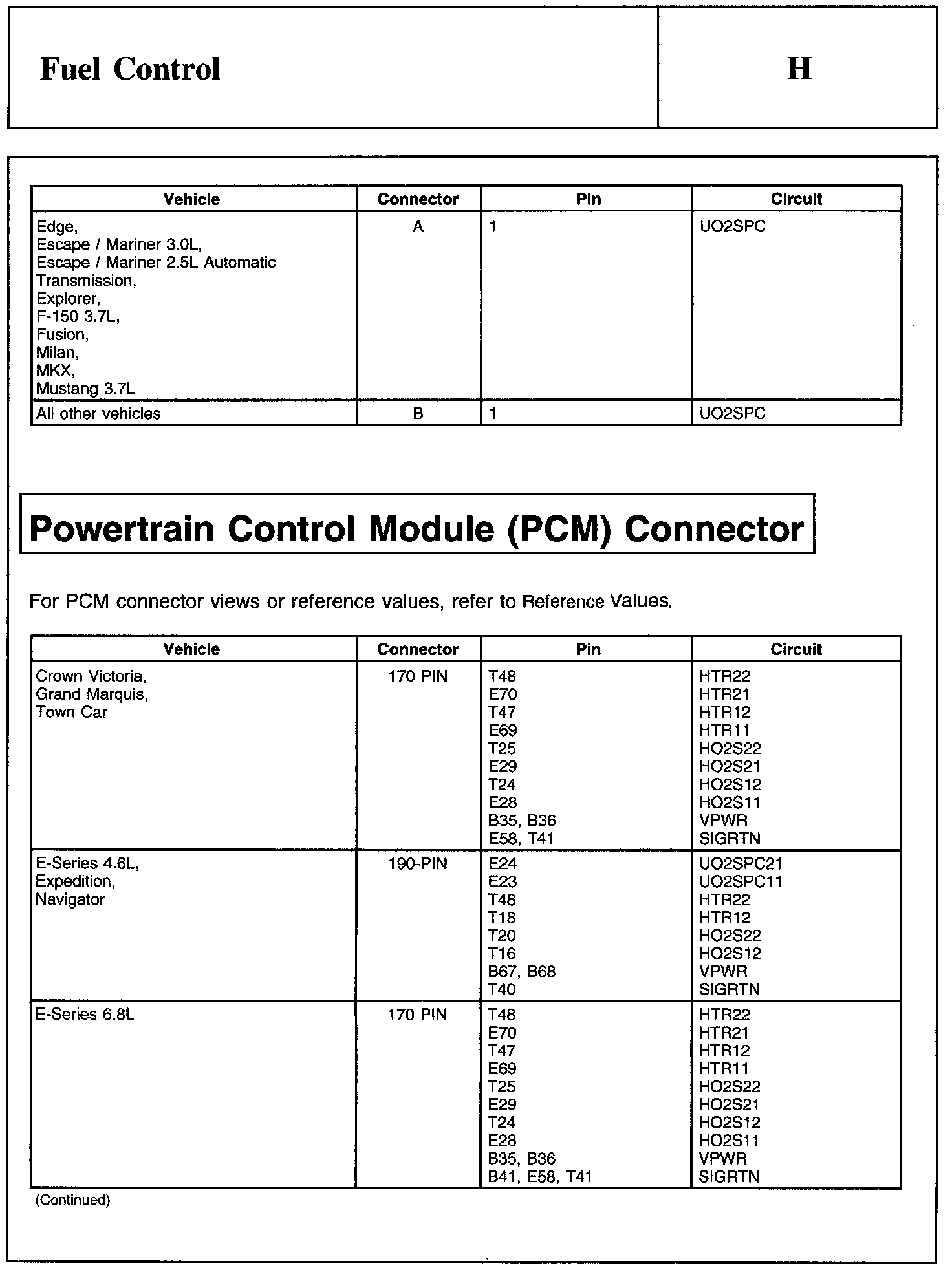

Powertrain Control Module (PCM) Connector:

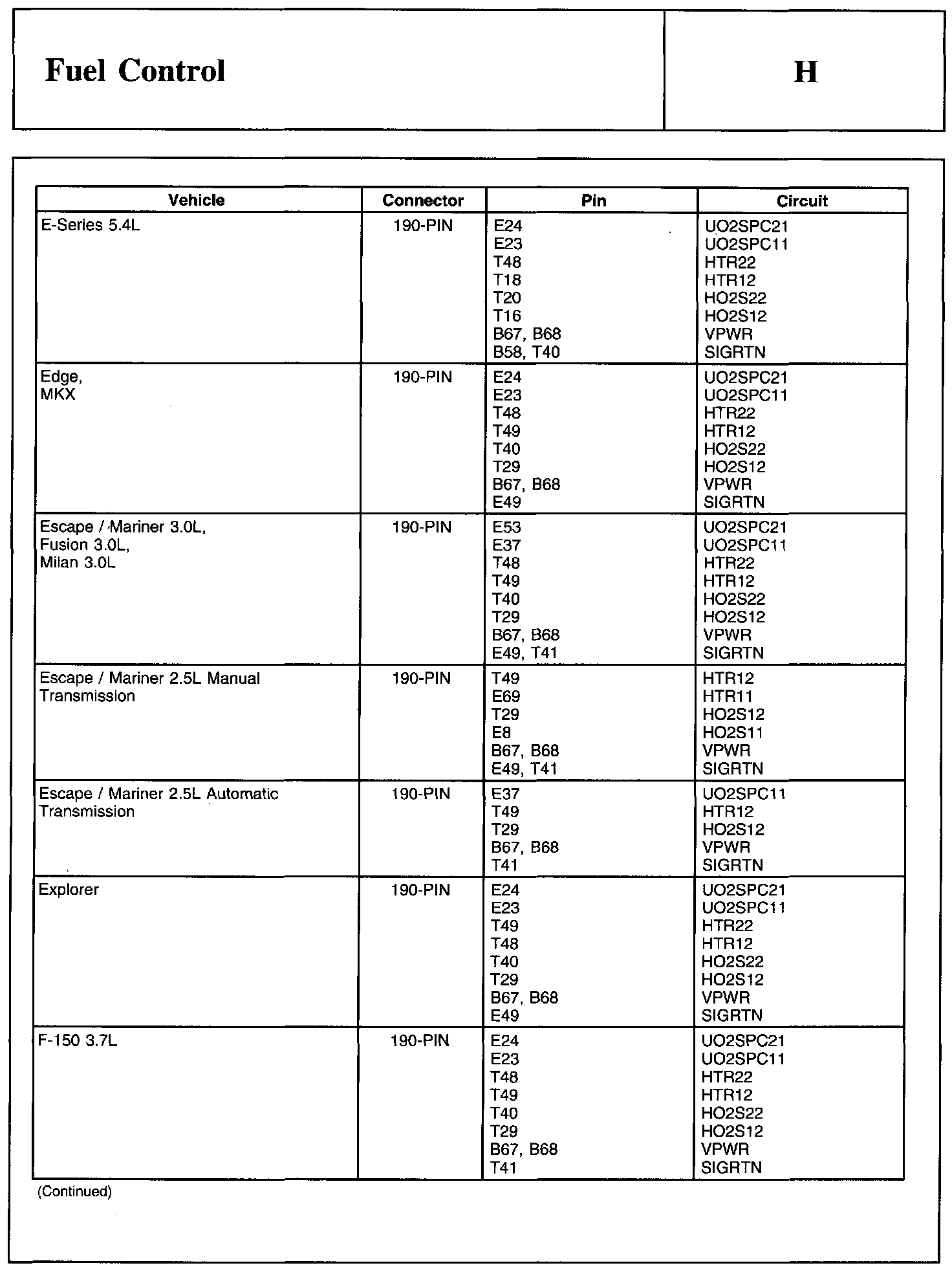

Powertrain Control Module (PCM) Connector:

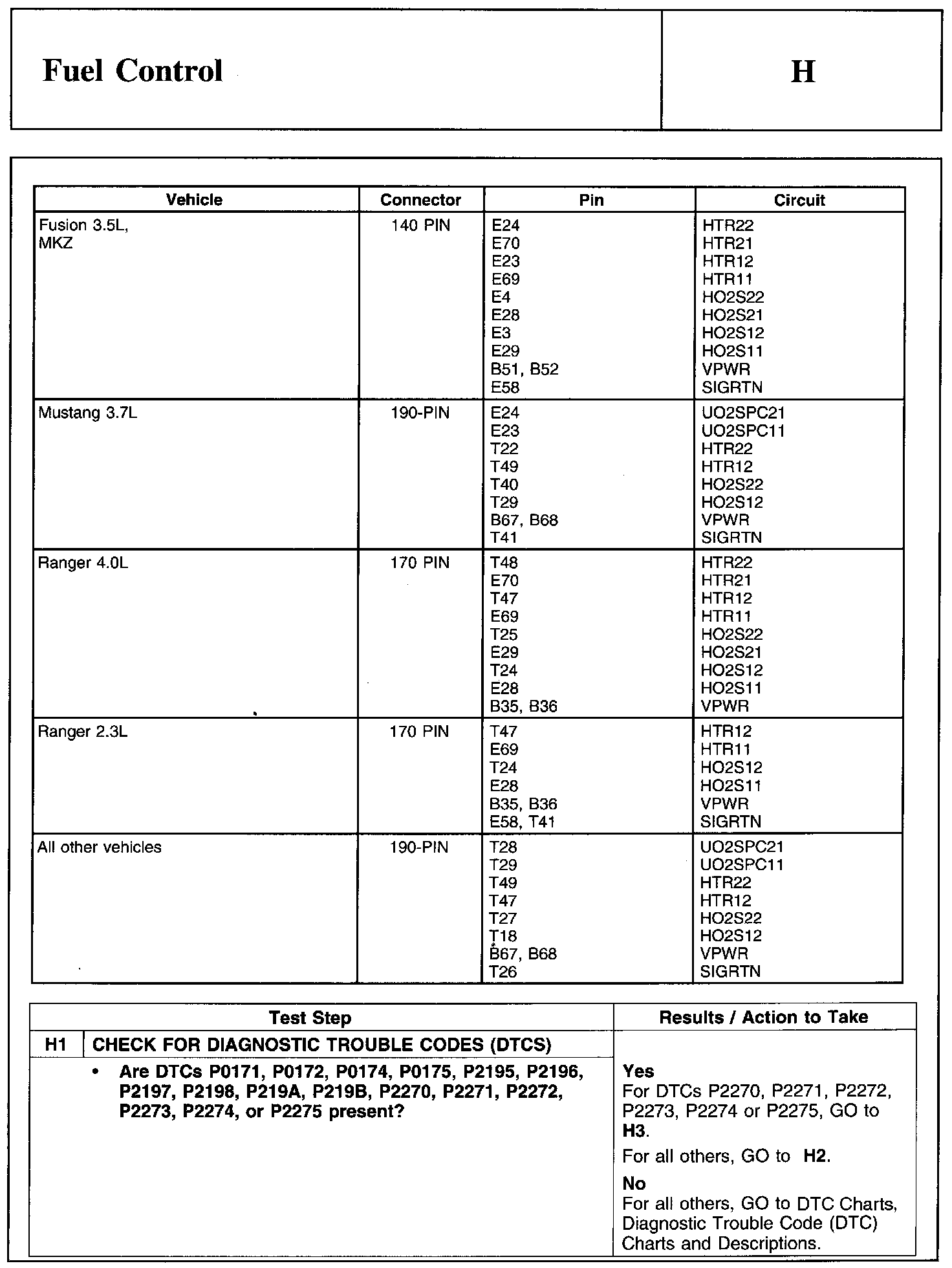

H1:

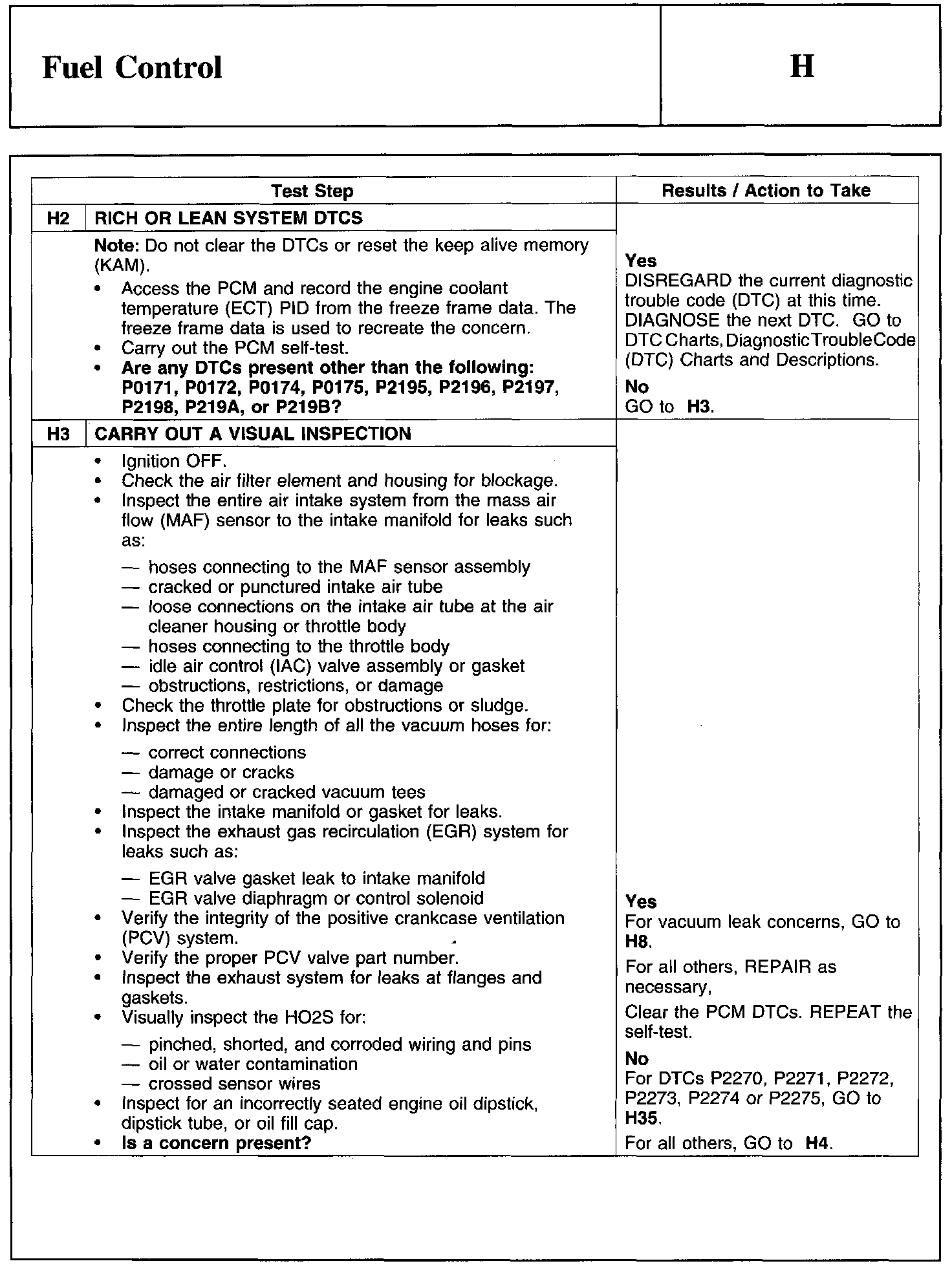

H2-H3:

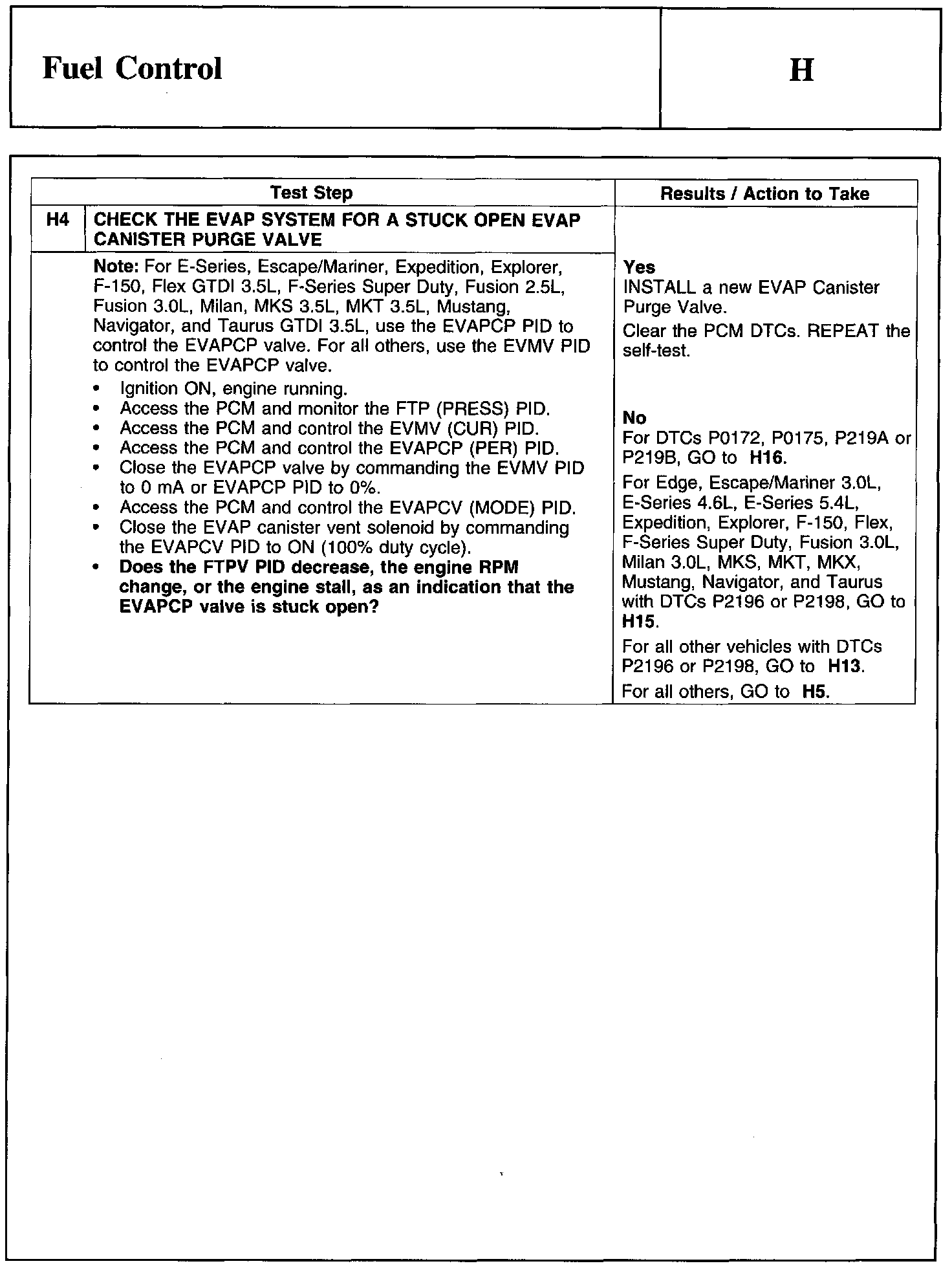

H4:

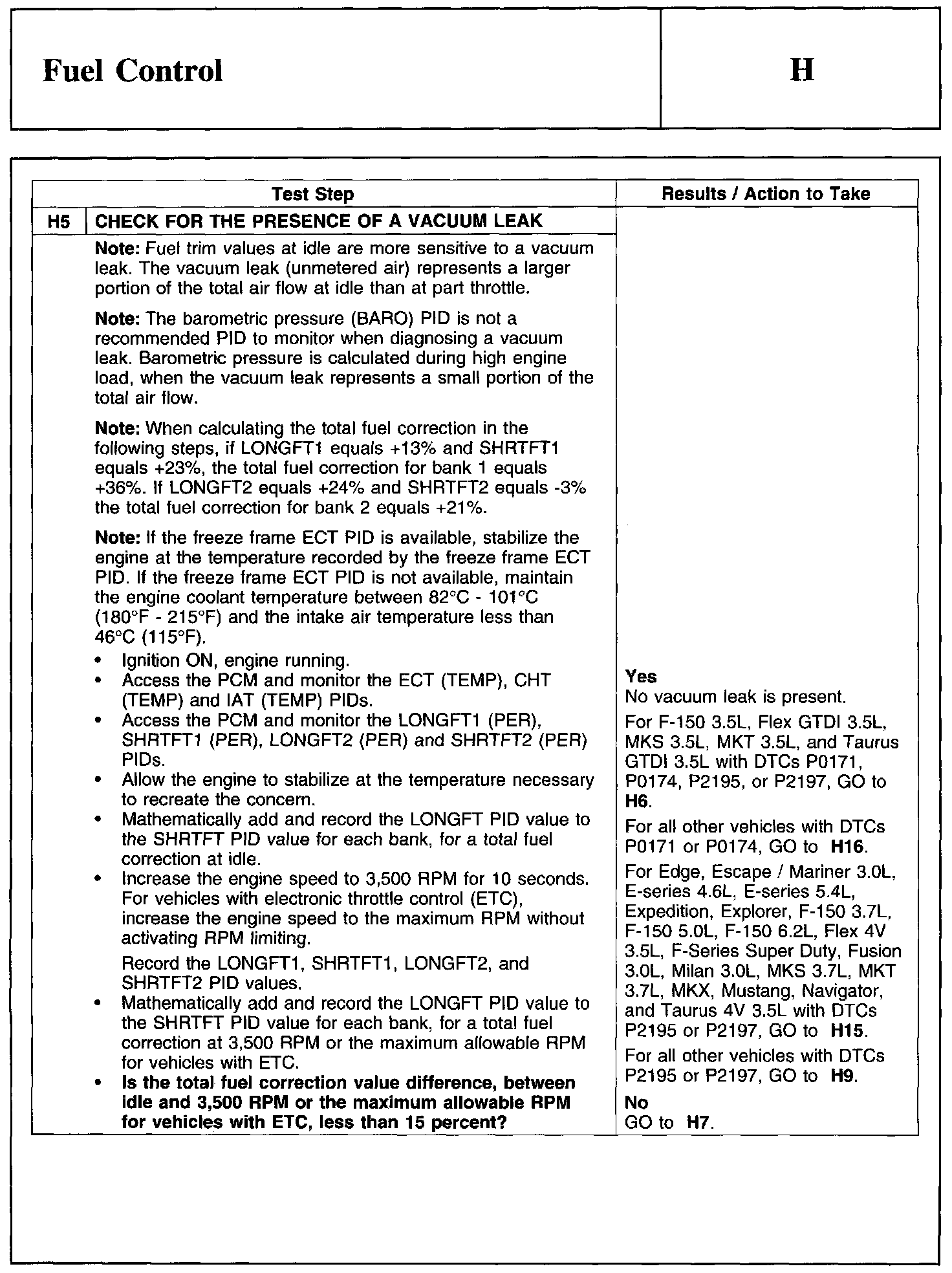

H5:

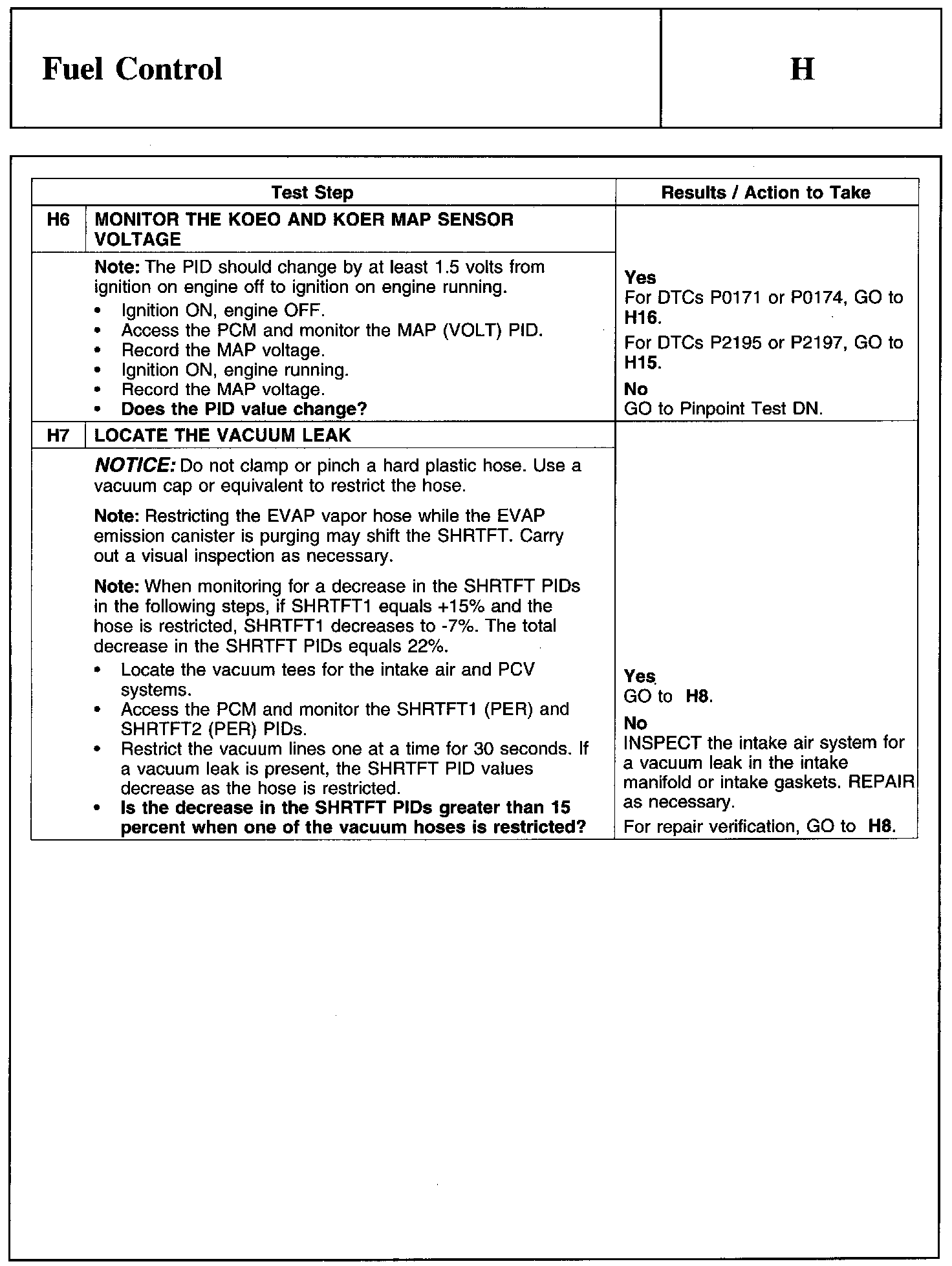

H6-H7:

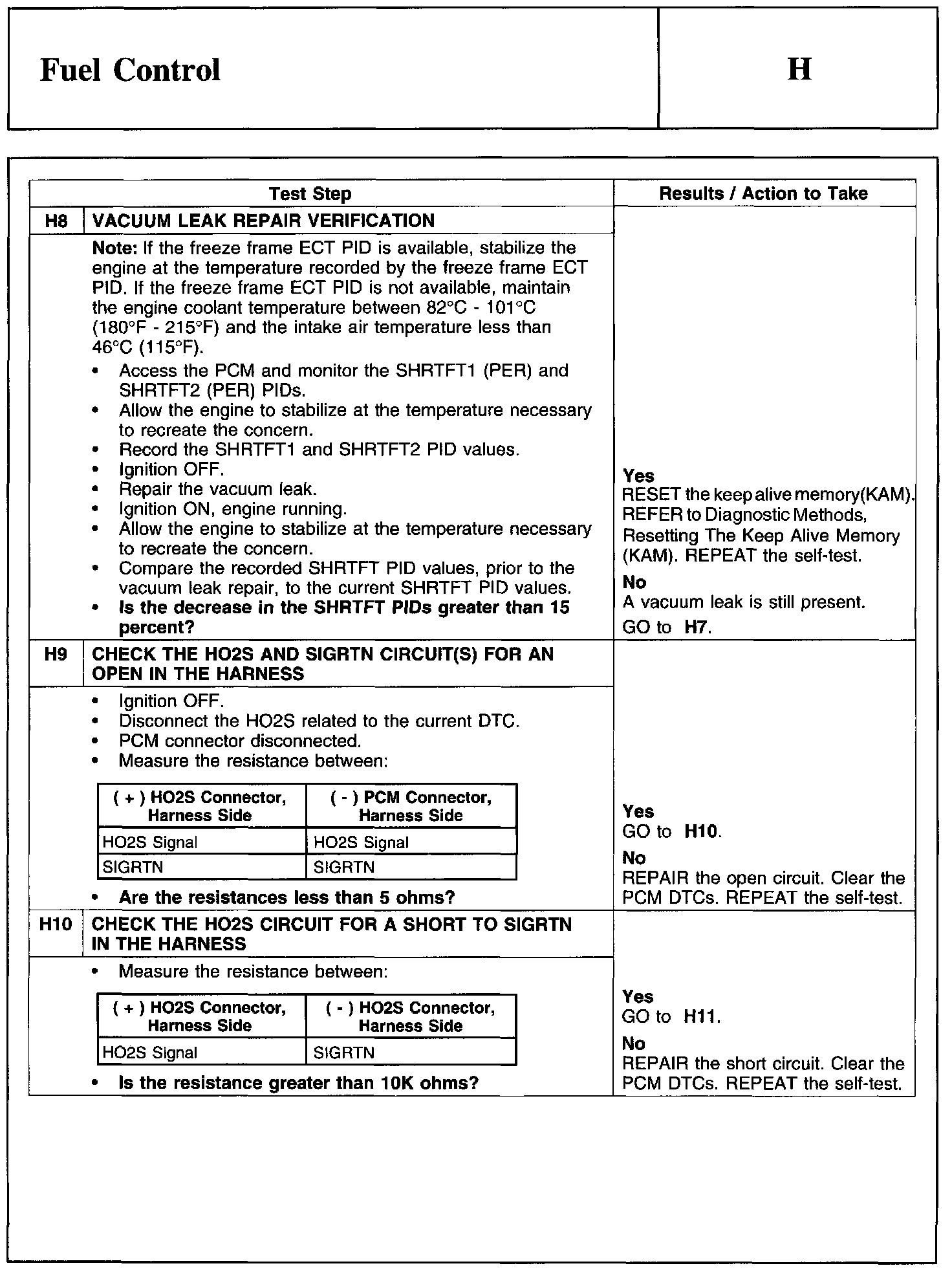

H8-H10:

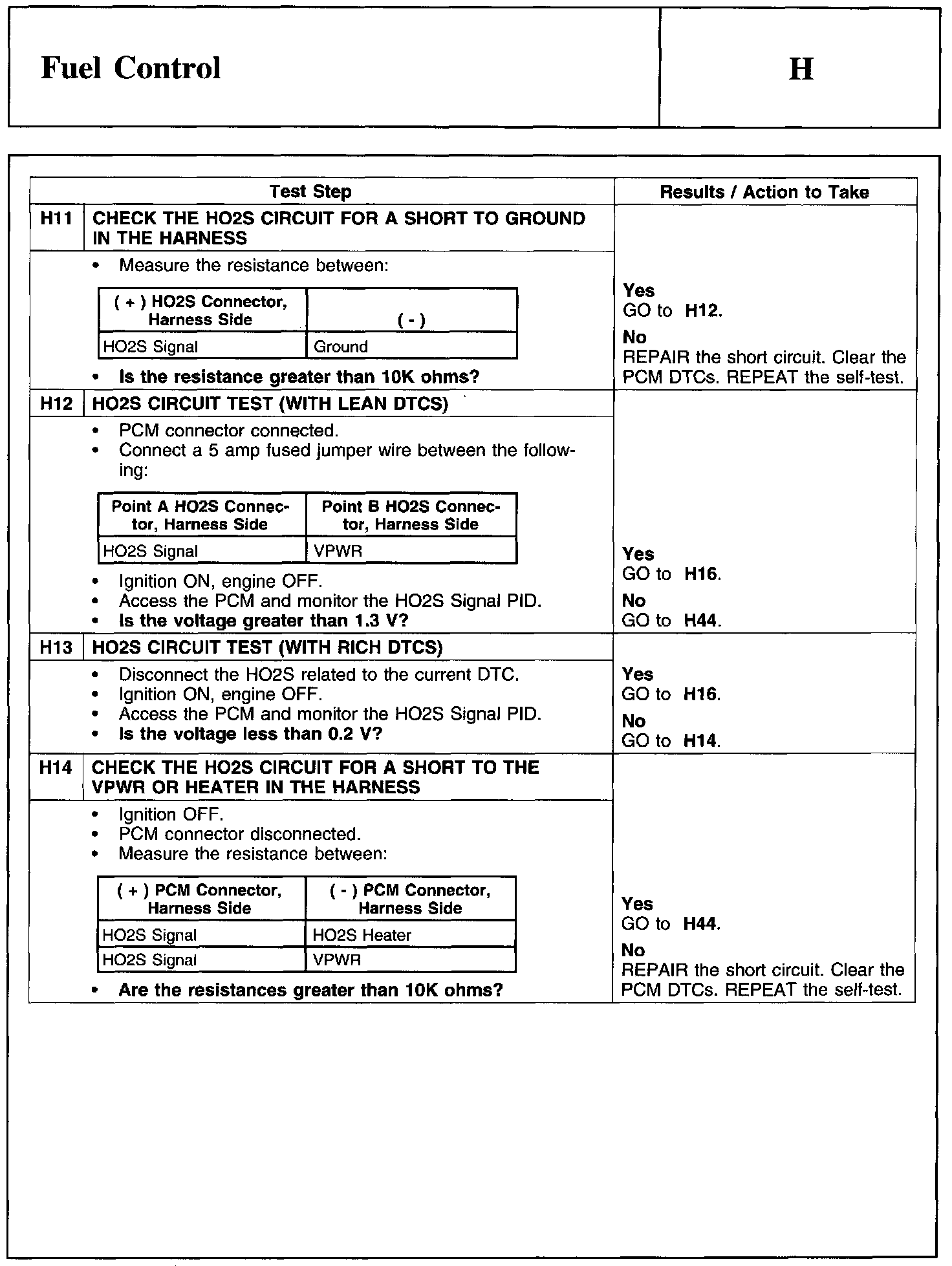

H11-H14:

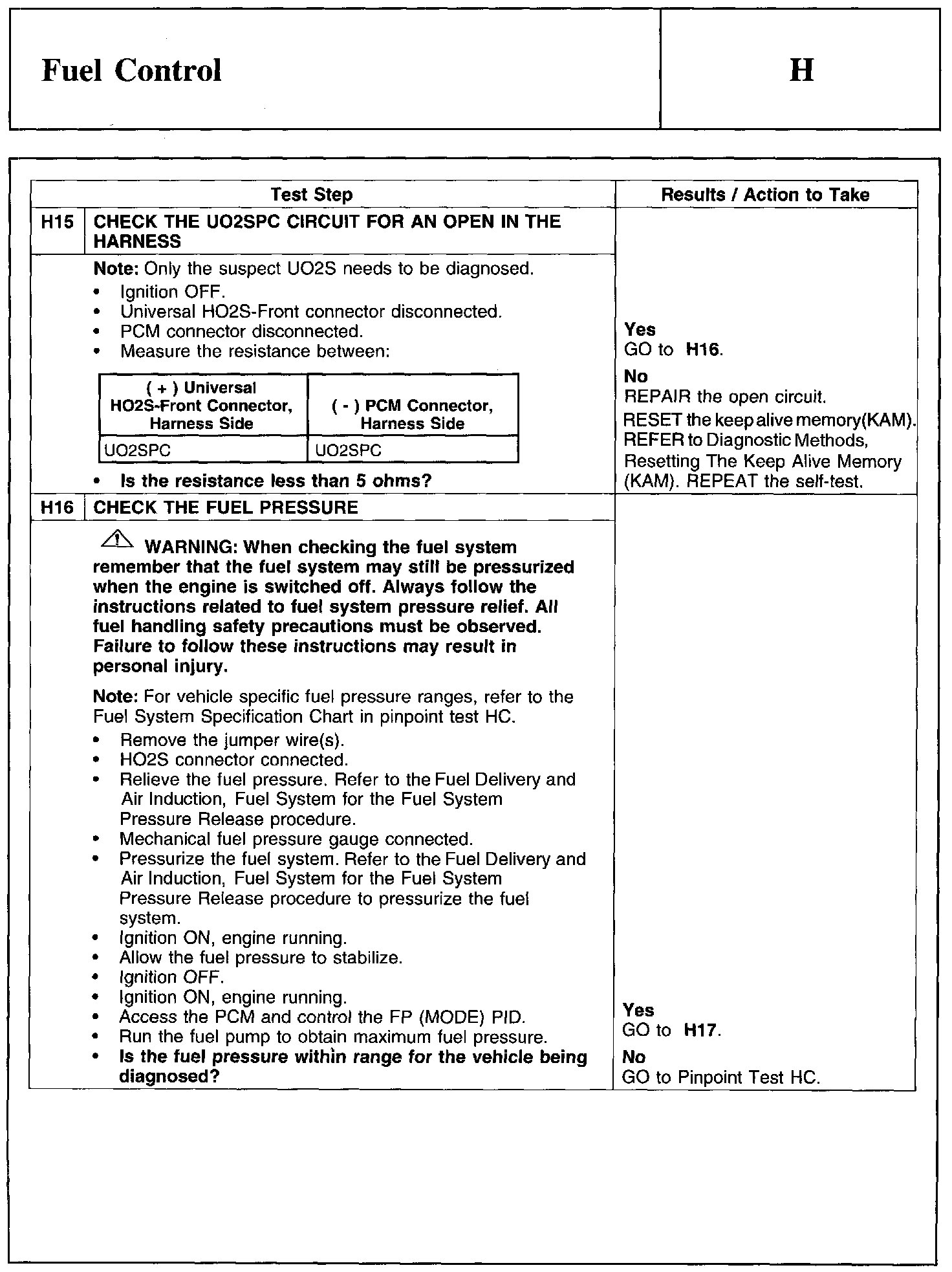

H15-H16:

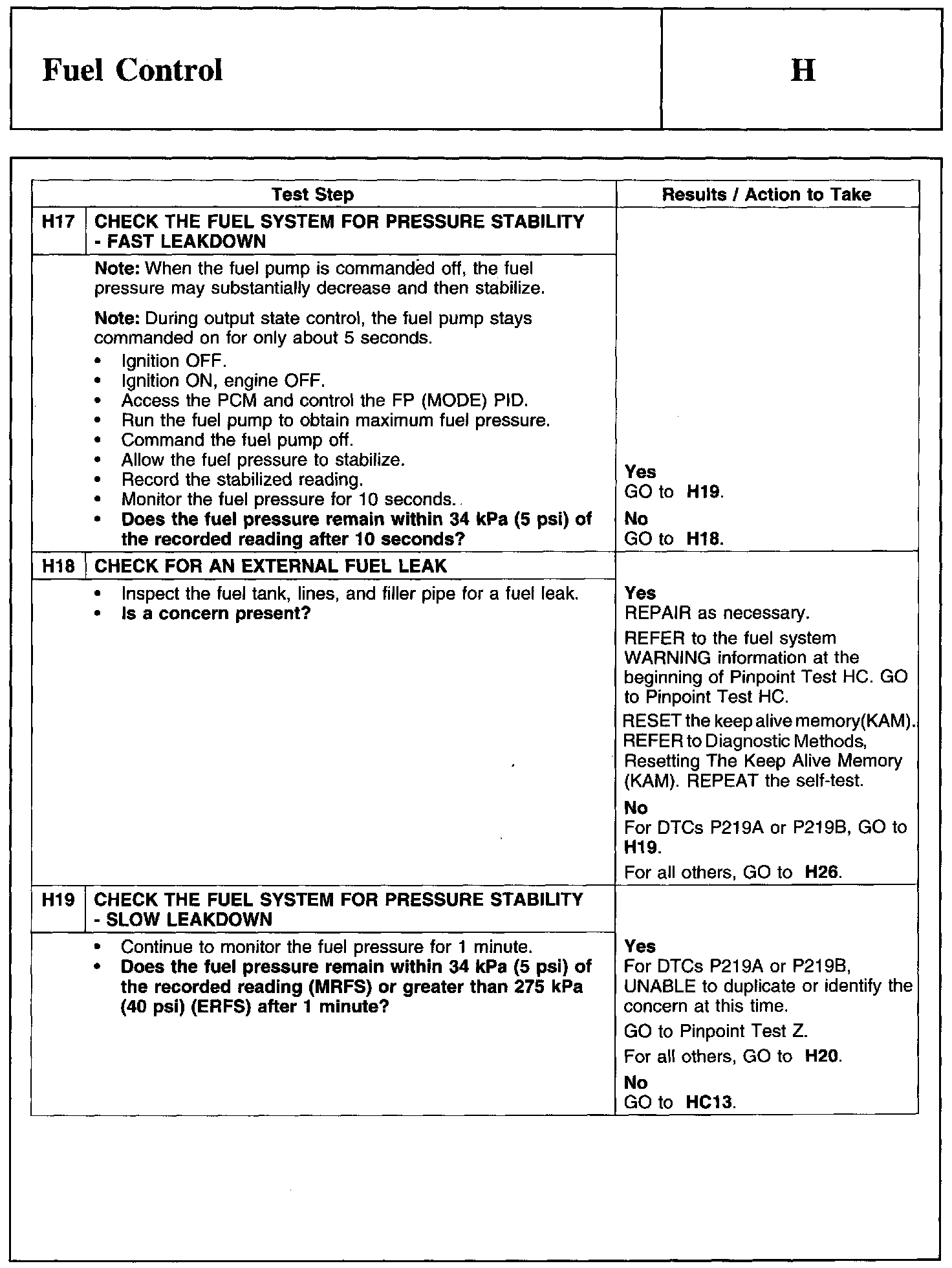

H17-H19:

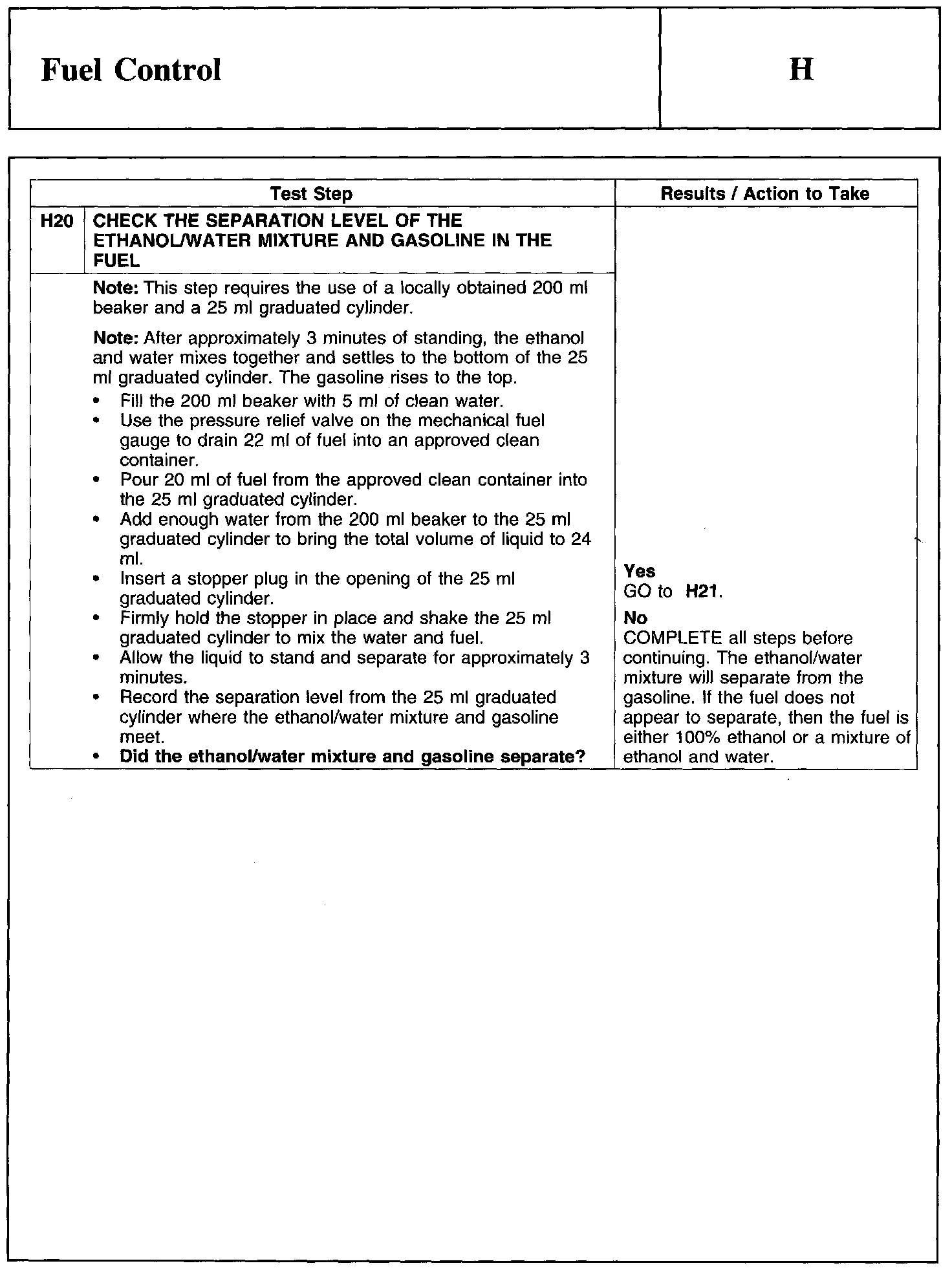

H20:

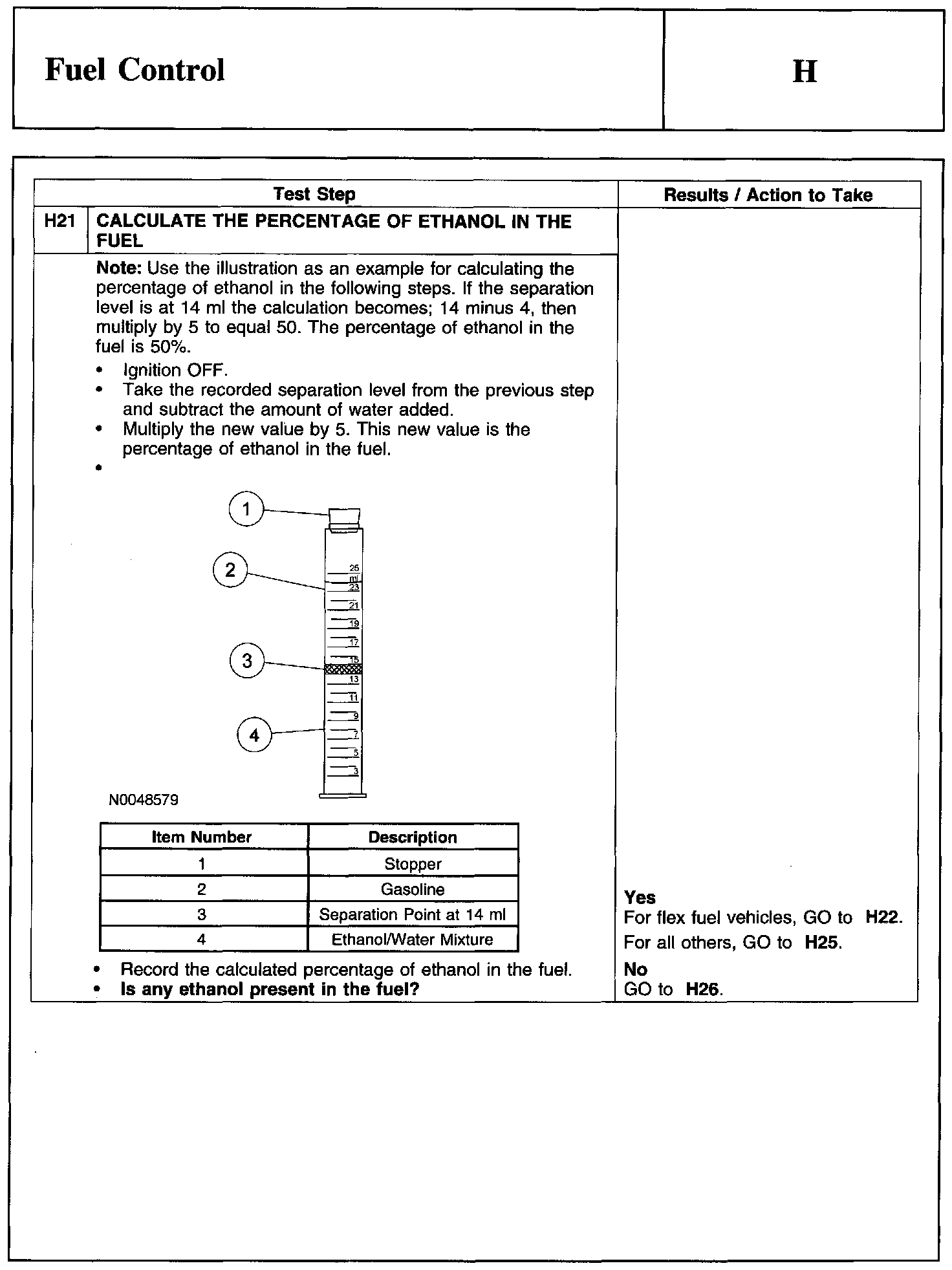

H21:

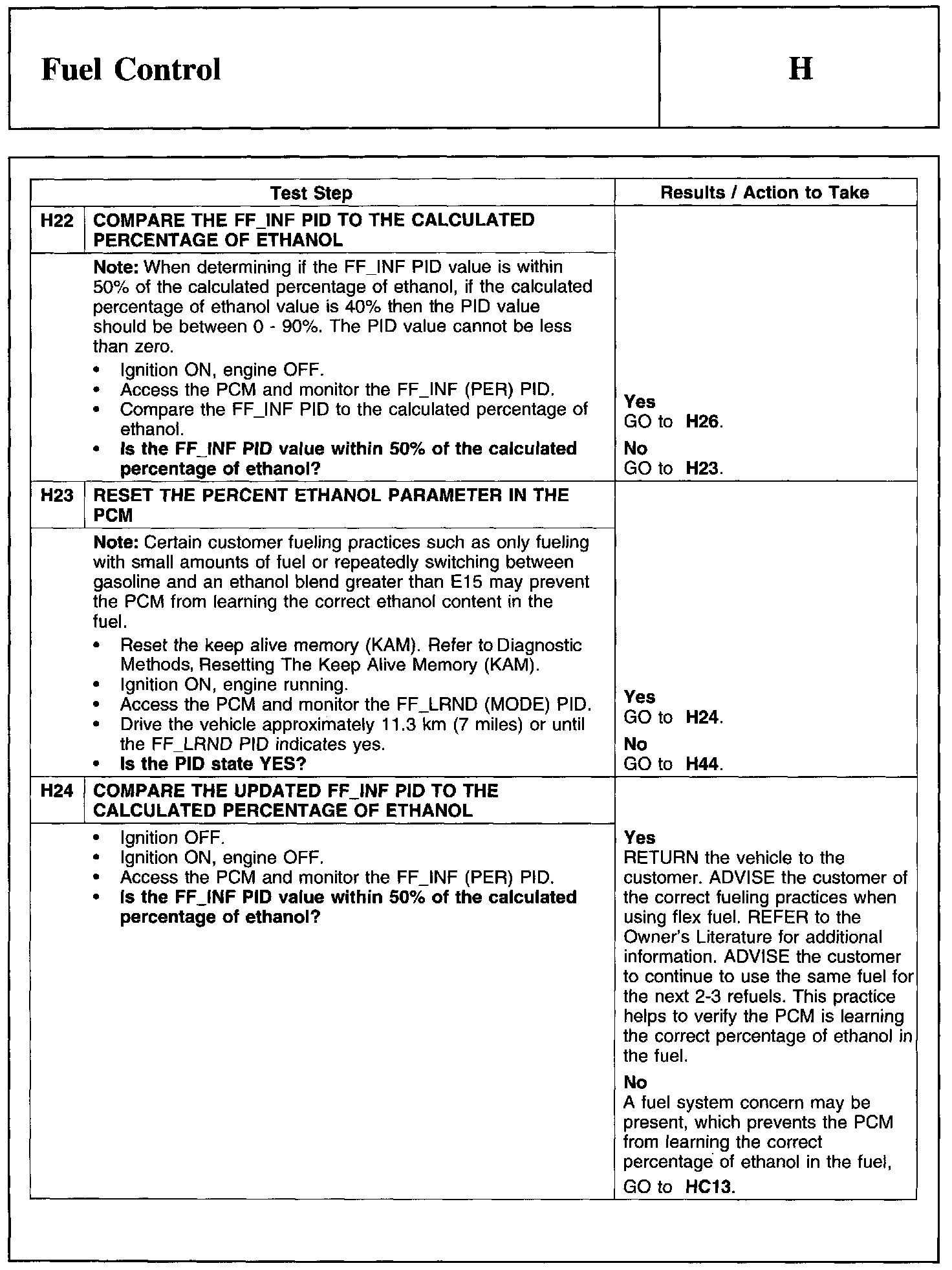

H22-H24:

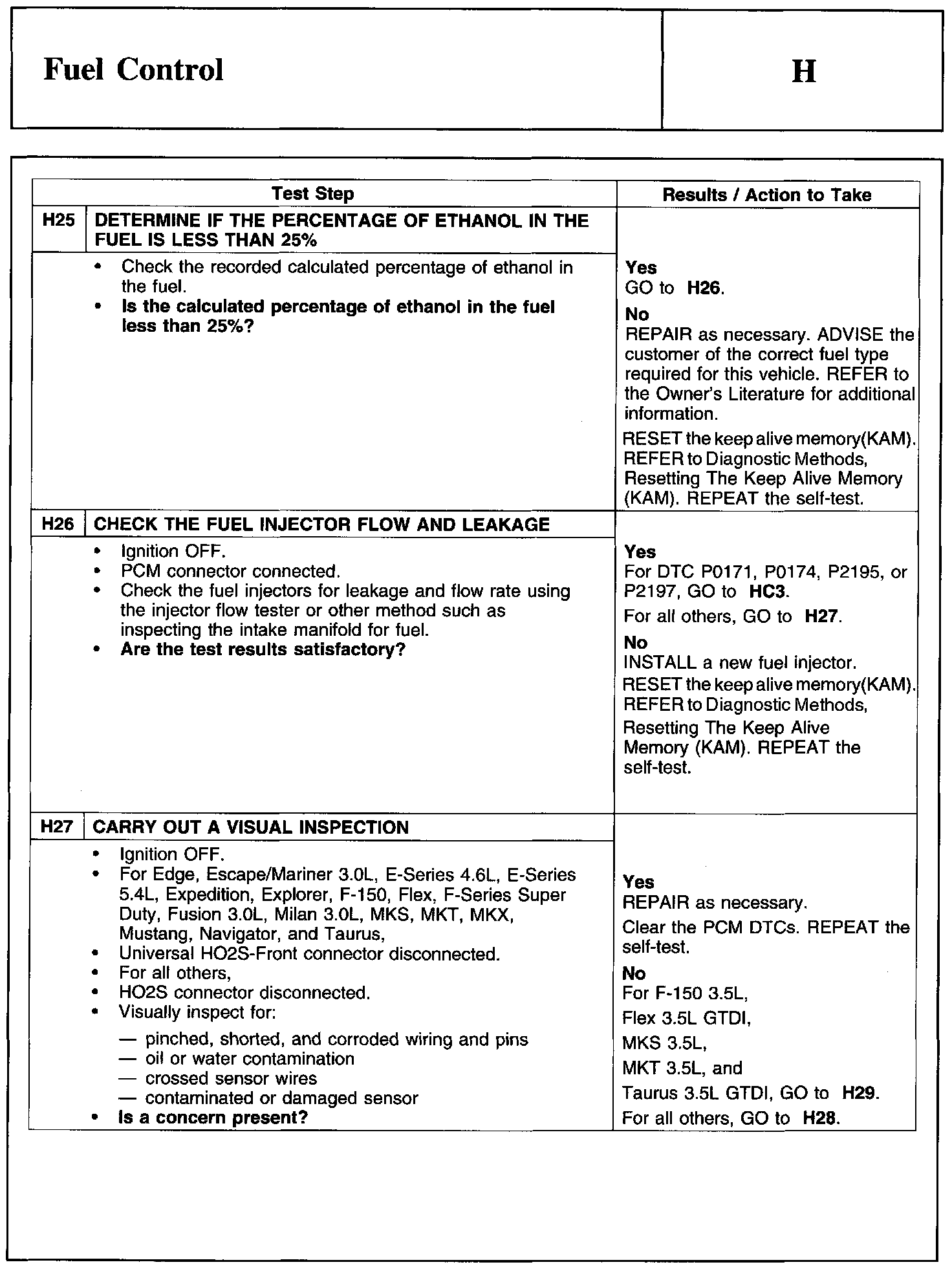

H25-H27:

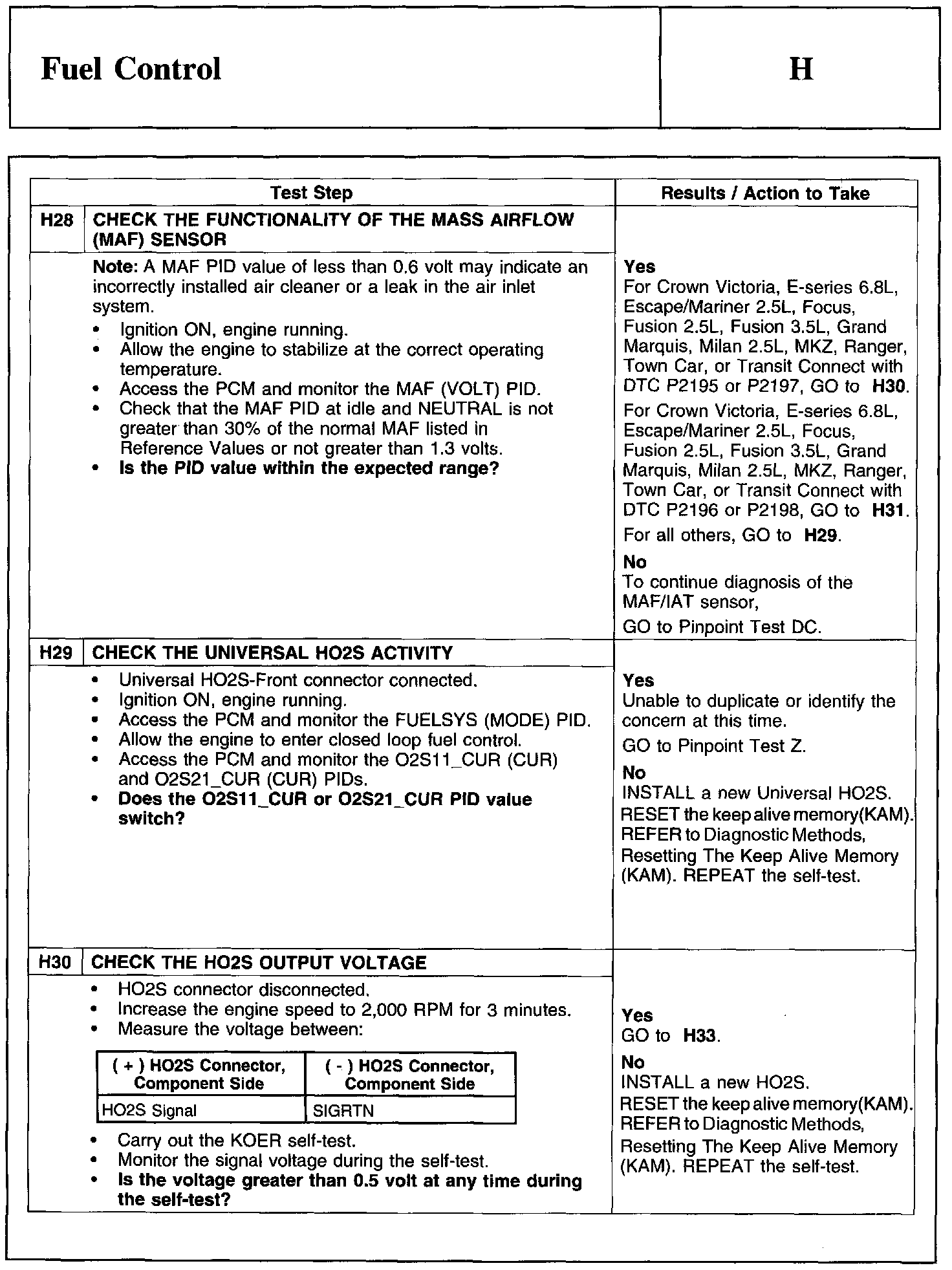

H28-H30:

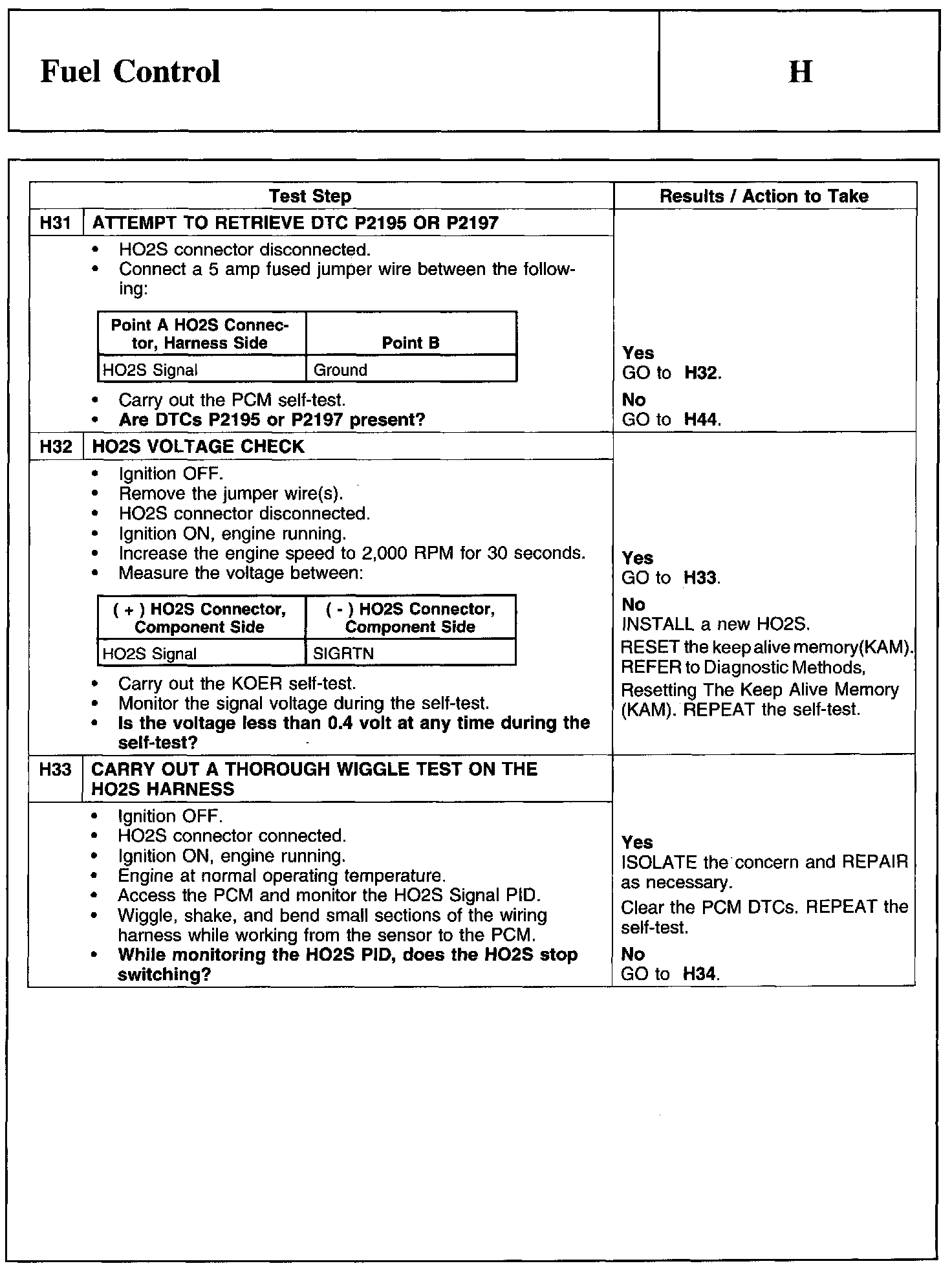

H31-H33:

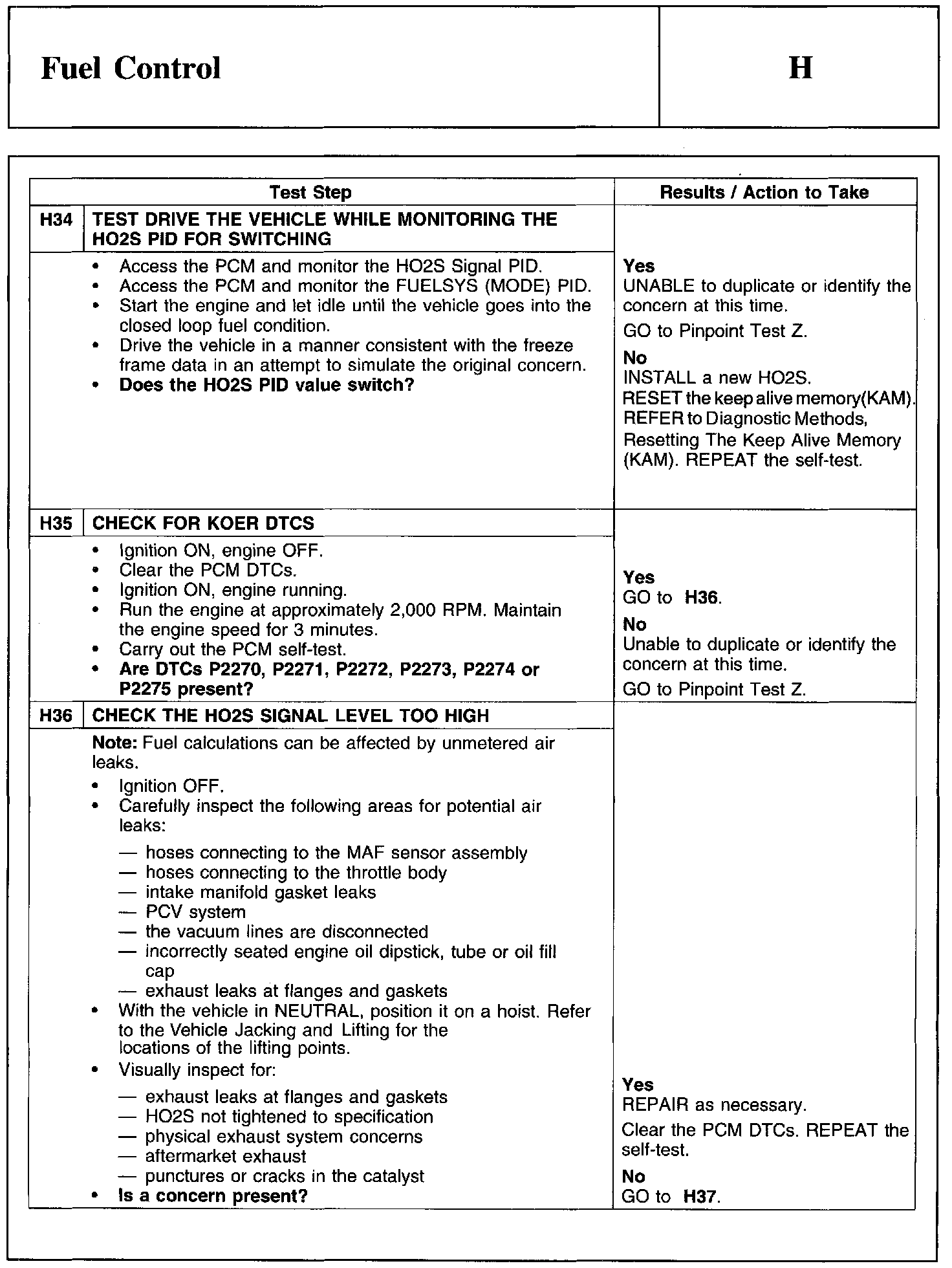

H34-H36:

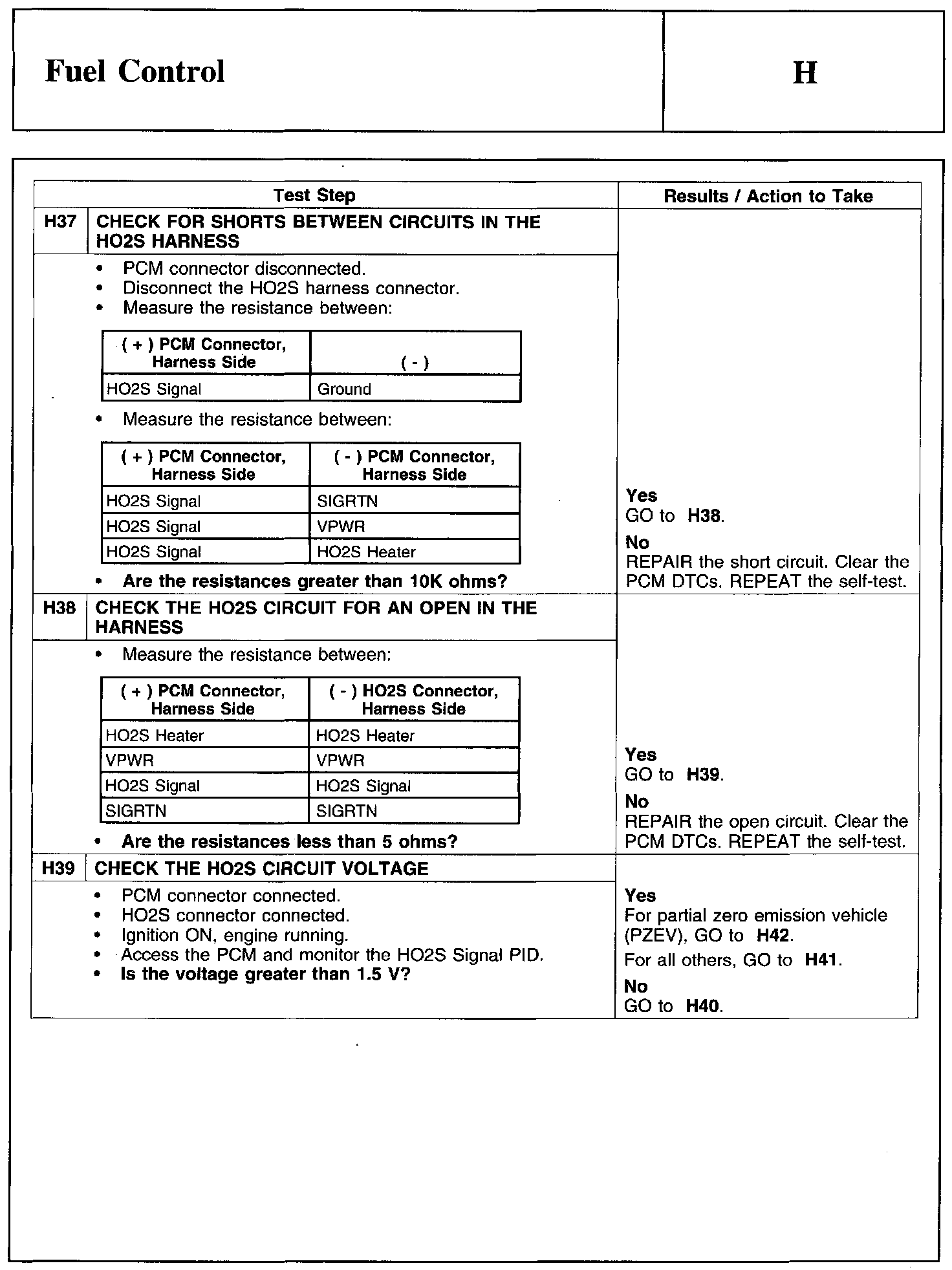

H37-H39:

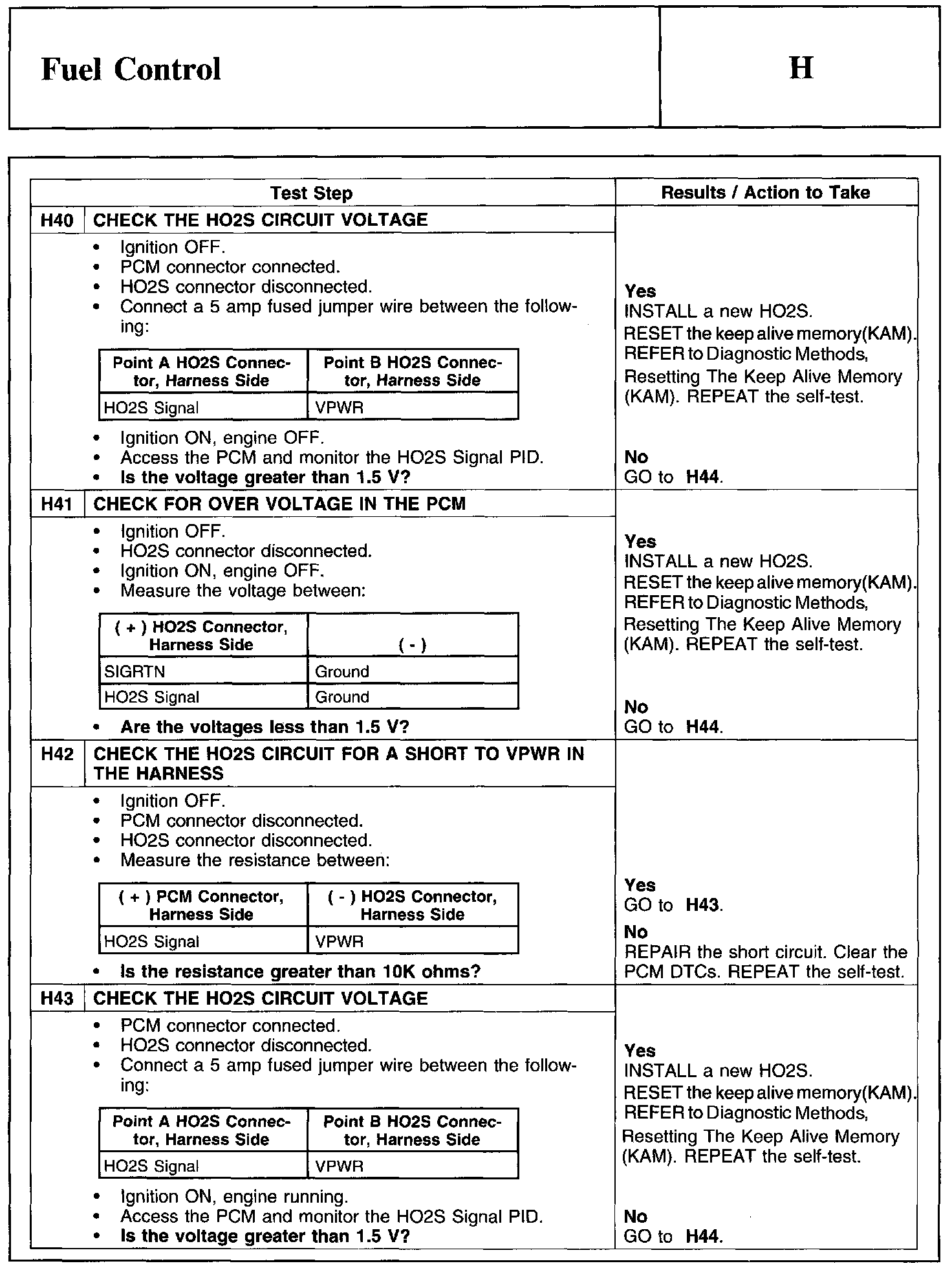

H40-H43:

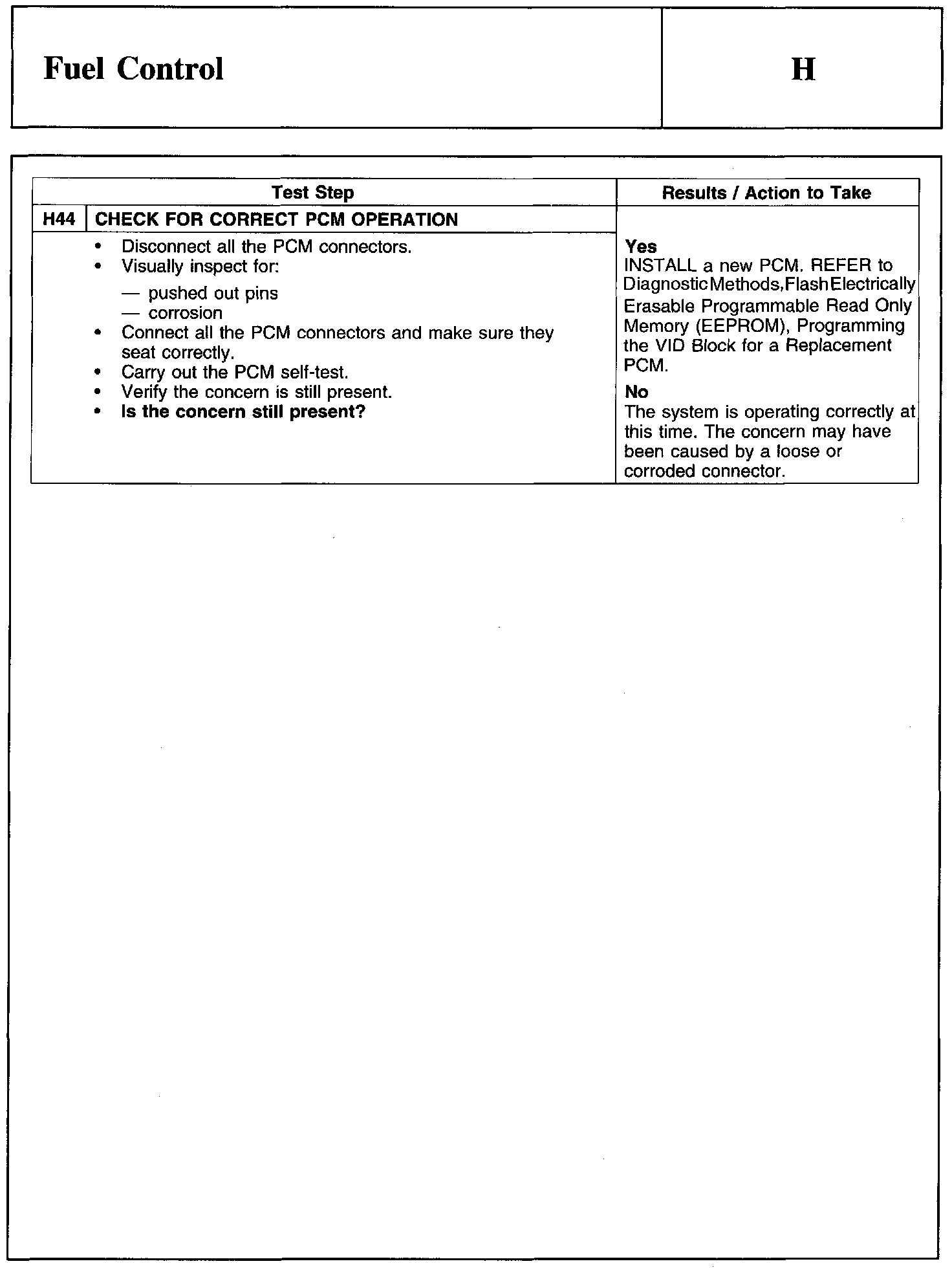

H44:
