2011 Ford Edge AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Control Components - Exploded View
Control Components - Exploded View
HVAC Module

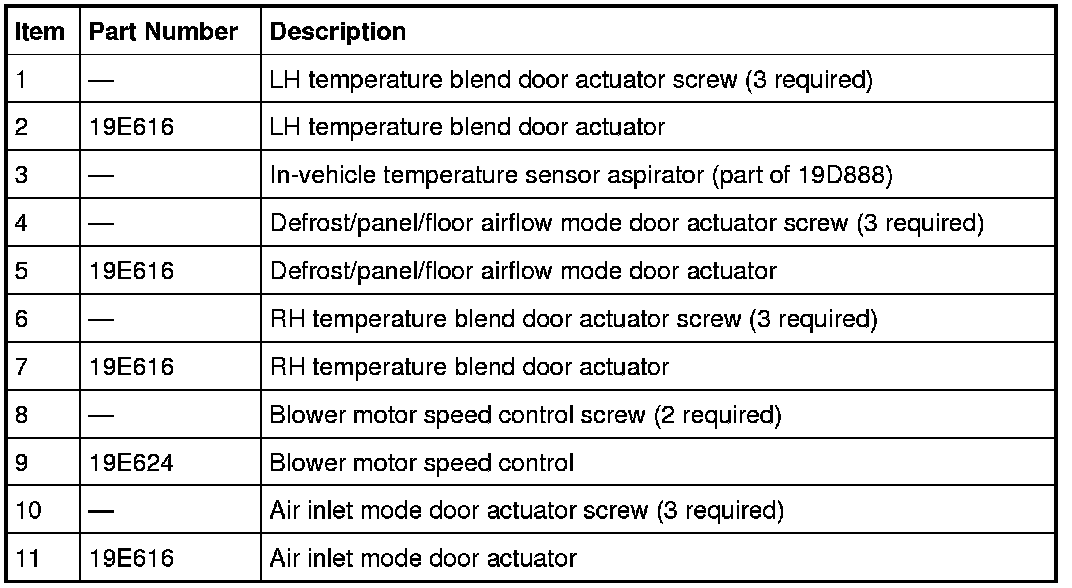

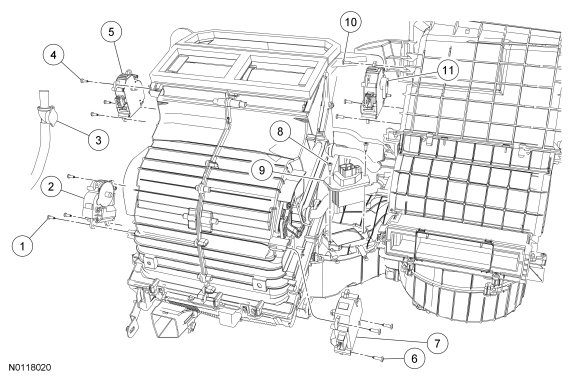

Heater Core and Evaporator Core Housing Control Components

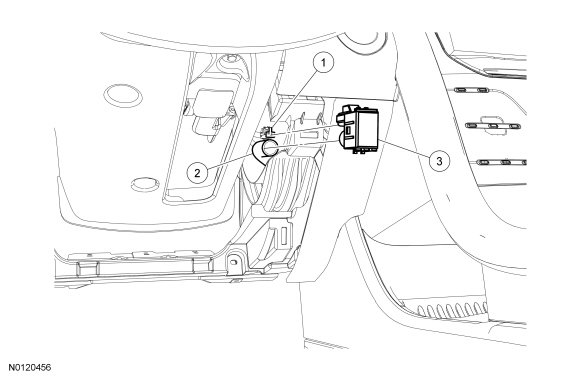

In-Vehicle Temperature Sensor
1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
