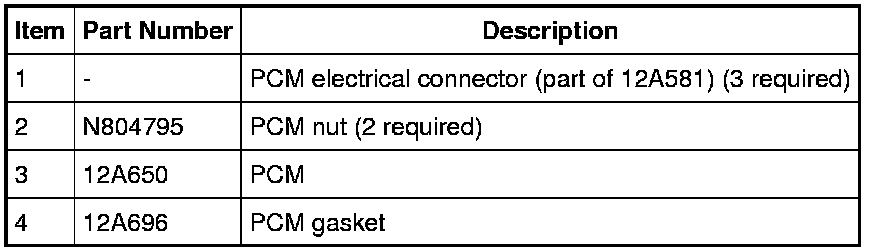

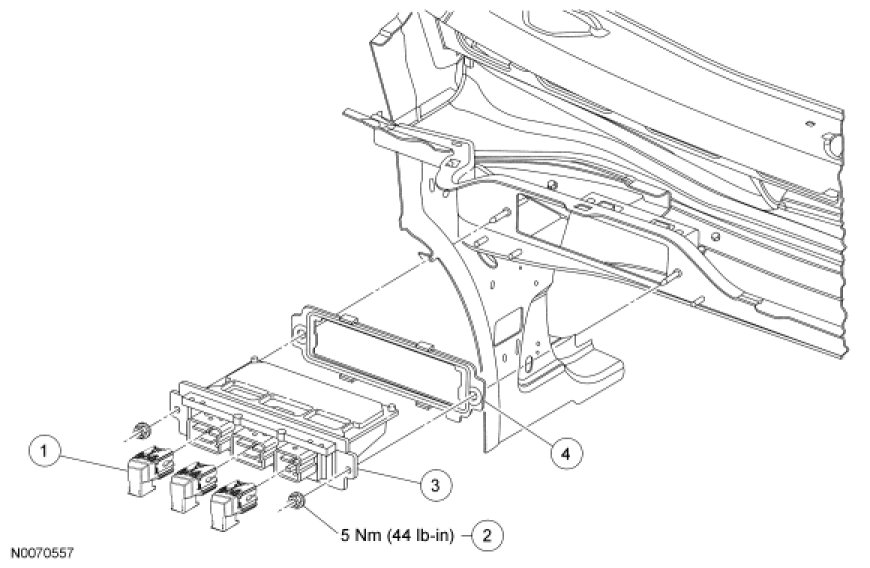

Engine Control Components - Exploded View

PCM

NOTE: PCM replacement DOES NOT require new keys or programming of keys.

NOTE: The module configuration must be retrieved before the PCM is removed. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure.

NOTE: After the PCM is installed, the module configuration must be restored. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure.

NOTE: After the PCM is installed, the Passive Anti-Theft System (PATS) must be reprogrammed. Carry out the Parameter Reset procedure. For additional information, refer to Anti-Theft - Passive Anti-Theft System (PATS) Passive Anti-Theft System (PATS).

NOTE: After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

Removal and Installation

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
