2010 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Exhaust System
Exhaust System - Exploded View

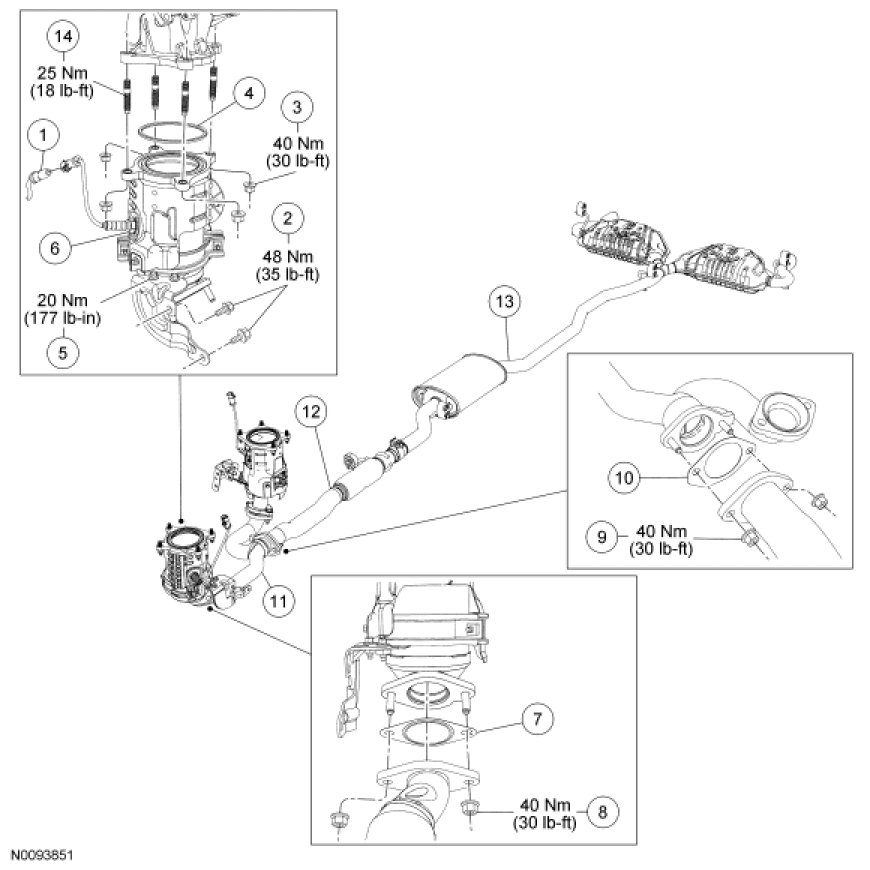

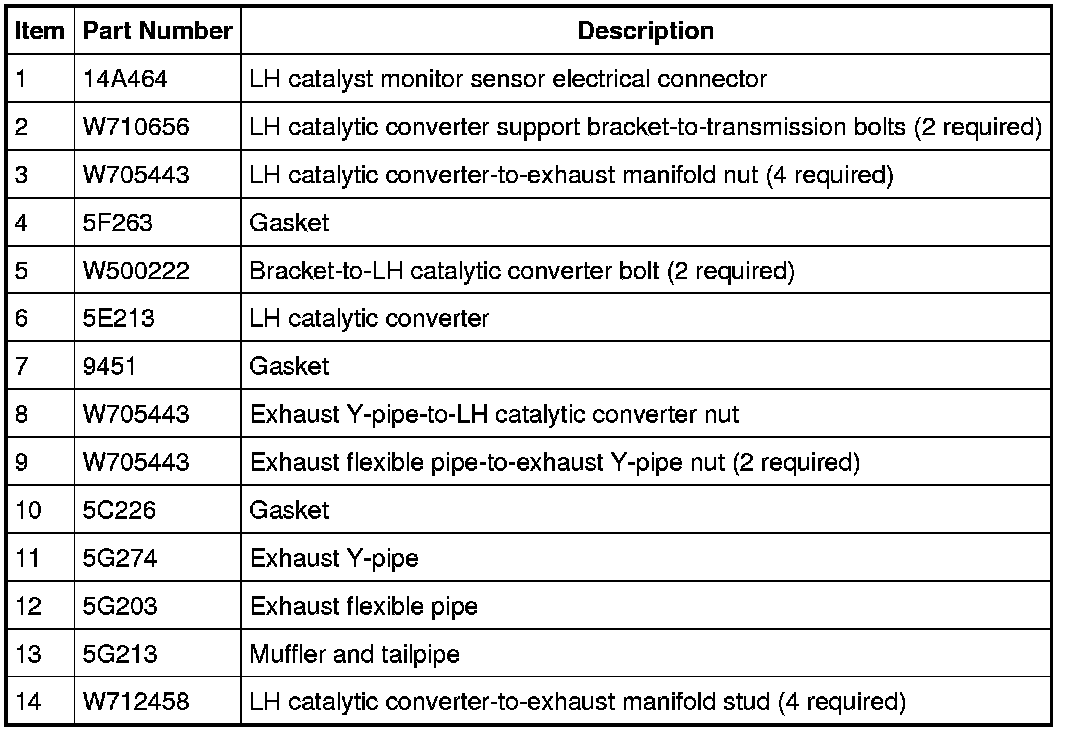

LH Catalytic Converter and Y-Pipe

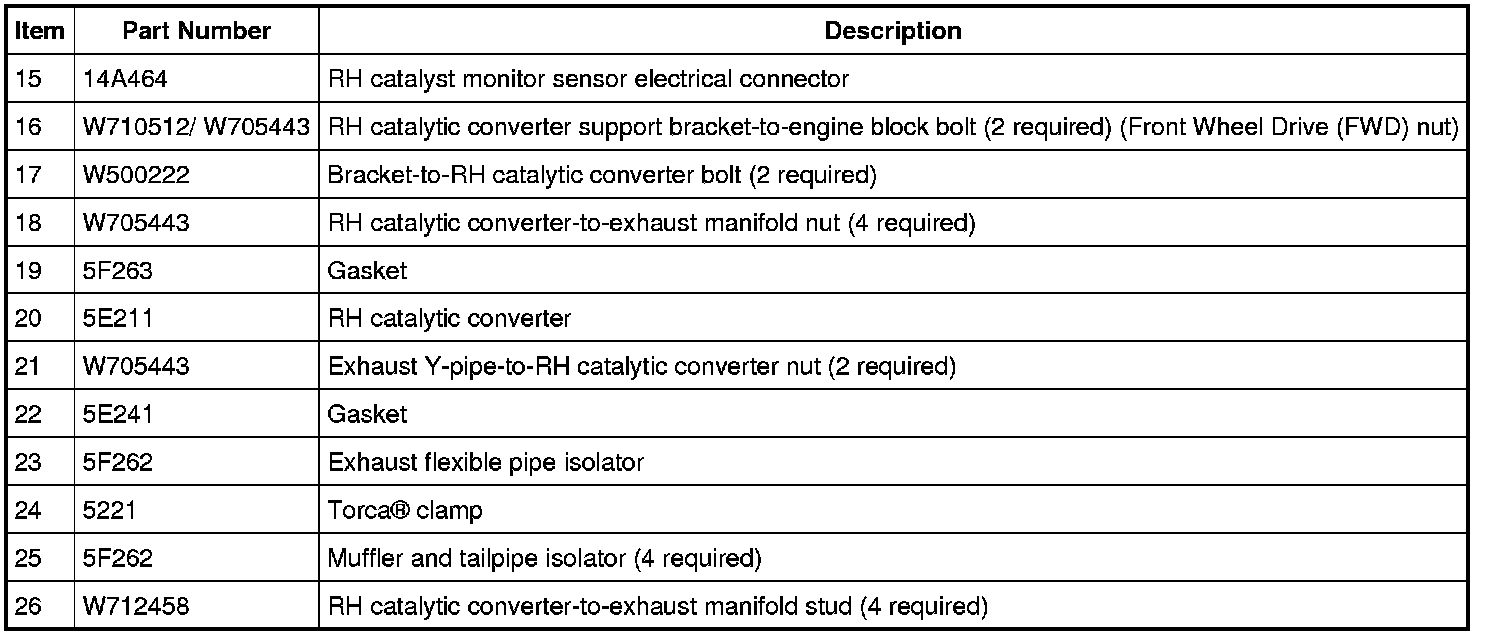

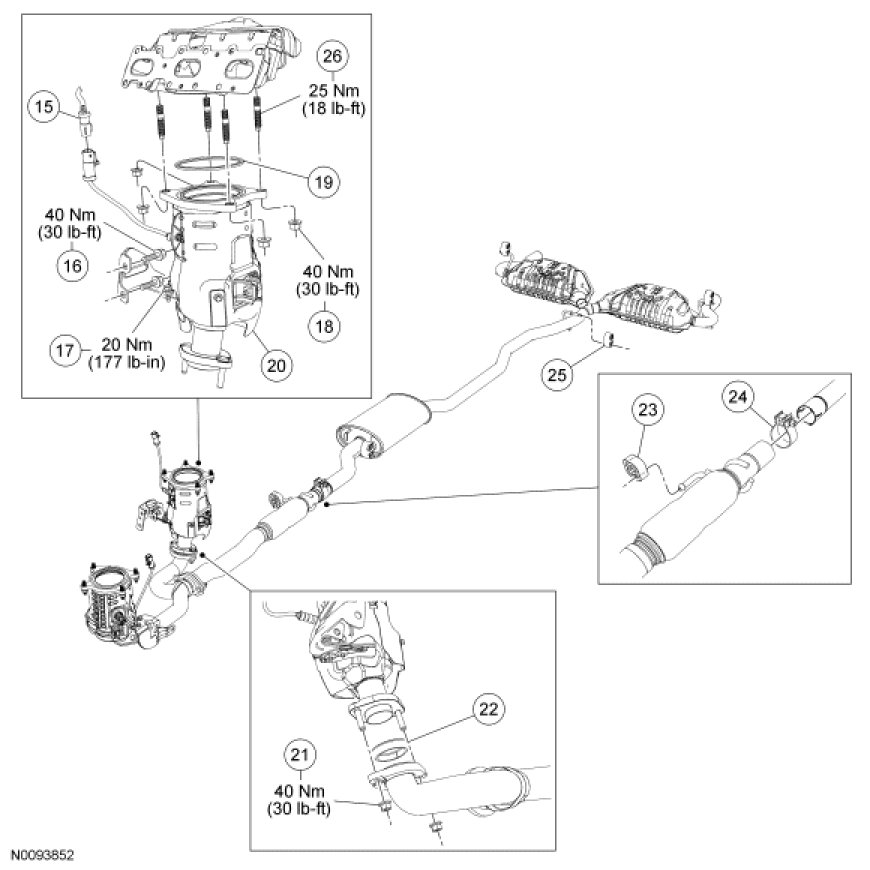

RH Catalytic Converter and Exhaust Flexible Pipe

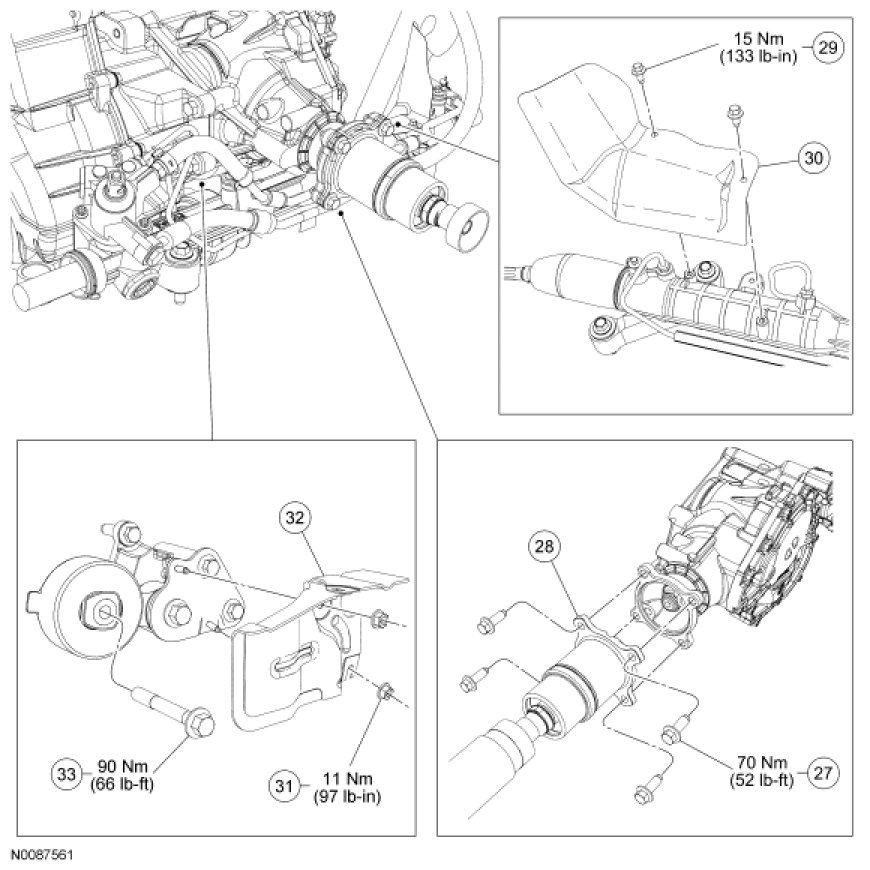

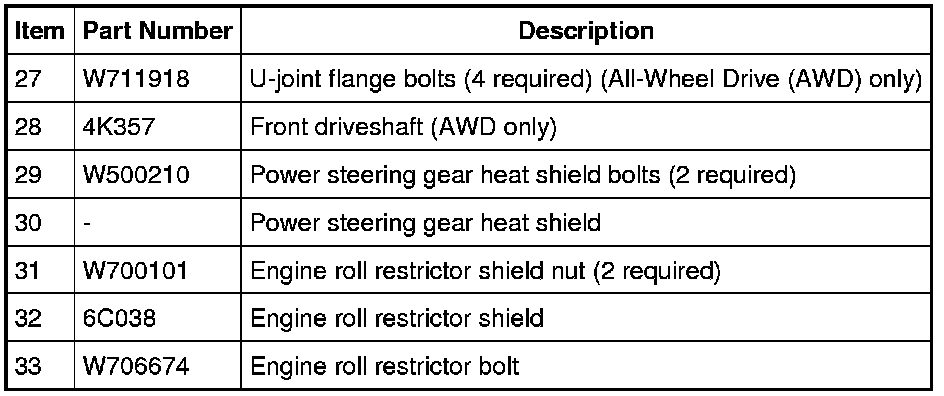

Engine Roll Restrictor, Heat Shield and Driveshaft
