2009 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE

Front Disc Brake System - Exploded View

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

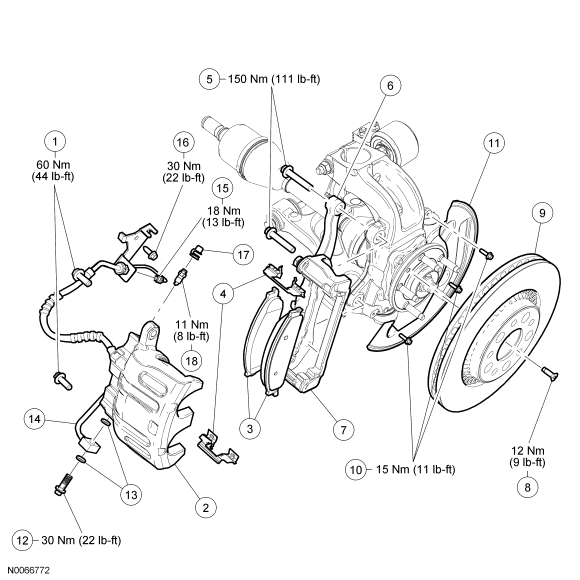

Fig 1: Disc Brake System Components - Exploded View With Torque Specifications
GF0045784Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Brake caliper guide pin bolts (2 required) (part of 2B134)
2 2B294 RH/ 2B302 LH Brake caliper
3 2001 Brake pads
4 - Spring clips (2 required) (part of 2001)
5 W713220 Brake caliper anchor plate bolts (2 required)
6 - Steering stop
7 2B134 Brake caliper anchor plate
8 W708733 Brake disc screw
9 1125 Brake disc
10 W712797 Brake disc shield bolts (3 required)
11 2K004 RH/ 2K005 LH Brake disc shield
12 W709290 Brake caliper flow bolt
13 388949 Copper washers (2 required)
14 2078 RH/ 2B557 LH Brake flexible hose
15 - Brake tube fitting
16 W704911 Brake flexible hose bracket bolt
17 2L126 Bleeder screw cap
18 2208 Bleeder screw
  1. For additional information, refer to the procedures in this article.
