2009 Ford Focus S, AutomaticFACTORY OEM SERVICE PROCEDURE

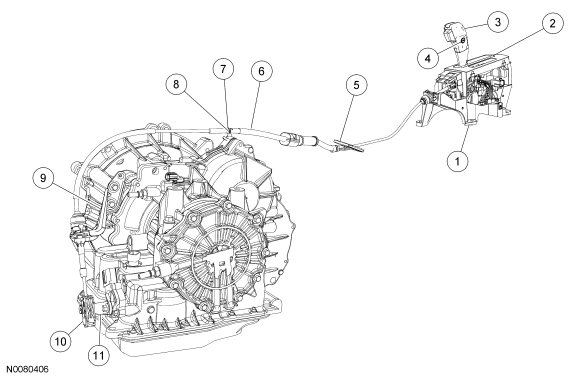

External Controls: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 7K004 | Selector lever assembly |
| 2 | 7E034 | Selector lever bezel |
| 3 | 7L010 | Selector lever knob |
| 4 | - | Transmission Control Switch (TCS) (part of 7L010) |
| 5 | - | Selector lever cable grommet (part of 7E395) |
| 6 | 7E395 | Selector lever cable |
| 7 | 7E364 | Selector lever cable retaining bracket |
| 8 | - | Selector lever cable alignment mark (part of 7E395) |
| 9 | 7B229 | Selector lever cable bracket |
| 10 | - | Selector lever cable adjuster (part of 7E395) |
| 11 | 7210 | Manual control lever |
