2008 Ford Taurus FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Spark Plug: Service and Repair
SPARK PLUGS
Exploded View
Removal
1. Remove the ignition coil-on-plugs for the spark plugs being serviced. Refer to Ignition Coil-On-Plug.
2. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.
NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
Remove the 6 spark plugs.
Installation

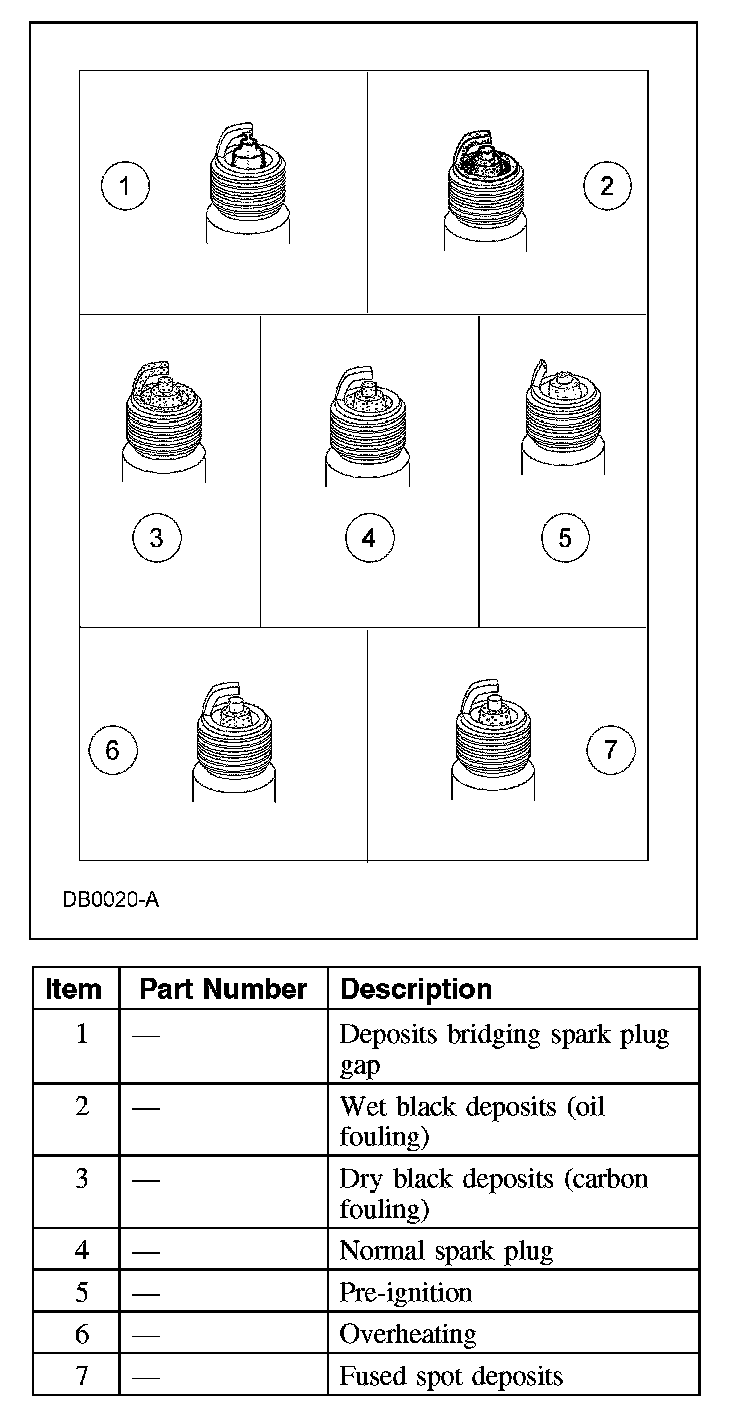

1. Inspect the 6 spark plugs.

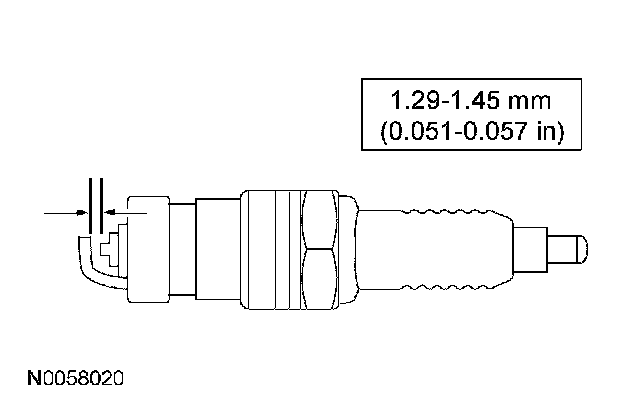

2. Adjust the spark plug gap as necessary.
3. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.
Install the 6 spark plugs.
- Tighten to 15 Nm (11 lb-ft).
4. Install the ignition coil-on-plugs. Refer to Ignition Coil-On-Plug.
Exploded View

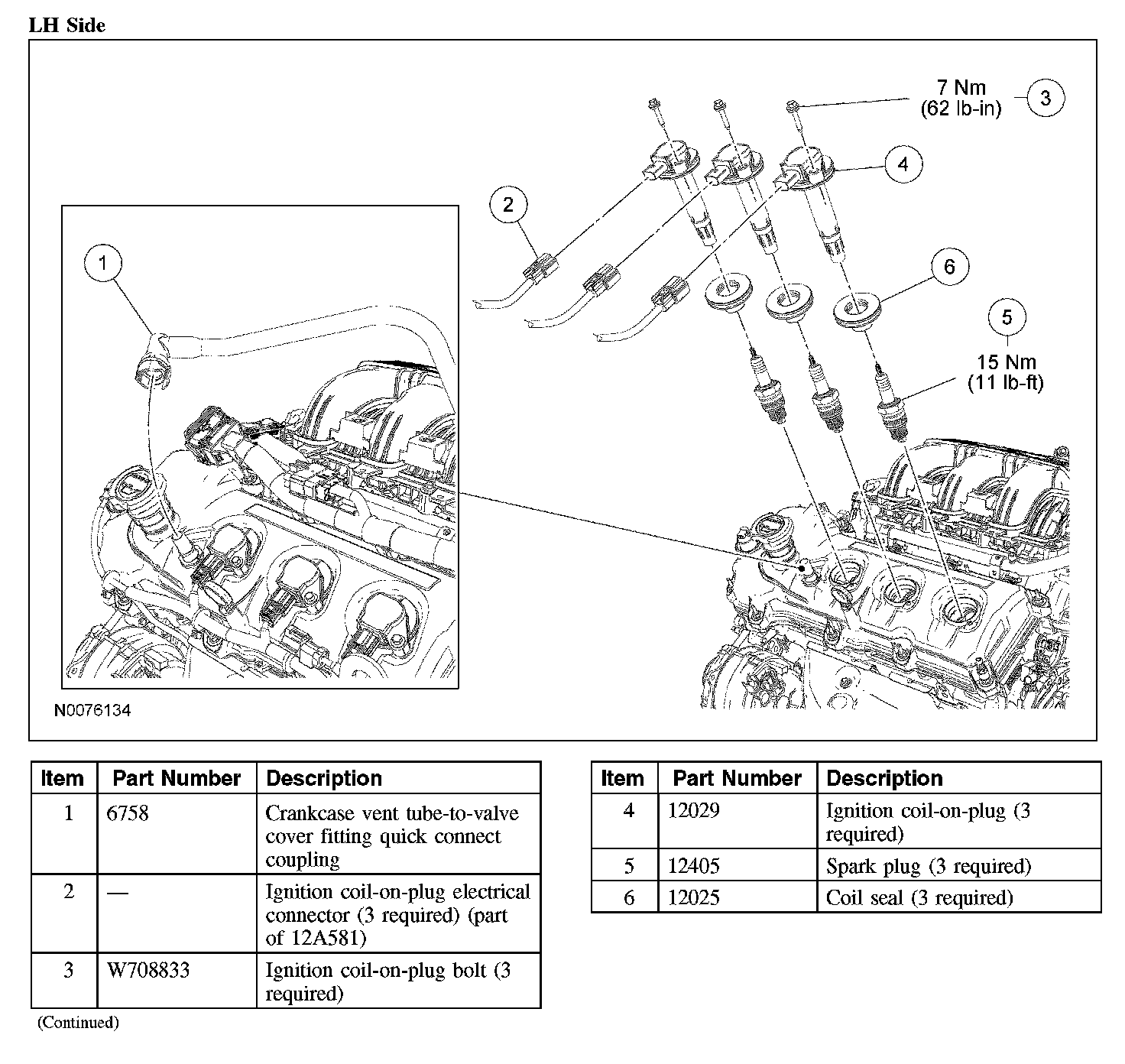

LH Side:

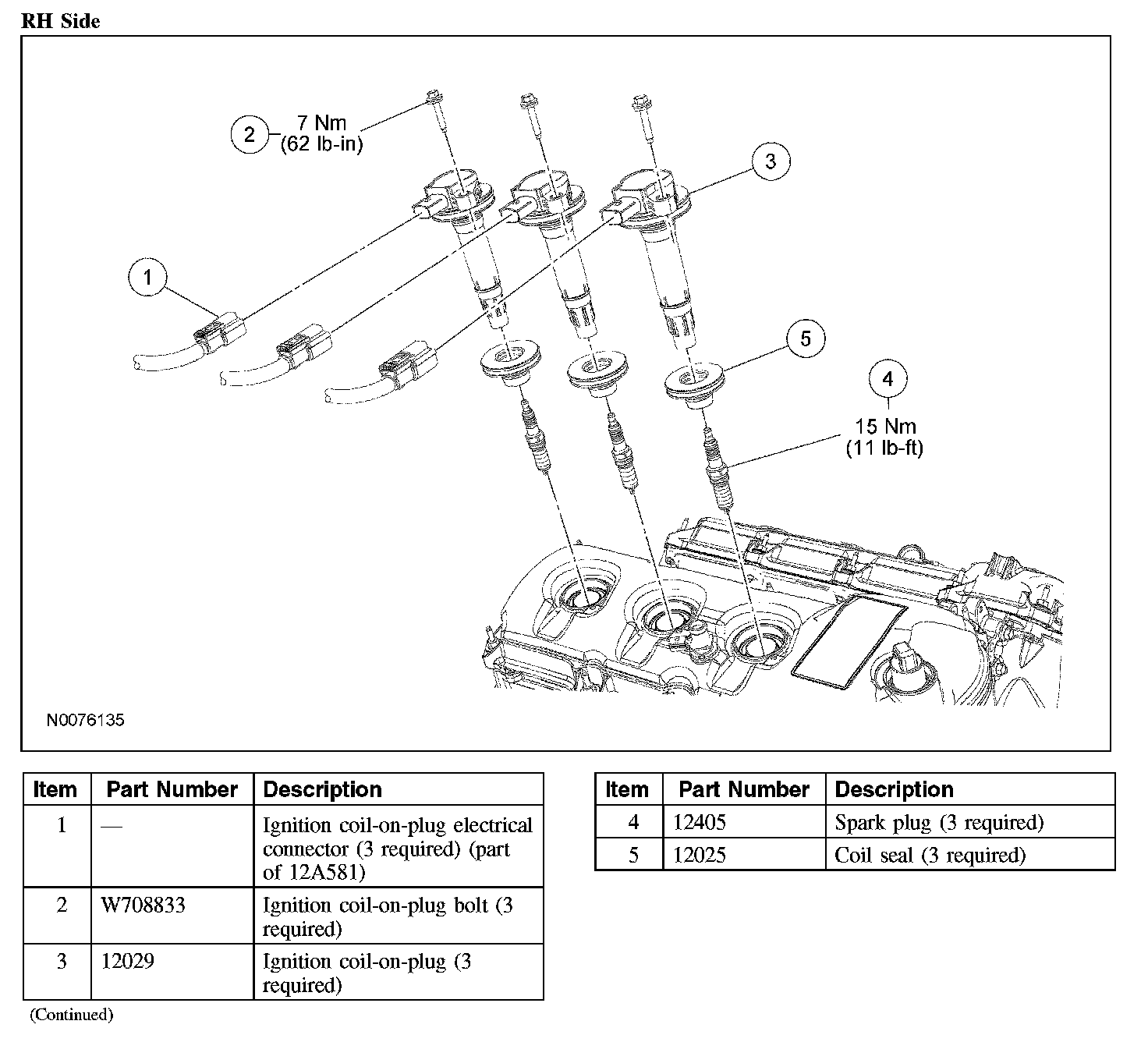

RH Side:
Removal
1. Remove the ignition coil-on-plugs for the spark plugs being serviced. Refer to Ignition Coil-On-Plug.
2. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.
NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
Remove the 6 spark plugs.
Installation
1. Inspect the 6 spark plugs.
2. Adjust the spark plug gap as necessary.
3. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage may occur to the cylinder head or spark plug.
Install the 6 spark plugs.
- Tighten to 15 Nm (11 lb-ft).
4. Install the ignition coil-on-plugs. Refer to Ignition Coil-On-Plug.
