2008 Ford Taurus AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Driver Seat Module (DSM)
PINPOINT TEST B: DTC B106E - SOLID STATE DRIVER DISABLED DUE TO SHORT CIRCUIT
Normal Operation
When a repetitive fault causing a circuit overload is detected on certain output circuits, the driver seat module (DSM) disables the circuit by removing voltage, or ground, to the affected circuit. The circuit remains disabled until the fault is corrected and an on-demand self-test is run. When the on-demand self-test has been run after all faults have been corrected, any DTCs related to the fault are cleared.
DTC B106E sets when the DSM has disabled a circuit due to a repetitive fault causing a circuit overload. For a complete list of corresponding DTCs, refer to Principles of Operation. Principles of Operation
- DTC B106F (Module Disabled Due to External Fault) - sets when one or more output functions are permanently disabled due to a repetitive circuit overload fault. DTC B106F will be set with DTC B106E. When DTC B106F is present, the DSM must be replaced after the fault condition has been corrected.
This pinpoint test is intended to diagnose the following:
- Output circuit short to ground or voltage
- DSM
Normal Operation
When a repetitive fault causing a circuit overload is detected on certain output circuits, the driver seat module (DSM) disables the circuit by removing voltage, or ground, to the affected circuit. The circuit remains disabled until the fault is corrected and an on-demand self-test is run. When the on-demand self-test has been run after all faults have been corrected, any DTCs related to the fault are cleared.
DTC B106E sets when the DSM has disabled a circuit due to a repetitive fault causing a circuit overload. For a complete list of corresponding DTCs, refer to Principles of Operation. Principles of Operation
- DTC B106F (Module Disabled Due to External Fault) - sets when one or more output functions are permanently disabled due to a repetitive circuit overload fault. DTC B106F will be set with DTC B106E. When DTC B106F is present, the DSM must be replaced after the fault condition has been corrected.
This pinpoint test is intended to diagnose the following:
- Output circuit short to ground or voltage
- DSM

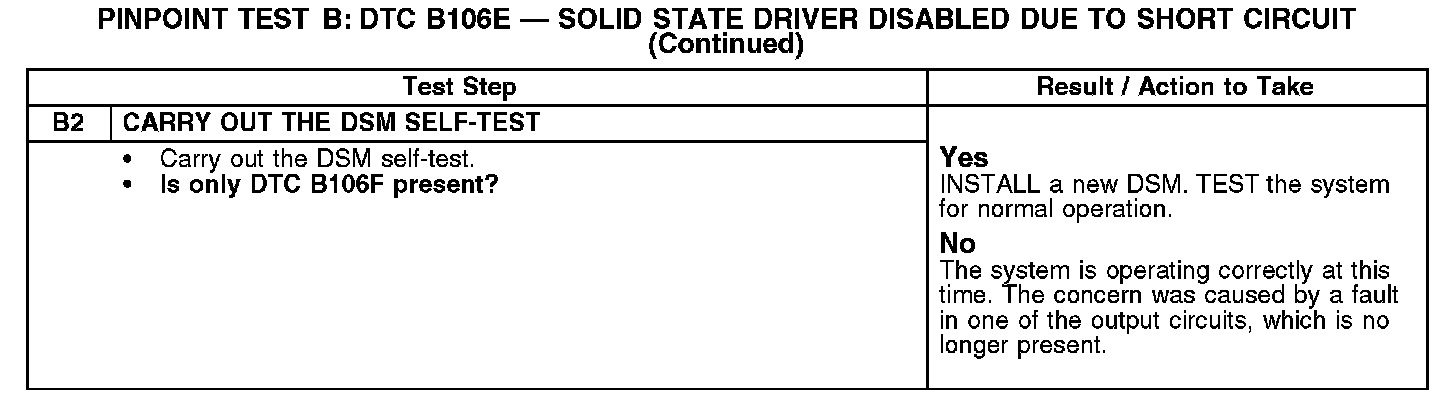

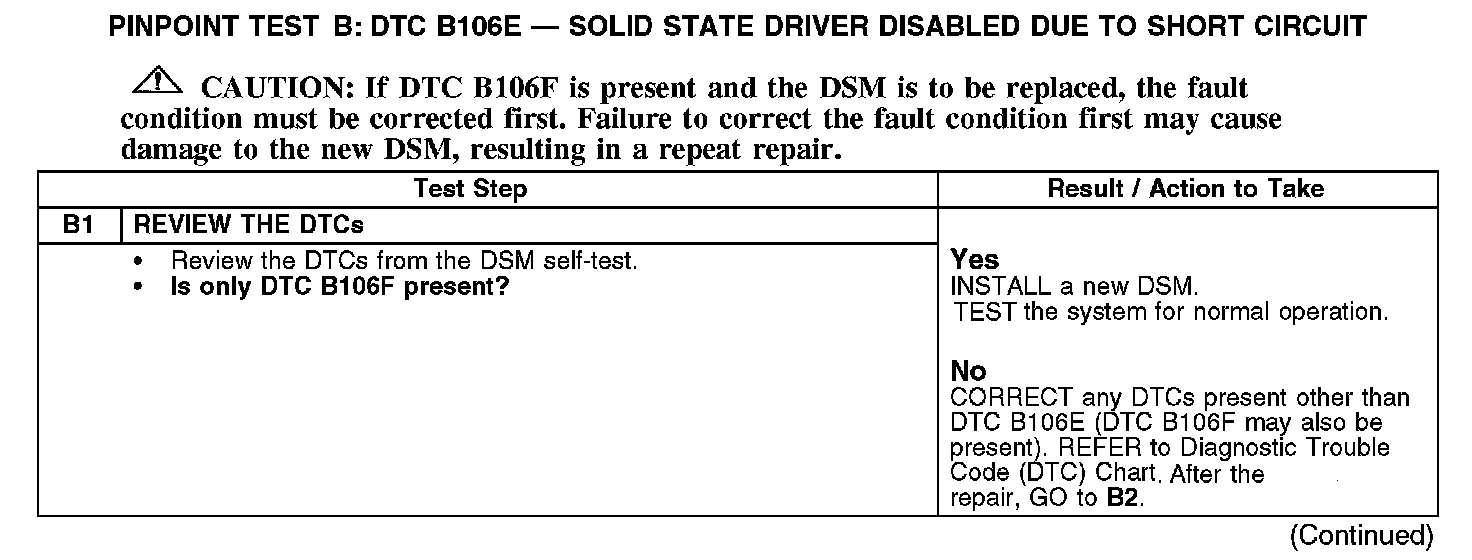

B1:
B2:
