2008 Ford Mustang V8-4.6LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch: Service and Repair
Digital Transmission Range (TR) Sensor
Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. WARNING: Secure the assembly to the jack. Avoid any obstructions while lowering and raising the jack. Contact with obstructions may cause the assembly to fall off the jack, which may result in serious personal injury.
Using a suitable transmission jack, support the transmission.

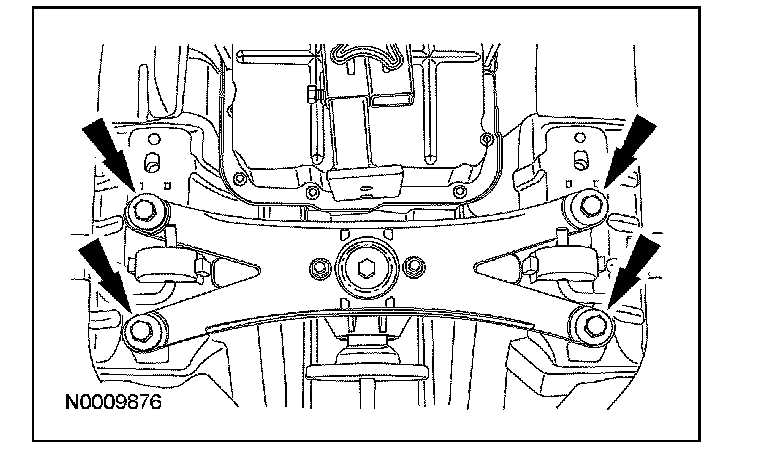

3. Remove the transmission crossmember-to-floor pan screws and lower the transmission enough to gain access to the digital transmission range (TR) sensor.

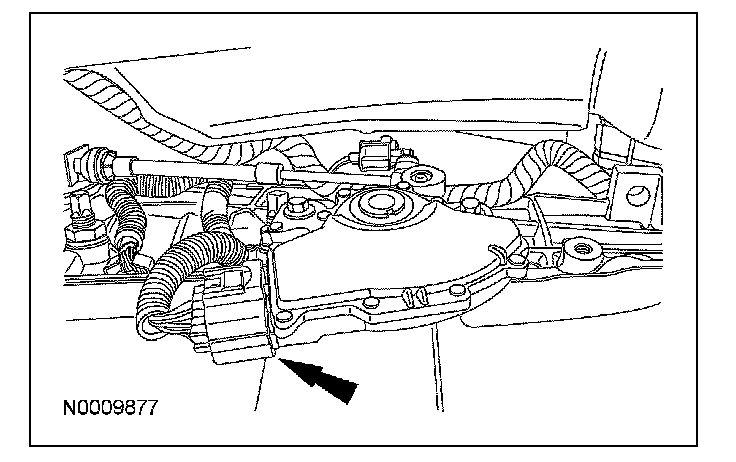

4. Disconnect the digital TR sensor connector.

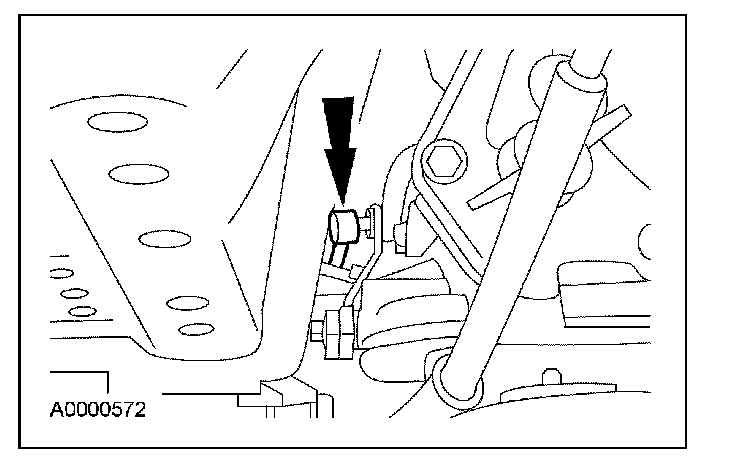

5. Disconnect the transmission selector lever cable from the manual control lever.

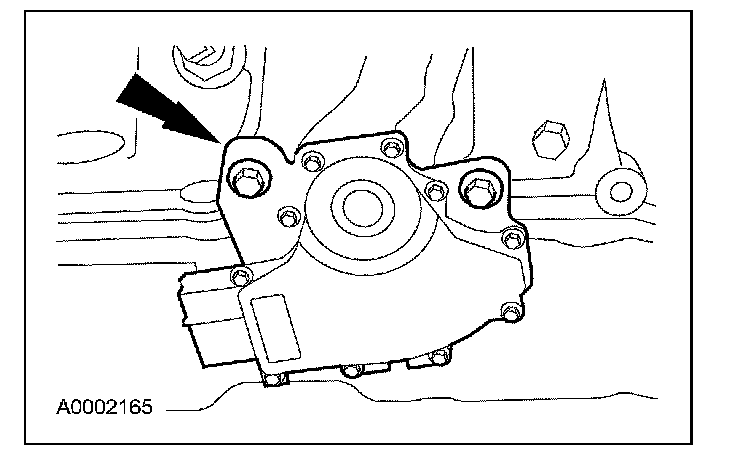

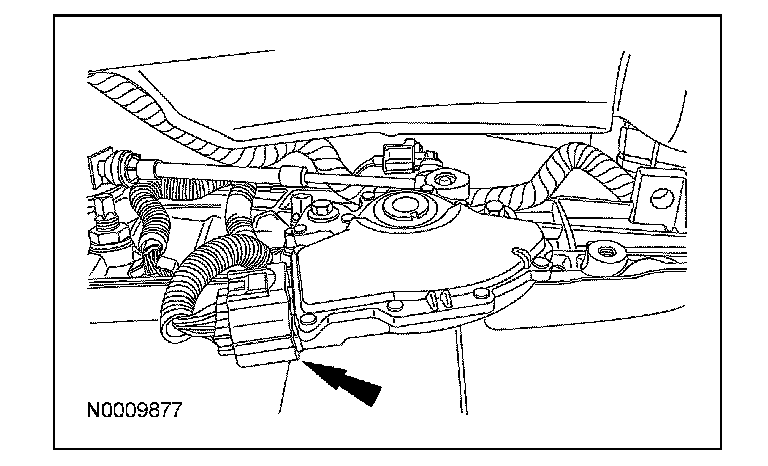

6. Remove the digital TR sensor screws and remove the digital TR sensor.
Installation
1. CAUTION: The digital transmission range (TR) sensor must fit flush against the boss on the case to prevent damage to the sensor.
Install the digital TR sensor and loosely install the screws.
2. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
NOTE: The manual lever must be in the NEUTRAL position.

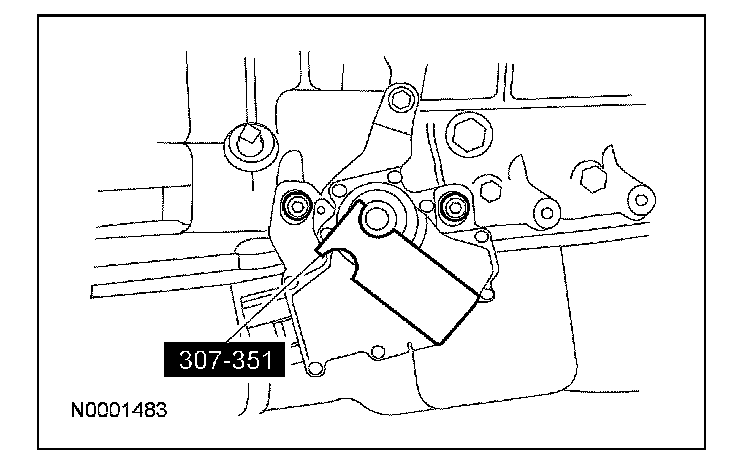

Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
^ Tighten 8 Nm (71 lb-in).

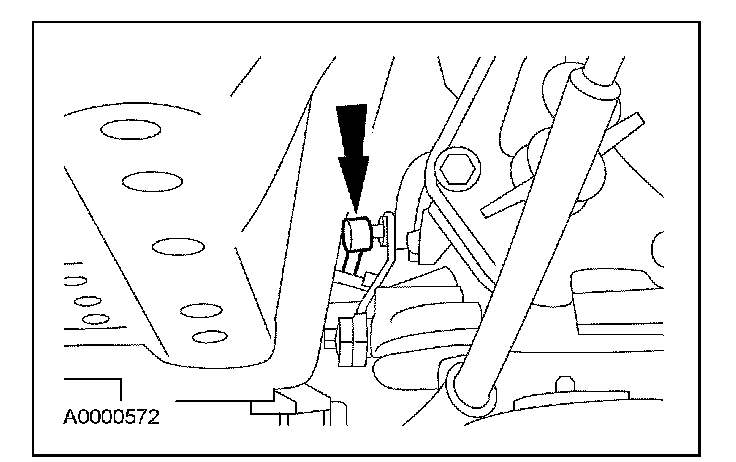

3. Connect the transmission selector lever cable to the manual control lever.
4. Connect the digital TR sensor connector.

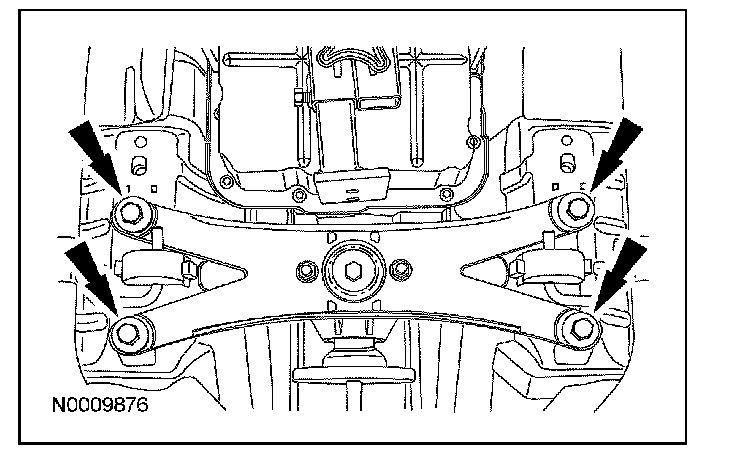

5. Install the transmission crossmember-to-floor pan screws.
^ Tighten to 63 Nm (46 lb-ft).
6. Verify that the selector lever cable is adjusted correctly.

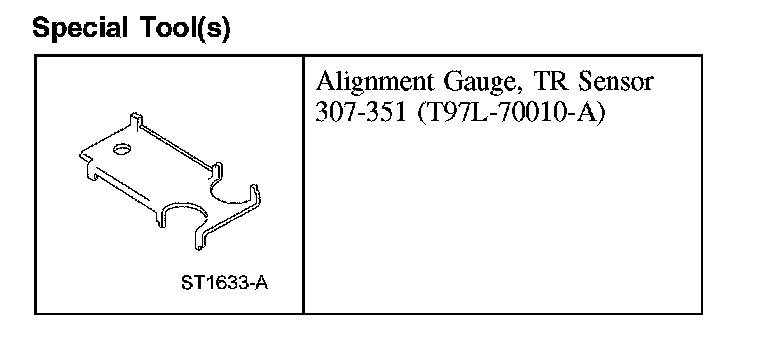

Special Tool(s):
Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. WARNING: Secure the assembly to the jack. Avoid any obstructions while lowering and raising the jack. Contact with obstructions may cause the assembly to fall off the jack, which may result in serious personal injury.
Using a suitable transmission jack, support the transmission.
3. Remove the transmission crossmember-to-floor pan screws and lower the transmission enough to gain access to the digital transmission range (TR) sensor.
4. Disconnect the digital TR sensor connector.
5. Disconnect the transmission selector lever cable from the manual control lever.
6. Remove the digital TR sensor screws and remove the digital TR sensor.
Installation
1. CAUTION: The digital transmission range (TR) sensor must fit flush against the boss on the case to prevent damage to the sensor.
Install the digital TR sensor and loosely install the screws.
2. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
NOTE: The manual lever must be in the NEUTRAL position.
Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
^ Tighten 8 Nm (71 lb-in).
3. Connect the transmission selector lever cable to the manual control lever.
4. Connect the digital TR sensor connector.
5. Install the transmission crossmember-to-floor pan screws.
^ Tighten to 63 Nm (46 lb-ft).
6. Verify that the selector lever cable is adjusted correctly.
