2008 Ford Mustang V8-4.6LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch: Adjustments
Transmission Range (TR) Sensor Adjustment
Adjust
1. With the vehicle in NEUTRAL, position it on a hoist.

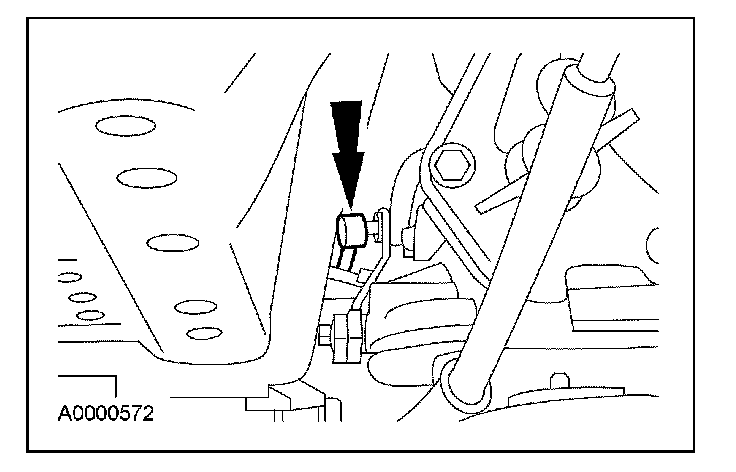

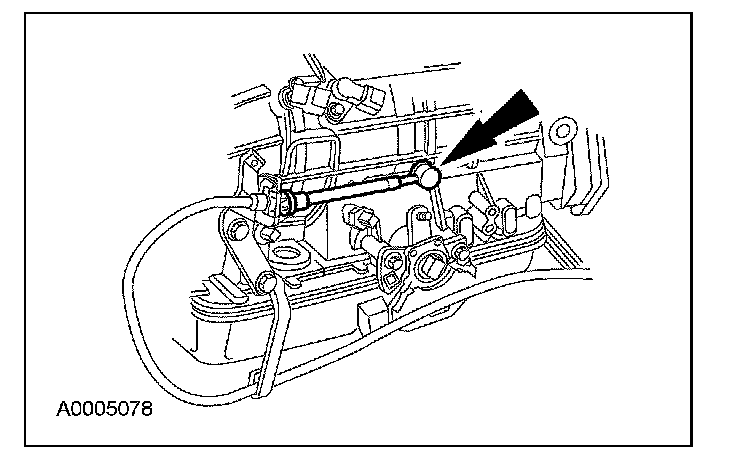

2. Disconnect the selector lever cable from the manual control lever.

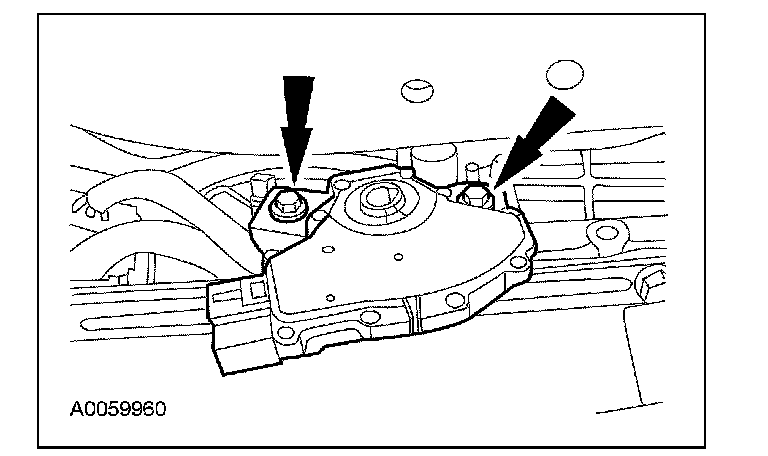

3. Loosen the screws.
4. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
NOTE: The manual lever must be in the NEUTRAL position.

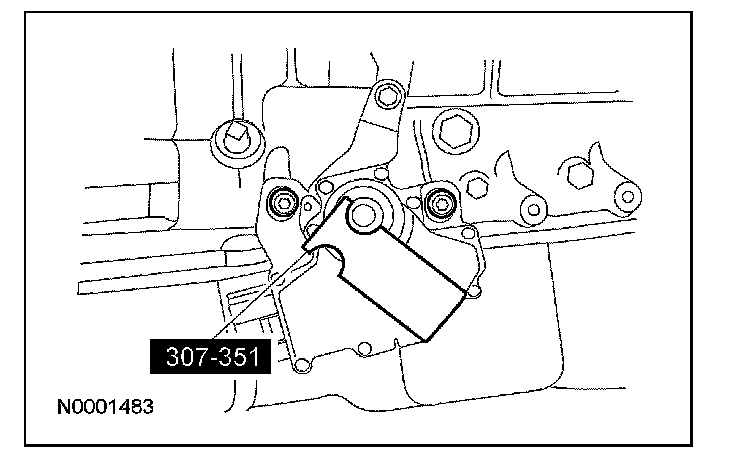

Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
^ Tighten 8 Nm (71 lb-in).
5. Install the selector lever cable to the manual control lever.
6. Verify that the selector lever cable is adjusted correctly.

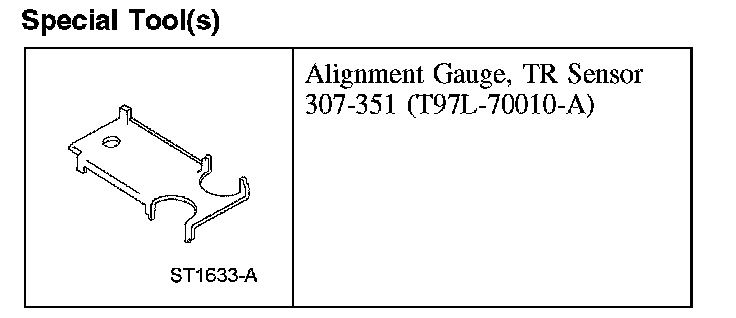

Special Tool(s):
Adjust
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the selector lever cable from the manual control lever.
3. Loosen the screws.
4. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.
NOTE: The manual lever must be in the NEUTRAL position.
Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
^ Tighten 8 Nm (71 lb-in).
5. Install the selector lever cable to the manual control lever.
6. Verify that the selector lever cable is adjusted correctly.
