2008 Ford Mustang V8-4.6LFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor: Service and Repair

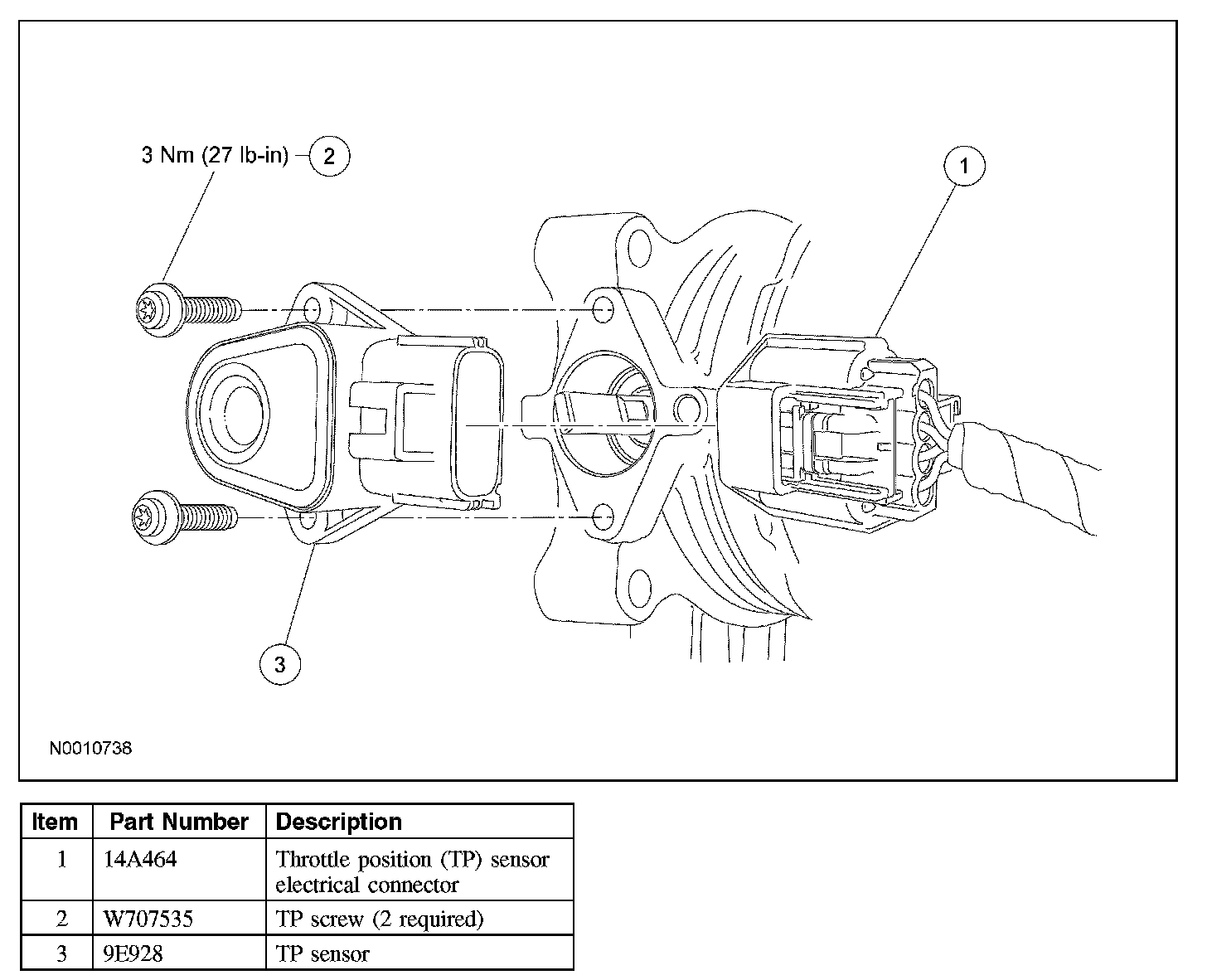

THROTTLE POSITION (TP) SENSOR
Removal
1. Disconnect the throttle position (TP) sensor electrical connector.
2. CAUTION: Failure to remove the TP sensor screws in the following manner will result in damage to the screws. First loosen the screws 1-2 full turns using a hand tool and then use a suitable high-speed driver to complete the removal.
Remove and discard the 2 screws and the TP sensor.
Installation
1. CAUTION: Do not use a high-speed driver to install the new screws or damage to the TP sensor may occur.
NOTE:
- Do not reuse the TP sensor and screws. A new TP sensor and screws must be installed.
- When installing the new TP sensor, make sure that the radial locator tab on the TP sensor is aligned with the radial locator hole on the throttle body.
Position the new TP sensor and install the 2 new screws.
- Tighten to 3 Nm (27 lb-in).
2. Connect the TP sensor electrical connector.
Removal
1. Disconnect the throttle position (TP) sensor electrical connector.
2. CAUTION: Failure to remove the TP sensor screws in the following manner will result in damage to the screws. First loosen the screws 1-2 full turns using a hand tool and then use a suitable high-speed driver to complete the removal.
Remove and discard the 2 screws and the TP sensor.
Installation
1. CAUTION: Do not use a high-speed driver to install the new screws or damage to the TP sensor may occur.
NOTE:
- Do not reuse the TP sensor and screws. A new TP sensor and screws must be installed.
- When installing the new TP sensor, make sure that the radial locator tab on the TP sensor is aligned with the radial locator hole on the throttle body.
Position the new TP sensor and install the 2 new screws.
- Tighten to 3 Nm (27 lb-in).
2. Connect the TP sensor electrical connector.
