2008 Ford Fusion FWD L4-2.3LFACTORY OEM SERVICE PROCEDURE
Spark Plug: Service and Repair
SPARK PLUGS

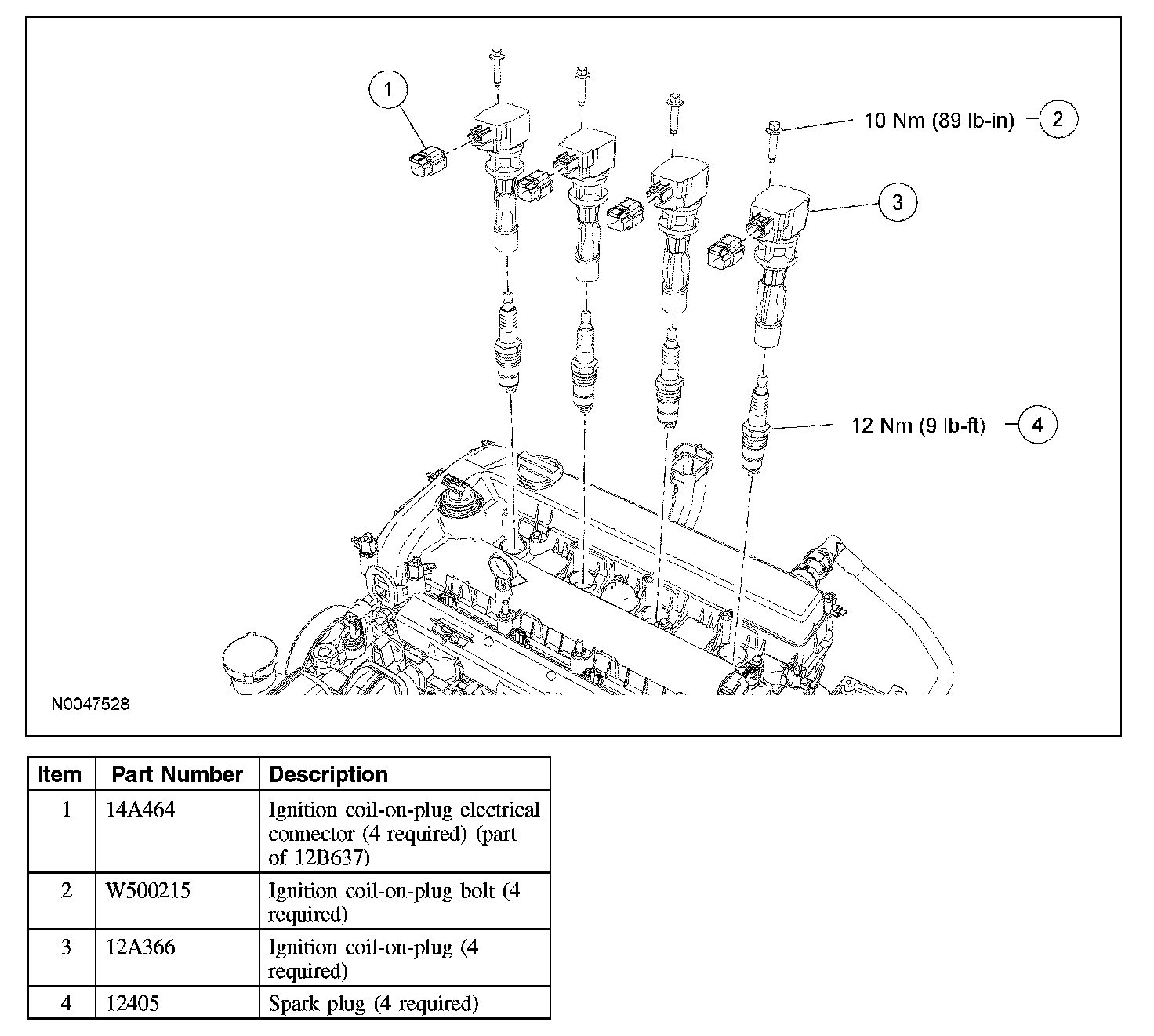

Exploded View
Removal

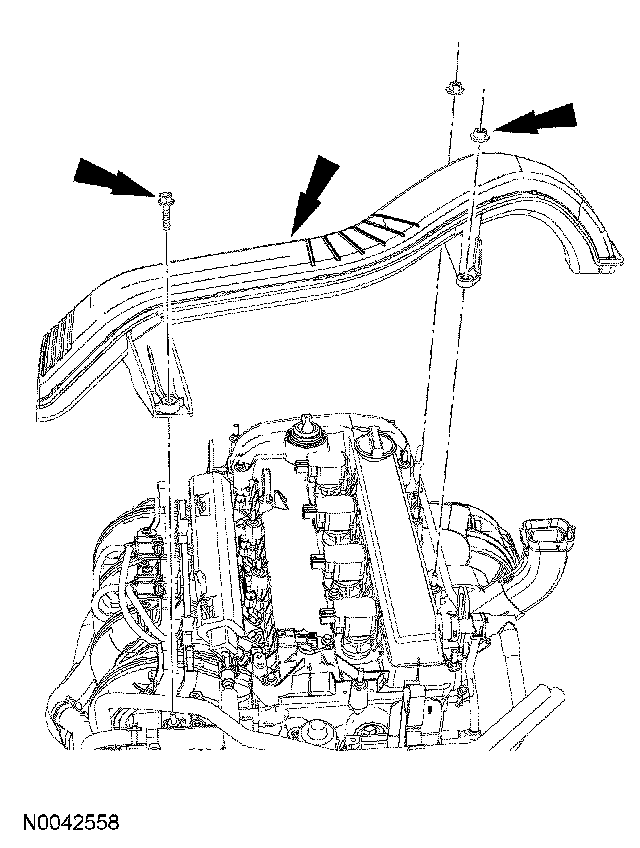

1. Remove the 2 nuts, the bolt and the generator air inlet duct.
2. Disconnect the 4 ignition coil-on-plug electrical connectors.
3. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Remove the 4 bolts and the ignition coil-on-plugs.
4. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.
NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
Remove the 4 spark plugs.
Installation

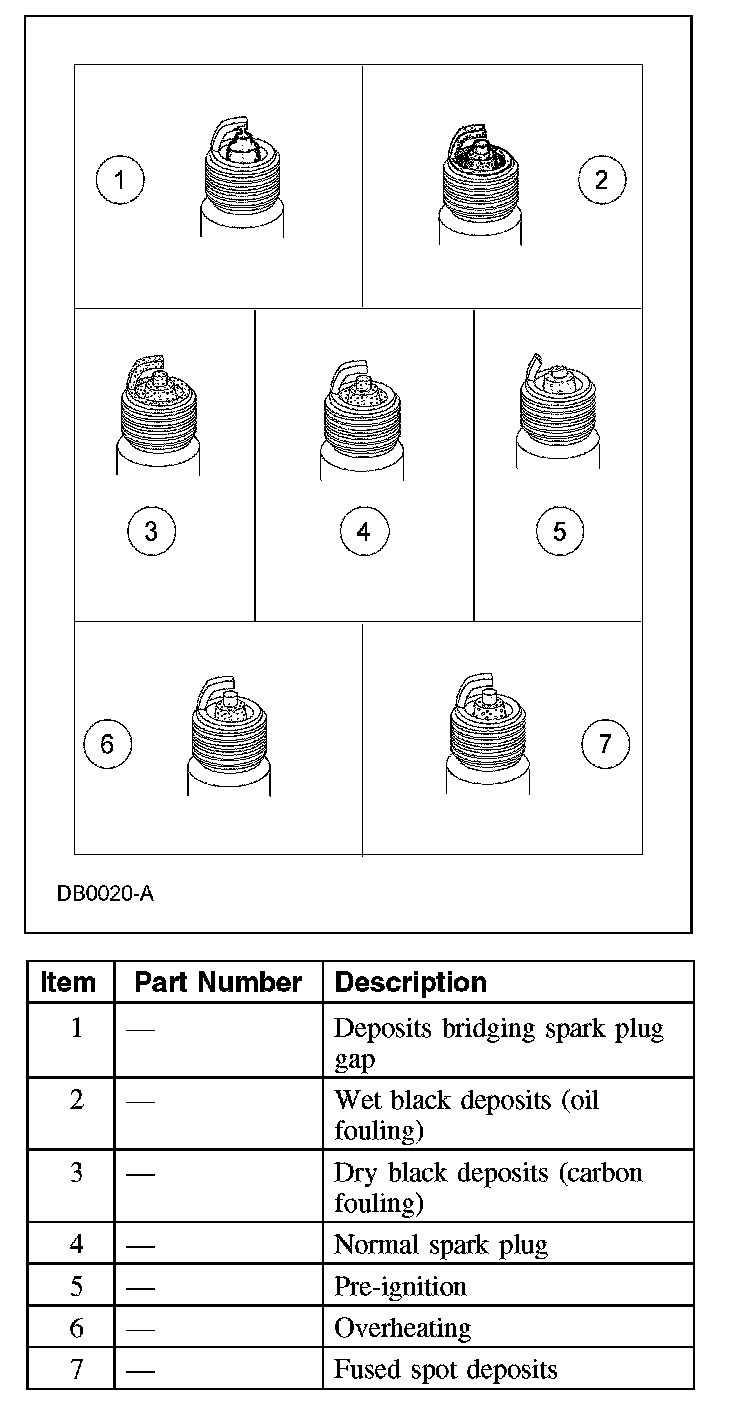

1. Inspect the spark plugs.

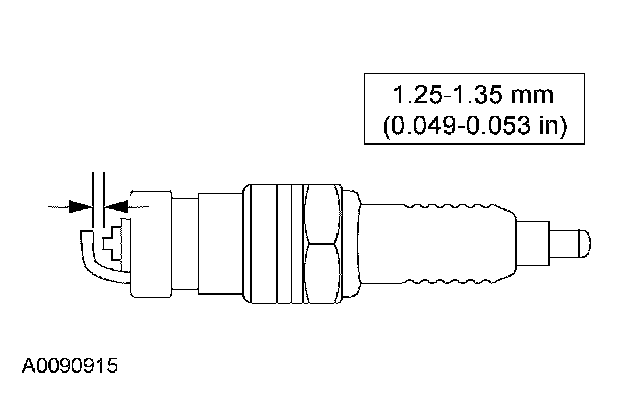

2. Adjust the spark plug gap as necessary.
3. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.
Install the spark plugs.
- Tighten to 12 Nm (9 lb-ft).
4. NOTE: Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.
Install the 4 ignition coils and bolts.
- Tighten to 10 Nm (89 lb-in).
5. Connect the 4 ignition coil electrical connectors.
6. Install the generator air inlet duct and the 2 nuts and the bolt.
- Tighten to 6 Nm (53 lb-in).
Exploded View
Removal

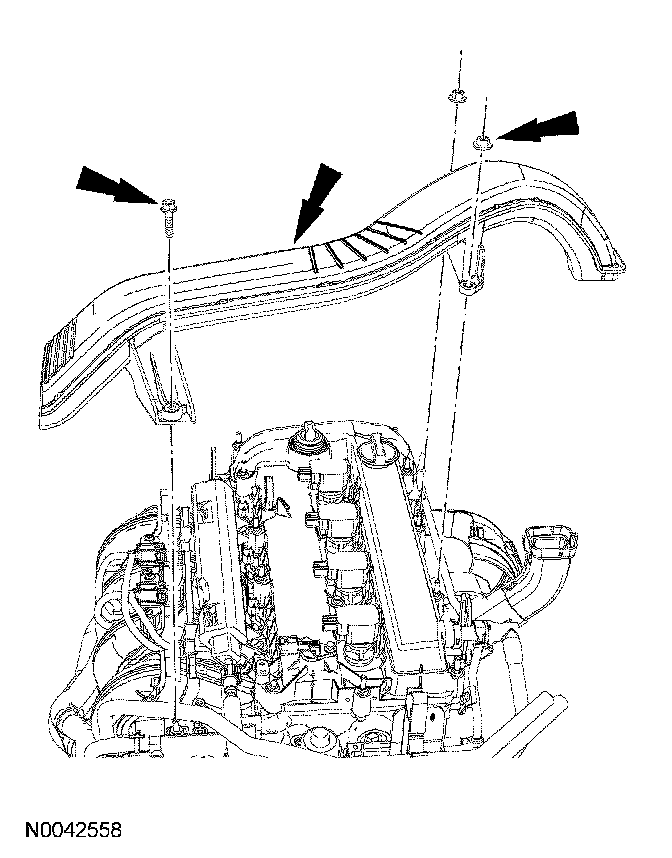

1. Remove the 2 nuts, the bolt and the generator air inlet duct.
2. Disconnect the 4 ignition coil-on-plug electrical connectors.
3. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Remove the 4 bolts and the ignition coil-on-plugs.
4. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.
NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
Remove the 4 spark plugs.
Installation
1. Inspect the spark plugs.
2. Adjust the spark plug gap as necessary.
3. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.
Install the spark plugs.
- Tighten to 12 Nm (9 lb-ft).
4. NOTE: Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.
Install the 4 ignition coils and bolts.
- Tighten to 10 Nm (89 lb-in).
5. Connect the 4 ignition coil electrical connectors.
6. Install the generator air inlet duct and the 2 nuts and the bolt.
- Tighten to 6 Nm (53 lb-in).
