2008 Ford Focus L4-2.0LFACTORY OEM SERVICE PROCEDURE
Tests KB: Fuel Pump Driver Module
PINPOINT TEST KB: FUEL PUMP DRIVER MODULE

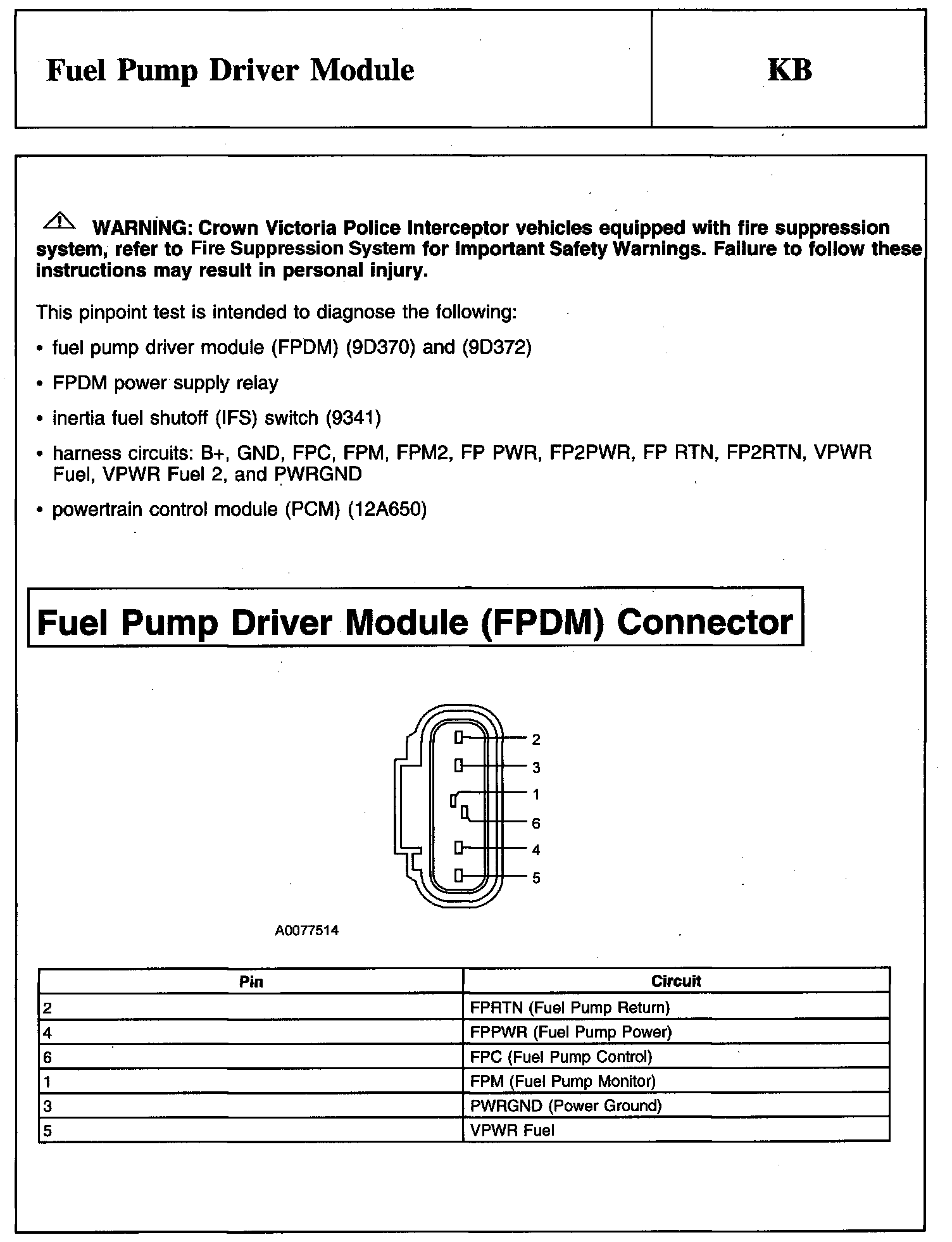

Warning And Fuel Pump Driver Module (FPDM) Connector:

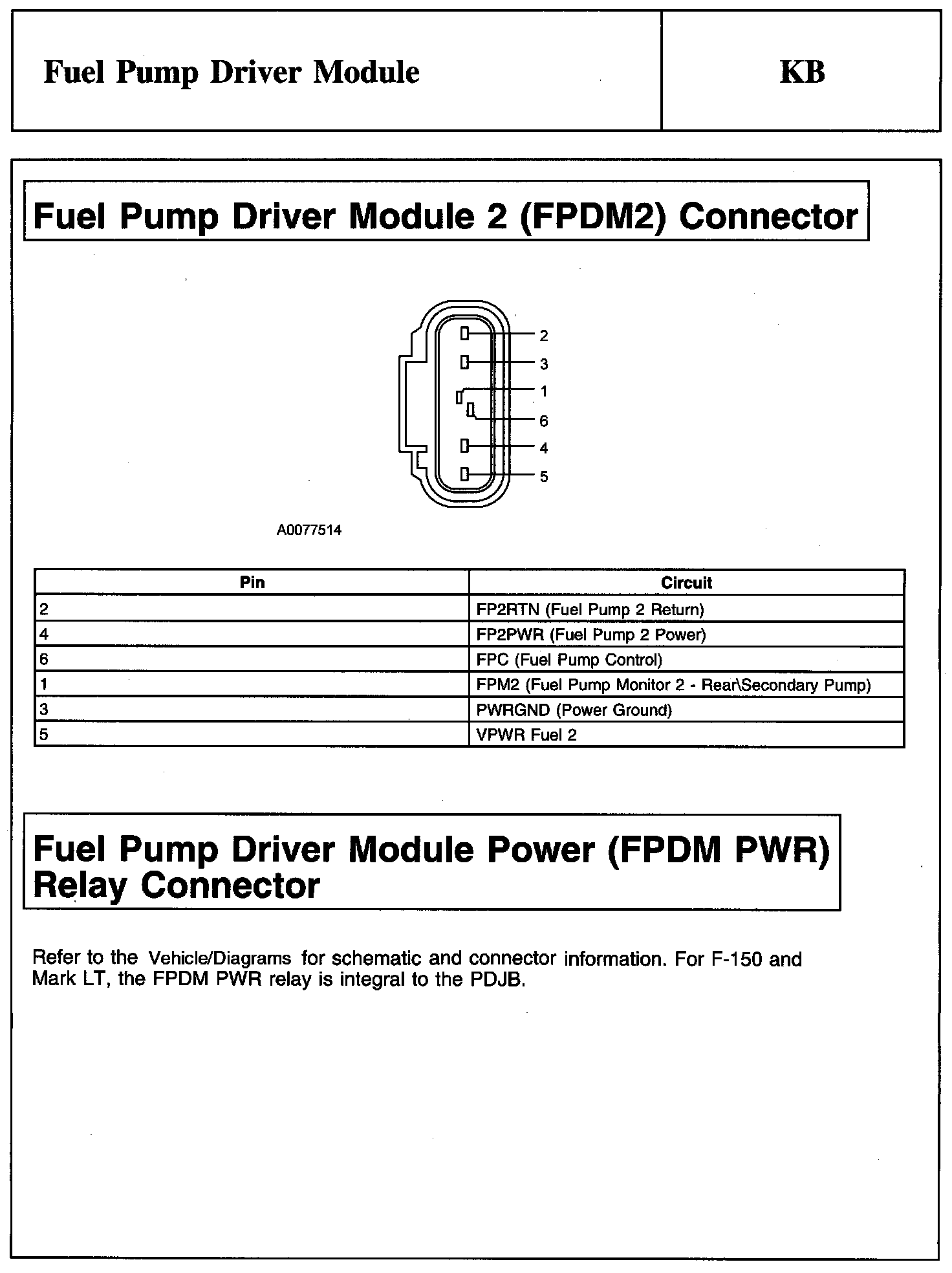

Fuel Pump Driver Module 2 (FPDM2) Connector And Fuel Pump Driver Module Power (FPDM PWR) Relay Connector:

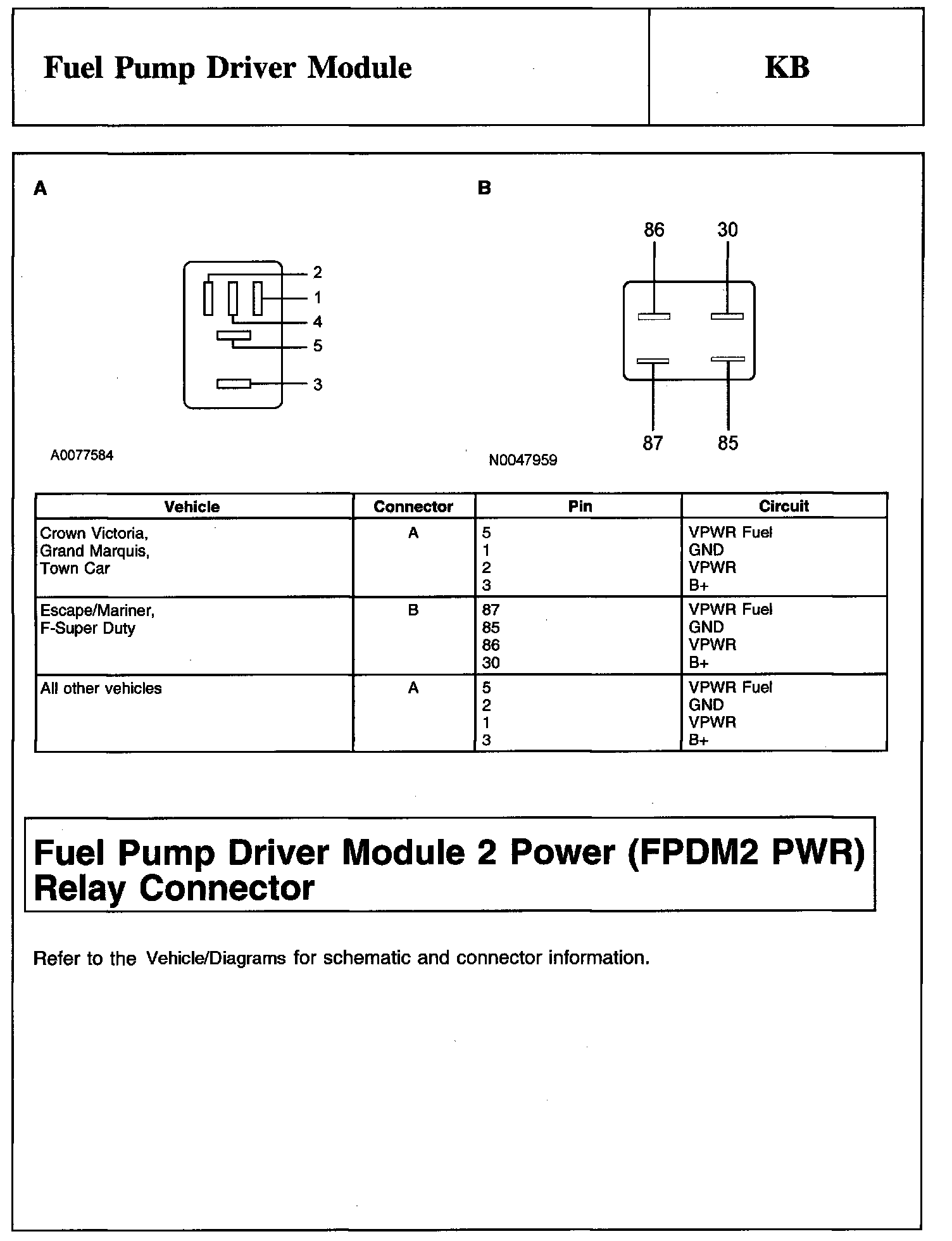

Fuel Pump Driver Module Power (FPDM PWR) Relay Connector And Fuel Pump Driver Module 2 Power (FPDM2 PWR) Relay Connector:
Fuel Pump Driver Module 2 Power (FPDM2 PWR) Relay Connector And Inertia Fuel Shutoff (IFS) Switch Connector:
Power Distribution Junction Box (PDJB) Connector And Powertrain Control Module (PCM) Connector:
KB1-KB3:

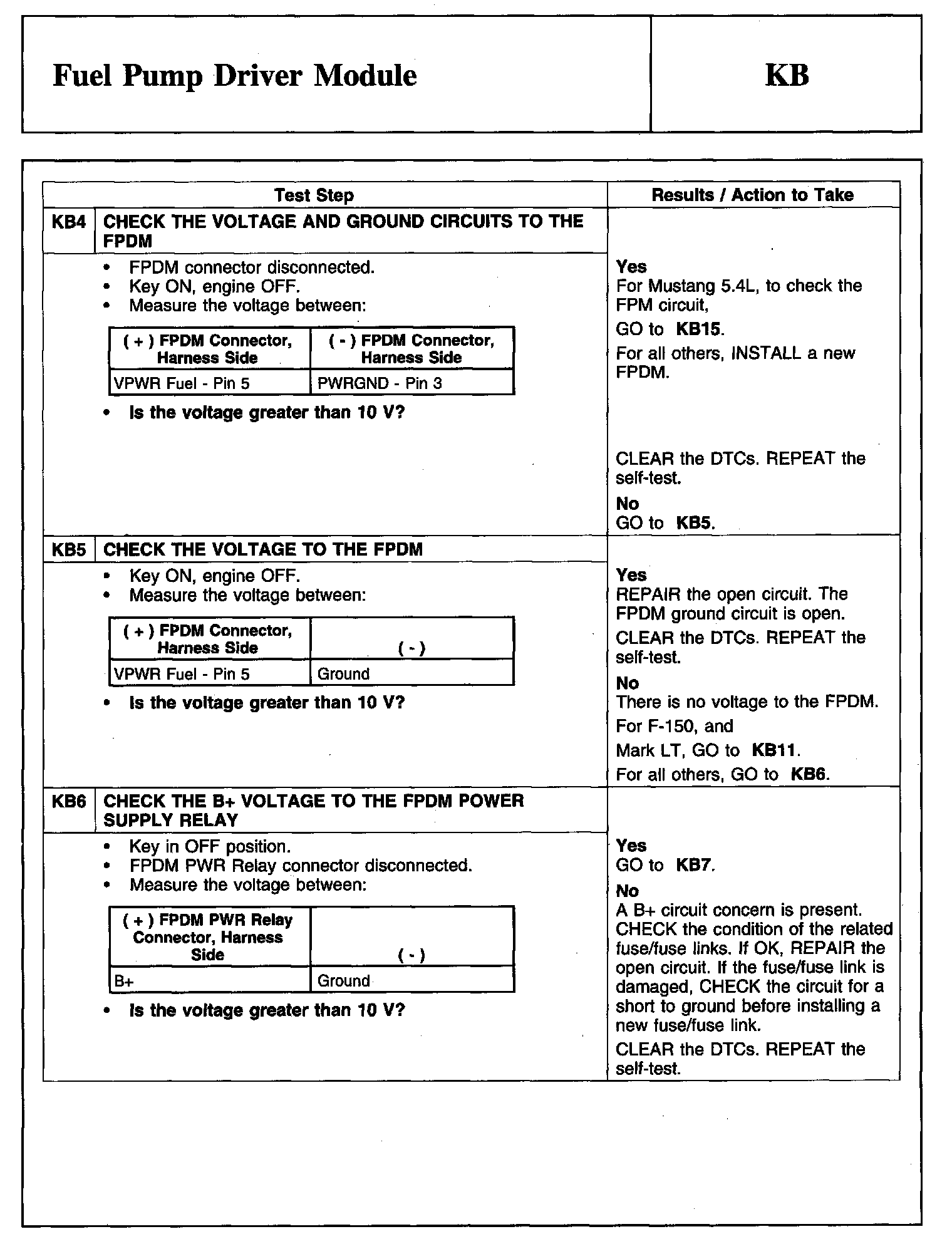

KB4-KB6:

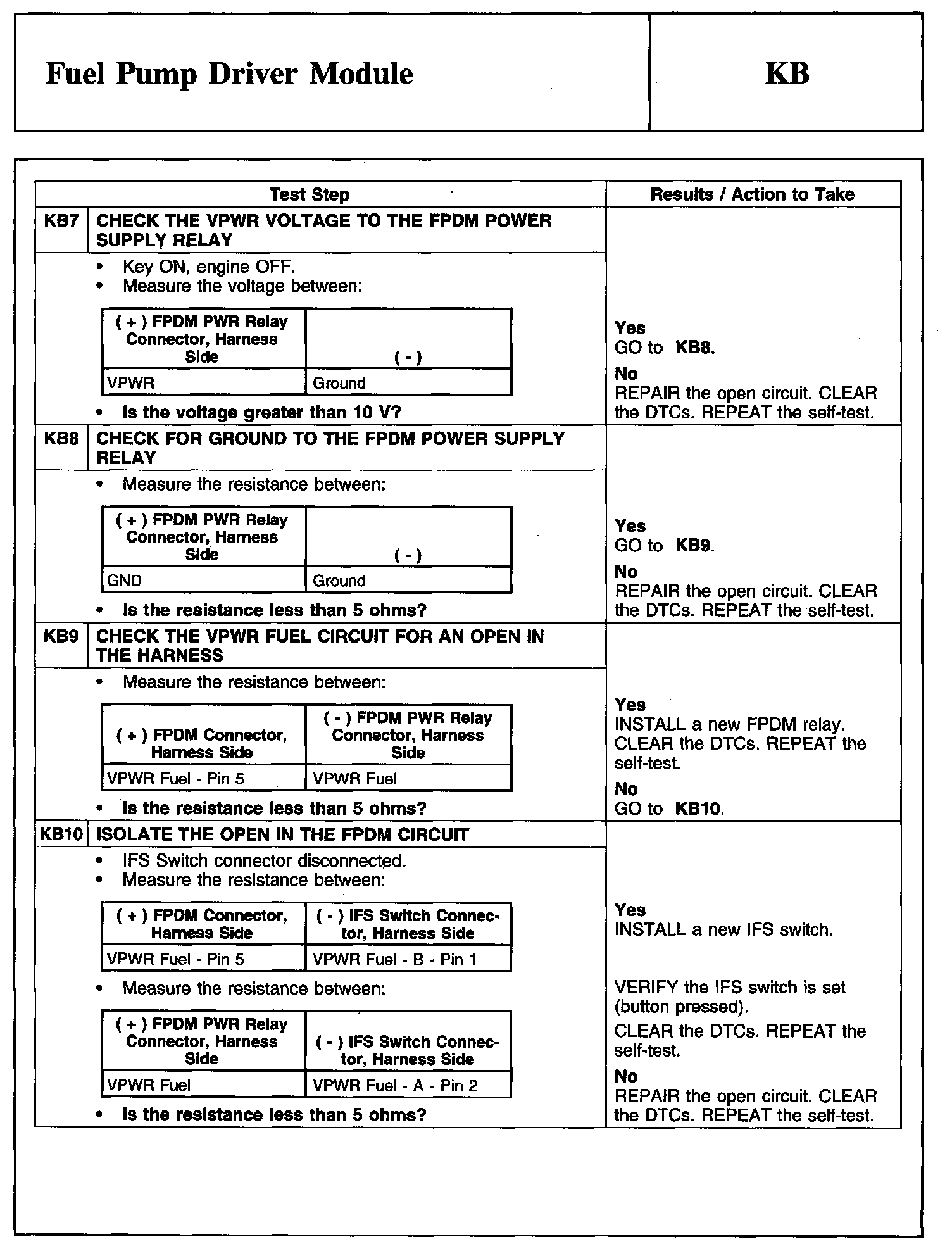

KB7-KB10:
KB11-KB14:

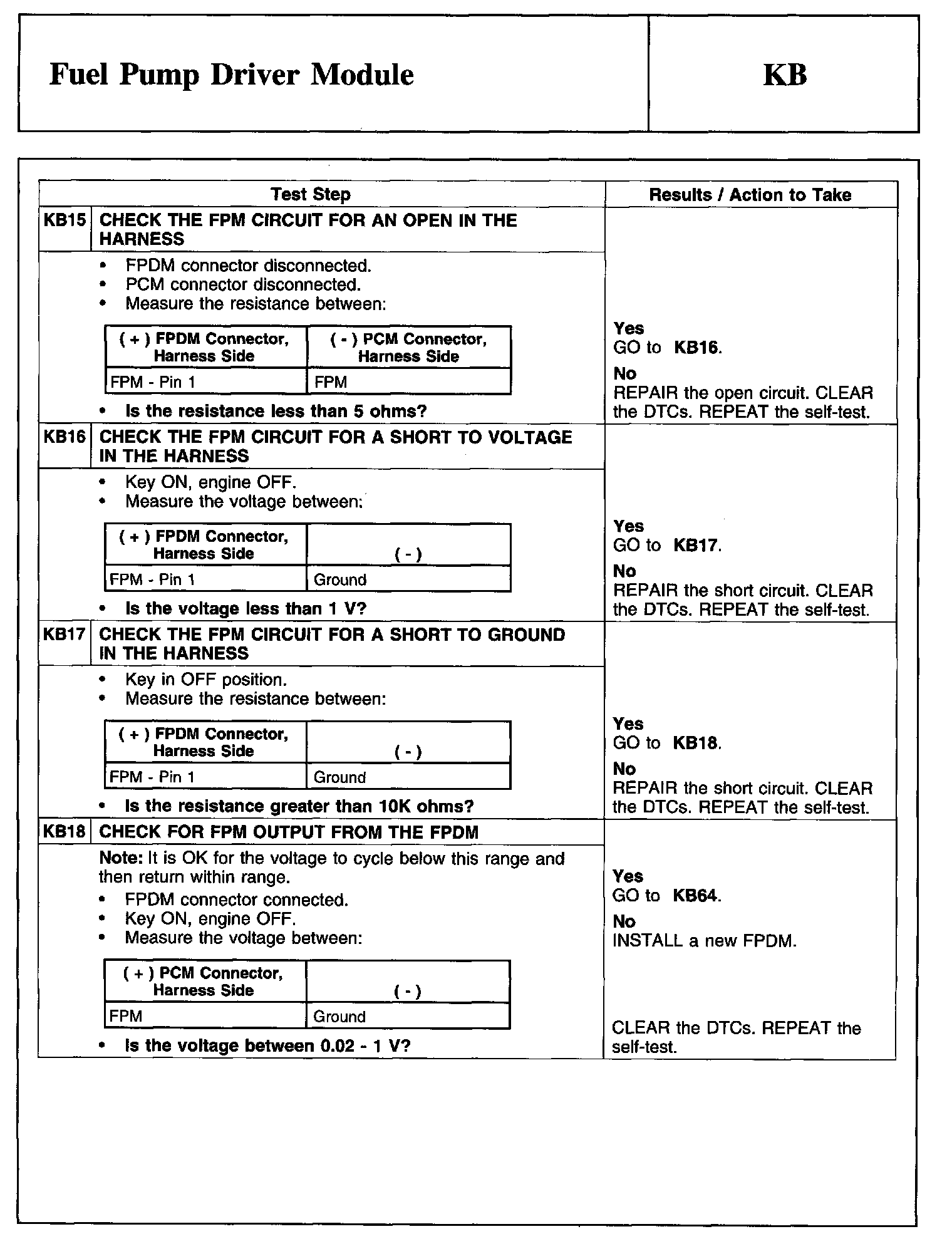

KB15-KB18:

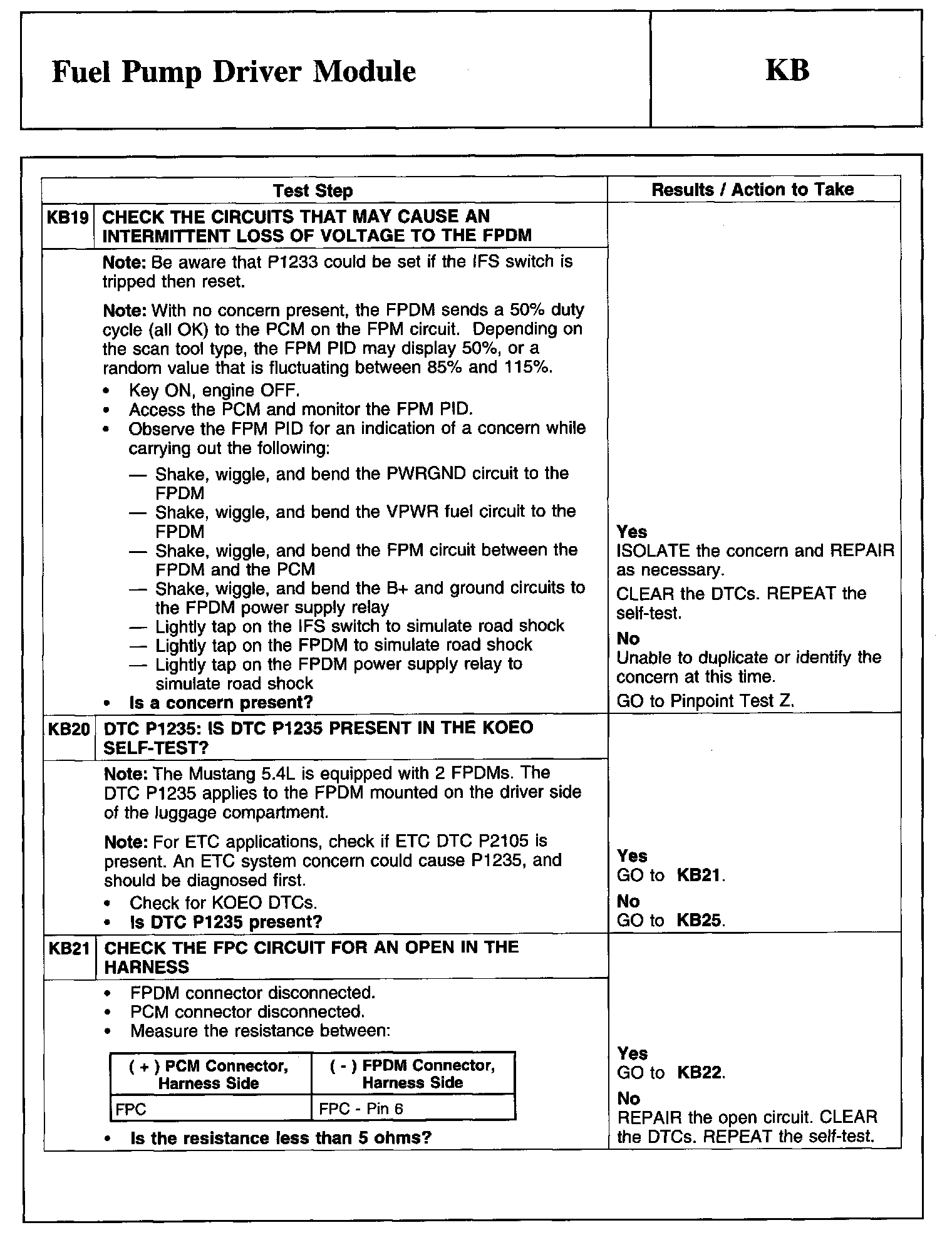

KB19-KB21:

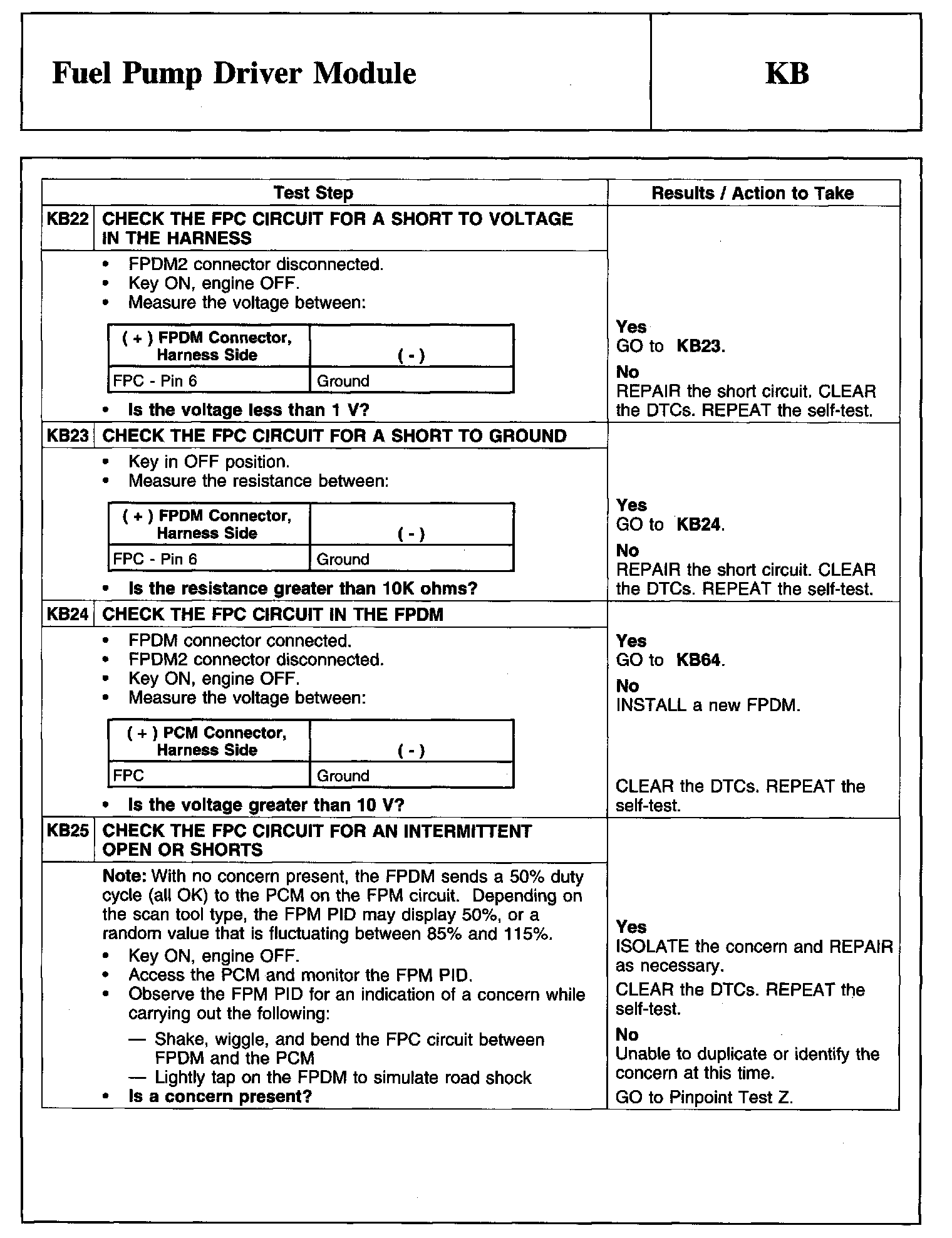

KB22-KB25:

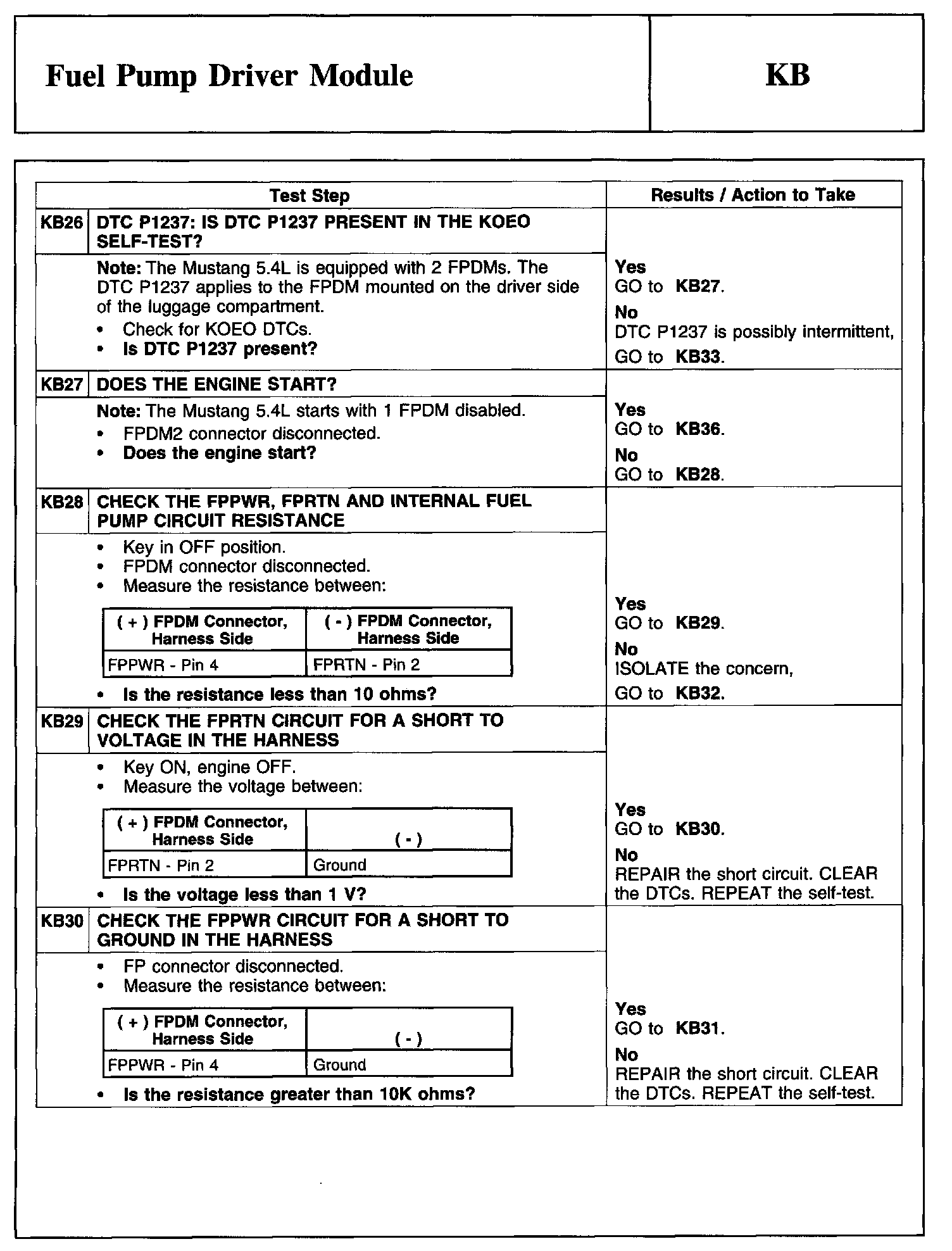

KB26-KB30:
KB31-KB33:

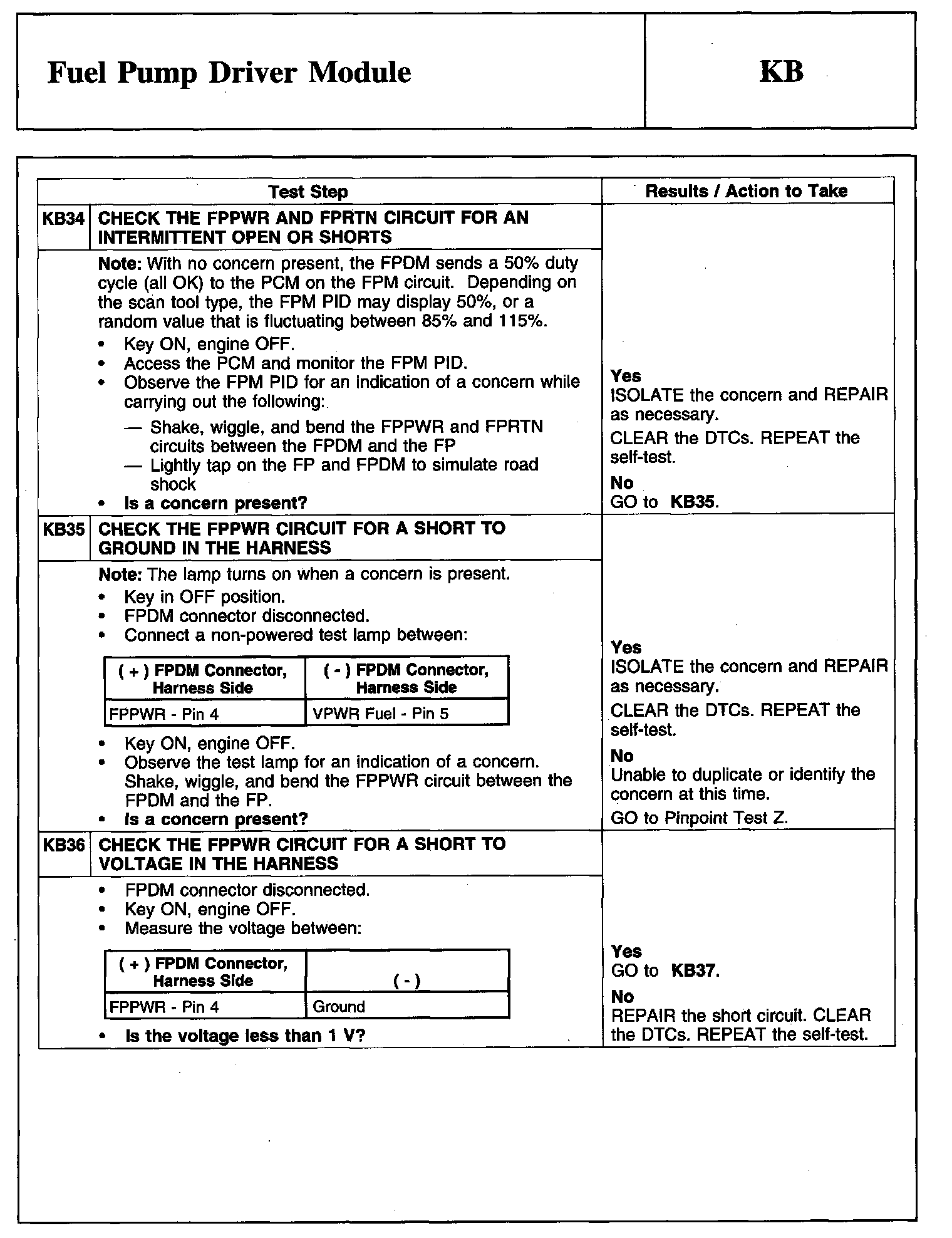

KB34-KB36:

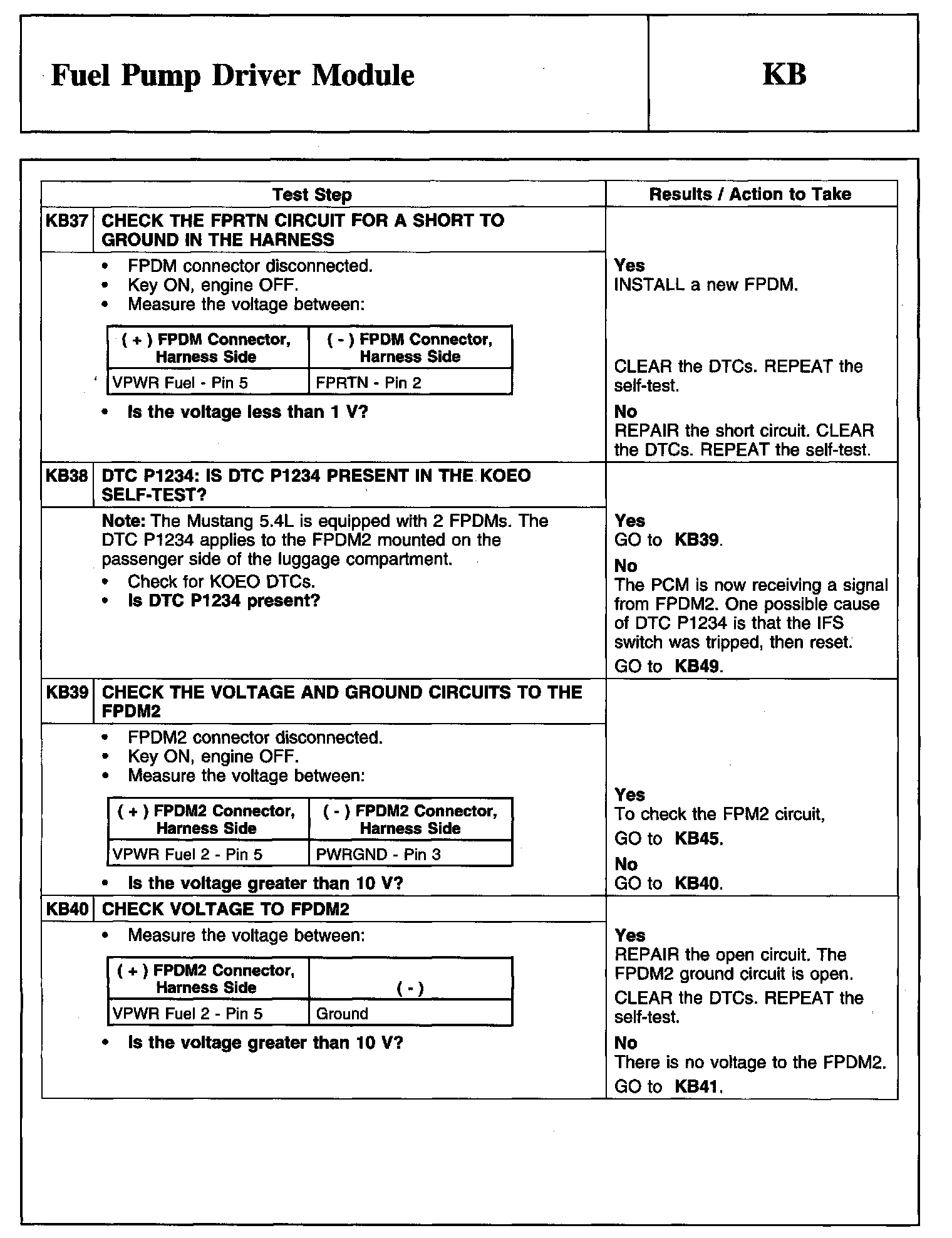

KB37-KB40:

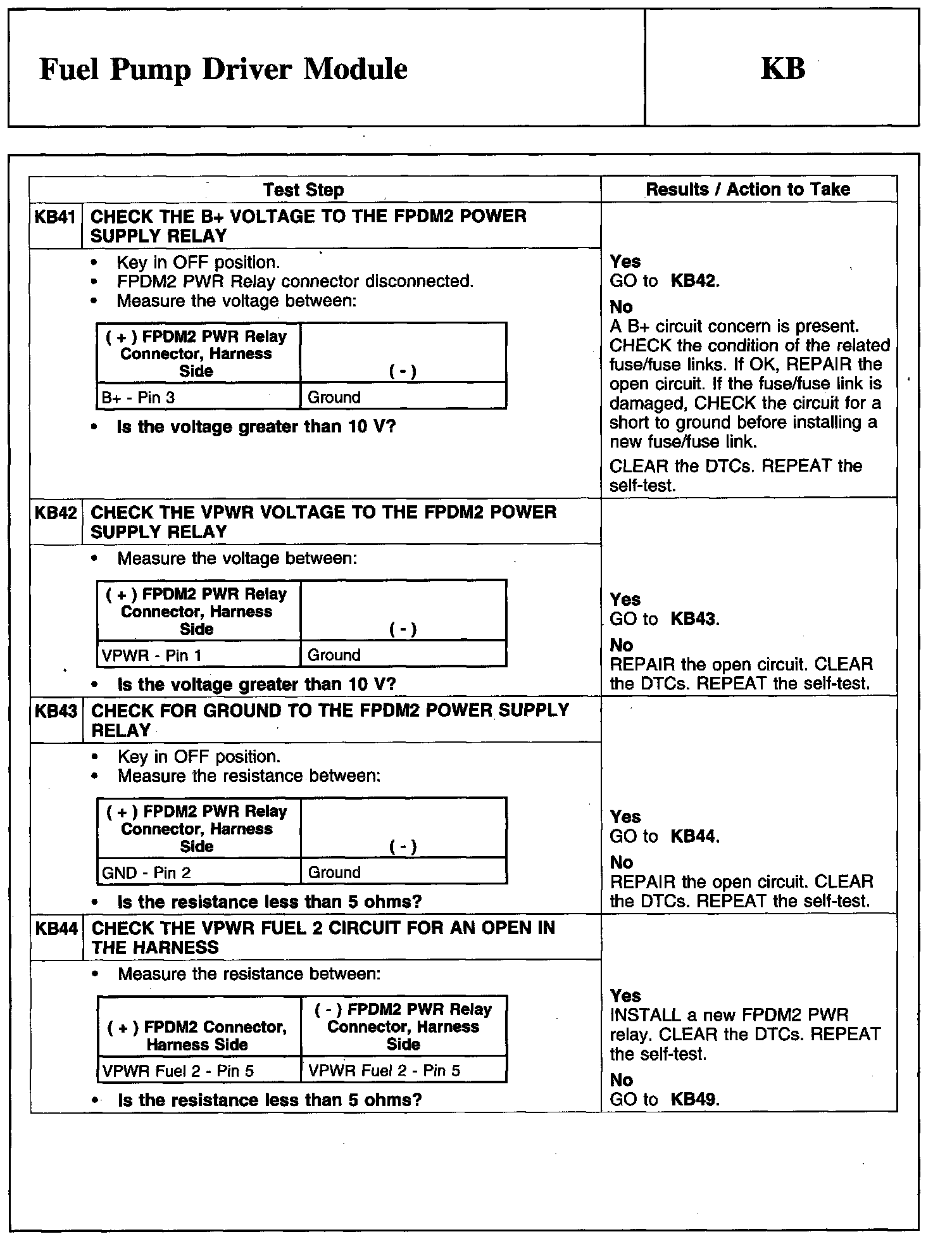

KB41-KB44:
KB45-KB48:
KB49-KB51:

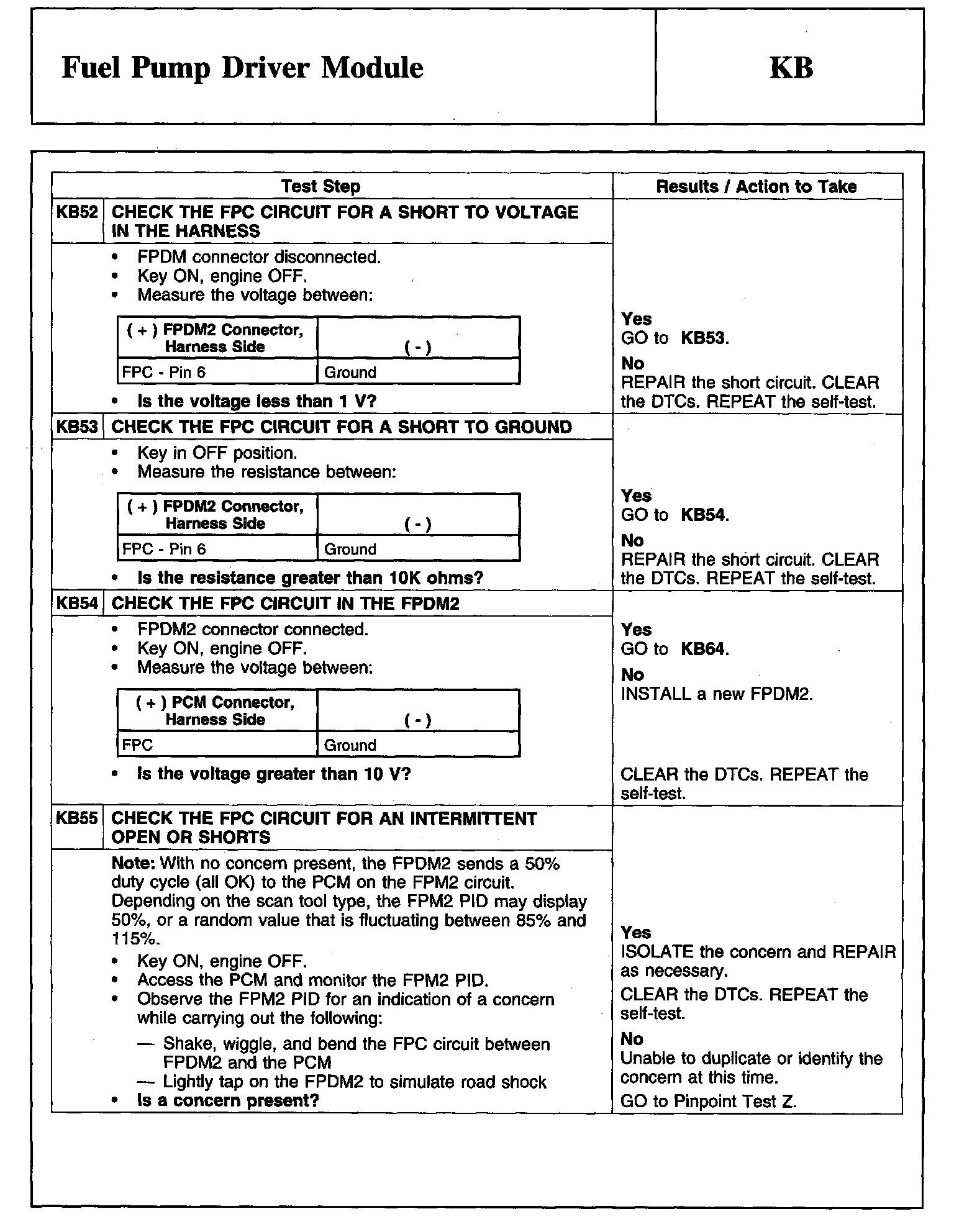

KB52-KB55:
KB56-KB59:

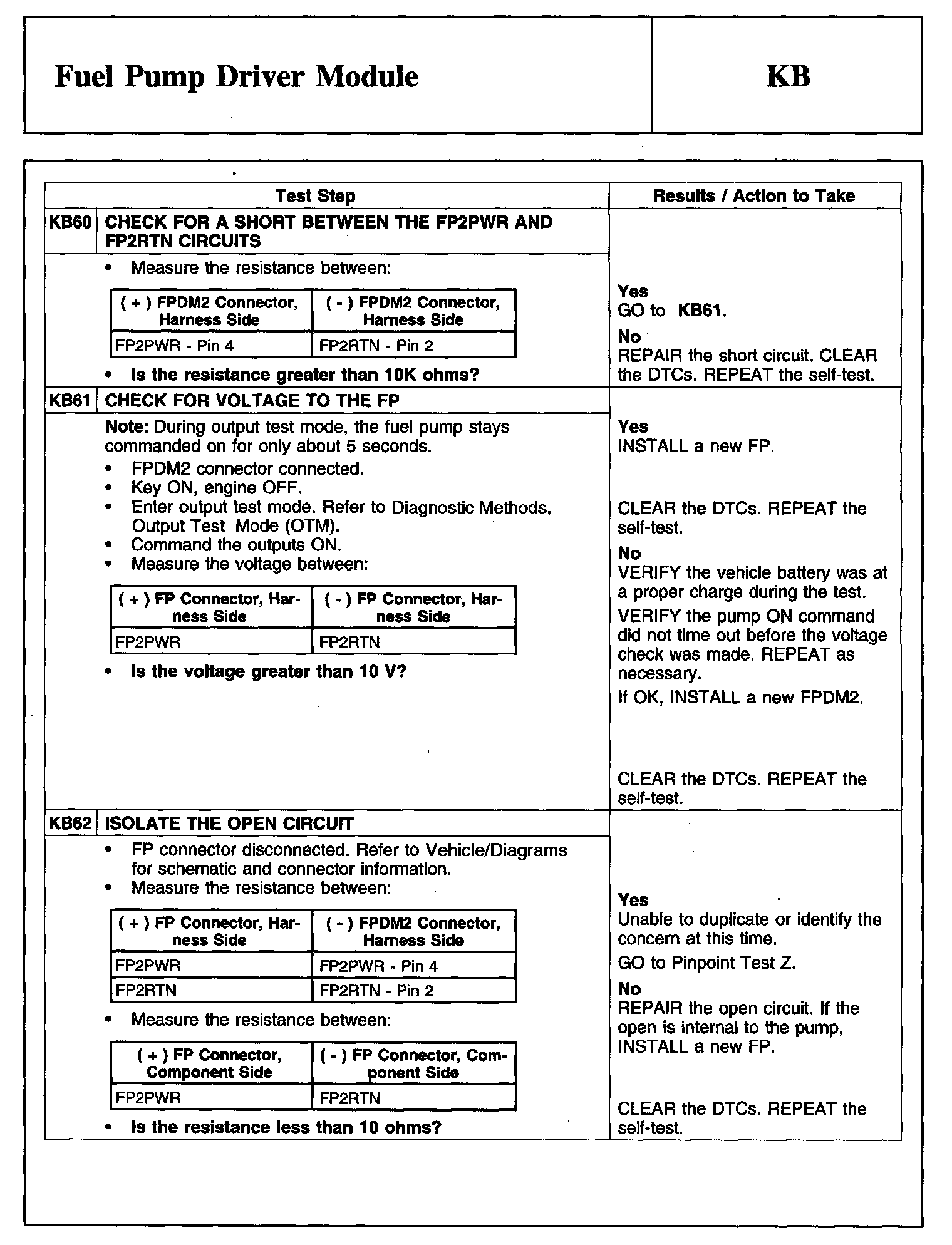

KB60-KB62:

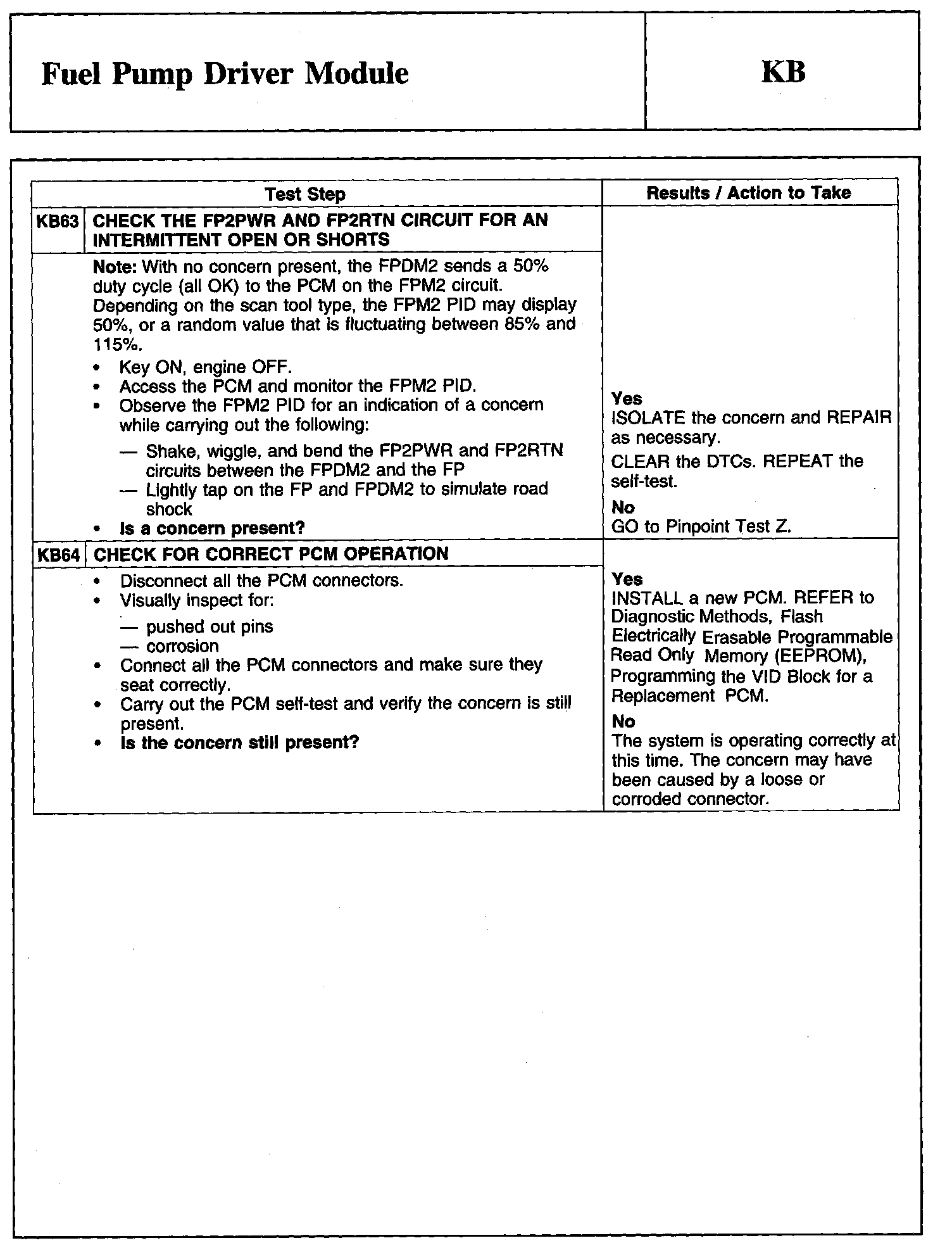

KB63-KB64:
