2008 Ford Explorer 2WD V6-4.0LFACTORY OEM SERVICE PROCEDURE
Ignition Cable: Service and Repair
SPARK PLUG WIRES
Exploded View

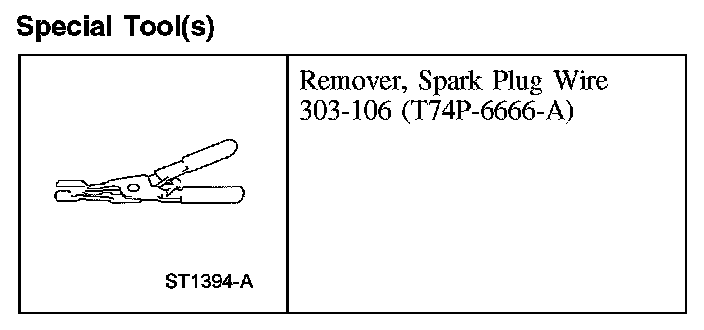

Special Tool(s)
Removal and Installation
1. CAUTION: It is important to twist the spark plug wire boot while pulling upward to avoid possible damage to the spark plug wire.
NOTE: Spark plug wires must be connected to the correct ignition coil terminal.
Squeeze the locking tabs and twist while pulling upward to disconnect the 6 spark plug wires from the ignition coil.
2. Detach the spark plug wires from the spark plug wire retainers.
3. CAUTION: It is important to twist the spark plug wire boot while pulling upward to avoid possible damage to the spark plug wire.
NOTE: Spark plug wires must be connected to the correct spark plug.

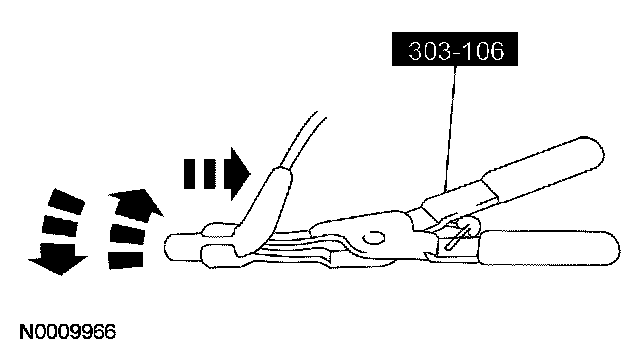

With a twisting motion, use the special tool to pull the spark plug wires from the spark plugs.
4. NOTE: Apply silicone dielectric compound to the inside of the spark plug wire boots.
To install, reverse the removal procedure.
Exploded View
Special Tool(s):
Special Tool(s)
Removal and Installation
1. CAUTION: It is important to twist the spark plug wire boot while pulling upward to avoid possible damage to the spark plug wire.
NOTE: Spark plug wires must be connected to the correct ignition coil terminal.
Squeeze the locking tabs and twist while pulling upward to disconnect the 6 spark plug wires from the ignition coil.
2. Detach the spark plug wires from the spark plug wire retainers.
3. CAUTION: It is important to twist the spark plug wire boot while pulling upward to avoid possible damage to the spark plug wire.
NOTE: Spark plug wires must be connected to the correct spark plug.
With a twisting motion, use the special tool to pull the spark plug wires from the spark plugs.
4. NOTE: Apply silicone dielectric compound to the inside of the spark plug wire boots.
To install, reverse the removal procedure.
