2008 Ford Explorer 2WD V6-4.0LFACTORY OEM SERVICE PROCEDURE
Climate Control Assembly
CLIMATE CONTROL ASSEMBLY
Removal and Installation

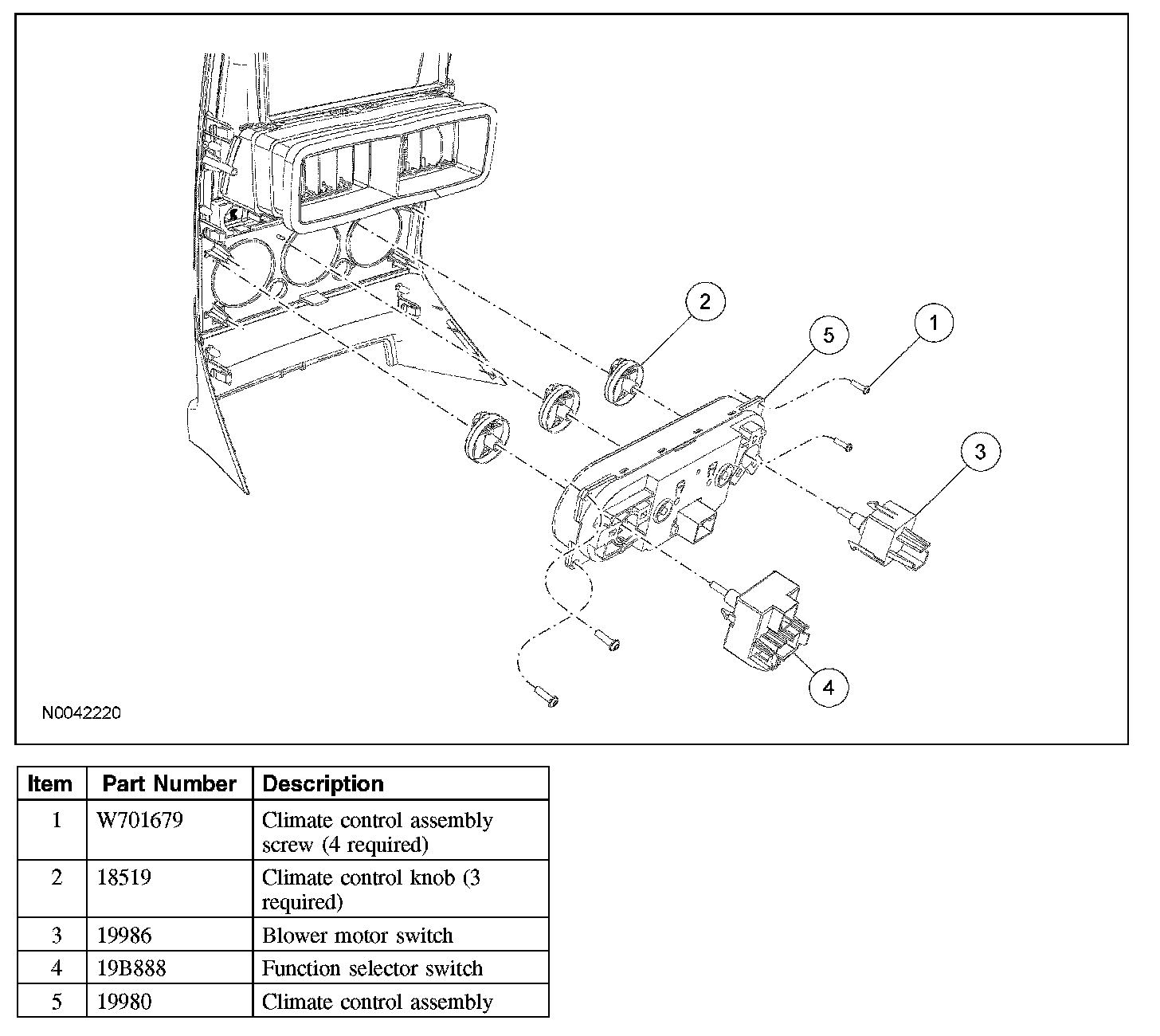

1. Remove the center instrument panel finish panel. Service and Repair
2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.
4. Remove the 3 climate control knobs.

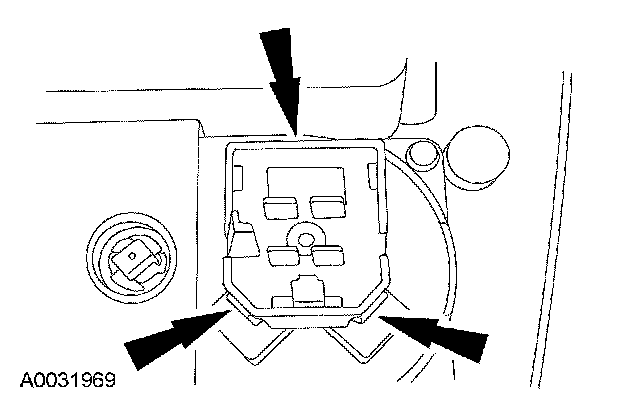

5. Depress the tabs and remove the blower motor switch.

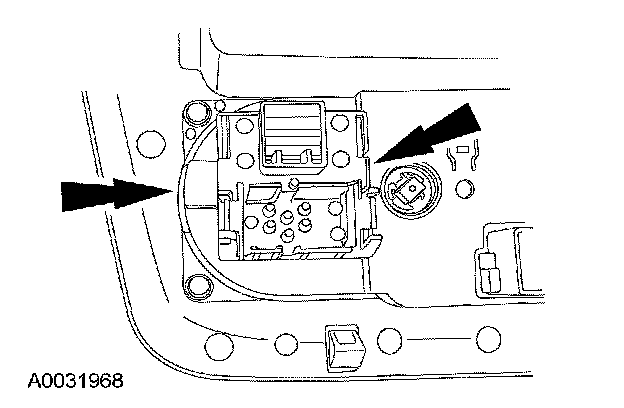

6. Depress the tabs and remove the function selector switch.
7. To install, reverse the removal procedure.
Removal and Installation
1. Remove the center instrument panel finish panel. Service and Repair
2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.
4. Remove the 3 climate control knobs.
5. Depress the tabs and remove the blower motor switch.
6. Depress the tabs and remove the function selector switch.
7. To install, reverse the removal procedure.
