2008 Ford Edge AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Control Module: Service and Repair

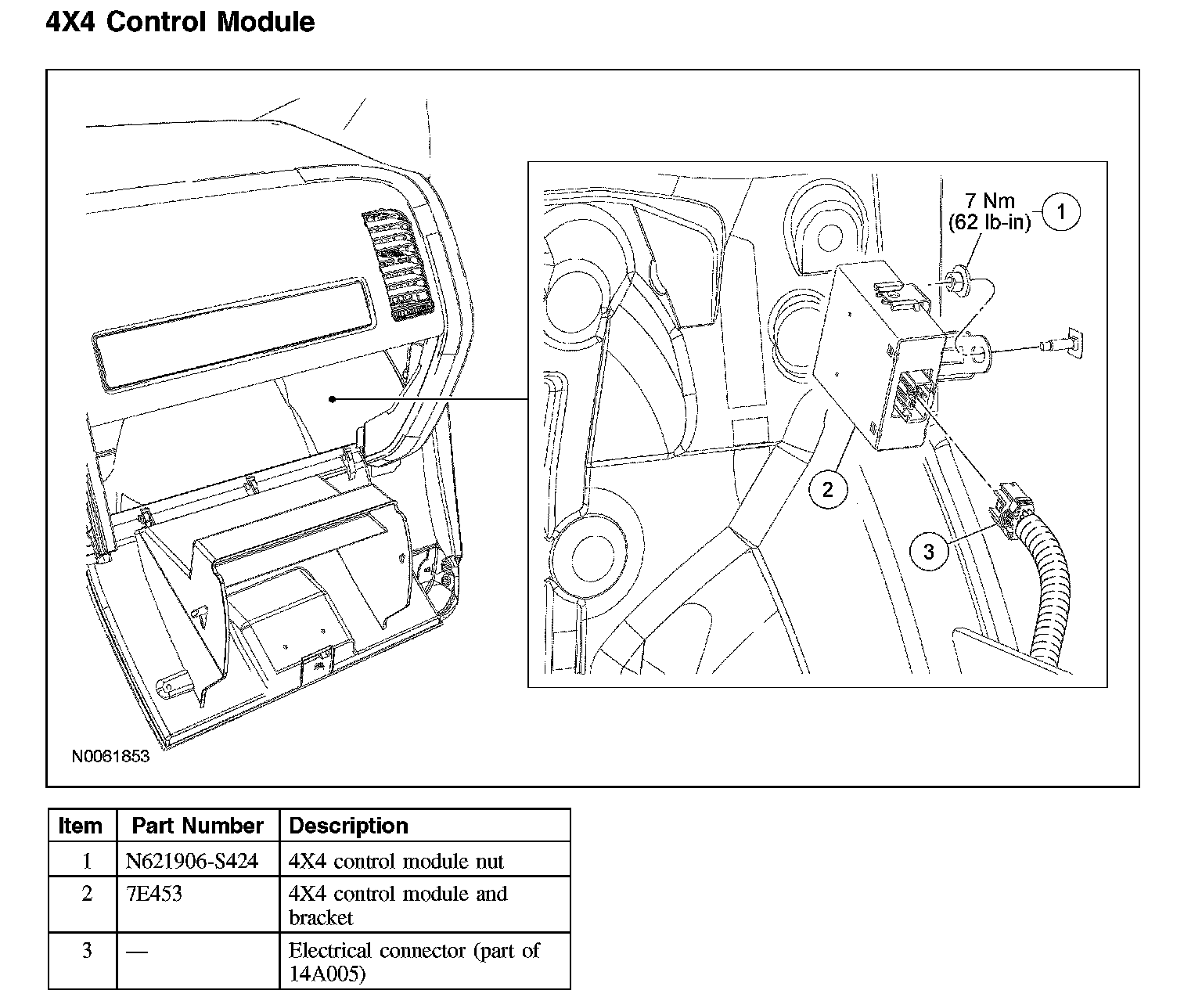

4X4 Control Module
Removal and Installation
1. From below the RH side instrument panel, remove the hush panel.
2. Disconnect the 4X4 control module harness connector.
3. Remove the 4X4 control module nut.
^ To install, tighten to 7 Nm (62 lb-in).
4. Remove the 4X4 control module and bracket.
5. To install, reverse the removal procedure.
4X4 Control Module:
Removal and Installation
1. From below the RH side instrument panel, remove the hush panel.
2. Disconnect the 4X4 control module harness connector.
3. Remove the 4X4 control module nut.
^ To install, tighten to 7 Nm (62 lb-in).
4. Remove the 4X4 control module and bracket.
5. To install, reverse the removal procedure.
