Heated Seat Module - Front

HEATED SEAT MODULE - FRONT

Exploded View

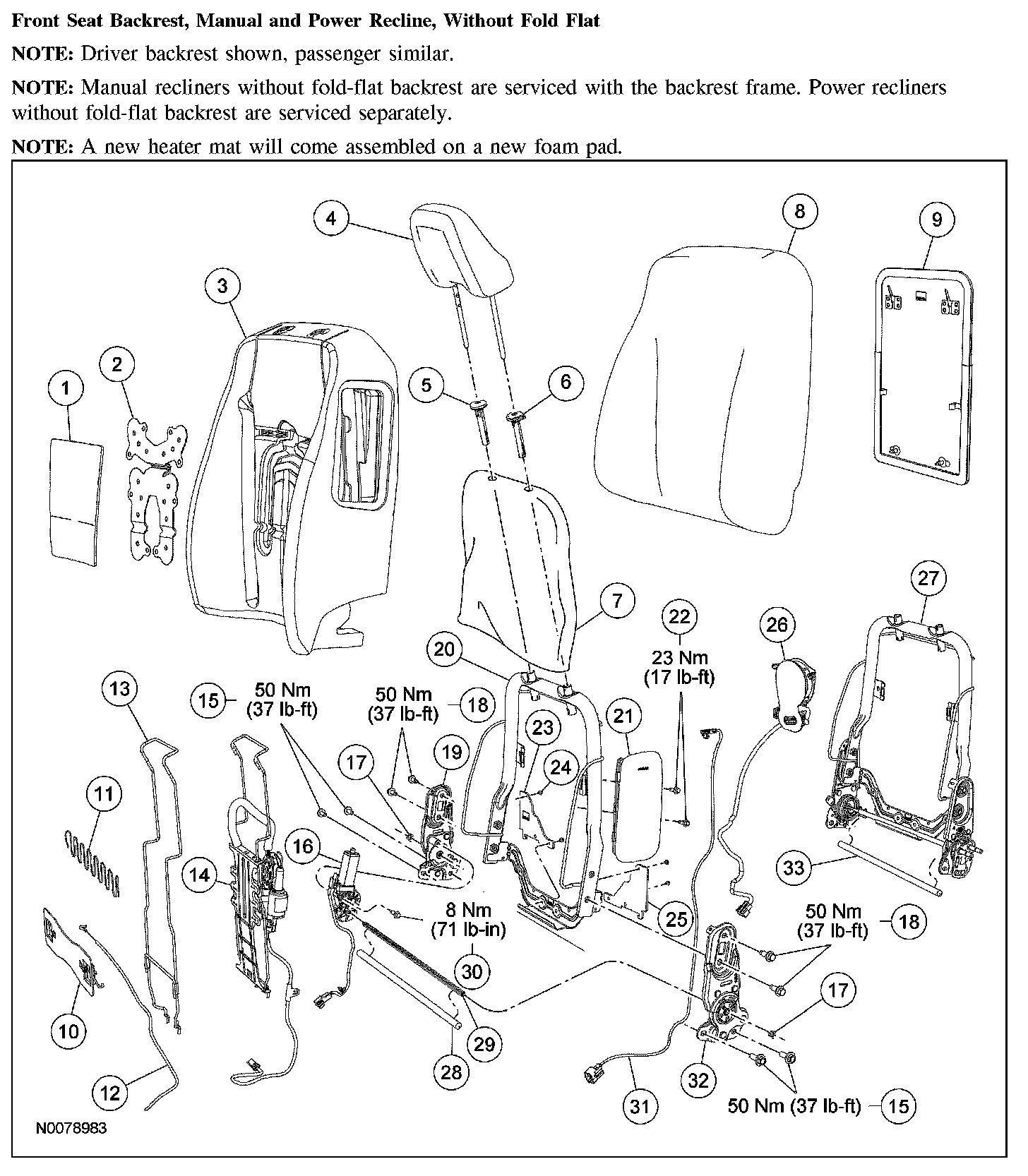

Front Seat Backrest, Manual and Power Recline, Without Fold Flat (Part 1):

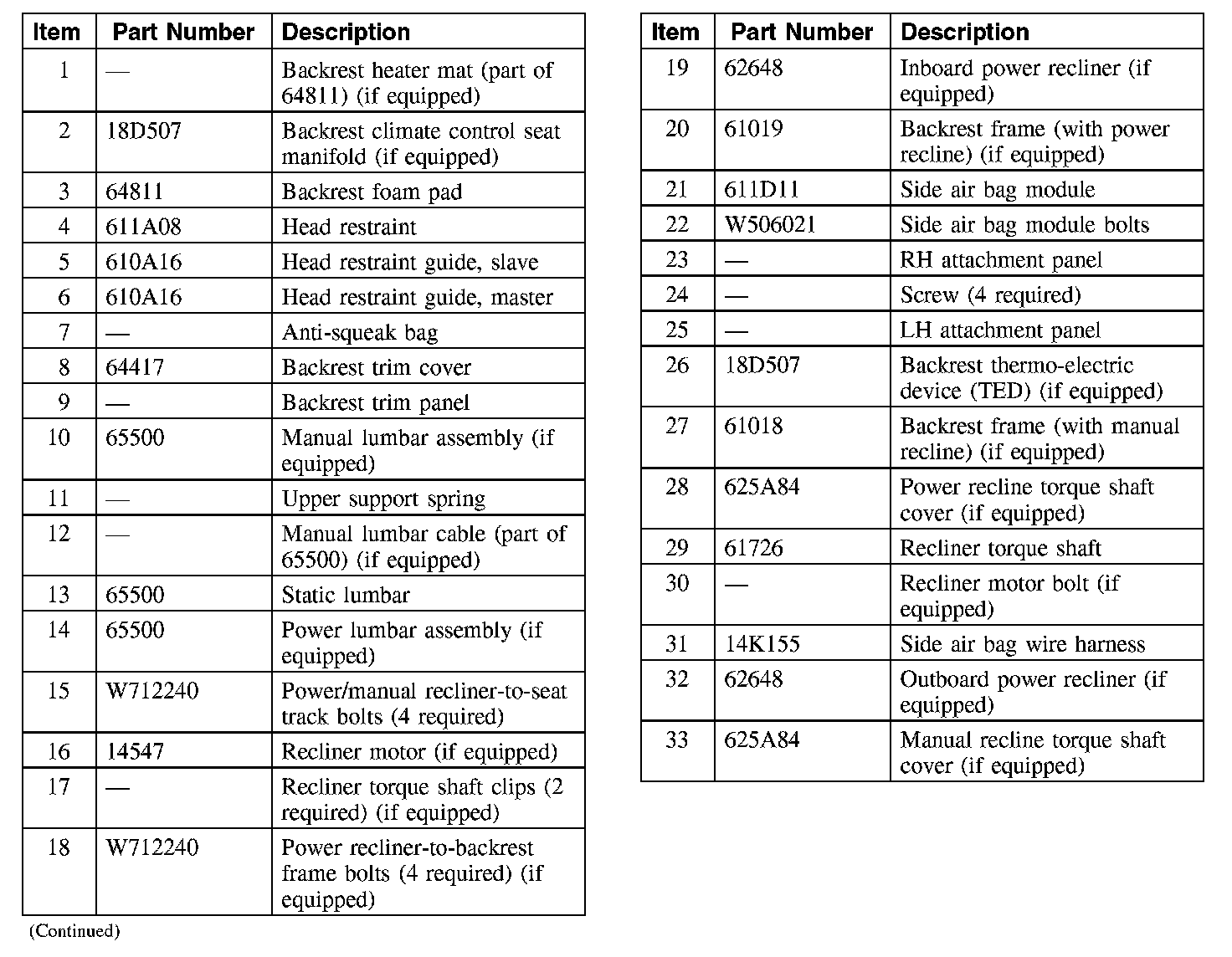

Front Seat Backrest, Manual and Power Recline, Without Fold Flat (Part 2):

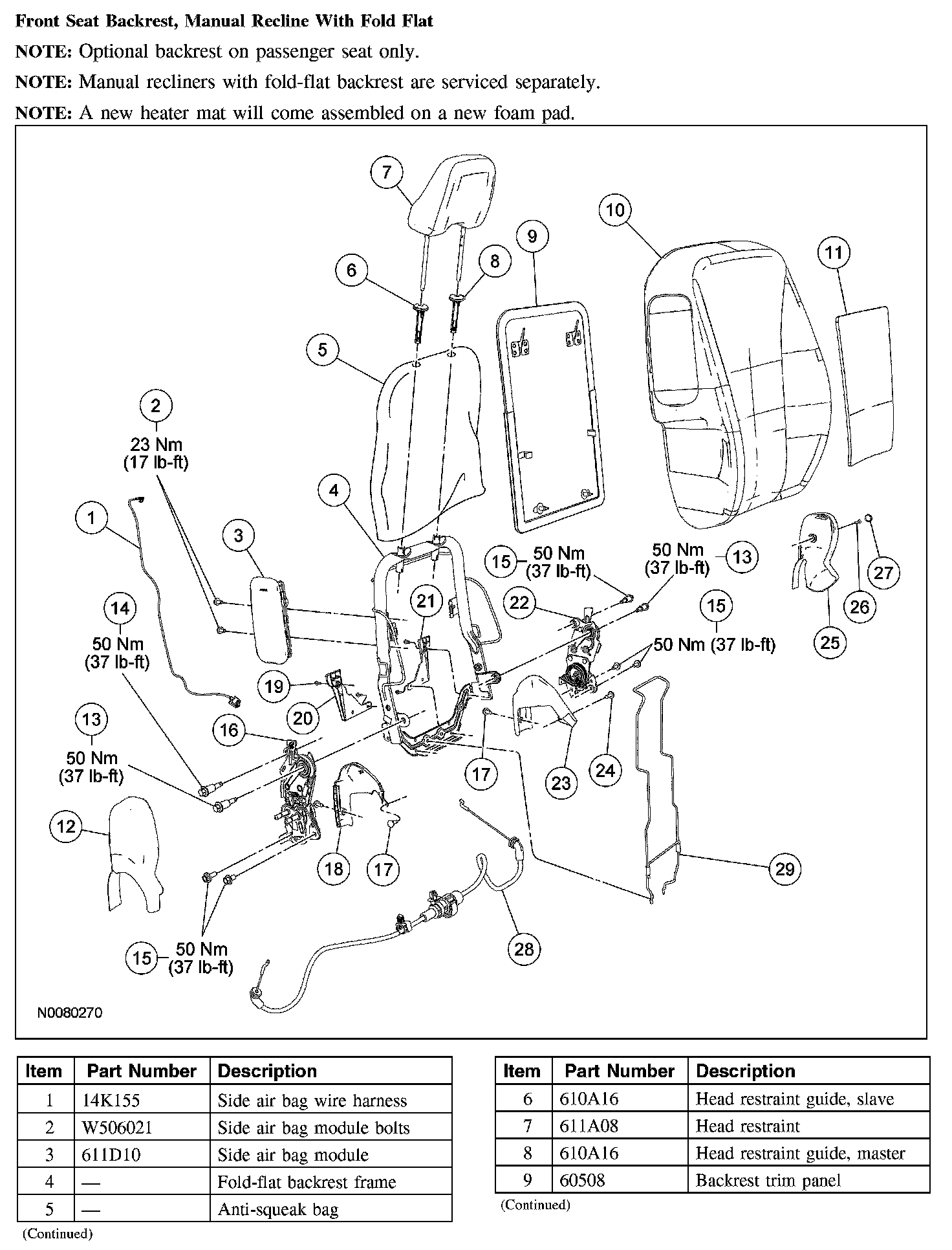

Front Seat Backrest, Manual Recline With Fold Flat (Part 1):

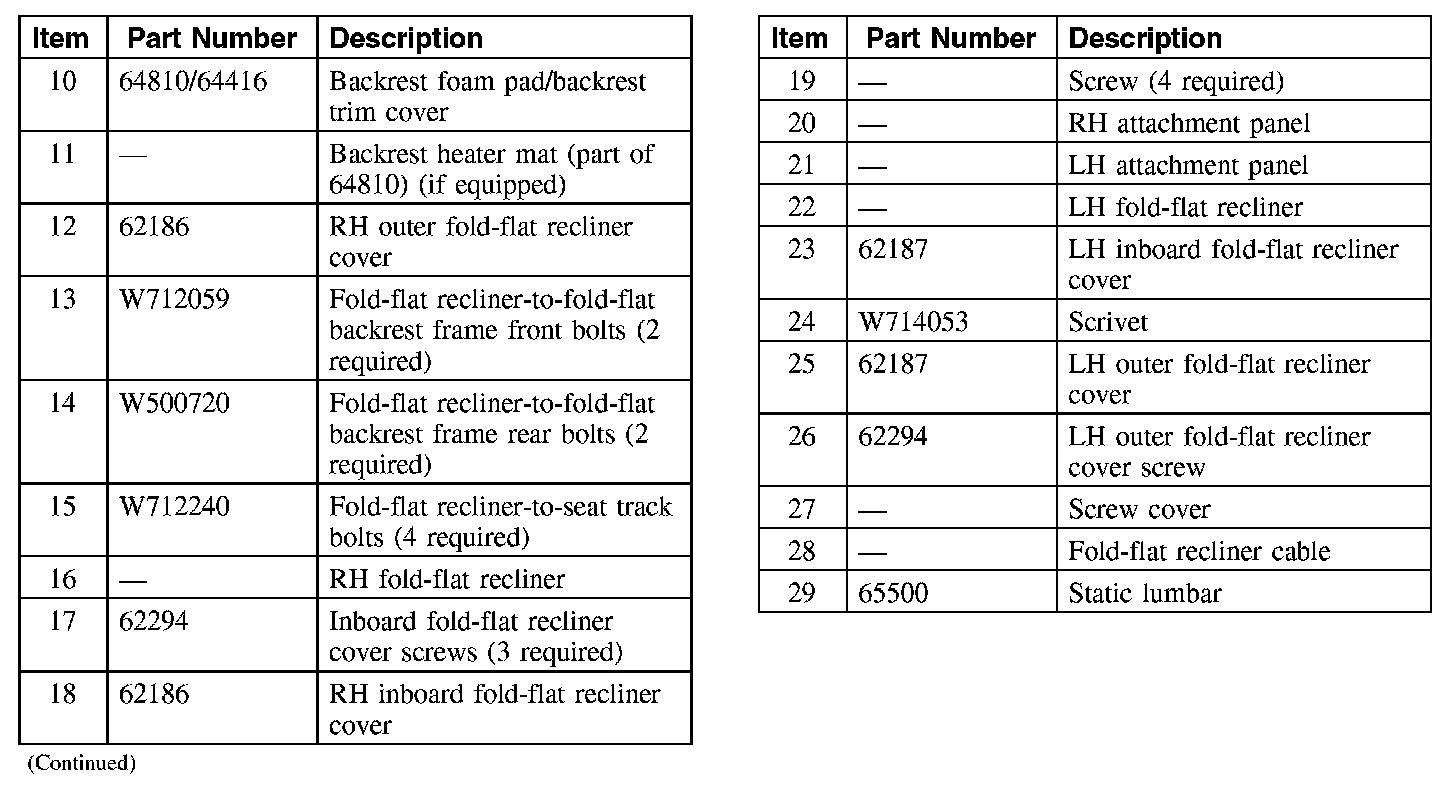

Front Seat Backrest, Manual Recline With Fold Flat (Part 2):

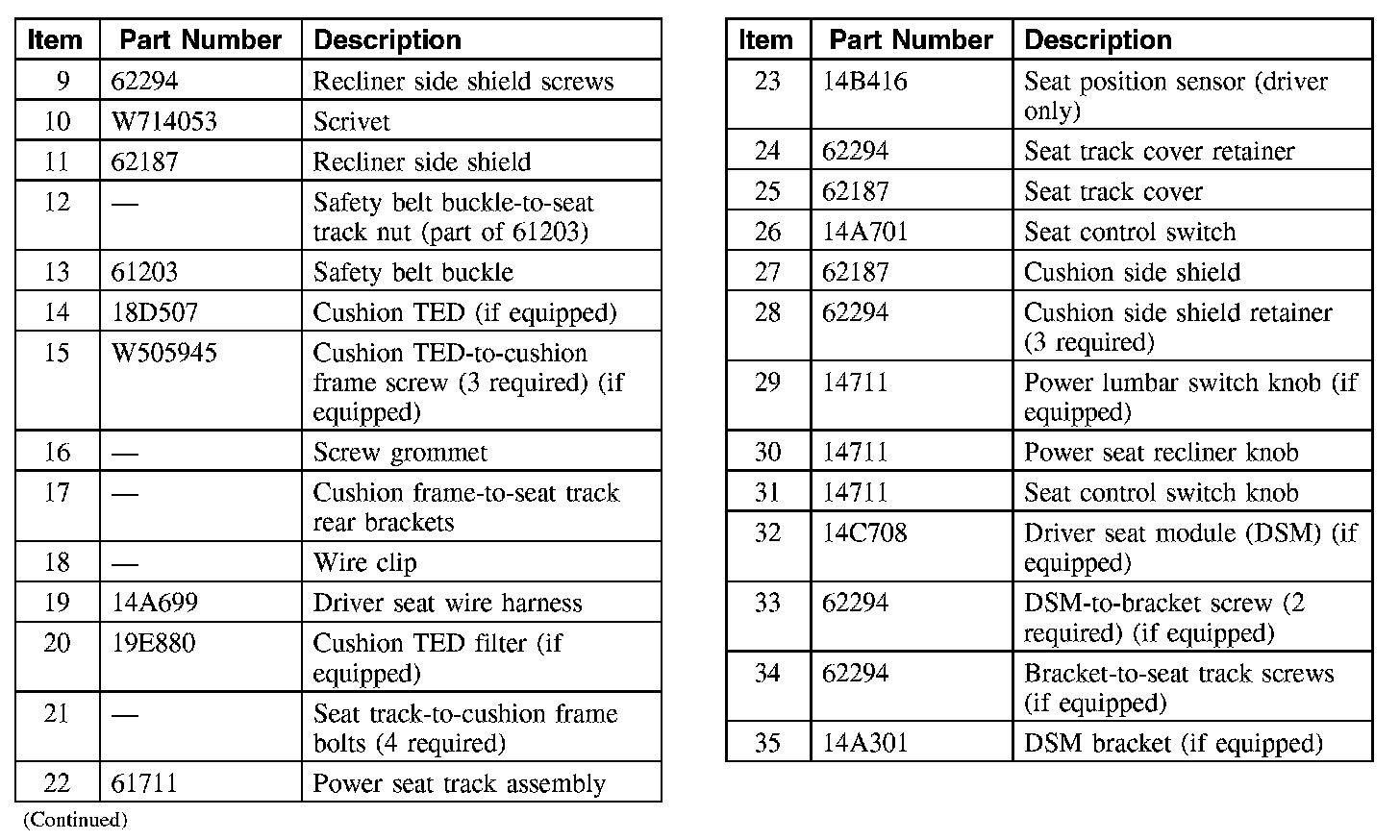

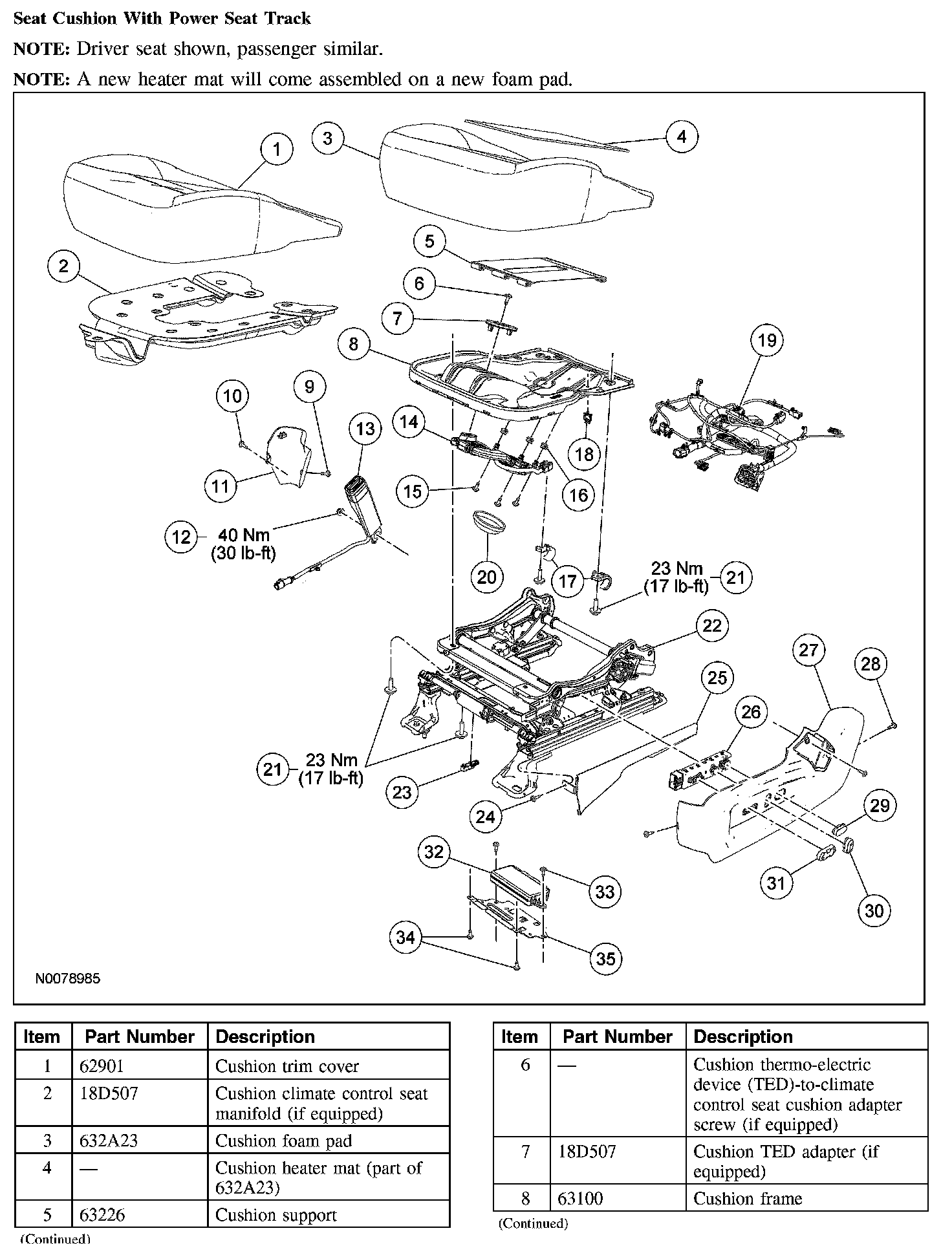

Seat Cushion With Power Seat Track (Part 1):

Seat Cushion With Power Seat Track (Part 2):

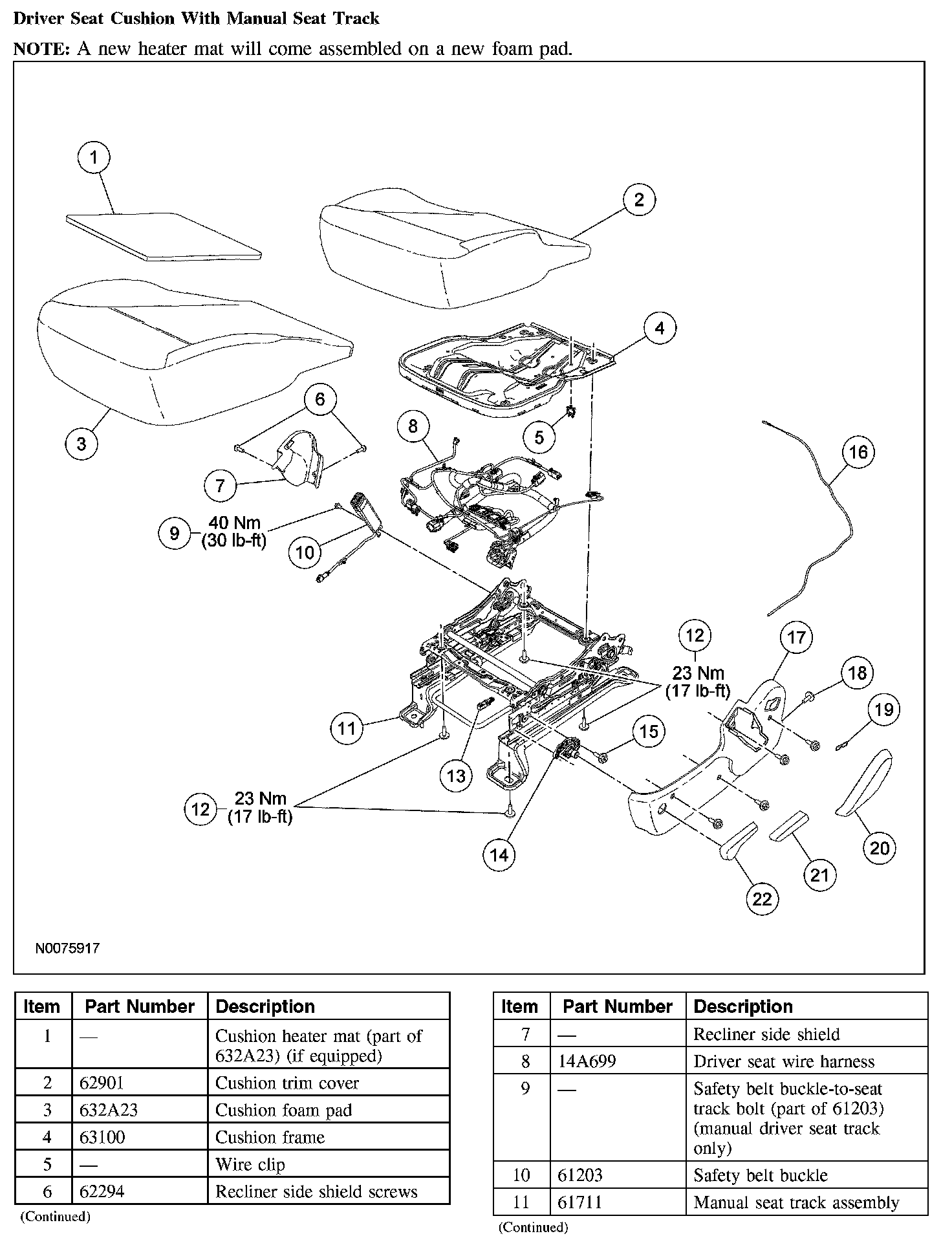

Driver Seat Cushion With Manual Seat Track (Part 1):

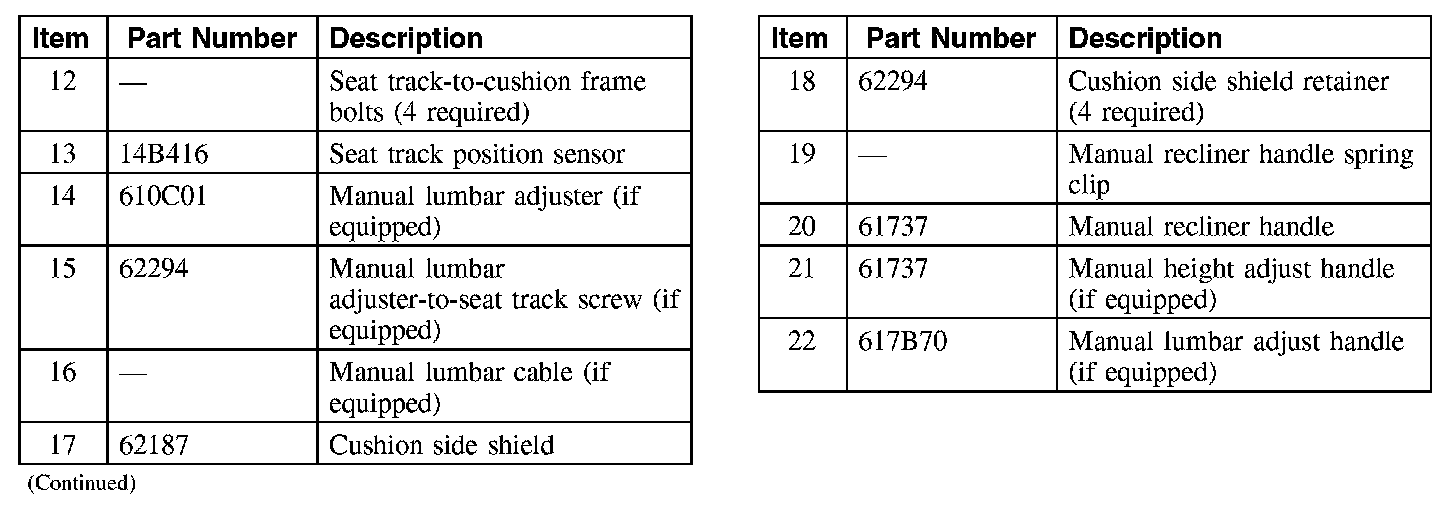

Driver Seat Cushion With Manual Seat Track (Part 2):

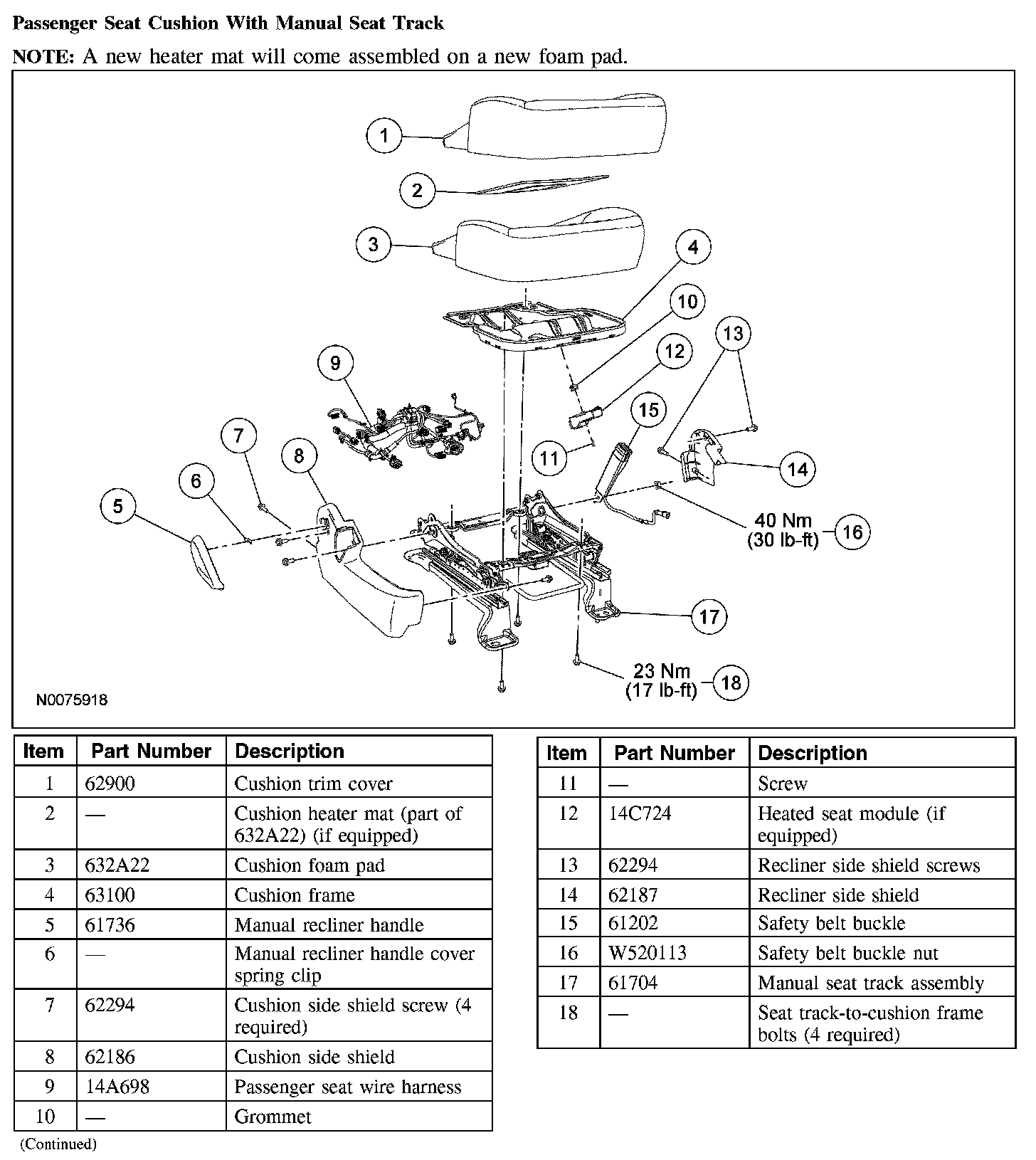

Passenger Seat Cushion With Manual Seat Track:

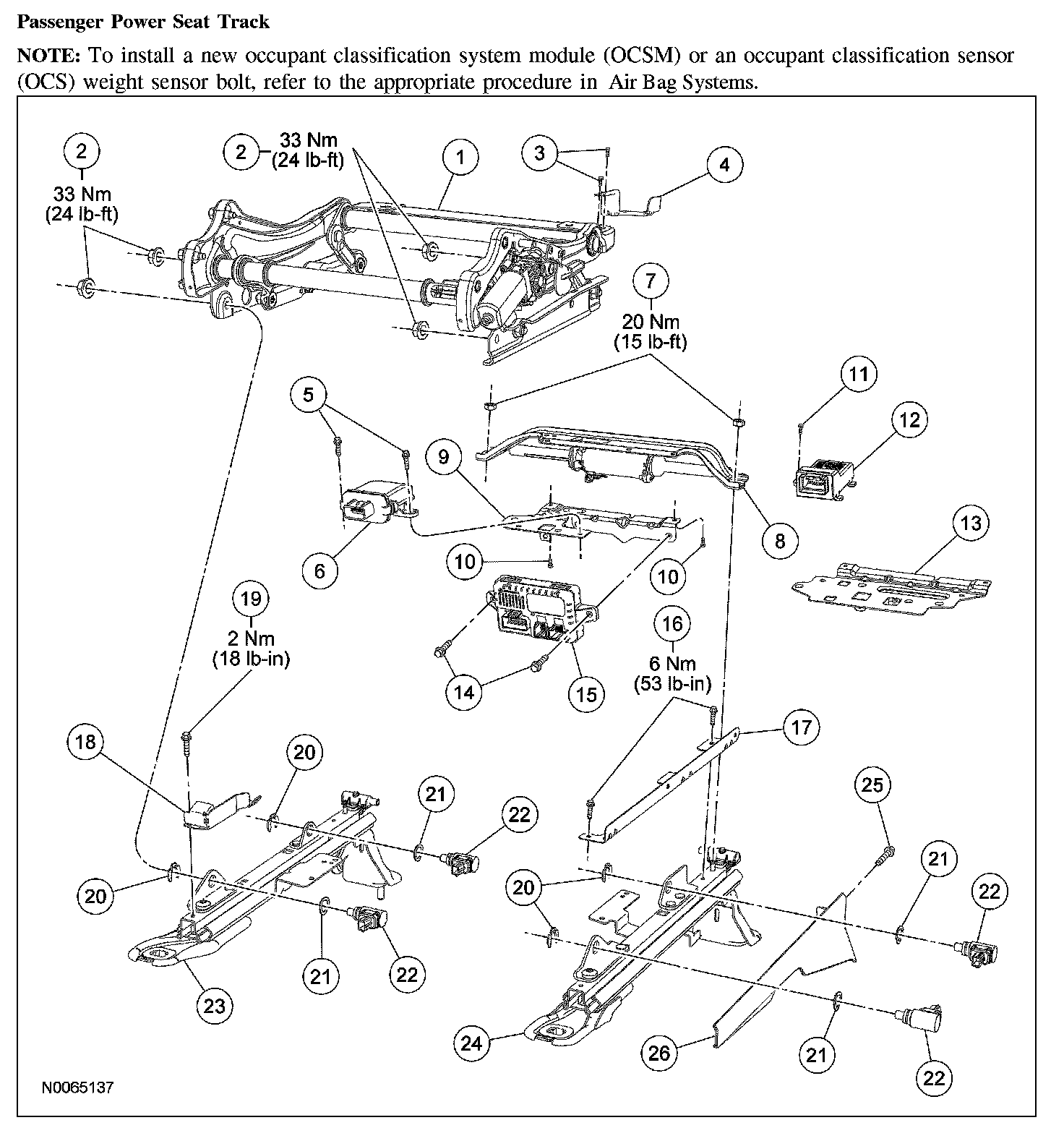

Passenger Power Seat Track (Part 1):

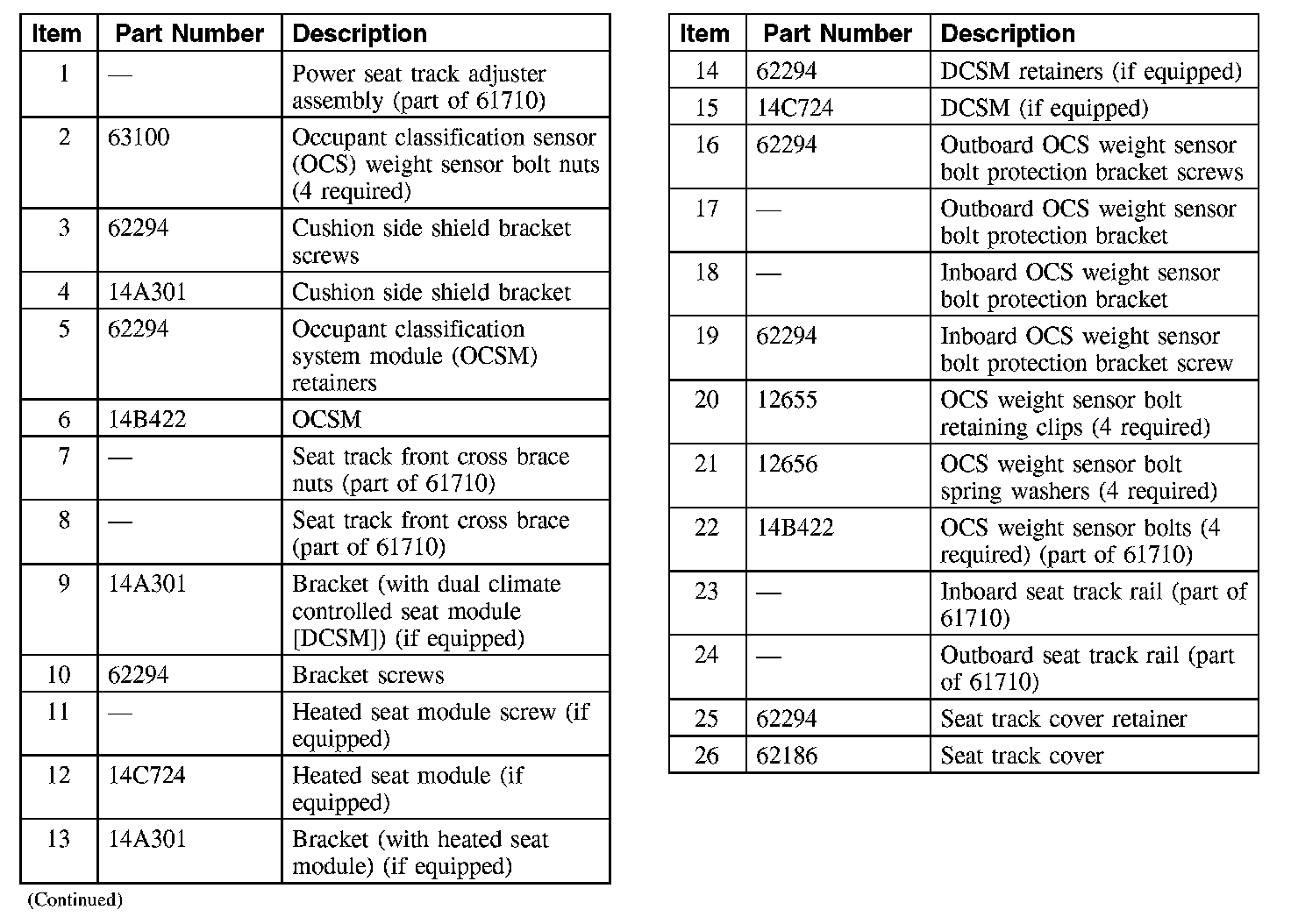

Passenger Power Seat Track (Part 2):

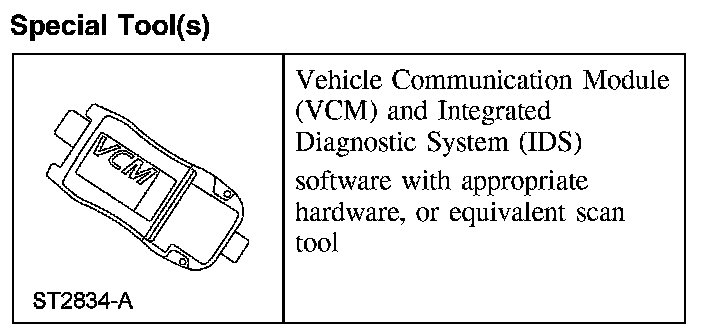

Special Tool(s)

Special Tool(s):

Removal and Installation

NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. Position the front passenger seat to access the heated seat module.
2. Depower the SRS.
3. From under the front of the front passenger seat, remove the heated seat module.
- Vehicles with power seat track, remove the 2 screws and lower the bracket (if equipped).
- Disconnect the heated seat module electrical connector.
- Remove the screw and heated seat module.

4. To install, reverse the removal procedure.
5. Repower the SRS. Do not prove out the SRS at this time.
6. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test.
