2007 Ford Taurus SELFACTORY OEM SERVICE PROCEDURE
Pump Assembly: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Pump Bearing/Fluid Seal | 307-394 | |
| Installer, Pump Bearing/Fluid Seal | 307-393 |

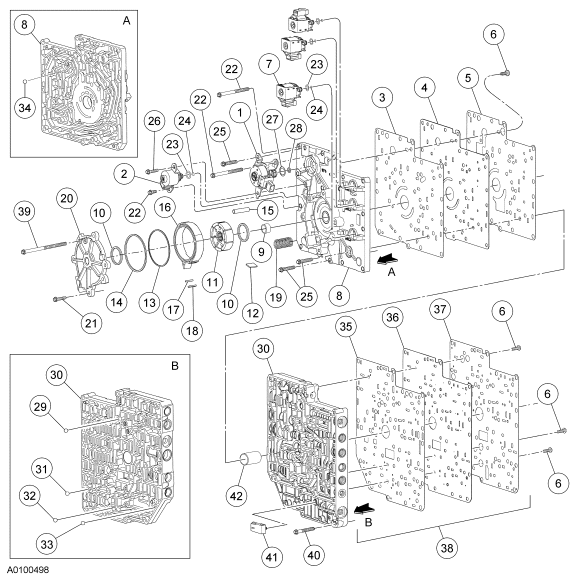

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H144 | EPC solenoid valve |
| 2 | 7G133 | TCC solenoid |
| 3 | 7G331 | Separator plate-to-pump body gasket |
| 4 | 7A142 | Separator plate |
| 5 | 7A136 | Pump assembly-to-valve body gasket |
| 6 | N803737-S | Bolts |
| 7 | 7G484 | No. 3 shift solenoid |
| 8 | 7A104 | Pump body |
| 9 | 7G184 | Pump bearing and seal assembly |
| 10 | 7G287 | Ring pump vane supports |
| 11 | 7A146 | Pump rotor |
| 12 | 7G286 | Pump vane (7 required) |
| 13 | 7G282 | Pump bore ring side support |
| 14 | 7G281 | Pump bore ring side seal |
| 15 | N803499-S | Bore ring retaining pin |
| 16 | 7R194 | Pump body bore ring |
| 17 | 7G284 | Pump bore ring radial seal support |
| 18 | 7G283 | Pump bore ring radial seal |
| 19 | 7G285 | Pump bore ring spring |
| 20 | 7G187 | Pump cover and sleeve assembly |
| 21 | N605892-S1 | Bolt (2 required) |
| 22 | N605772-S1000 | Bolts |
| 23 | 7Z484 | O-ring seals (inner) |
| 24 | 7Z484 | O-ring seals (outer) |
| 25 | N803727-S | Bolts |
| 26 | N803727-S | Bolt |
| 27 | 7Z144 | O-ring seal |
| 28 | 7Z144 | O-ring seal |
| 29 | 7E195 | Check ball (B4) |
| 30 | 7A100 | Main control valve body |
| 31 | 7E195 | Check ball (B2) |
| 32 | 7E195 | Check ball (B3) |
| 33 | 7E195 | Check ball (B1) |
| 34 | 7E195 | Check ball (B8) |
| 35 | 7D100 | Valve body-to-separator plate gasket |
| 36 | 7A008 | Valve body separator plate |
| 37 | 7C155 | Valve body-to-chain cover gasket |
| 38 | 7Z490 | Valve body plate (bonded gasket) |
| 39 | N807073-S1100 | Bolt (pump cover to chain cover) |
| 40 | N606022-S1000 | Bolt (pump body to chain cover) |
| 41 | 7H141 | Transmission fluid temperature (TFT) sensor |
| 42 | 7G318 | Main control valve body sleeve |
