2007 Ford Taurus SELFACTORY OEM SERVICE PROCEDURE

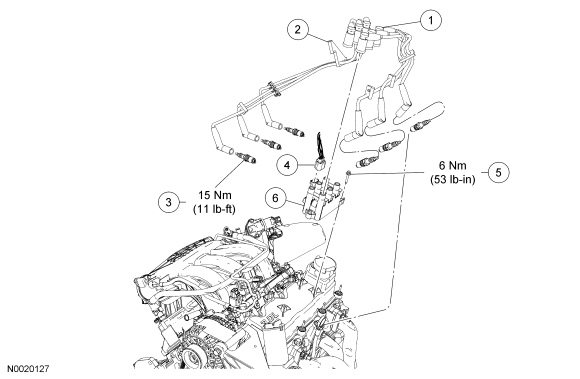

Engine Ignition Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 12280 | Spark plug wire (6 required) |
| 2 | 12297 | Spark plug wire retainer |
| 3 | 12405 | Spark plug (6 required) |
| 4 | 14A464 | Ignition coil electrical connector (part of 12B637) |
| 5 | W706995 | Ignition coil bolt (3 required) |
| 6 | 12026 | Ignition coil |
- For additional information, refer to the following procedures.
