2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE

Output Shaft Speed (OSS) Sensor: Notes

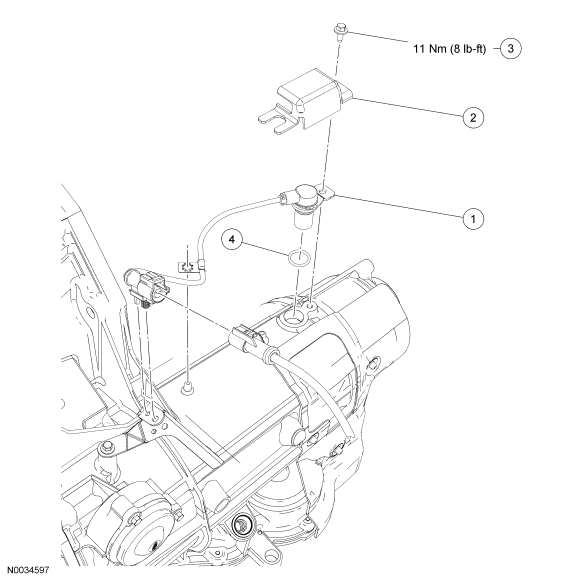

Fig 1: Exploded View Of Output Shaft Speed OSS Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7H103	Transmission output shaft speed (OSS) sensor
2	7A434	Heat shield
3	N605890-S36	OSS bolt
4	7J148	O-ring seal
