2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE

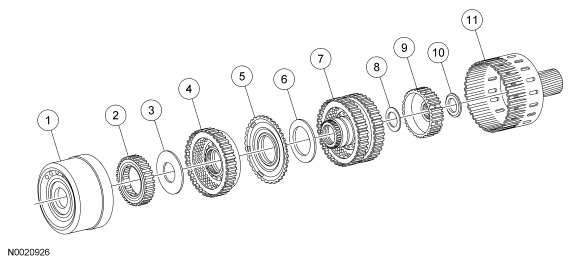

Sun and Shell Assembly - Assembly: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 7L669 | Overdrive drum |
| 2 | 7A089 | One-way clutch assembly |
| 3 | 7A166 | No. 6 forward clutch thrust washers |
| 4 | 7A360 | Forward clutch cylinder |
| 5 | 7G156 | Direct one-way clutch |
| 6 | 7F369 | No. 7 direct/intermediate clutch thrust washer |
| 7 | 7G120 | Direct/intermediate clutch assembly |
| 8 | 7C096 | No. 10 thrust bearing |
| 9 | 7F221 | Intermediate clutch hub |
| 10 | 7C096 | No. 11 front sun shell thrust bearing |
| 11 | 7D064 | Front sun shell |
