2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE
Reverse Clutch: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Feeler Gauge Set | 303-D027 (D81L-4201-A) or equivalent | |
| Compressor, Clutch Spring | 307-015 (T65L-77515-A) | |
| Protector, Piston Seal | 307-322 (T94P-77001-PH) |

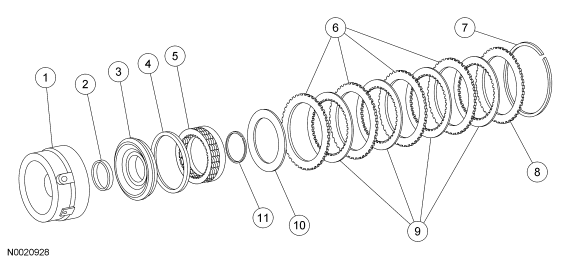

| Item | Part Number | Description |
|---|---|---|
| 1 | 7F341 | Reverse clutch cylinder |
| 2 | 7D404 | Reverse clutch piston inner seal |
| 3 | 7D402 | Reverse clutch piston |
| 4 | 7D403 | Reverse clutch piston outer seal |
| 5 | 7G335 | Reverse clutch support and spring |
| 6 | 7E315 | Reverse clutch plates - externally splined (steel) |
| 7 | 7D483 | Reverse clutch pressure plate retaining snap ring |
| 8 | 7D408 | Reverse clutch pressure plate |
| 9 | 7E312 | Reverse clutch plates - internally splined (friction) |
| 10 | 7E085 | Reverse clutch wave spring |
| 11 | N803048-S | Retaining ring |
