2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE
Intermediate Clutch Cylinder: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge With Holding Fixture | 100-D002 (D78P-4201-B) | |
| Compressor, Clutch Spring | 307-015 (T65L-77515-A) | |
| Protector, Piston Seal | 307-319 (T94P-77001-LH) |

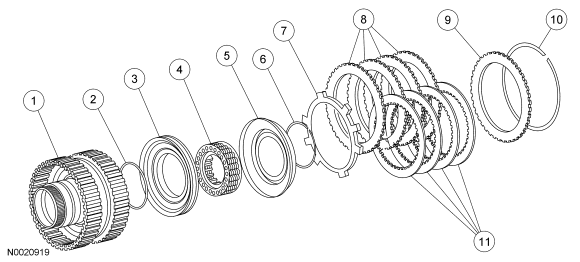

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G121 | Direct and intermediate clutch cylinder |
| 2 | 7G240 | Intermediate clutch piston inner seal |
| 3 | 7E005 | Intermediate clutch piston and seal assembly |
| 4 | 7G297 | Intermediate clutch support and spring |
| 5 | 7H185 | Intermediate clutch return piston and seal assembly |
| 6 | N803175-S | Retaining ring |
| 7 | 7G159 | Wave spring |
| 8 | 7B164 | Intermediate clutch plates-internally splined (steel) (quantity of clutch plates are model dependent) |
| 9 | 7B455 | Intermediate clutch pressure plate |
| 10 | 7G367 | Intermediate clutch pressure plate retainer snap ring |
| 11 | 7E314 | Intermediate clutch plates-externally splined (friction) (quantity of clutch plates are model dependent) |
