2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE

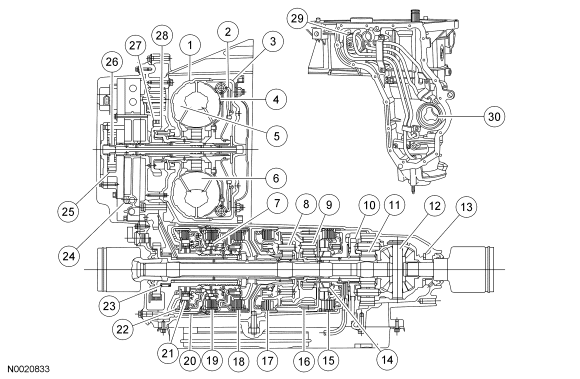

Main Components and Functions
| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Torque converter |
| 2 | - | Torque converter clutch (piston plate clutch and damper assembly) (part of 7902) |
| 3 | - | Torque converter cover (part of 7902) |
| 4 | - | Torque converter turbine (part of 7902) |
| 5 | - | Torque converter impeller (part of 7902) |
| 6 | - | Torque converter reactor (part of 7902) |
| 7 | 7A089 | Clutch assembly - direct one-way |
| 8 | 7A398 | Gear assembly - planet front |
| 9 | 7D006 | Rear planet assembly |
| 10 | 7A233 | Gear - parking |
| 11 | 7F342 | Gear and deflector assembly - final drive sun |
| 12 | 7F465 | Gear and differential case assembly |
| 13 | 7G112 | Bearing and race assembly - differential carrier thrust No. 19 |
| 14 | 7C190 | Low/intermediate one-way clutch |
| 15 | 7B164 | Low/intermediate clutch |
| 16 | 7A162 | Band assembly - coast |
| 17 | 7B164 | Plate assembly - reverse clutch internal (friction) |
| 18 | 7G120 | Plate assembly - intermediate/clutch |
| 19 | 7G120 | Plate assembly - direct clutch |
| 20 | 7F196 | Band assembly - overdrive |
| 21 | 7A089 | Clutch assembly - low one-way |
| 22 | 7A360 | Forward clutch cylinder |
| 23 | 7G132 | Sprocket assembly - driven |
| 24 | 7A100 | Control assembly - main |
| 25 | - | Pump assembly (part of 7A100) |
| 26 | 7B328 | Shaft assembly - oil pump drive |
| 27 | 7G249 | Chain assembly - drive |
| 28 | 7G129 | Sprocket assembly - drive |
| 29 | 7H275 | Neutral drive accumulator |
| 30 | 7H284 | Coast clutch servo |
