2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE

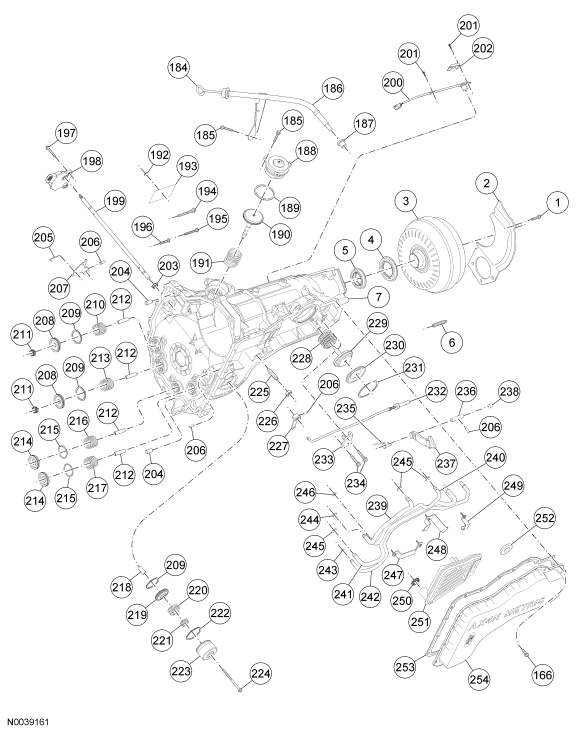

Automatic Transmission: Assembly: Transaxle
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge With Holding Fixture | 100-002 (TOOL-4201-C) | |
| Step Plate | 205-D014 (D80L-630-3) | |
| Installer, Steering Gear Pinion Bearing | 211-161 (T90C-3504-DH) | |
| Depth Micrometer | 303-D075 (D92P-4201-A) | |
| Retaining Ring Pliers | 307-343 (T95P-77001-AHR) | |
| Handle, Torque Converter | 307-091 (T81P-7902-C) | |
| Test Plate Screw Set, Transmission | 307-126 (T82P-7006-C) | |
| Air Test Plate, Transmission | 307-312 (T94P-77001-EH) | |
| Gasket, Transmission Air Test Plate | 307-313 (T94P-77001-EH1) | |
| Installer, Halfshaft Output Fluid Seal | 307-157 (T86P-1177-B) | |
| Gauge, Servo Rod | 307-162 (T86P-70023-B) | |
| Holding Fixture Transmission | 307-003 (T57L-500-B) | |
| Lifting Fixture, Clutch Pack | 307-171 (T86P-70389-A) | |
| Installer, Torque Converter Fluid Seal | 307-186 (T87L-77837-AH) | |
| End Play Gauge | 307-187 (T87P-70014-AH) | |
| Remover/Installer, Servo Piston | 307-251 (T92P-70023-A) | |
| Shim Selection Gauge Bar | 307-300 (T94P-77000-Q) | |
| Remover, Reverse Clutch/Planet | 307-314 (T94P-77001-FH) | |
| Remover/Installer, Front Clutch | 307-316 (T94P-77001-HH) | |
| Aligner, Output Shaft Fluid Seal | 307-317 (T94P-77001-JH) | |
| Shim Selection Gauge | 307-320 (T94P-77001-MH) | |
| Shim Depth Gauge | 307-321 (T94P-77001-NH) | |
| Alignment Gauge, TR Sensor | 307-351 (T97L-70010-A) | |
| Remover/Installer Bearing Tube | 308-025 (T75L-7025-C) | |
| Remover, Bearing Collet Sleeve | 308-049 (T77F-7025-C) |
