2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE
External Controls

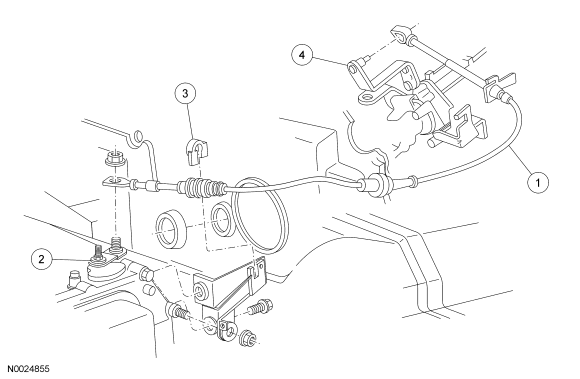

| Item | Part Number | Description |
|---|---|---|
| 1 | 7E395 | Selector lever cable |
| 2 | 7A256 | Manual control lever |
| 3 | 7H181 | Selector lever cable clip |
| 4 | - | Steering column lever |

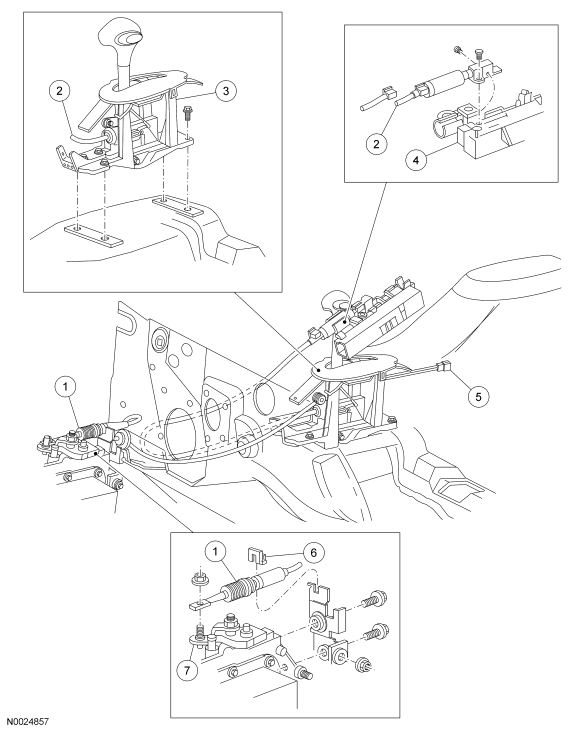

| Item | Part Number | Description |
|---|---|---|
| 1 | 7E395 | Selector lever cable |
| 2 | 3F719 | Ignition/shifter interlock cable |
| 3 | 7K004 | Transaxle range selector lever and housing |
| 4 | - | Steering column lock assembly |
| 5 | - | Data link connector |
| 6 | 7H181 | Selector lever cable clip |
| 7 | 7A256 | Manual control lever |
The transaxle shift control linkage consists of:
- a steering column or floor-mounted transaxle range selector lever.
- a shift cable connecting the steering column to the transaxle range selector lever.
- an ignition/shifter interlock cable on floor-shift vehicles which connects the transaxle range selector lever to the steering column lock assembly.
- an ignition/shift lock actuator that is integral to the ignition/shifter interlock cable.
The ignition/shifter interlock cable:
- locks the transaxle range selector lever in the PARK position when the ignition switch is in the lock position.
- requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the lock position.
