2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE
Engine Front Cover: Notes
Material
| Item | Specification |
|---|---|
| Thread Sealant with PTFE TA-24 |
WSK-M2G350-A2 |

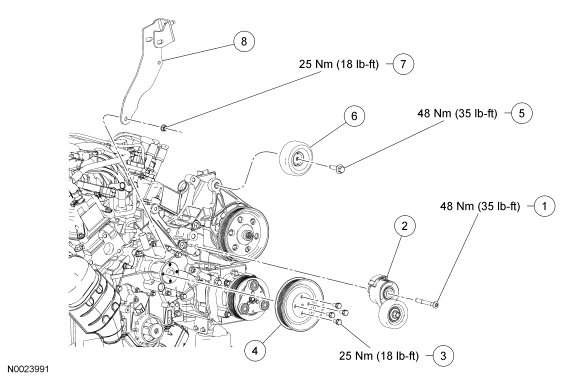

| Item | Part Number | Description |
|---|---|---|
| 1 | W500325 | Accessory drive belt tensioner bolt |
| 2 | 6B209 | Accessory drive belt tensioner |
| 3 | N806282 | Coolant pump pulley bolt (4 required) |
| 4 | 8A528 | Coolant pump pulley |
| 5 | - | Accessory drive belt idler pulley bolt (part of 6C348) |
| 6 | 6C348 | Accessory drive belt idler pulley |
| 7 | W520102 | Generator support bracket nut |
| 8 | 6F055 | Generator support bracket |

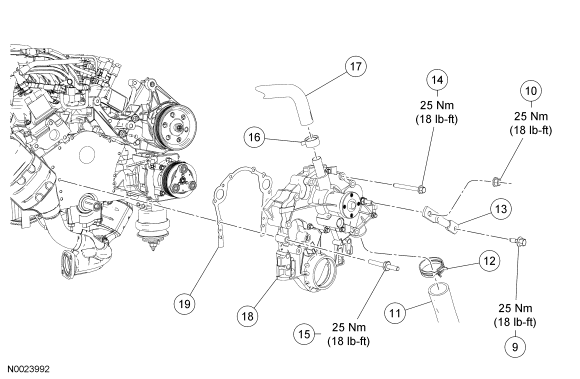

| Item | Part Number | Description |
|---|---|---|
| 9 | N807916 | A/C compressor bracket bolt |
| 10 | N621939 | A/C compressor bracket nut |
| 11 | 8B273 | Lower radiator hose |
| 12 | 15161 | Lower radiator hose clamp |
| 13 | 19N589 | A/C compressor bracket |
| 14 | N811375 | Engine front cover bolt (5 required) |
| 15 | N804215 | Engine front cover stud bolt (5 required) |
| 16 | 8287 | Heater hose clamp |
| 17 | 8548 | Heater hose |
| 18 | 6C086 | Engine front cover |
| 19 | 6D081 | Engine front cover gasket |
