2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE

Disassembly And Assembly Of Subassemblies: Piston: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000288
 Service Set, Piston Pin 303-S024 (T68P-6135-A)
Material

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Synthetic Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A

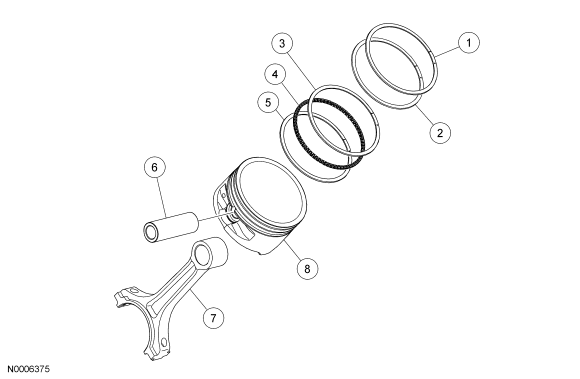

Fig 1: Exploded View Of Piston Components
GF0000289Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6150 Piston compression upper ring
2 6152 Piston compression lower ring
3 6159 Piston oil control upper segment ring
4 6161 Piston oil control spacer
5 6159 Piston oil control lower segment ring
6 6135 Piston pin
7 6200 Connecting rod
8 6110 Piston
