2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE

Cylinder Head: Notes

Special Tools

Illustration Tool Name Tool Number
GF0002399
 Compressor, Valve Spring 303-163 (T81P-6513-A)
Material

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Synthetic Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A

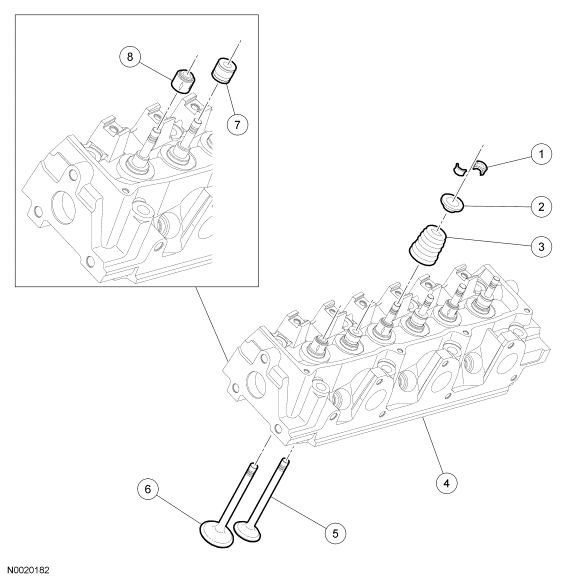

Fig 1: Exploded View Of Cylinder Head Components
GF0009269Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6518 Valve spring retainer key (12 required)
2 6514 Valve spring retainer (6 required)
3 6513 Valve spring (6 required)
4 6050 Cylinder head
5 6507 Intake valve (3 required)
6 6505 Exhaust valve (3 required)
7 6A517 Exhaust valve seal (3 required)
8 6A517 Intake valve seal (3 required)
