2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE

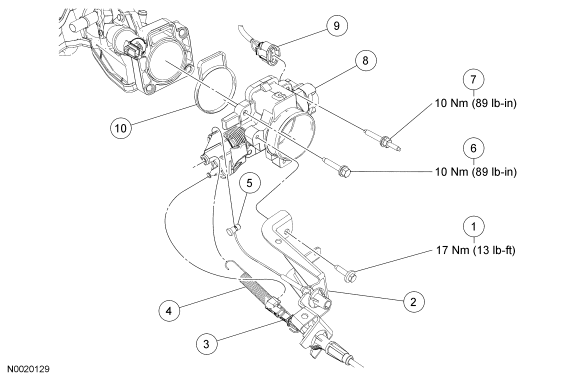

Throttle Body: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | N605891 | Accelerator/speed control cable bracket bolt (2 required) |
| 2 | 9728 | Accelerator/speed control cable bracket |
| 3 | 9A825 | Speed control cable |
| 4 | 9E894 | Throttle return spring |
| 5 | 9A758 | Accelerator control cable |
| 6 | W701669 | Throttle body (TB) bolt (3 required) |
| 7 | W701632 | TB stud bolt |
| 8 | 9E926 | TB |
| 9 | 14A464 | Throttle position (TP) sensor electrical connector (part of 12B637) |
| 10 | 9E936 | TB gasket |
