2007 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE

Electrical Component Locator: Switches

SWITCHES LOCATION

Component Location
A/C Clutch Cycling Pressure Switch On right side of engine compartment. See Figure.
Anti-Theft Hood Switch At left front corner of engine compartment. See Figure.

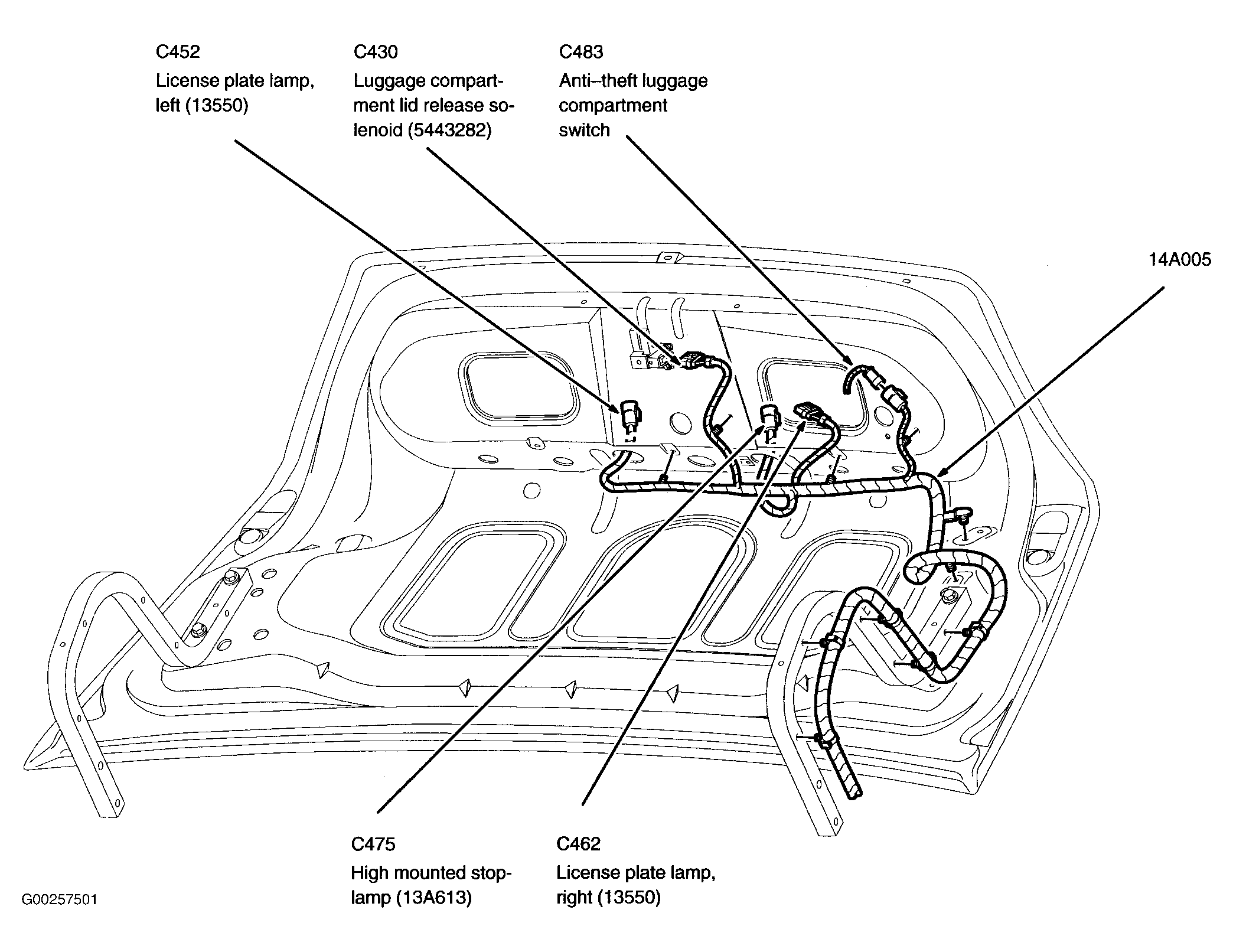

Anti-Theft Luggage Compartment Switch Left side of deck lid. See Figure.
Brake Fluid Level Switch Left rear of engine compartment. See Figure.

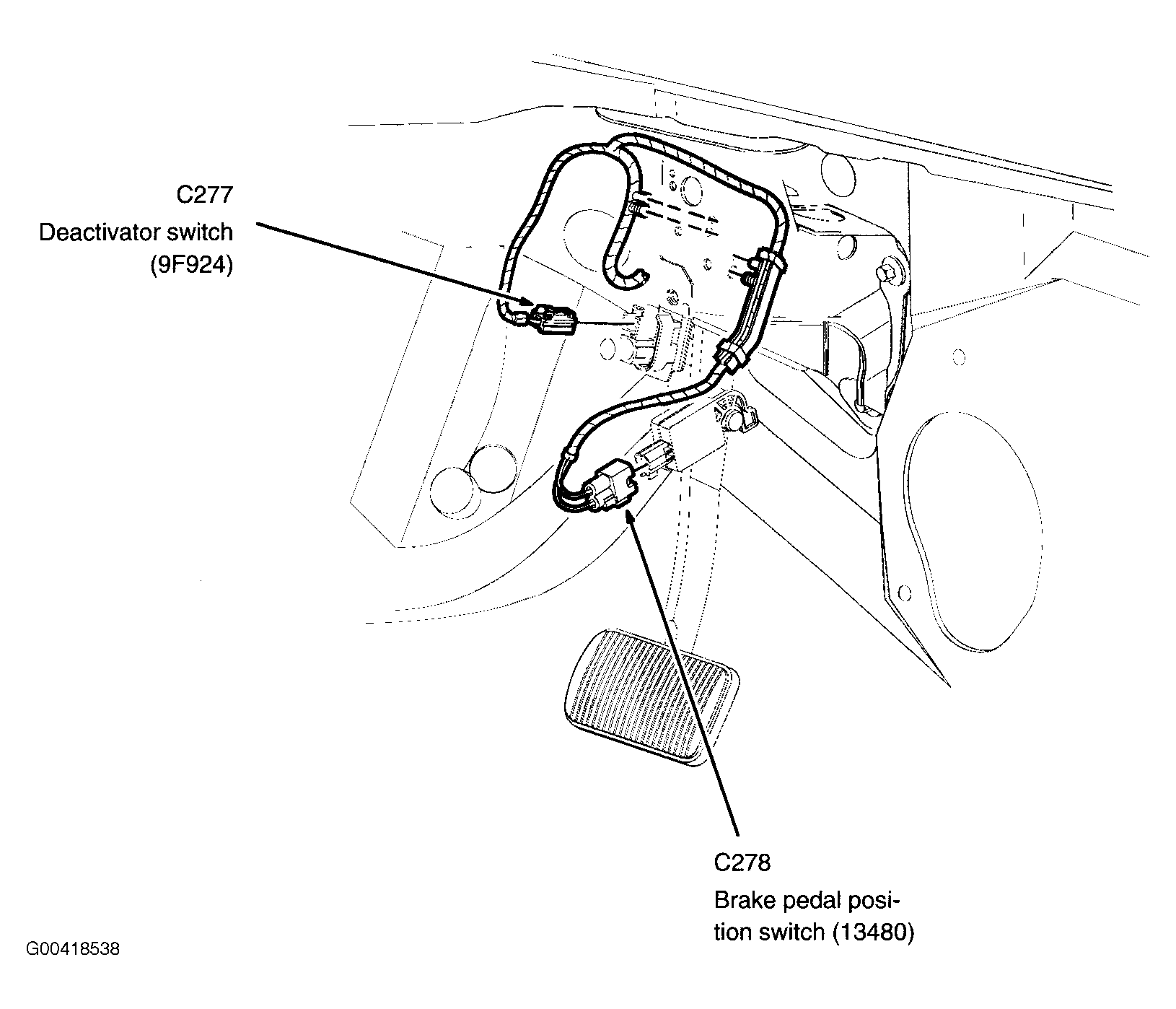

Brake Pedal Position Switch Under left side of dash. See Figure.
Deactivator Switch Under left side of dash. See Figure.
Dual Pressure Switch Behind A/C compressor. See Figure.
Inertia Fuel Shutoff Switch Right side of luggage compartment. See Figure.
Left Front Door Ajar Switch Rear of left front door. See Figure.

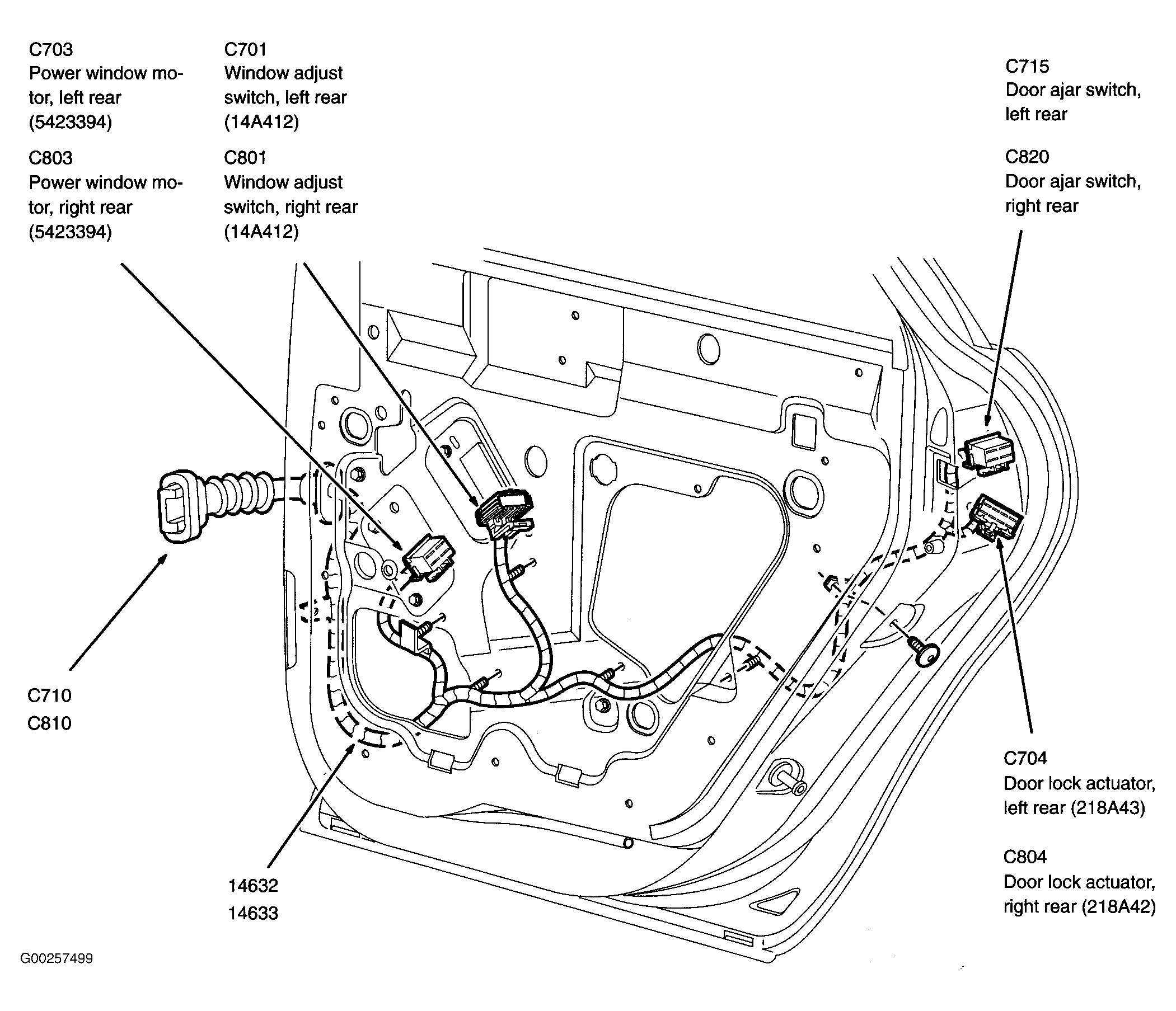

Left Rear Door Ajar Switch Rear of left rear door. See Figure.
Oil Pressure Switch On right rear of engine block. See Figure.
Parking Brake Switch Under left side of dash, mounted above parking brake pedal. See Figure.
Right Front Door Ajar Switch Rear of right front door. See Figure.
Right Rear Door Ajar Switch Rear of right rear door. See Figure.
