2007 Ford Focus STFACTORY OEM SERVICE PROCEDURE
Fuel Pump Driver Module (FPDM)

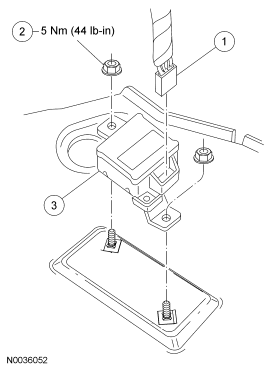

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel pump driver module (FPDM) electrical connector |
| 2 | W805320 | FPDM nut (2 required) |
| 3 | 9D372 | FPDM |
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
- Pull up the rear seat.
- Position the floor covering to one side.
- Disconnect the fuel pump driver module (FPDM) electrical connector.
- Remove the 2 nuts and the FPDM.
- To install, tighten to 5 Nm (44 lb-in).
- To install, reverse the removal procedure.
