2007 Ford Focus STFACTORY OEM SERVICE PROCEDURE
Valve Cover: Notes

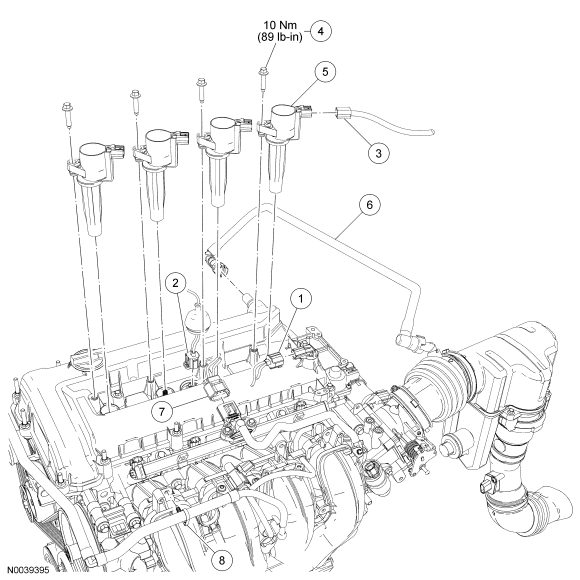

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Camshaft position (CMP) sensor electrical connector (part of 12B637) |
| 2 | 14A464 | Cylinder head temperature (CHT) sensor electrical connector (part of 12B637) |
| 3 | 14A464 | Ignition coil-on-plug electrical connector (4 required) |
| 4 | W500215 | Ignition coil-to-valve cover bolt (4 required) |
| 5 | 12A192 | Ignition coil (4 required) |
| 6 | 6853 | Crankcase breather tube |
| 7 | 14A464 | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 8 | - | Vacuum tube retainer (part of 9E498) |

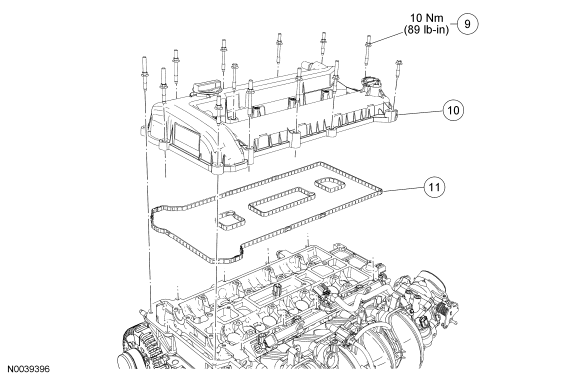

| Item | Part Number | Description |
|---|---|---|
| 9 | W500215 | Valve cover retainer (14 required) |
| 10 | 6582 | Valve cover |
| 11 | 6584 | Valve cover gasket |
