2007 Ford Focus STFACTORY OEM SERVICE PROCEDURE
Lower End Components - Exploded View

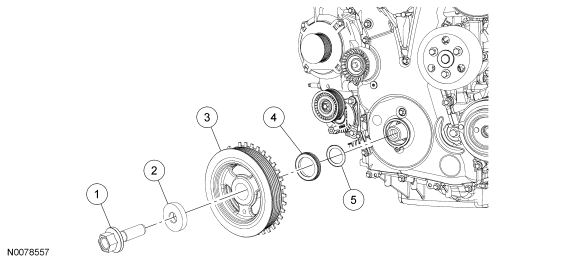

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K340 | Crankshaft pulley bolt |
| 2 | - | Crankshaft pulley washer (part of 6K340) |
| 3 | 6316 | Crankshaft pulley |
| 4 | 6700 | Crankshaft front seal |
| 5 | 6378 | Diamond washer |

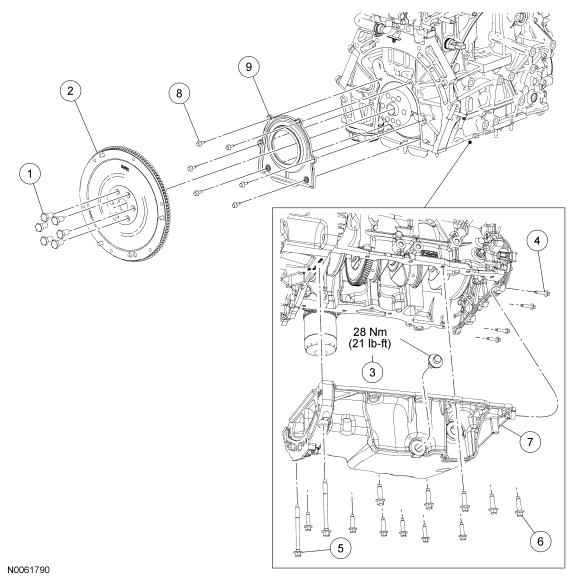

| Item | Part Number | Description |
|---|---|---|
| 1 | 6379 | Flexplate or flywheel bolt (6 required) |
| 2 | 6477 | Flexplate or flywheel |
| 3 | 6730 | Oil pan drain plug |
| 4 | W500215 | Engine front cover bolt (4 required) |
| 5 | W706284 | Oil pan bolt (2 required) |
| 6 | W500224 | Oil pan bolt (11 required) |
| 7 | 6675 | Oil pan |
| 8 | W500212 | Crankshaft rear oil seal with retainer plate bolt (6 required) |
| 9 | 6K318 | Crankshaft rear oil seal with retainer plate |
- For additional information, refer to the appropriate procedures.
