2007 Ford Focus STFACTORY OEM SERVICE PROCEDURE

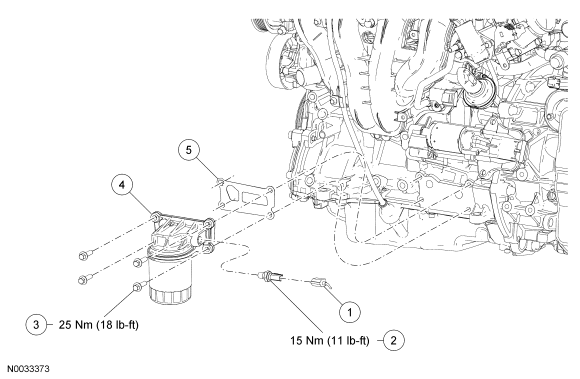

Engine Lubrication Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Oil pressure sender electrical connector (part of 12 B637) |
| 2 | 9278 | Oil pressure sender |
| 3 | W500225 | Oil filter adapter bolt (4 required) |
| 4 | 6881 | Oil filter adapter |
| 5 | 6840 | Oil filter adapter gasket |
NOTE:
Automatic transmission shown, manual transmission similar.
