2007 Ford Focus STFACTORY OEM SERVICE PROCEDURE

Engine Front Cover: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000249
 Remover, Oil Seal 303-409 (T92C-6700-CH)
GF0008927
 Installer, Front Oil Seal 303-096 (T74P-6150-A)
GF0002601
 Steering Pump Pulley Remover 211-016
GF0001266
 Steering Pump Pulley Installer 211-185
GF0037376
 Installer Set, Teflon® Seal 211-D207
Material

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4

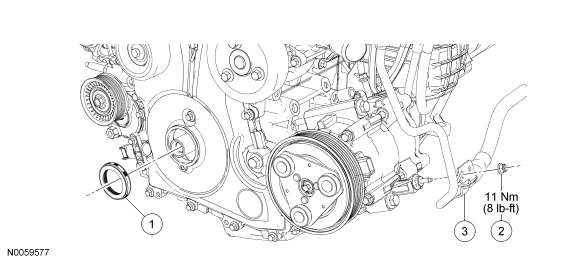

Fig 1: Engine Front Cover Replacement Components (1 Of 2) With Torque Specifications
GF0039266Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6700 Crankshaft front seal
2 W520414 Power steering pressure (PSP) tube bracket nut
3 - PSP tube bracket (part of 3F784)

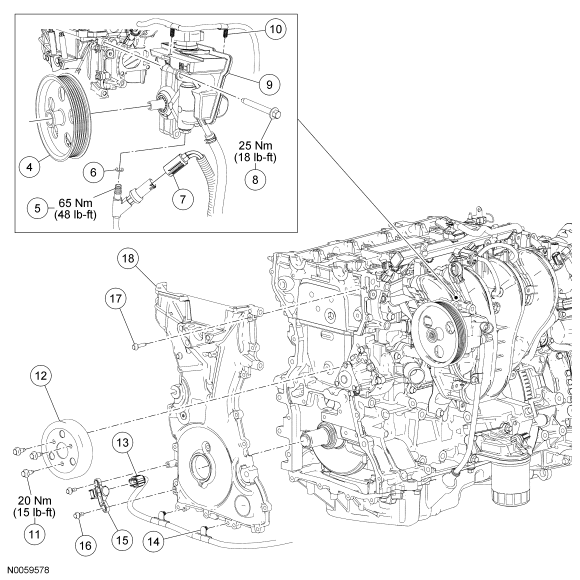

Fig 2: Engine Front Cover Replacement Components (2 Of 2) With Torque Specifications
GF0039267Courtesy of FORD MOTOR CO.
Item Part Number Description
4 3A733 Power steering pulley
5 3F784 PSP tube
6 3F886 Teflon® O-ring seal
7 14A464 PSP switch electrical connector (part of 12B637)
8 W500315 Power steering pump bolt (4 required)
9 3A696 Power steering pump
10 - Wiring harness retainer (2 required) (part of 12B637)
11 W500221 Coolant pump pulley bolt (3 required)
12 8509 Coolant pump pulley
13 14A464 Crankshaft position (CKP) sensor electrical connector (part of 12B637)
14 - Wiring harness retainer (2 required) (part of 12B637)
15 6C315 CKP sensor
16 W701219 CKP sensor bolt (2 required)
17 W500215 Engine front cover bolt (22 required)
18 6019 Engine front cover
