2007 Ford Focus STFACTORY OEM SERVICE PROCEDURE
Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/C Compressor Cycling Switch | Right rear corner of engine compartment. See Figure. |
| Brake Fluid Level Switch | On top of master cylinder reservoir. See Figure. |
| Brake Pedal Position Switch | On brake pedal support bracket. See Figure. |
| Clutch Pedal Position Switch | On clutch pedal support. See Figure. |
| Door Ajar Switch (Driver Side Front) (Wagon) | On left "B" pillar. See Figure. |
| Door Ajar Switch (Driver Side Front) (3 Door) | On left "B" pillar. See Figure. |
| Door Ajar Switch (Driver Side Front) (4 Door) | On left "B" pillar. See Figure. |
| Door Ajar Switch (Driver Side Front) (5 Door) | On left "B" pillar. See Figure. |
| Door Ajar Switch (Driver Side Rear) (Wagon) | On left "C" pillar. See Figure. |
| Door Ajar Switch (Driver Side Rear) (4 Door) | On left "C" pillar. See Figure. |
| Door Ajar Switch (Driver Side Rear) (5 Door) | On left "C" pillar. See Figure. |
| Door Ajar Switch (Passenger Side Front) (Wagon) | On right "B" pillar. See Figure. |
| Door Ajar Switch (Passenger Side Front) (3 Door) | On right "B" pillar. See Figure. |
| Door Ajar Switch (Passenger Side Front) (4 Door) | On right "B" pillar. See Figure. |
| Door Ajar Switch (Passenger Side Front) (5 Door) | On right "B" pillar. See Figure. |
| Door Ajar Switch (Passenger Side Rear) (Wagon) | On right "C" pillar. See Figure. |
| Door Ajar Switch (Passenger Side Rear) (4 Door) | On right "C" pillar. See Figure. |
| Door Ajar Switch (Passenger Side Rear) (5 Door) | On right "C" pillar. See Figure. |
| Dual Pressure Switch | Right front of engine compartment. See Figure. |
| Engine Compartment Switch | Front center of engine compartment. See Figure. |
| Horn Switch | Top of steering column. See Figure. |
| Inertia Fuel Shutoff (IFS) Switch | Behind right kick panel. See Figure. |
| Liftgate/Decklid Anti-Theft Inhibit Switch (Wagon) | In liftgate. See Figure. |

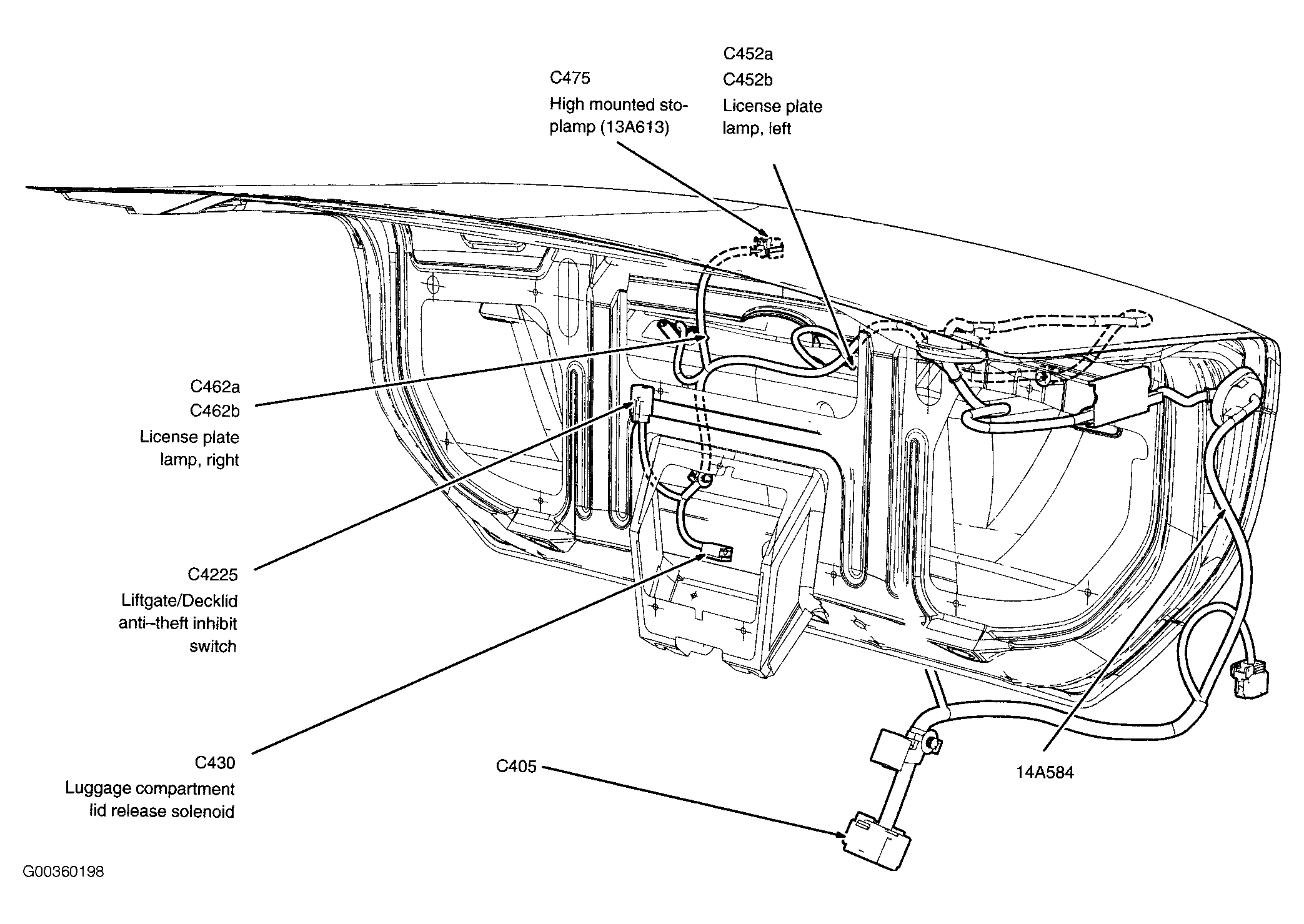

| Liftgate/Decklid Anti-Theft Inhibit Switch (4 Door) | In decklid. See Figure. |
| Oil Pressure Switch (2.0L) | Lower left of engine. See Figure. |
| Oil Pressure Switch (2.3L) | Right side of engine. See Figure. |
| Parking Brake Switch | Under center console, at base of park brake lever bracket. See Figure. |
| Park/Neutral Position (PNP) Switch | Lower left of transmission. See Figure. |
| Start Inhibit Switch | Behind left side of dash. See Figure. |
| Stoplamp Switch | On brake pedal support. See Figure. |
