2007 Ford Expedition RWDFACTORY OEM SERVICE PROCEDURE
Forward Clutch Assembly: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) or equivalent | |
| Piston Spring Compressor | 307-525 | |
| Clutch Pack End Play Gauge | 307-555 |
Material
| Item | Specification |
|---|---|
| MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada) |
MERCON® SP |

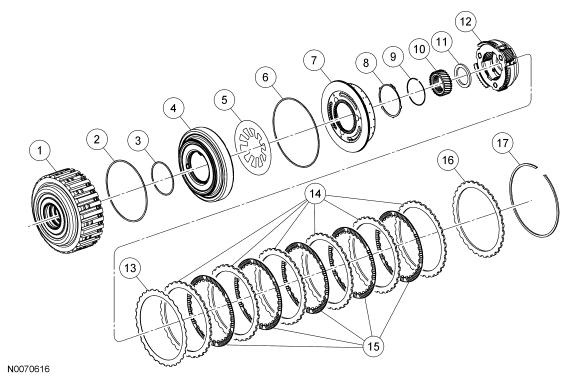

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A360 | Forward clutch drum |
| 2 | 7A548 | Forward clutch piston outer O-ring seal |
| 3 | 7A548 | Forward clutch piston inner O-ring seal |
| 4 | 7A262 | Forward clutch piston |
| 5 | 7A480 | Forward clutch piston return spring |
| 6 | 7A548 | Forward clutch balance dam O-ring seal |
| 7 | 7H360 | Forward clutch balance dam |
| 8 | 7H365 | Forward clutch balance dam retaining ring |
| 9 | 7H579 | Sun gear retaining ring |
| 10 | 7D063 | Sun gear |
| 11 | 7H375 | Bearing (T1) |
| 12 | 7A398 | Planetary gear |
| 13 | 7E085 | Forward clutch wave spring |
| 14 | 7B442 | Forward clutch external splined steel plates (quantity model dependent) |
| 15 | 7B164 | Forward clutch internal splined friction plates (quantity model dependent) |
| 16 | 7B066 | Forward clutch pressure plate |
| 17 | 7D483 | Forward clutch plate retaining ring. |
