2007 Ford Expedition RWDFACTORY OEM SERVICE PROCEDURE

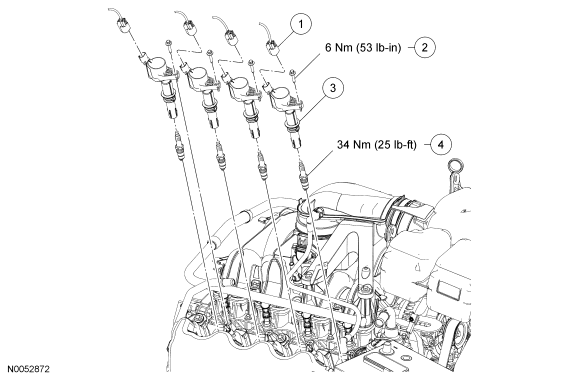

Engine Ignition Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | RH ignition coil electrical connectors (4 required) |
| 2 | W706175 | RH ignition coil retaining bolts (4 required) |
| 3 | 12A366 | RH ignition coils (4 required) |
| 4 | 12405 | RH spark plugs (4 required) |

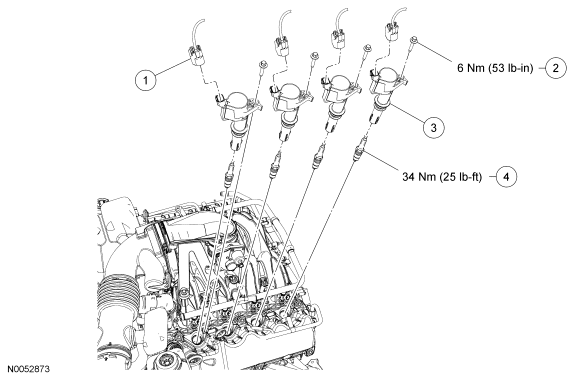

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | LH ignition coil electrical connectors (4 required) |
| 2 | W706175 | LH ignition coil retaining bolts (4 required) |
| 3 | 12A366 | LH ignition coils (4 required) |
| 4 | 12405 | LH spark plugs (4 required) |
- For additional information, refer to the following procedures.
