2007 Ford Expedition RWDFACTORY OEM SERVICE PROCEDURE
Disassembly And Assembly Of Subassemblies: Piston: Assembly
- Position the connecting rod in the piston.
- Lubricate the piston pin and pin bore with clean engine oil.
- Install the piston pin in the piston and connecting rod assembly.
- Install the piston pin retaining clips in the piston.
- Lubricate the piston and the new piston rings with clean engine oil.
- Install the piston rings onto the piston.
NOTE:

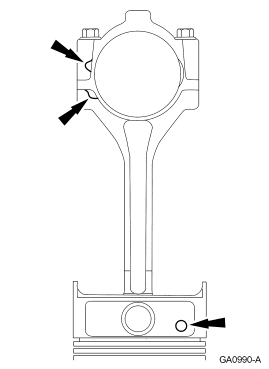

The connecting rod must be installed into the piston with identification markings toward the front.
