Material

Item	Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

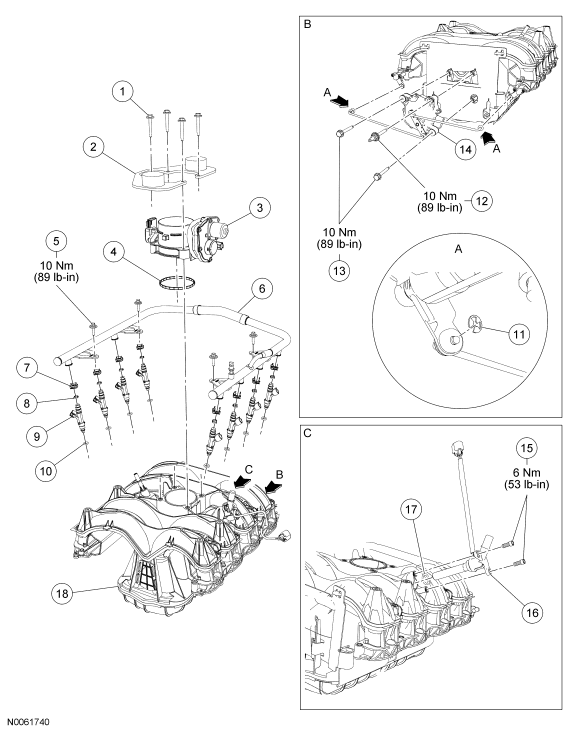

Fig 1: Exploded View Of Intake Manifold Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N705438	Throttle body (TB) bolt (4 required)
2	9J444	Vibration damper
3	9F991	TB
4	-	TB gasket (part of 9F991)
5	N705800	Fuel rail bolt (4 required)
6	9F792	Fuel rail
7	9C995	Fuel injector-to-fuel rail locking clip (8 required)
8	9229	Fuel injector-to-fuel rail O-ring seal (8 required)
9	9F593	Fuel injector (8 required)
10	9229	Fuel injector-to-intake manifold O-ring seal (8 required)
11	-	Charge motion control valve (CMCV) rod locking clip (2 required)
12	W708165	CMCV stud bolt
13	W719084	CMCV bolts (2 required)
14	9G730	CMCV
15	W500204	PCV heater element bolts (2 required)
16	9F624	PCV heater element
17	-	PCV heater element O-ring seal
18	9Y451	Intake manifold assembly
