2007 Ford Edge SE, FWDFACTORY OEM SERVICE PROCEDURE

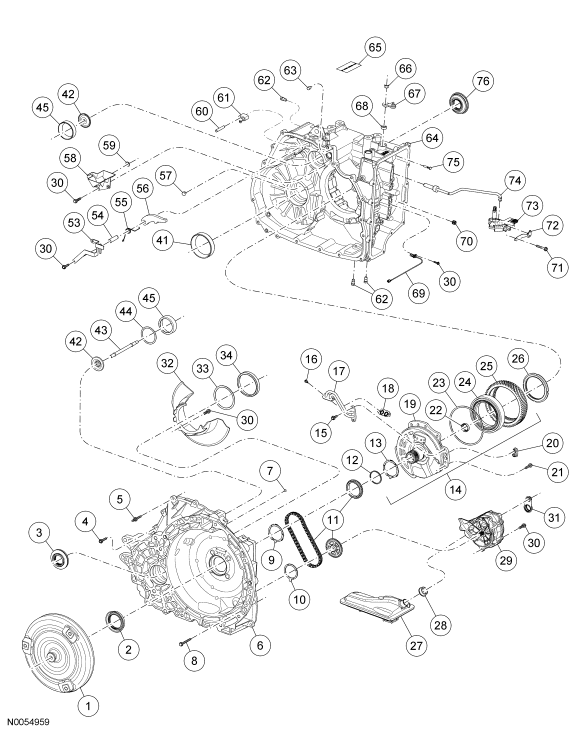

Automatic Transmission: Assembly: Transaxle
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 307-224 (Handle) | 205-153 (T80T-4000-W) | |
| Installer, Oil Dam Seal | 307-583 | |
| Draw bar (Heavy Duty Threaded) | 204-029 (T77F-1176) | |
| Pilot, Transfer Gear Roller Bearing | 307-541 | |
| Installer, Differential Bearing Cup | 307-576 | |
| Installer, Manual Lever Shaft Seal | 307-581 | |
| Installer, Manual Lever Retaining Pin | 307-592 | |
| Shim Gauge, Differential/Transfer Gear Bearing | 307-591 (includes 307-591/1, 307-591/2 and 307-591/3) | |
| Installer, Converter Seal | 307-575 | |
| Installer, Halfshaft Seal | 307-582 | |
| Forward Clutch Spring Compressor | 307-574 (includes 307-574/1 and 307-574/2) | |
| Compressor, Forward/Overdrive Spring | 307-584 (includes 307-584/1 and 307-584/2) | |
| Dial Indicator Gauge With Holding Fixture | 100-002 (TOOL-4201-C) | |
| Depth Micrometer | 303-D075 (D92P-4201-A) |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
