2007 Ford Edge SE, FWDFACTORY OEM SERVICE PROCEDURE

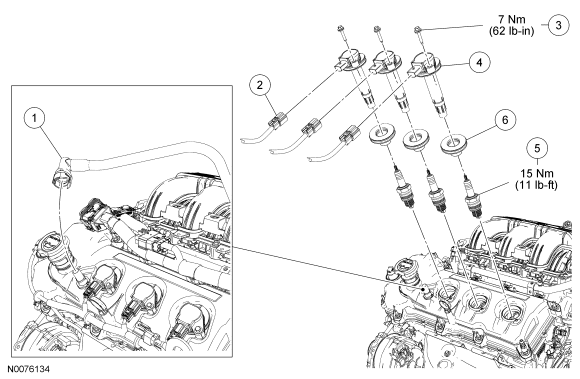

Engine Ignition Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 6758 | Crankcase vent tube-to-valve cover fitting quick connect coupling |
| 2 | - | Ignition coil-on-plug electrical connector (3 required) (part of 12A581) |
| 3 | W708833 | Ignition coil-on-plug bolt (3 required) |
| 4 | 12029 | Ignition coil-on-plug (3 required) |
| 5 | 12405 | Spark plug (3 required) |
| 6 | 12025 | Coil seal (3 required) |

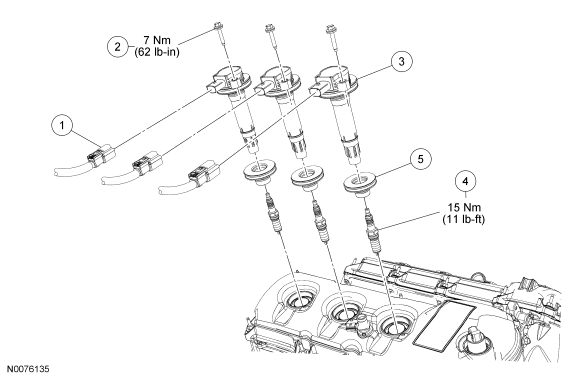

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition coil-on-plug electrical connector (3 required) (part of 12A581) |
| 2 | W708833 | Ignition coil-on-plug bolt (3 required) |
| 3 | 12029 | Ignition coil-on-plug (3 required) |
| 4 | 12405 | Spark plug (3 required) |
| 5 | 12025 | Coil seal (3 required) |
- For additional information, refer to the appropriate procedures.
