2007 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Spark Plug: Service and Repair
SPARK PLUGS

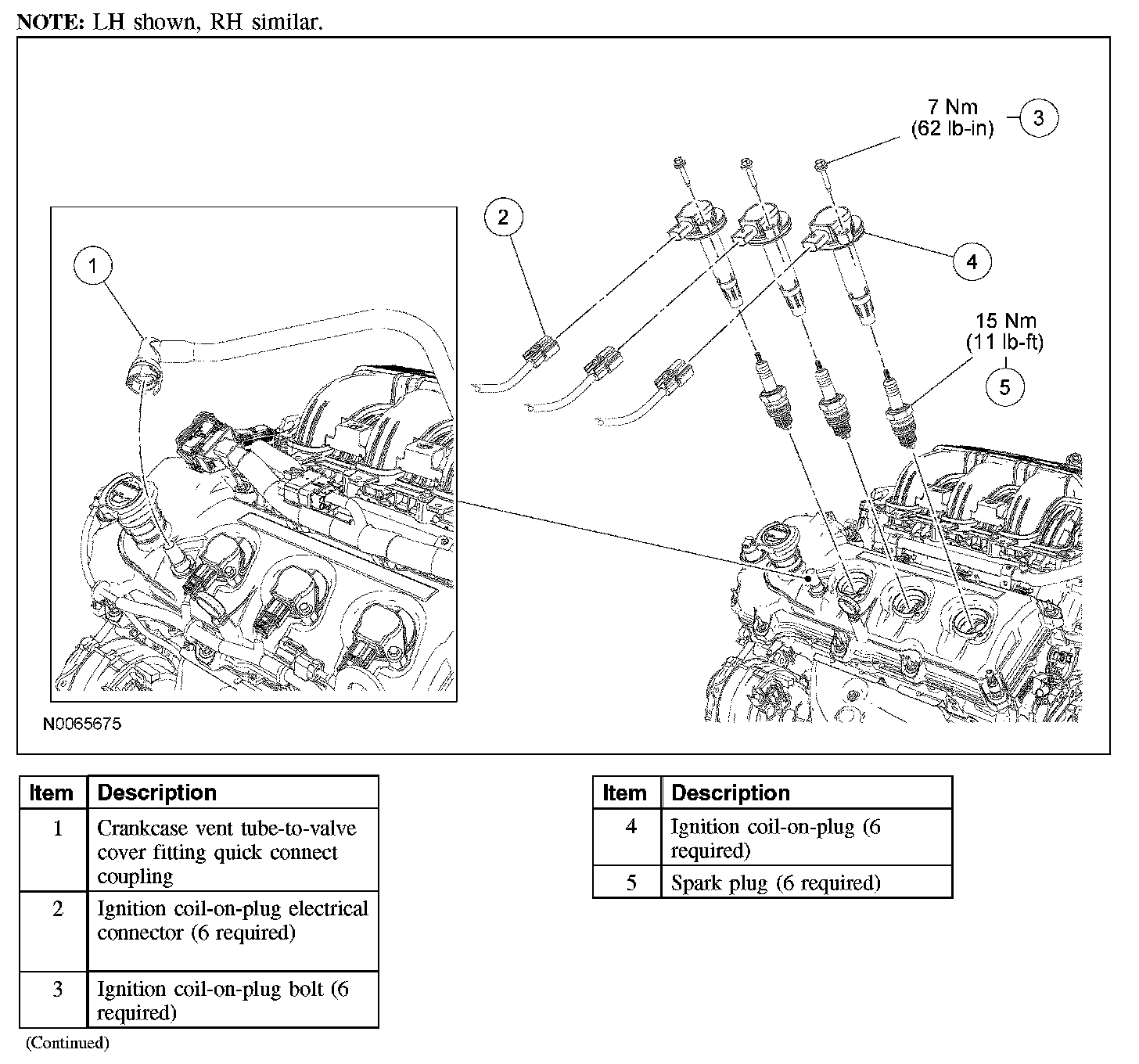

Exploded View
Removal
LH side
1. Disconnect the crankcase vent tube quick connect coupling from the valve cover fitting and position aside.
RH side
2. NOTE: The upper intake manifold must be removed to access the RH spark plugs only.
Remove the upper intake manifold.
Both sides
3. Disconnect the 6 ignition coil-on-plug electrical connectors.
4. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Remove the 6 bolts and the 6 ignition coil-on-plugs.
5. CAUTION: Only use hand tools when removing or installing the spark plugs or damage can occur to the cylinder head or spark plug.
NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
Remove the 6 spark plugs.
Installation
Both sides

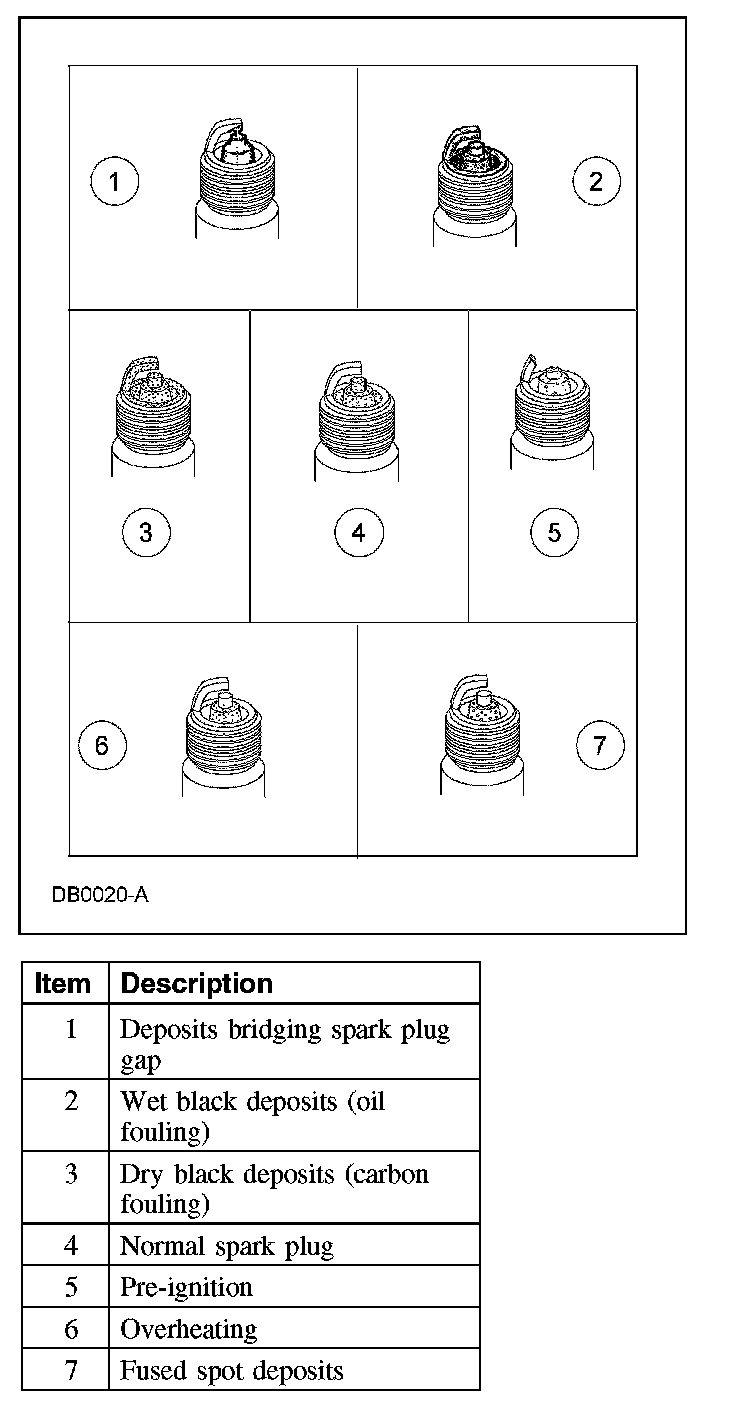

1. Inspect the 6 spark plugs.

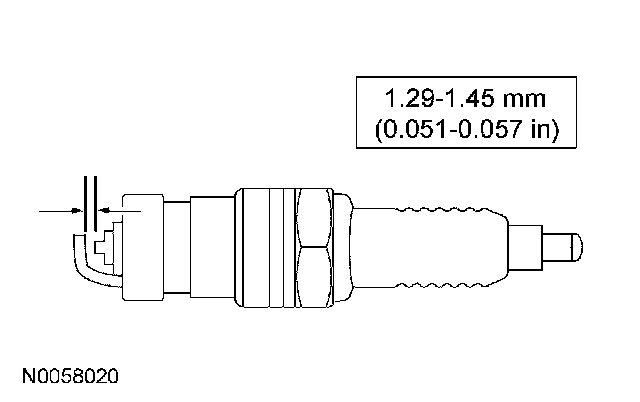

2. Adjust the spark plug gap as necessary.
3. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.
Install the 6 spark plugs.
- Tighten to 15 Nm (11 lb-ft).
4. NOTE: Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.
Install the 6 ignition coil-on-plugs and the 6 bolts.
- Tighten to 7 Nm (62 lb-in).
5. Connect the 6 ignition coil-on-plug electrical connectors.
RH side
6. Install the upper intake manifold.
LH side
7. Position and connect the crankcase vent tube quick connect coupling to the valve cover fitting.
Exploded View
Removal
LH side
1. Disconnect the crankcase vent tube quick connect coupling from the valve cover fitting and position aside.
RH side
2. NOTE: The upper intake manifold must be removed to access the RH spark plugs only.
Remove the upper intake manifold.
Both sides
3. Disconnect the 6 ignition coil-on-plug electrical connectors.
4. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.
Remove the 6 bolts and the 6 ignition coil-on-plugs.
5. CAUTION: Only use hand tools when removing or installing the spark plugs or damage can occur to the cylinder head or spark plug.
NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
Remove the 6 spark plugs.
Installation
Both sides
1. Inspect the 6 spark plugs.
2. Adjust the spark plug gap as necessary.
3. CAUTION: Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.
Install the 6 spark plugs.
- Tighten to 15 Nm (11 lb-ft).
4. NOTE: Apply a small amount of dielectric grease to the inside of the ignition coil-on-plug boots before attaching to the spark plugs.
Install the 6 ignition coil-on-plugs and the 6 bolts.
- Tighten to 7 Nm (62 lb-in).
5. Connect the 6 ignition coil-on-plug electrical connectors.
RH side
6. Install the upper intake manifold.
LH side
7. Position and connect the crankcase vent tube quick connect coupling to the valve cover fitting.
