2007 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch: Service and Repair
Digital Transmission Range (TR) Sensor
Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

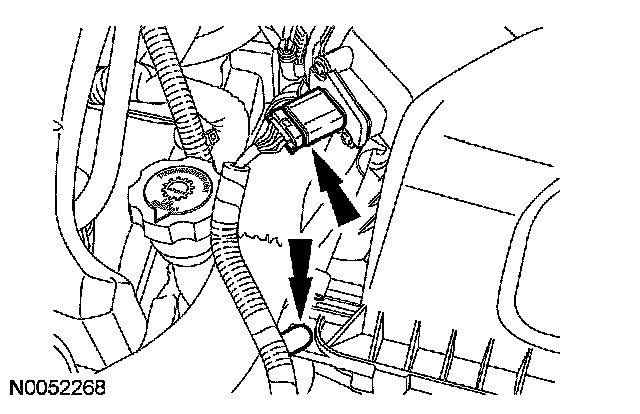

2. Disconnect the mass air flow (MAF) sensor electrical connector and the wiring harness fastener from the air cleaner assembly.

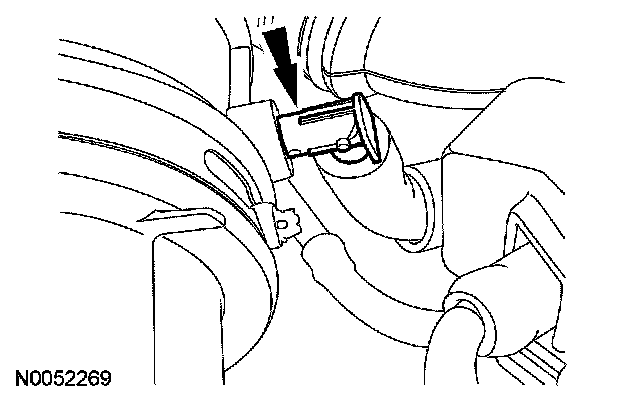

3. Disconnect the brake booster vacuum hose from the air cleaner outlet pipe.
4. Disconnect the engine breather from the air cleaner assembly.

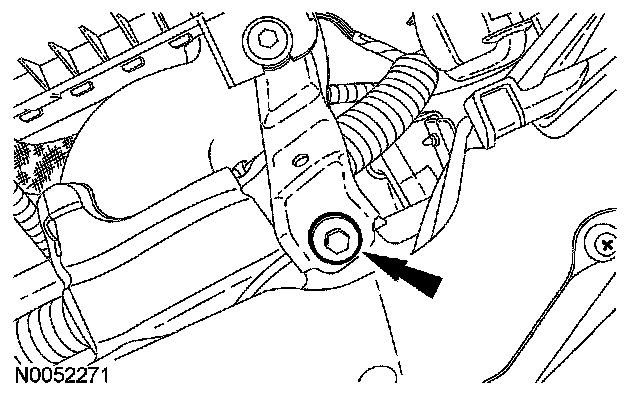

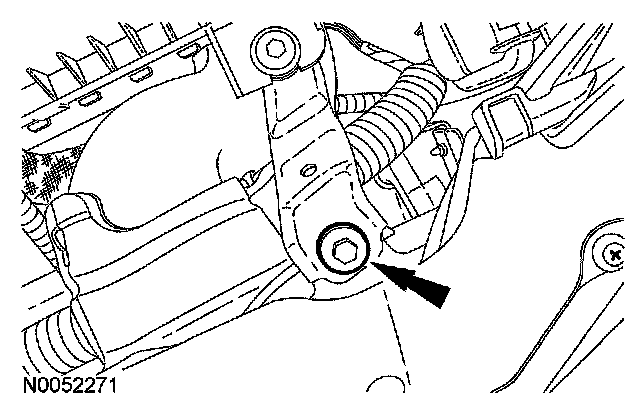

5. Remove the air cleaner assembly bracket bolt.

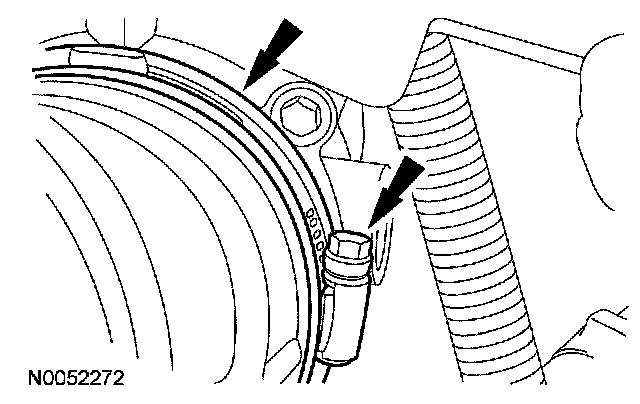

6. Loosen the air cleaner outlet pipe clamp at the throttle body and remove the air cleaner and air cleaner outlet pipe assembly.

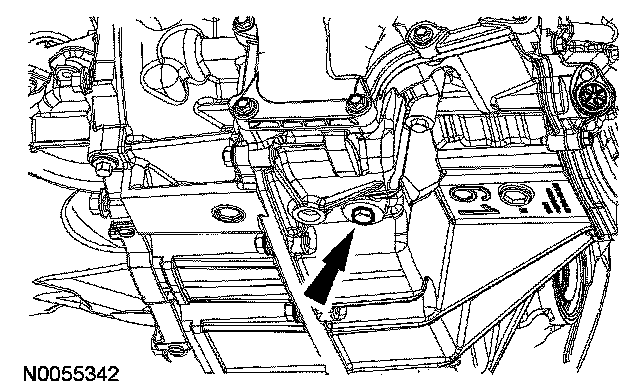

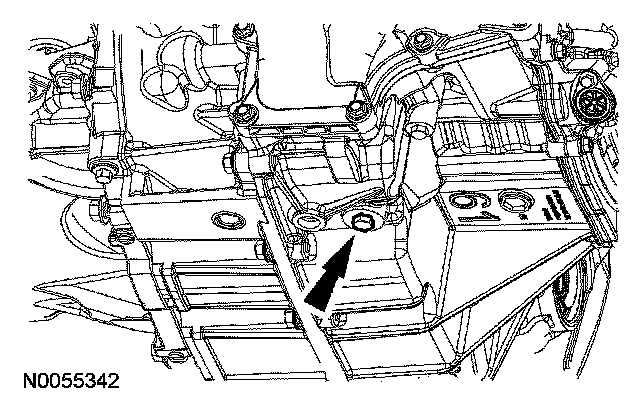

7. Remove the transmission fluid drain plug and allow the transmission fluid to drain.
8. Install the transmission fluid drain plug.
^ Tighten to 9 Nm (80 inch lbs).

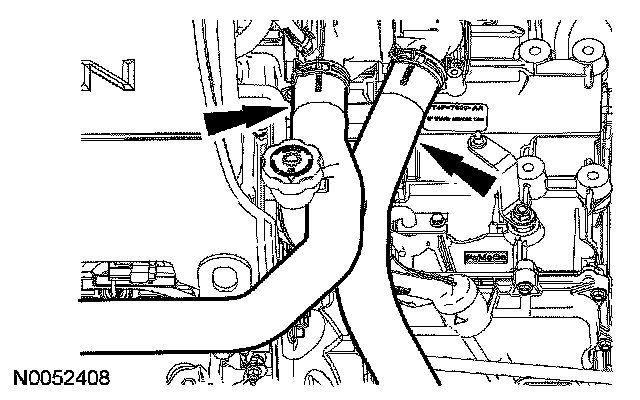

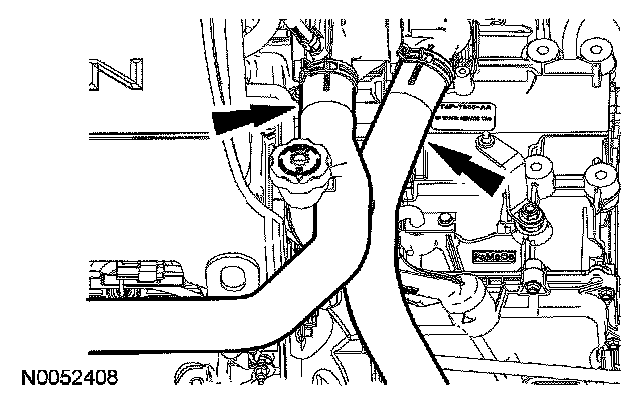

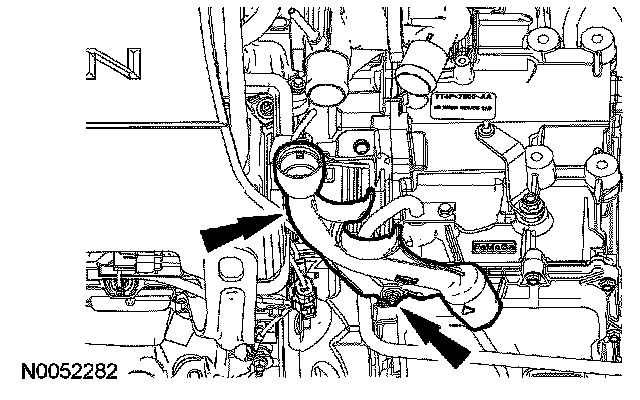

9. NOTE: The coolant hoses do not need to be removed from the engine.

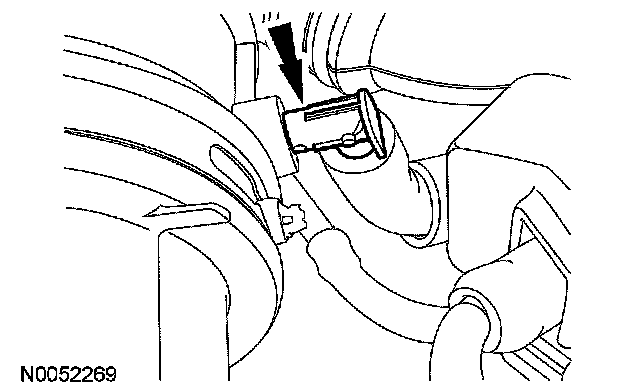

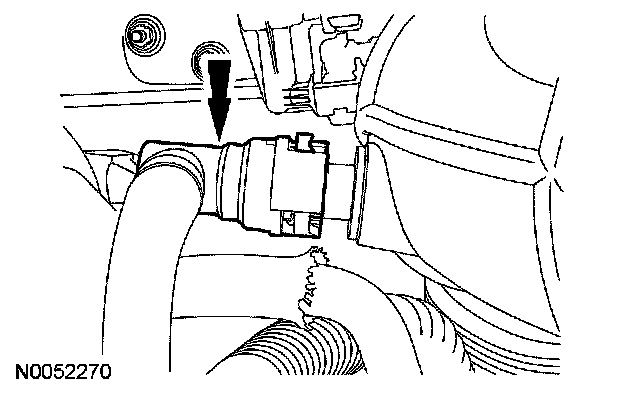

Remove the coolant hoses from the transmission fluid filler tube and position aside.
10. NOTE: The coolant hoses have been removed for clarity.

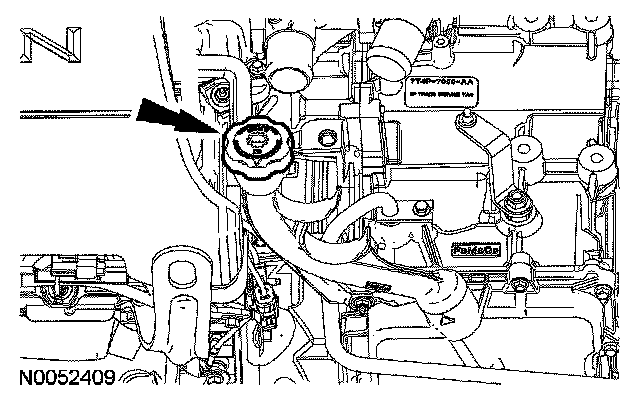

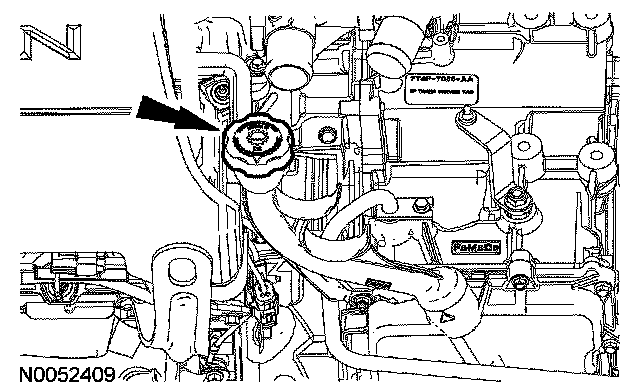

Remove the transmission fluid level indicator.
11. NOTE: The coolant hoses have been removed for clarity.

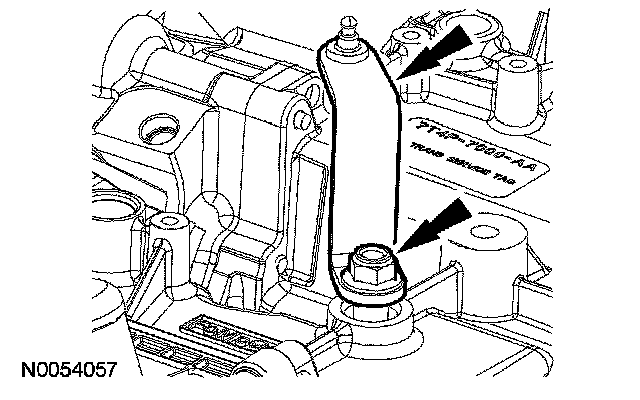

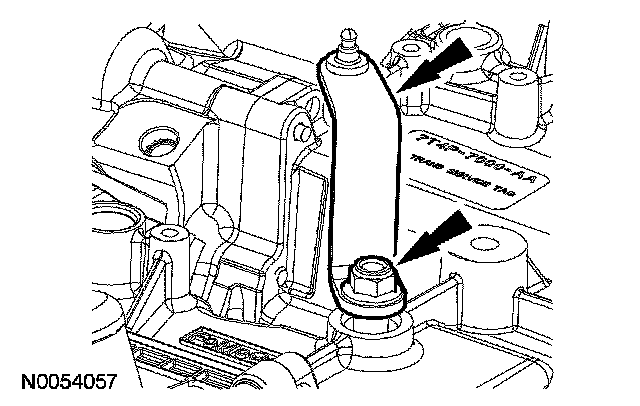

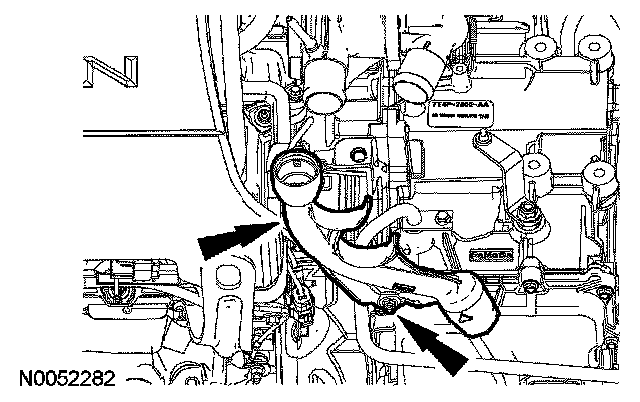

Remove the nut, rotate the transmission fluid filler tube counterclockwise 90 degrees and remove the transmission fluid filler tube.

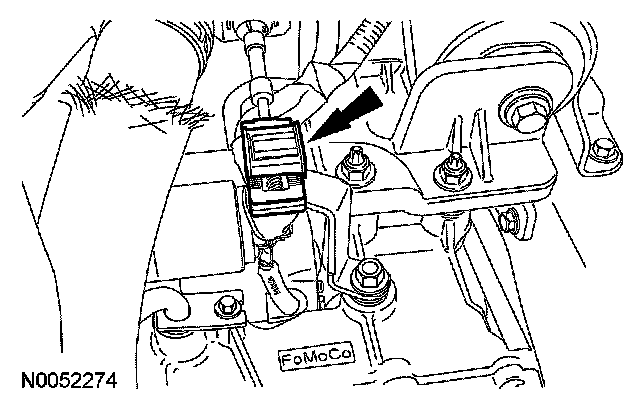

12. Disconnect the selector lever cable end from the manual lever.
13. Remove the nut and the manual lever.
14. Loosen the transmission fluid cooler tube fitting from the thermal bypass valve.

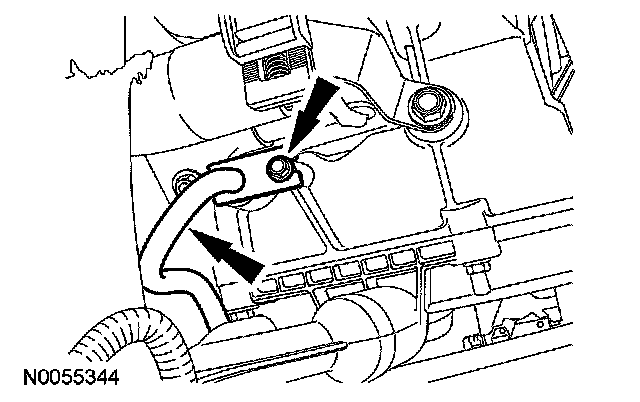

15. Remove the transmission fluid cooler tube bolt and the transmission fluid cooler tube.

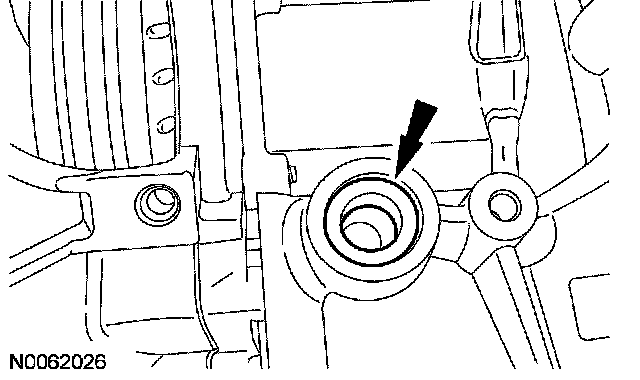

16. Inspect the transaxle case to make sure that the transmission fluid cooler tube seal and backing ring were removed with the transmission fluid cooler tube and are not stuck in the transaxle case. If the transmission fluid cooler tube seal or backing ring are stuck in the transaxle case, remove the seal and backing ring.

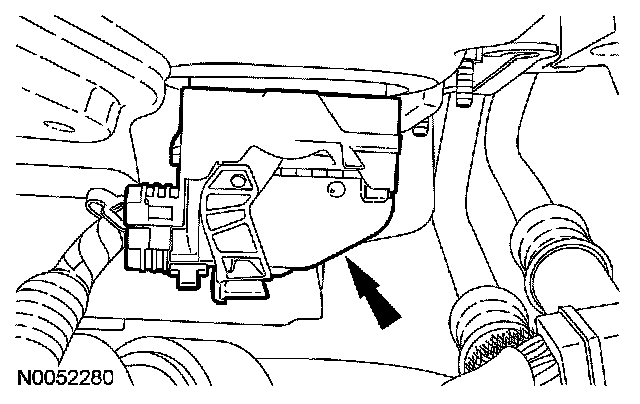

17. Disconnect the transaxle electrical connector.

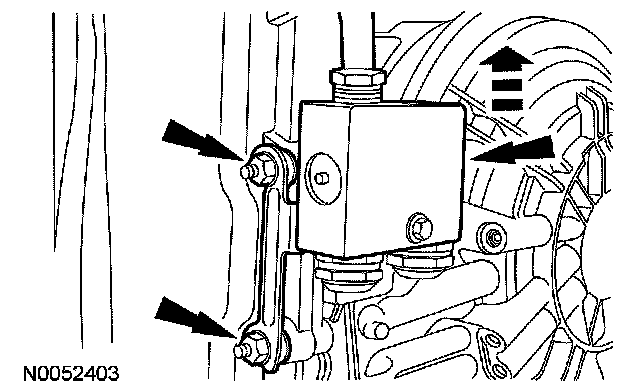

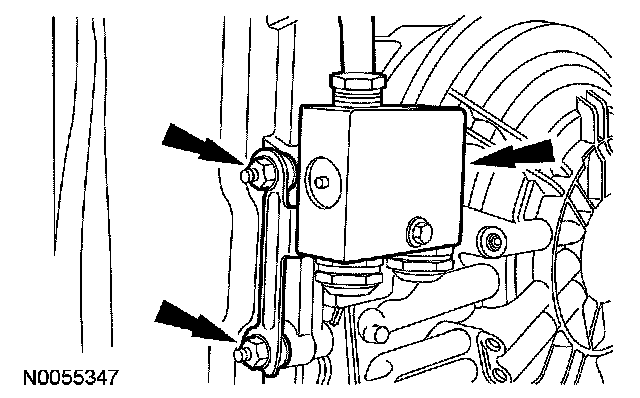

18. Remove the 2 nuts, pull the transmission fluid cooler thermal bypass valve straight up and position it aside.
19. NOTE: Note the location of the of the stud bolts for assembly.

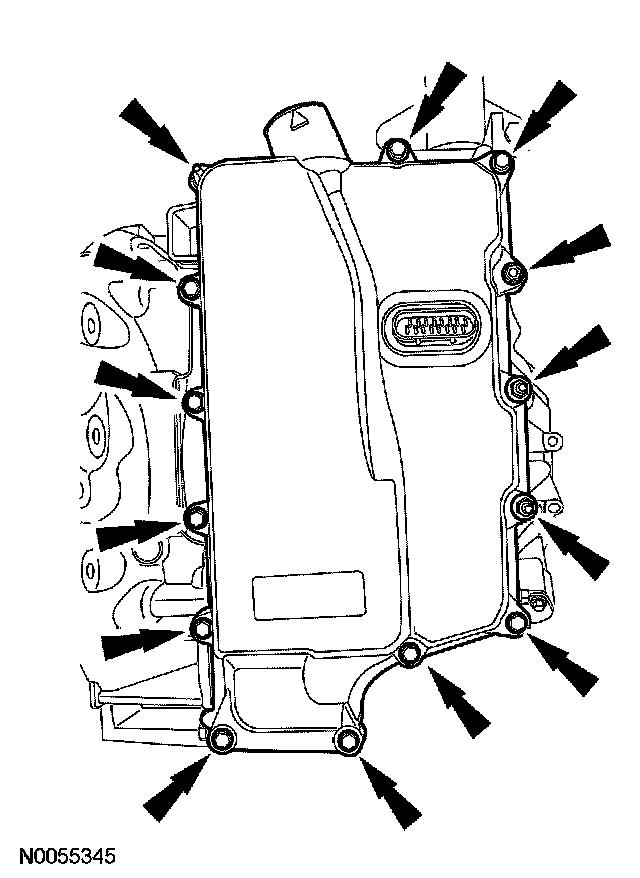

Remove the 14 bolts and the transaxle side cover.

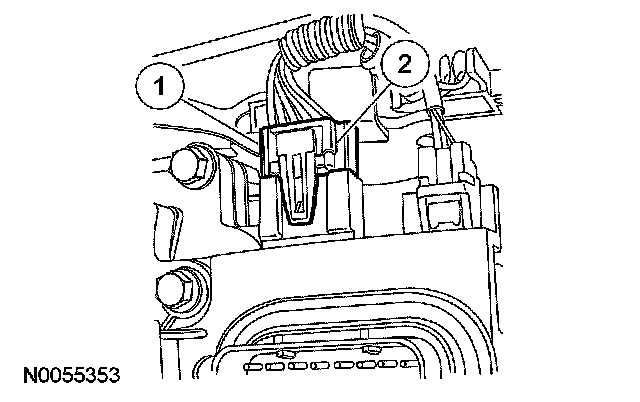

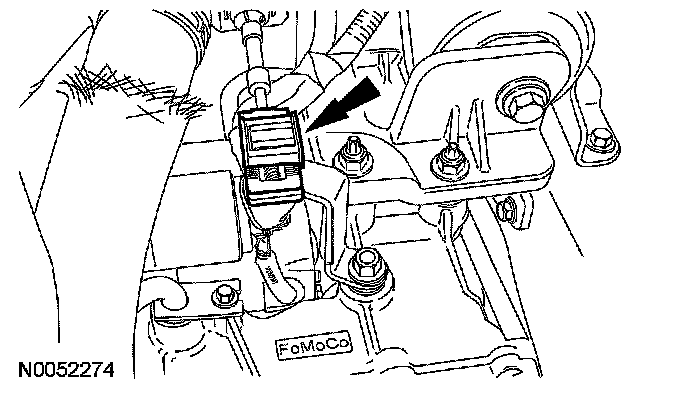

20. Disconnect the transmission range (TR) sensor electrical connector.
1 Slide the lock over.
2 Press the tab and disconnect the connector.

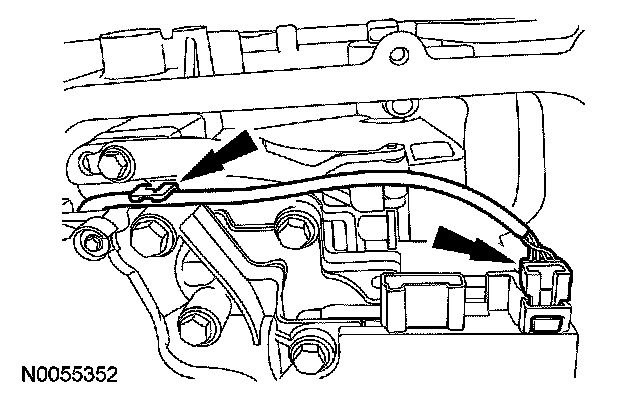

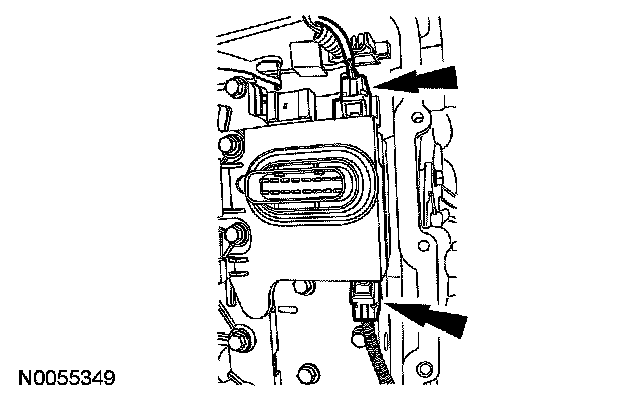

21. Disconnect the turbine shaft speed (TSS) and output shaft speed (OSS) sensor electrical connectors.
22. CAUTION: The solenoid body should be handled with care, damage to the solenoid body may occur.
NOTE: Note the location of the different length bolts for assembly.

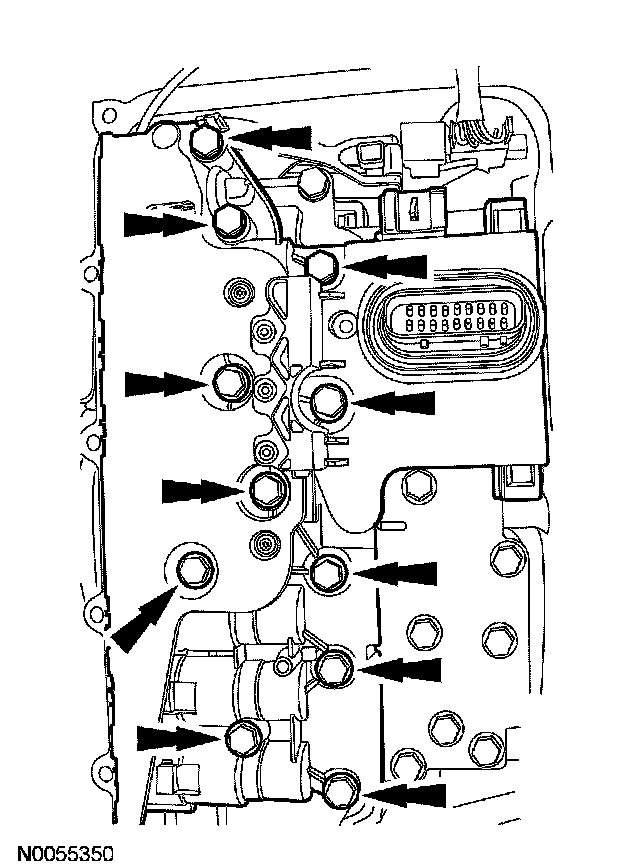

Remove the 11 bolts and the solenoid body.
23. CAUTION: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body can occur.
CAUTION: Use care not to break the alignment tabs when removing the solenoid body filter.
Remove the solenoid body filter assembly by pulling it straight up from the alignment tabs. Discard the filter.

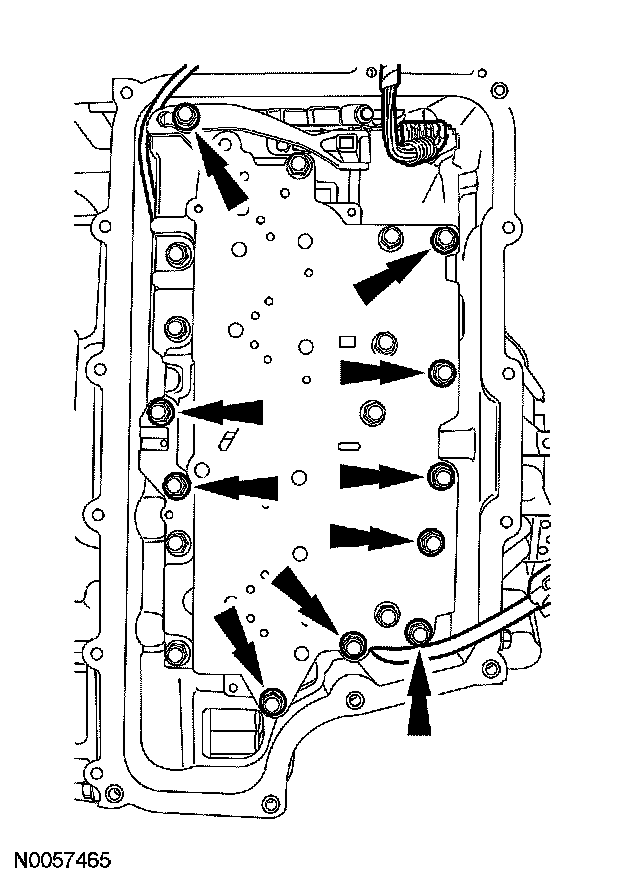

24. Remove the 10 bolts, the TR sensor detent spring and the main control valve body.

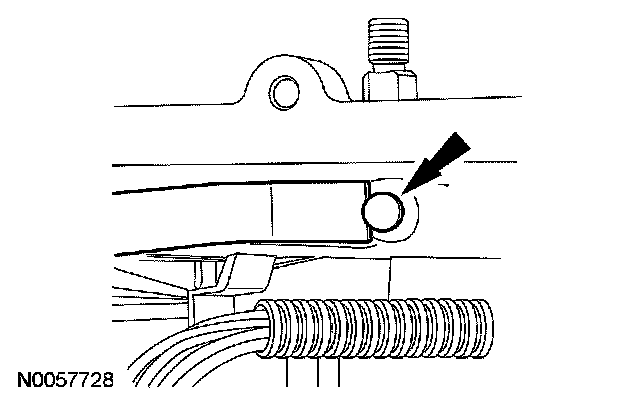

25. Using a suitable tool, remove and discard the TR sensor locking pin.
26. NOTE: TR sensor removed for clarity.

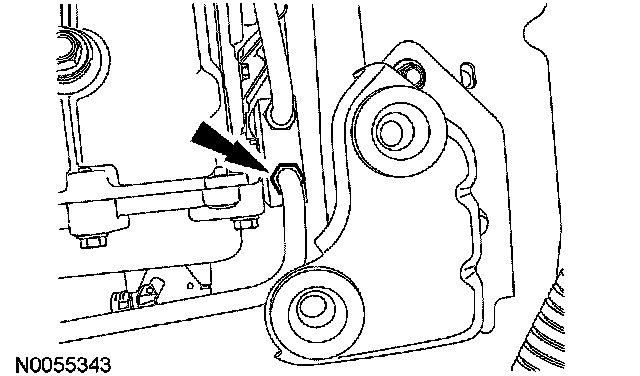

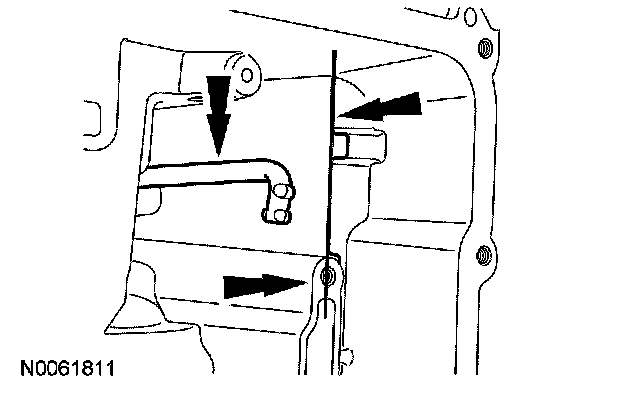

Make sure that the park pawl actuator rod does not become disengaged from the park pawl and the abutment by keeping the end of the park pawl actuator rod behind the machined valve body mating surface of the transaxle case. If the park pawl actuator rod becomes disengaged from the park pawl and the abutment, transaxle removal and disassembly is required to reinstall the actuator rod.
27. CAUTION: Make sure that the park pawl actuator rod does not become disengaged from the park pawl and the abutment or transaxle removal and disassembly is required to reinstall the actuator rod.

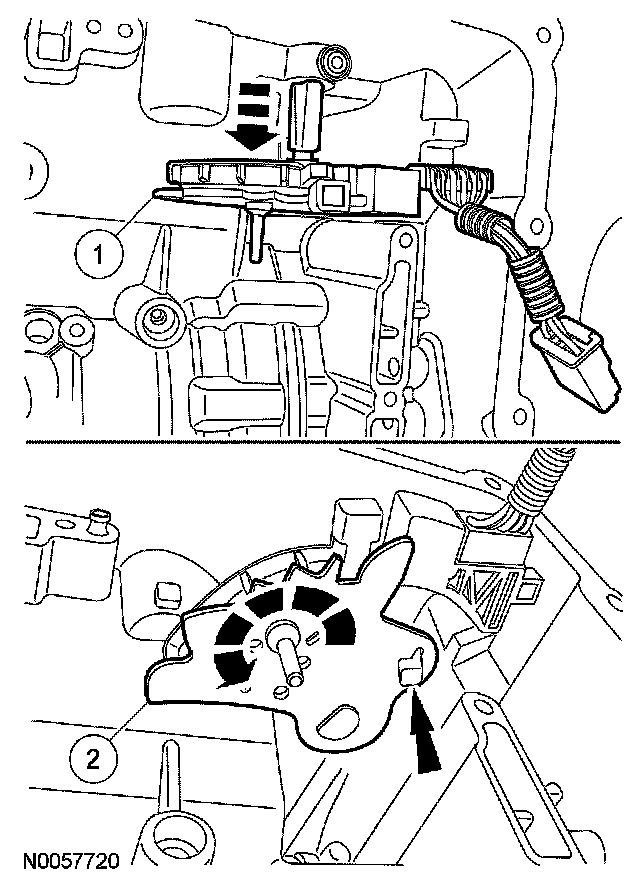

Remove the TR sensor.
1 Slide the TR sensor down until the manual shaft is out of the transaxle case.
2 Rotate the TR sensor detent plate counterclockwise, as viewed from below until the plate rests against the transaxle case, remove the park pawl actuating rod from the TR sensor and remove the TR sensor.
Installation

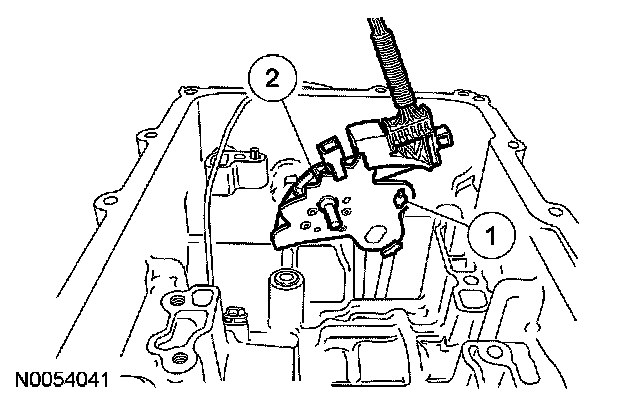

1. Install the TR sensor.
1 Position the park pawl actuating rod in the TR sensor.
2 Install the TR sensor in the transaxle case.

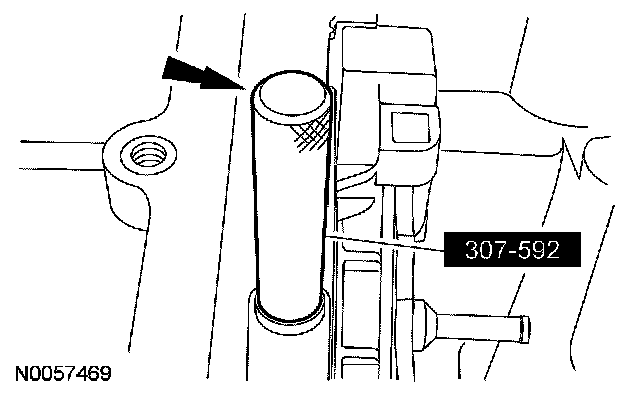

2. Using the special tool, install a new TR sensor locking pin.
3. NOTE: Make sure that the manual lever pin (part of the TR sensor) is correctly installed in the manual valve.

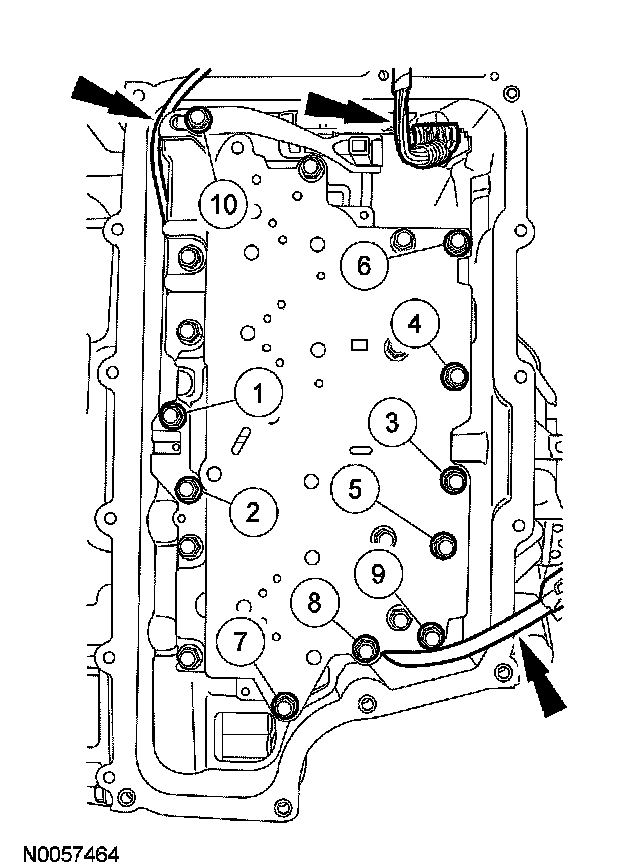

Position the TSS, OSS and TR sensor wiring harnesses aside and install the main control valve body, the TR sensor detent spring and the 10 bolts. Tighten the bolts in the sequence shown.
^ Tighten to 12 Nm (9 ft. lbs).

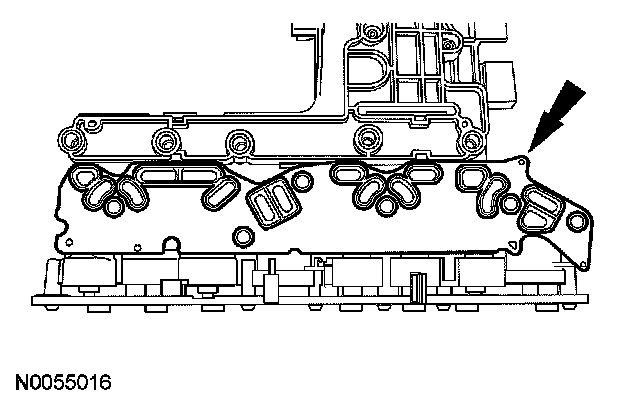

4. CAUTION: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body can occur.
CAUTION: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.
CAUTION: Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transaxle will occur if the filter passages are not clean.
Install a new solenoid body filter assembly by pushing it straight down on to the alignment tabs.
5. CAUTION: Make sure not to pinch the TSS, OSS or TR sensor wiring harnesses when installing the solenoid body. Damage to the wiring harness will occur.
NOTE: Install the different length bolts in the locations noted during disassembly.

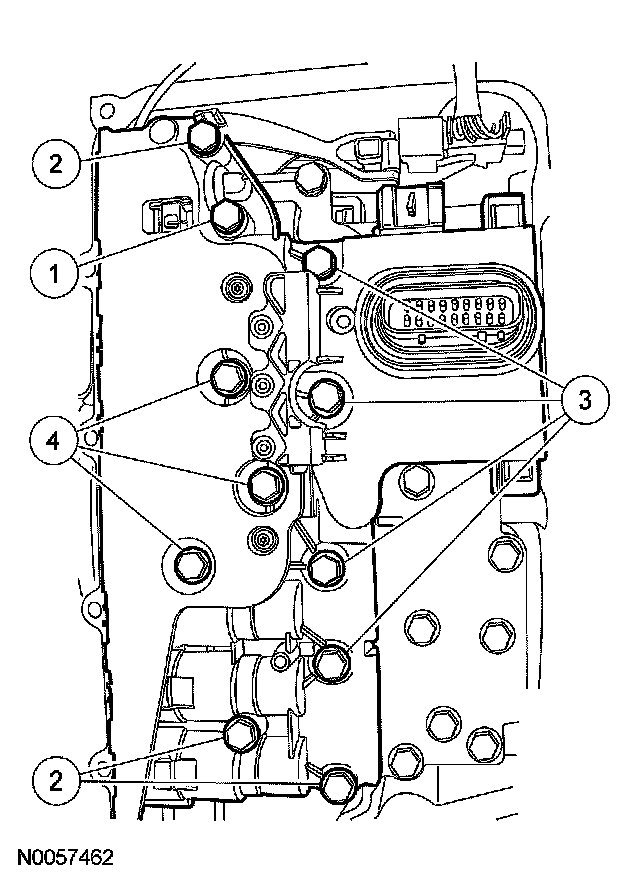

Install the solenoid body and the 11 bolts.
1 42 mm (1.65 inch) bolt
2 63 mm (2.48 inch) bolts
3 80 mm (3.14 inch) bolts
4 95 mm (3.74 inch) bolts

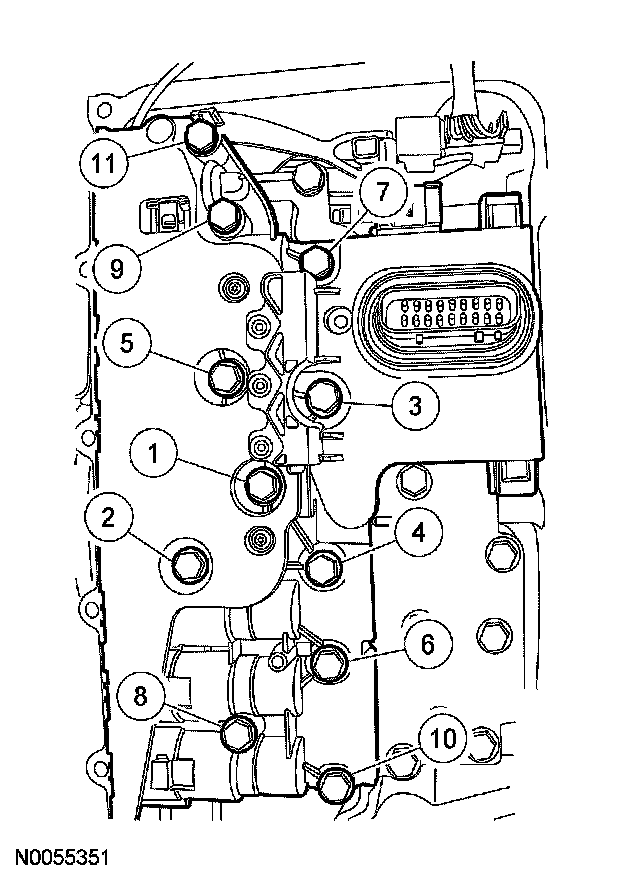

6. Tighten the solenoid body bolts in the sequence shown.
^ Tighten to 12 Nm (9 ft. lbs).
7. Route the OSS sensor wiring harness and connect the electrical connector.

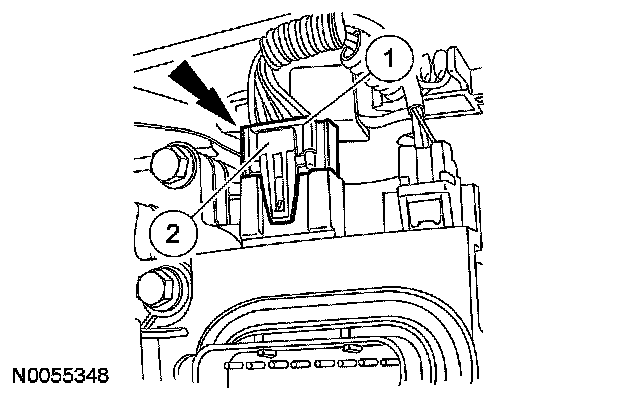

8. Connect the TR sensor electrical connector.
1 Connect the electrical connector.
2 Slide the locking tab over.

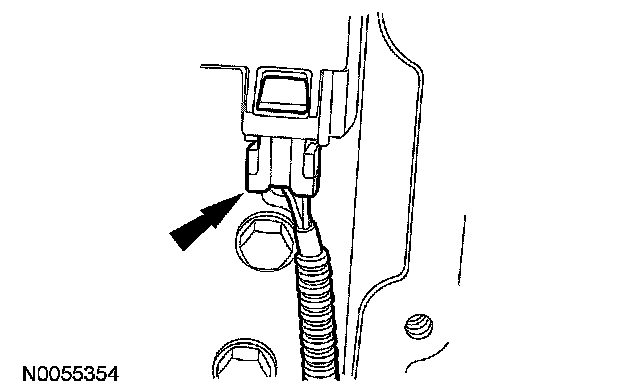

9. Connect the TSS sensor electrical connector.

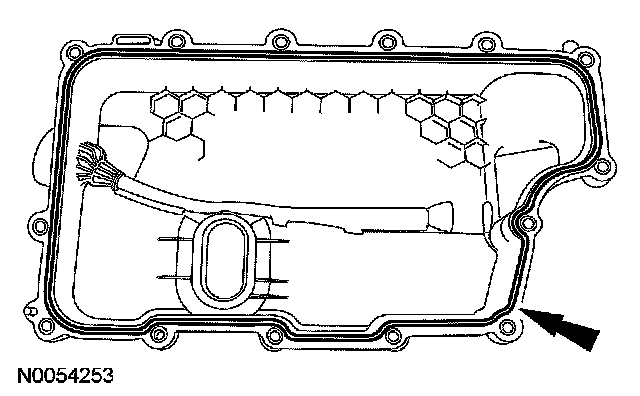

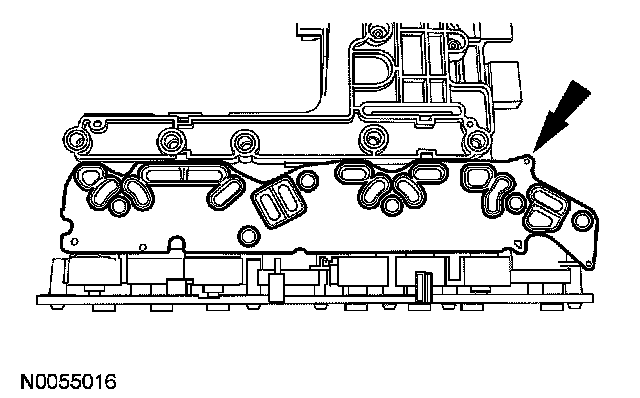

10. Inspect the transaxle main control cover seal for damage and install new if necessary.
11. CAUTION: Inspect the 20 pin solenoid body connector seal to make sure that the seals is on the inside of the main control cover. Transmission fluid leak will occur.
NOTE: Install the stud bolts in the locations noted during disassembly.

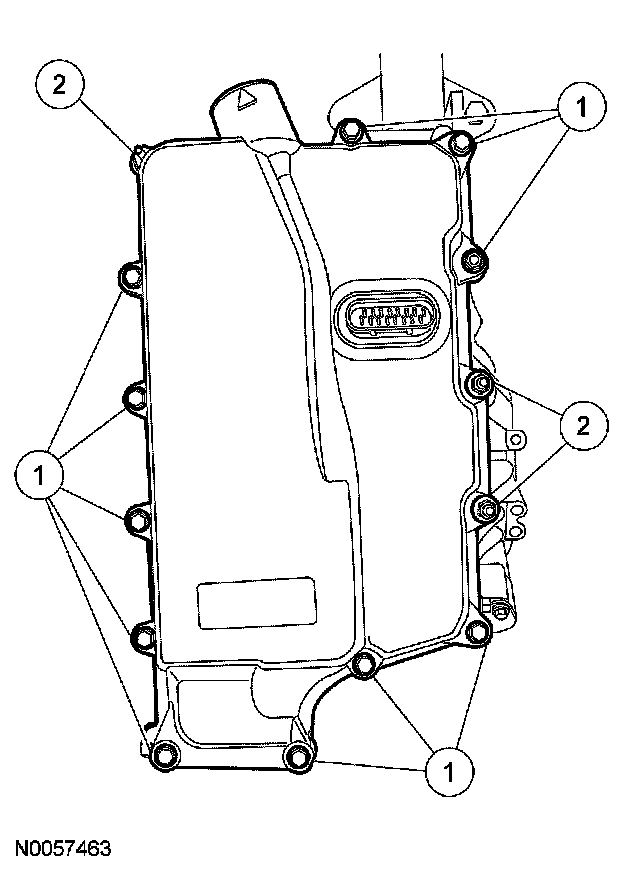

Install the transaxle main control cover and install the 14 bolts.
1 Bolt location
2 Studbolt location

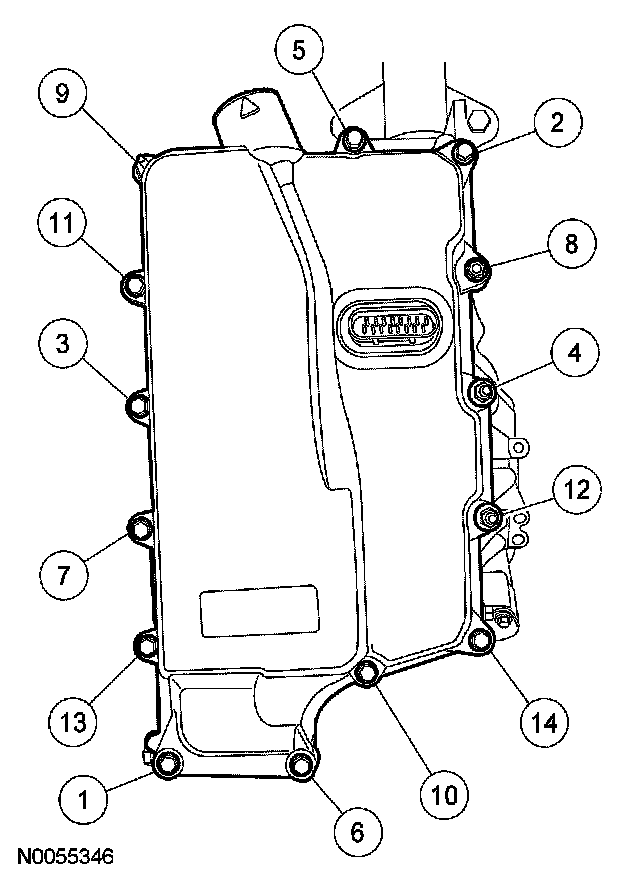

12. Tighten the main control cover bolts in the sequence shown.
^ Tighten to 12 Nm (9 ft. lbs).
13. Position the transmission fluid cooler thermal bypass valve and transmission fluid cooler tube assembly in place and install the 2 nuts.
^ Tighten to 11 Nm (8 ft. lbs).
14. Connect the transaxle electrical connector.

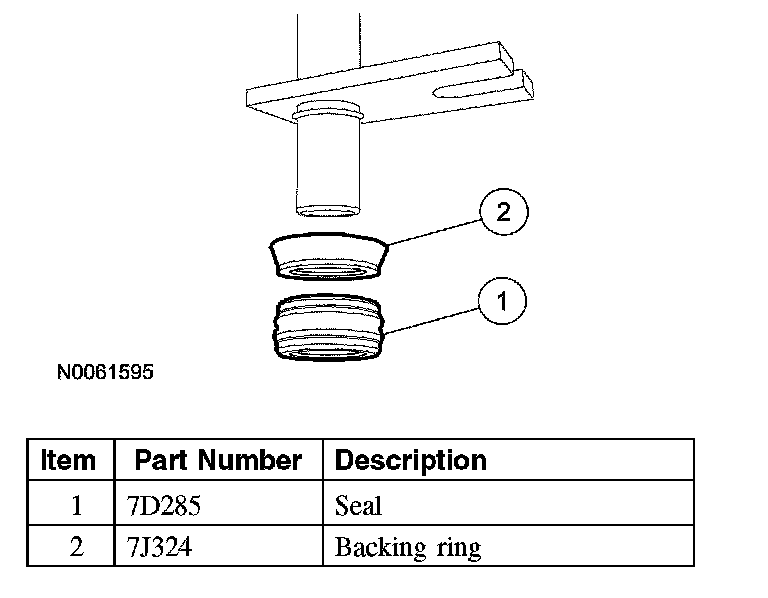

15. Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary. Lubricate the transmission fluid cooler tube seal with clean automatic transmission fluid and install the backing ring and seal on the transmission fluid cooler tube.

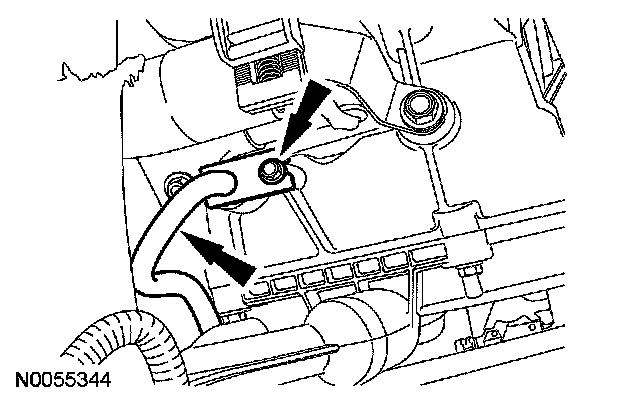

16. Position the transmission fluid cooler tube in place and install the bolt.
^ Tighten to 11 Nm (8 ft. lbs).
17. Tighten the transmission fluid cooler tube fitting.
^ Tighten to 25 Nm (18 ft. lbs).
18. Install the manual lever and the nut.
^ Tighten to 18 Nm (13 ft. lbs).

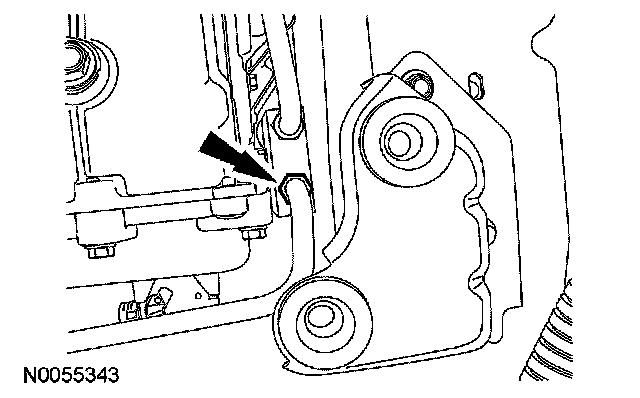

19. Connect the selector lever cable end to the manual lever.
20. Install the fluid filler tube and the nut.
^ Tighten to 11 Nm (8 ft. lbs).
21. Install the transmission fluid level indicator.
22. Route the coolant hoses in the transmission fluid filler tube.

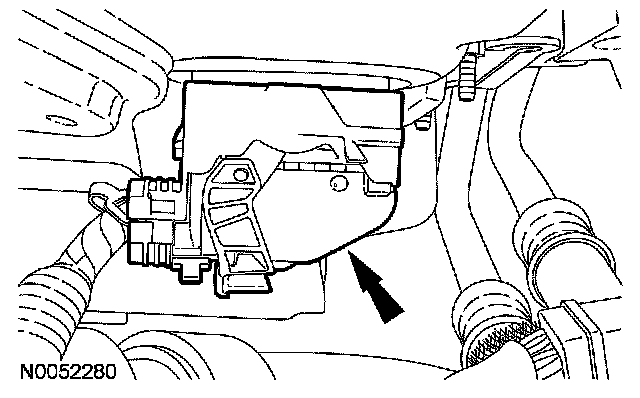

23. Position the air cleaner assembly in place and install the bolt.
^ Tighten to 11 Nm (8 ft. lbs).

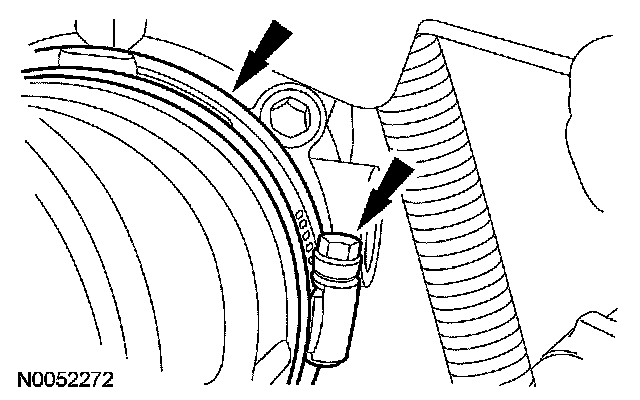

24. Tighten the air cleaner outlet pipe clamp at the throttle body.
^ Tighten to 5 Nm (44 inch lbs).
25. Connect the engine breather to the air cleaner assembly.
26. Connect the brake booster vacuum hose to the air cleaner assembly.

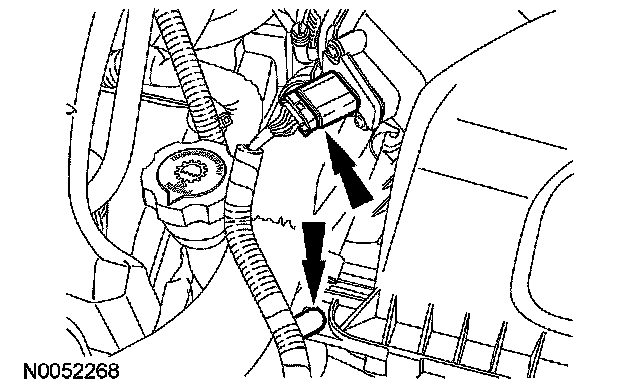

27. Connect the MAF sensor electrical connector and connect the electrical harness fastener.
28. Fill with clean automatic transmission fluid to the correct level.

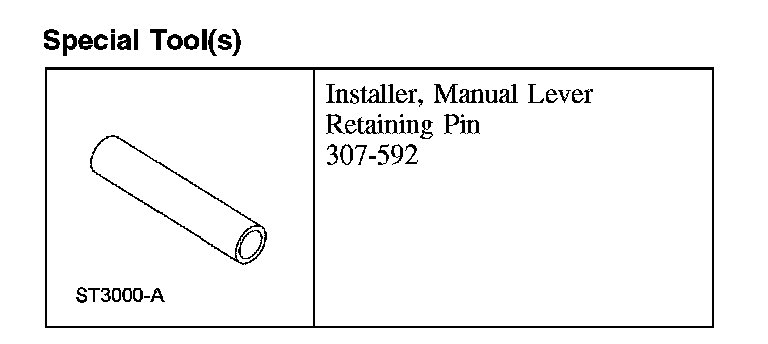

Special Tool(s):

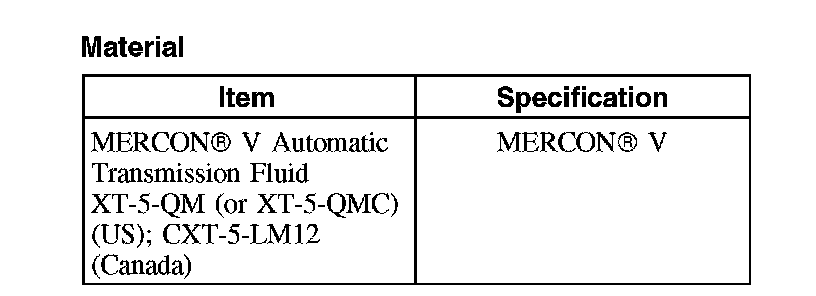

Material:
Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Disconnect the mass air flow (MAF) sensor electrical connector and the wiring harness fastener from the air cleaner assembly.
3. Disconnect the brake booster vacuum hose from the air cleaner outlet pipe.
4. Disconnect the engine breather from the air cleaner assembly.
5. Remove the air cleaner assembly bracket bolt.
6. Loosen the air cleaner outlet pipe clamp at the throttle body and remove the air cleaner and air cleaner outlet pipe assembly.
7. Remove the transmission fluid drain plug and allow the transmission fluid to drain.
8. Install the transmission fluid drain plug.
^ Tighten to 9 Nm (80 inch lbs).
9. NOTE: The coolant hoses do not need to be removed from the engine.
Remove the coolant hoses from the transmission fluid filler tube and position aside.
10. NOTE: The coolant hoses have been removed for clarity.
Remove the transmission fluid level indicator.
11. NOTE: The coolant hoses have been removed for clarity.
Remove the nut, rotate the transmission fluid filler tube counterclockwise 90 degrees and remove the transmission fluid filler tube.
12. Disconnect the selector lever cable end from the manual lever.
13. Remove the nut and the manual lever.
14. Loosen the transmission fluid cooler tube fitting from the thermal bypass valve.
15. Remove the transmission fluid cooler tube bolt and the transmission fluid cooler tube.
16. Inspect the transaxle case to make sure that the transmission fluid cooler tube seal and backing ring were removed with the transmission fluid cooler tube and are not stuck in the transaxle case. If the transmission fluid cooler tube seal or backing ring are stuck in the transaxle case, remove the seal and backing ring.
17. Disconnect the transaxle electrical connector.
18. Remove the 2 nuts, pull the transmission fluid cooler thermal bypass valve straight up and position it aside.
19. NOTE: Note the location of the of the stud bolts for assembly.
Remove the 14 bolts and the transaxle side cover.
20. Disconnect the transmission range (TR) sensor electrical connector.
1 Slide the lock over.
2 Press the tab and disconnect the connector.
21. Disconnect the turbine shaft speed (TSS) and output shaft speed (OSS) sensor electrical connectors.
22. CAUTION: The solenoid body should be handled with care, damage to the solenoid body may occur.
NOTE: Note the location of the different length bolts for assembly.
Remove the 11 bolts and the solenoid body.
23. CAUTION: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body can occur.
CAUTION: Use care not to break the alignment tabs when removing the solenoid body filter.
Remove the solenoid body filter assembly by pulling it straight up from the alignment tabs. Discard the filter.
24. Remove the 10 bolts, the TR sensor detent spring and the main control valve body.
25. Using a suitable tool, remove and discard the TR sensor locking pin.
26. NOTE: TR sensor removed for clarity.
Make sure that the park pawl actuator rod does not become disengaged from the park pawl and the abutment by keeping the end of the park pawl actuator rod behind the machined valve body mating surface of the transaxle case. If the park pawl actuator rod becomes disengaged from the park pawl and the abutment, transaxle removal and disassembly is required to reinstall the actuator rod.
27. CAUTION: Make sure that the park pawl actuator rod does not become disengaged from the park pawl and the abutment or transaxle removal and disassembly is required to reinstall the actuator rod.
Remove the TR sensor.
1 Slide the TR sensor down until the manual shaft is out of the transaxle case.
2 Rotate the TR sensor detent plate counterclockwise, as viewed from below until the plate rests against the transaxle case, remove the park pawl actuating rod from the TR sensor and remove the TR sensor.
Installation
1. Install the TR sensor.
1 Position the park pawl actuating rod in the TR sensor.
2 Install the TR sensor in the transaxle case.
2. Using the special tool, install a new TR sensor locking pin.
3. NOTE: Make sure that the manual lever pin (part of the TR sensor) is correctly installed in the manual valve.
Position the TSS, OSS and TR sensor wiring harnesses aside and install the main control valve body, the TR sensor detent spring and the 10 bolts. Tighten the bolts in the sequence shown.
^ Tighten to 12 Nm (9 ft. lbs).
4. CAUTION: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body can occur.
CAUTION: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.
CAUTION: Make sure that the filter passage areas are clean of foreign material before installing the filter. Damage to the transaxle will occur if the filter passages are not clean.
Install a new solenoid body filter assembly by pushing it straight down on to the alignment tabs.
5. CAUTION: Make sure not to pinch the TSS, OSS or TR sensor wiring harnesses when installing the solenoid body. Damage to the wiring harness will occur.
NOTE: Install the different length bolts in the locations noted during disassembly.
Install the solenoid body and the 11 bolts.
1 42 mm (1.65 inch) bolt
2 63 mm (2.48 inch) bolts
3 80 mm (3.14 inch) bolts
4 95 mm (3.74 inch) bolts
6. Tighten the solenoid body bolts in the sequence shown.
^ Tighten to 12 Nm (9 ft. lbs).
7. Route the OSS sensor wiring harness and connect the electrical connector.
8. Connect the TR sensor electrical connector.
1 Connect the electrical connector.
2 Slide the locking tab over.
9. Connect the TSS sensor electrical connector.
10. Inspect the transaxle main control cover seal for damage and install new if necessary.
11. CAUTION: Inspect the 20 pin solenoid body connector seal to make sure that the seals is on the inside of the main control cover. Transmission fluid leak will occur.
NOTE: Install the stud bolts in the locations noted during disassembly.
Install the transaxle main control cover and install the 14 bolts.
1 Bolt location
2 Studbolt location
12. Tighten the main control cover bolts in the sequence shown.
^ Tighten to 12 Nm (9 ft. lbs).
13. Position the transmission fluid cooler thermal bypass valve and transmission fluid cooler tube assembly in place and install the 2 nuts.
^ Tighten to 11 Nm (8 ft. lbs).
14. Connect the transaxle electrical connector.
15. Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary. Lubricate the transmission fluid cooler tube seal with clean automatic transmission fluid and install the backing ring and seal on the transmission fluid cooler tube.
16. Position the transmission fluid cooler tube in place and install the bolt.
^ Tighten to 11 Nm (8 ft. lbs).
17. Tighten the transmission fluid cooler tube fitting.
^ Tighten to 25 Nm (18 ft. lbs).
18. Install the manual lever and the nut.
^ Tighten to 18 Nm (13 ft. lbs).
19. Connect the selector lever cable end to the manual lever.
20. Install the fluid filler tube and the nut.
^ Tighten to 11 Nm (8 ft. lbs).
21. Install the transmission fluid level indicator.
22. Route the coolant hoses in the transmission fluid filler tube.
23. Position the air cleaner assembly in place and install the bolt.
^ Tighten to 11 Nm (8 ft. lbs).
24. Tighten the air cleaner outlet pipe clamp at the throttle body.
^ Tighten to 5 Nm (44 inch lbs).
25. Connect the engine breather to the air cleaner assembly.
26. Connect the brake booster vacuum hose to the air cleaner assembly.
27. Connect the MAF sensor electrical connector and connect the electrical harness fastener.
28. Fill with clean automatic transmission fluid to the correct level.
Factory Service Tools
Use the Manual With the Right Hardware
Pair factory procedures with proven DIY tools so the instructions are easier to execute.
Disclosure: Verified tool recommendations may earn an affiliate commission at no cost to you.
When to See a Mechanic
Stop DIY work and contact a certified mechanic immediately if any of the following apply:
- • You smell fuel, burning insulation, or see smoke.
- • Brakes feel soft, pull hard to one side, or make grinding noises.
- • The engine overheats, stalls repeatedly, or misfires under load.
- • You are missing required tools, torque specs, or safe lifting equipment.
- • You are not confident in the next step or safety outcome.
Rather have a pro handle this?
A certified mobile mechanic comes to your home or office. They bring the tools, you stay comfortable. No tow truck, no waiting room, no surprises.
Comes to youSame-day available12-month warranty
Get a Free QuoteNo obligation. See pricing before you book.
