2007 Ford Edge FWD V6-3.5L

Tests KB: Fuel Pump Driver Module

2007 Ford Edge FWD V6-3.5LSECTION Tests KB: Fuel Pump Driver Module
PINPOINT TEST KB: FUEL PUMP DRIVER MODULE

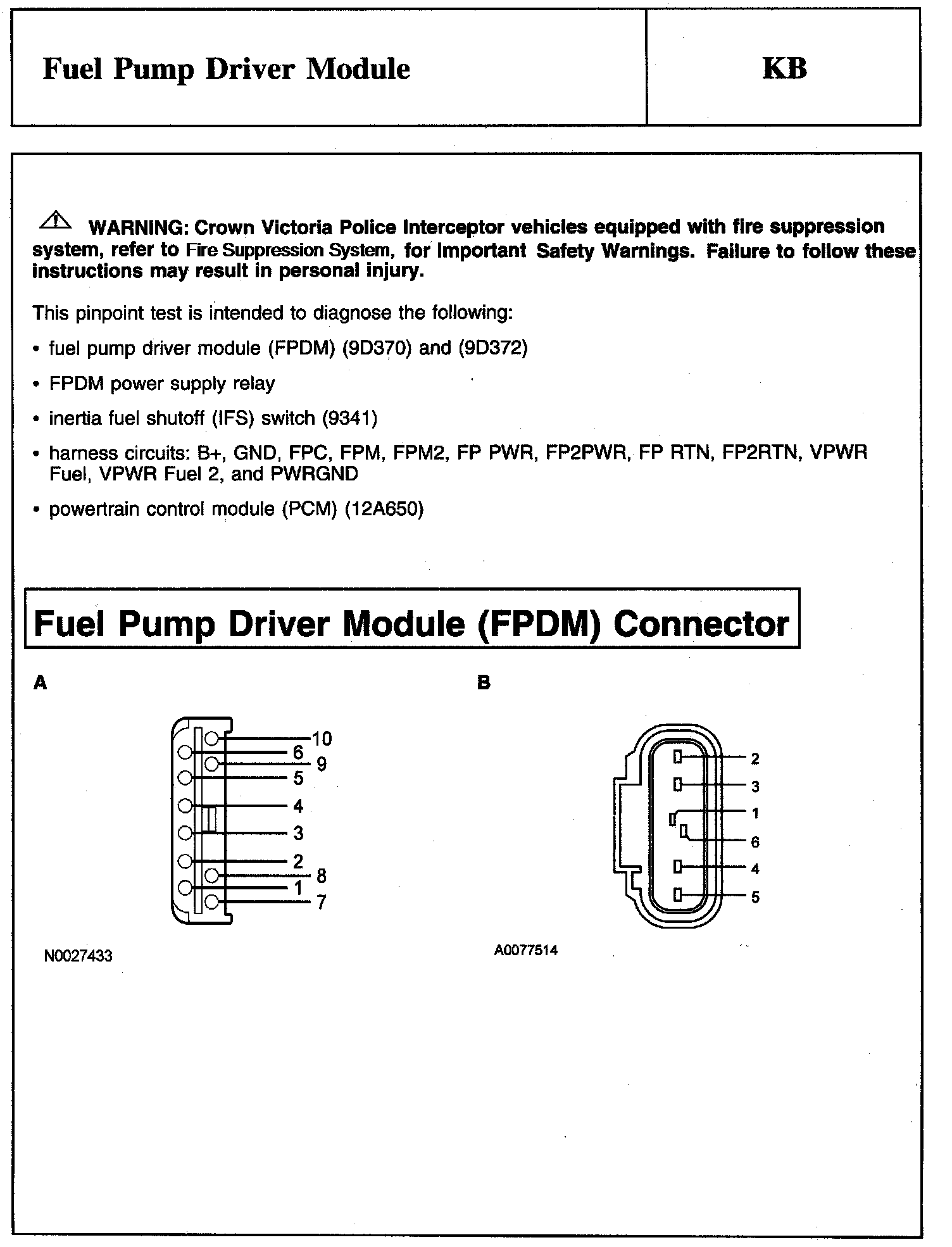

Warning And Fuel Pump Driver Module (FPDM) Connector:

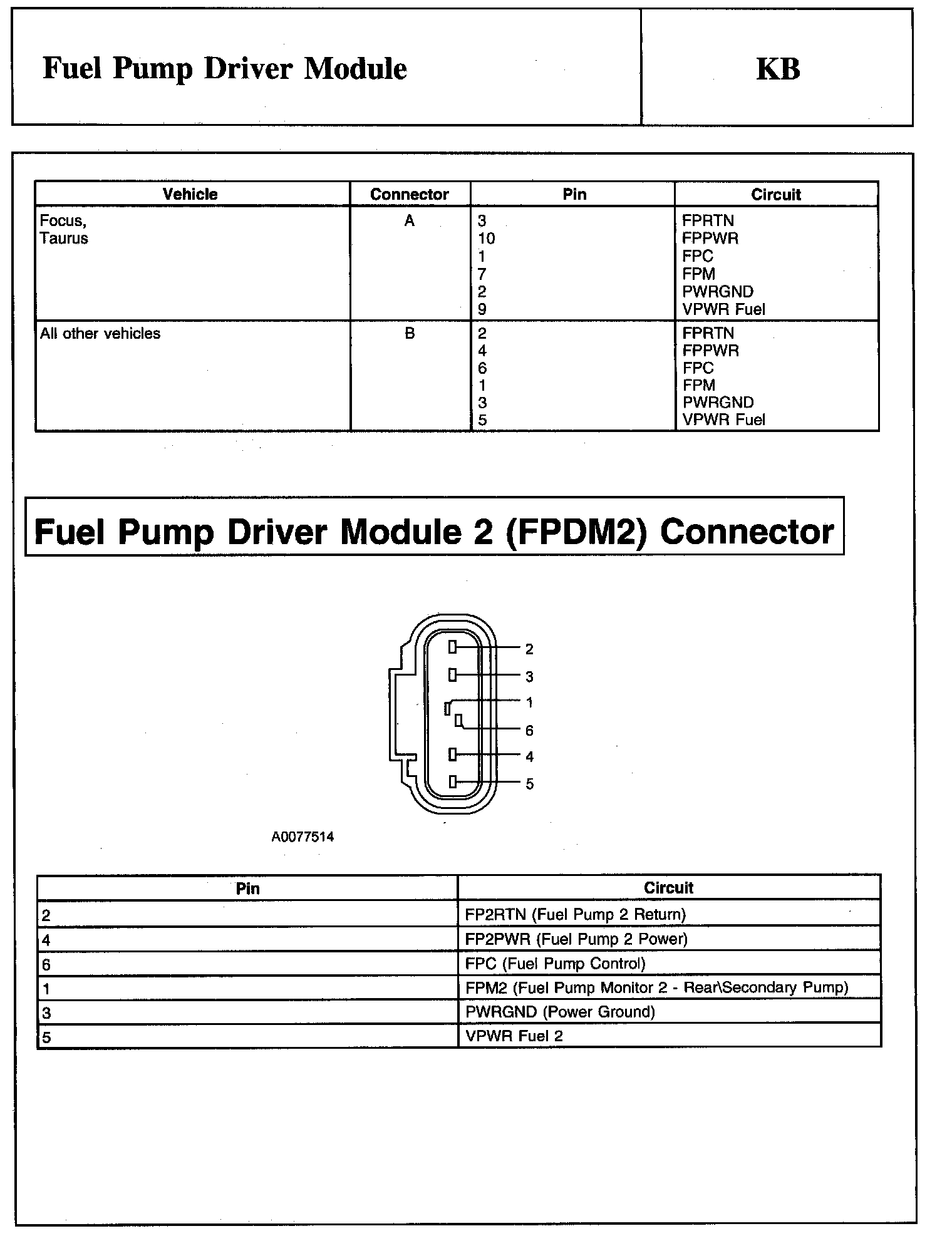

Fuel Pump Driver Module (FPDM) Connector And Fuel Pump Driver Module 2 (FPDM2) Connector:

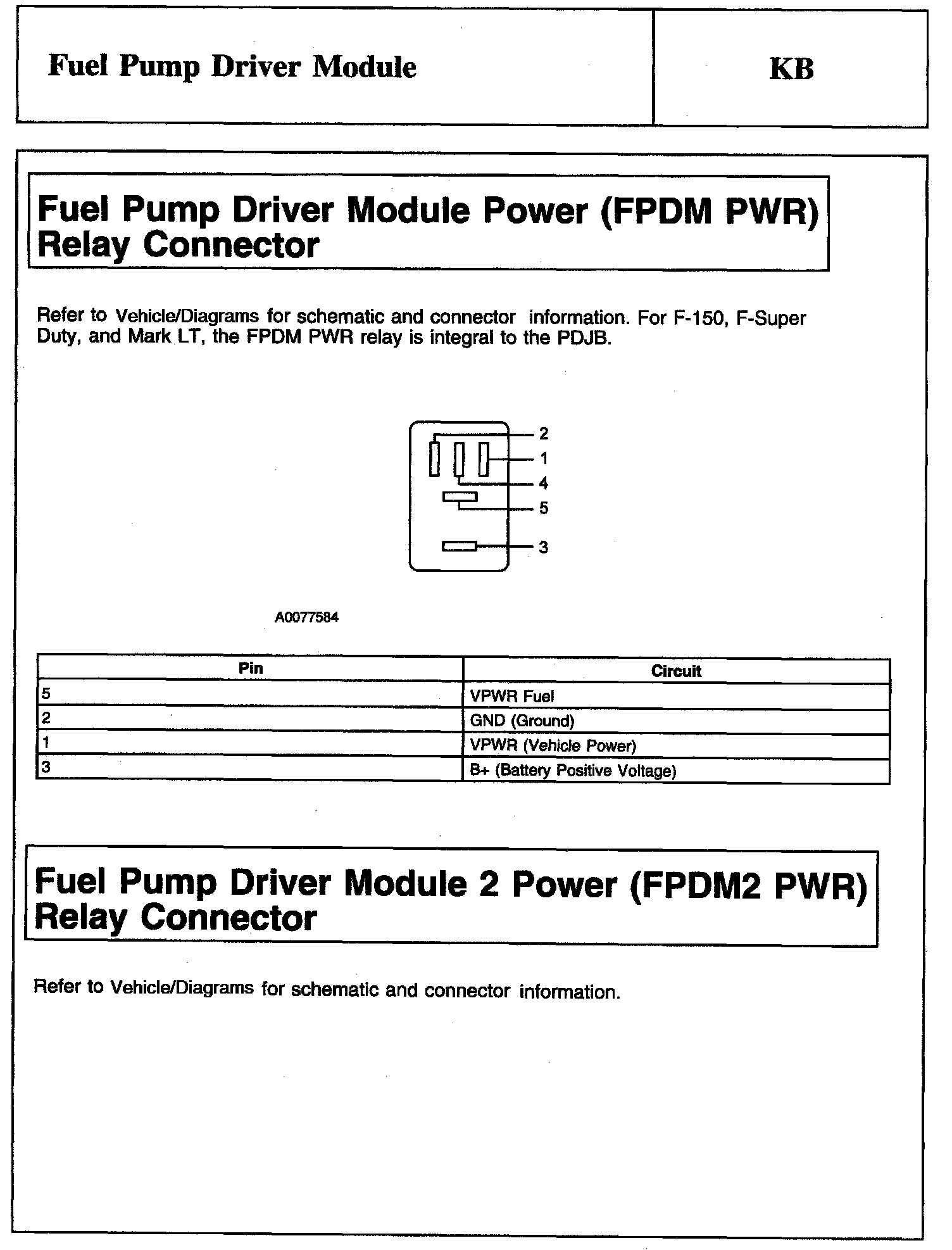

Fuel Pump Driver Module Power (FPDM PWR) Relay Connector And Fuel Pump Driver Module 2 Power (FPDM2 PWR) Relay Connector:

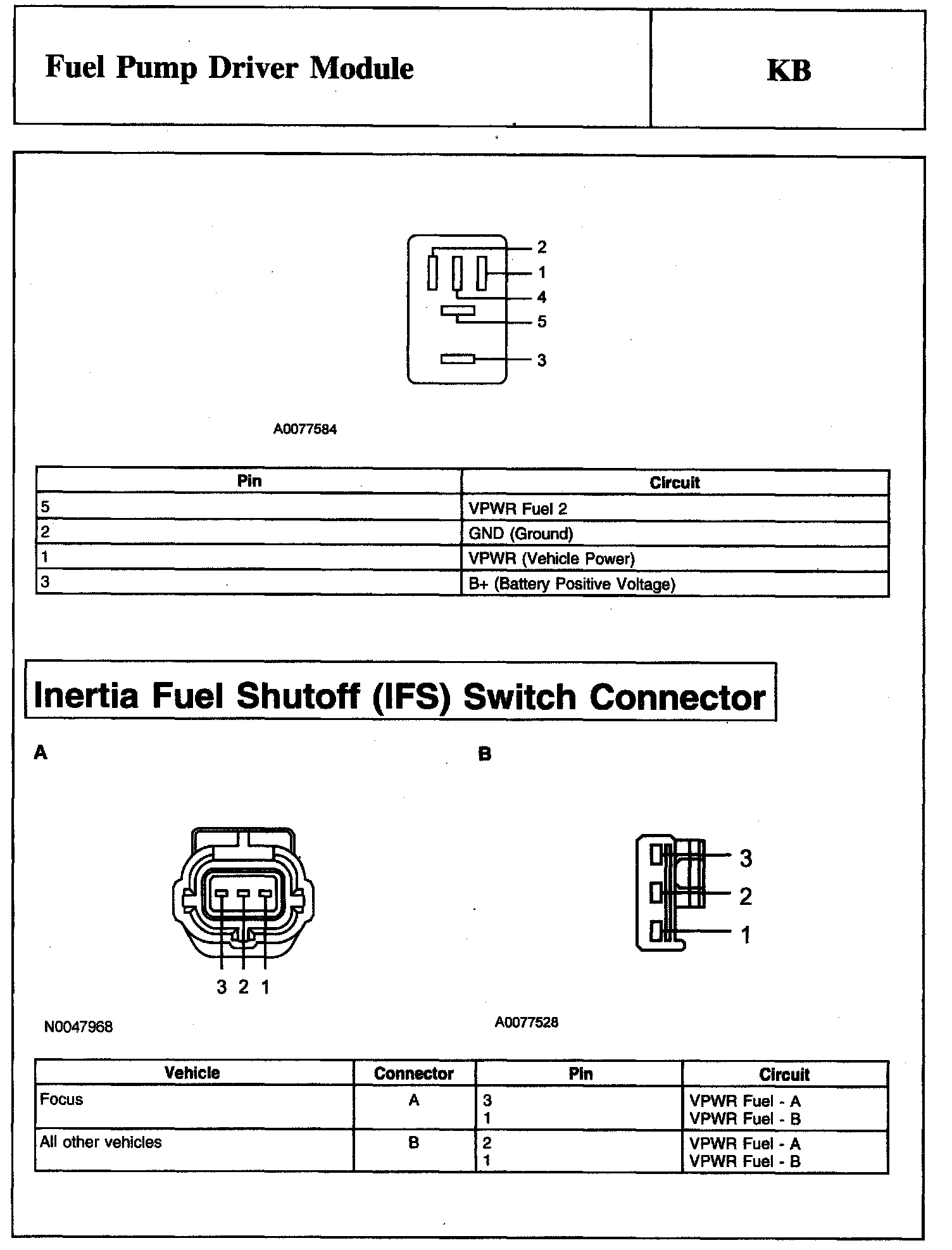

Fuel Pump/Rear Electronics Module Power (FP/REM PWR) Connector, Inertia Fuel Pump Driver Module 2 Power (FPDM2 PWR) Relay Connector And Inertia Fuel Shutoff (IFS) Switch Connector:

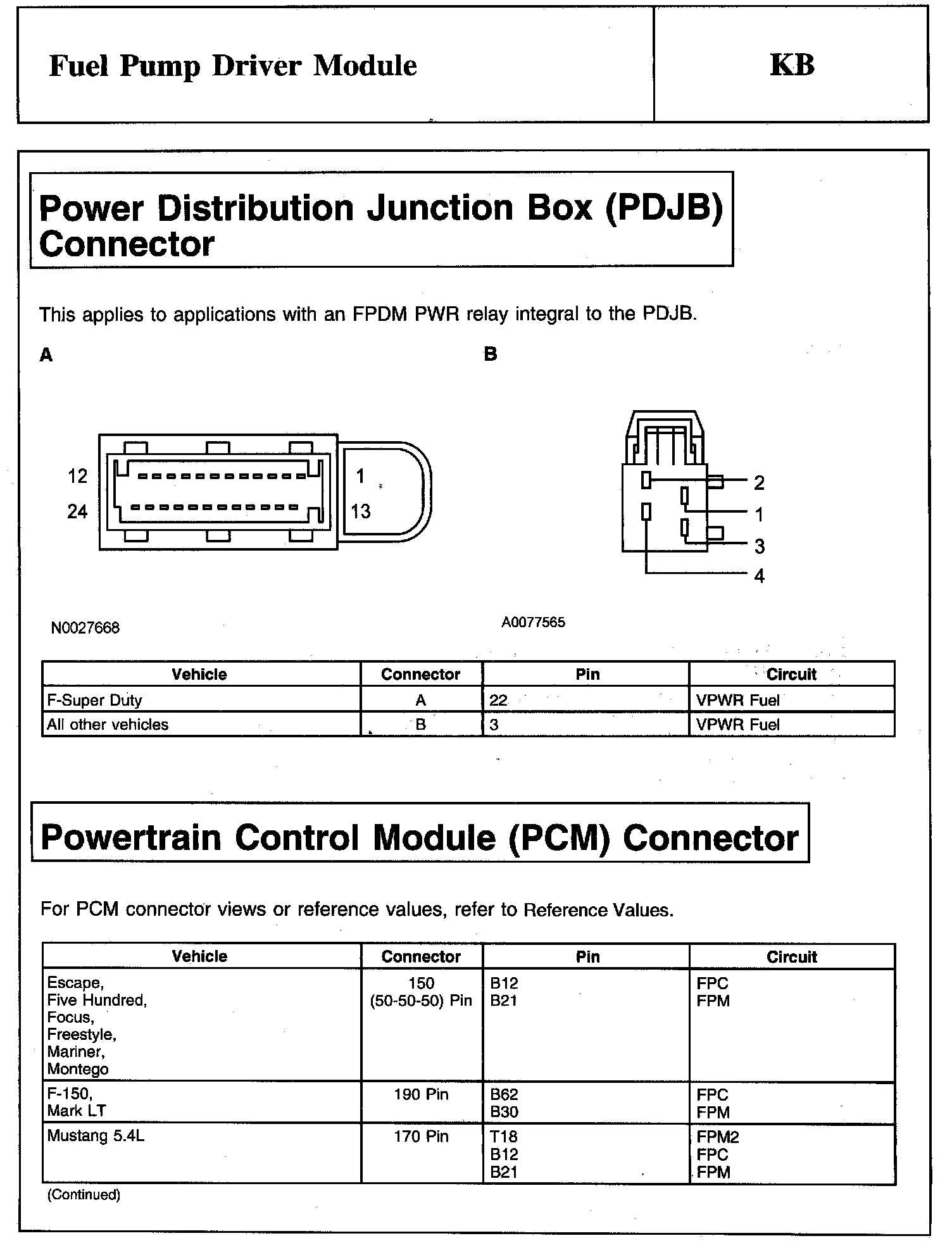

Power Distribution Junction Box (PDJB) Connector And Powertrain Control Module (PCM) Connector:

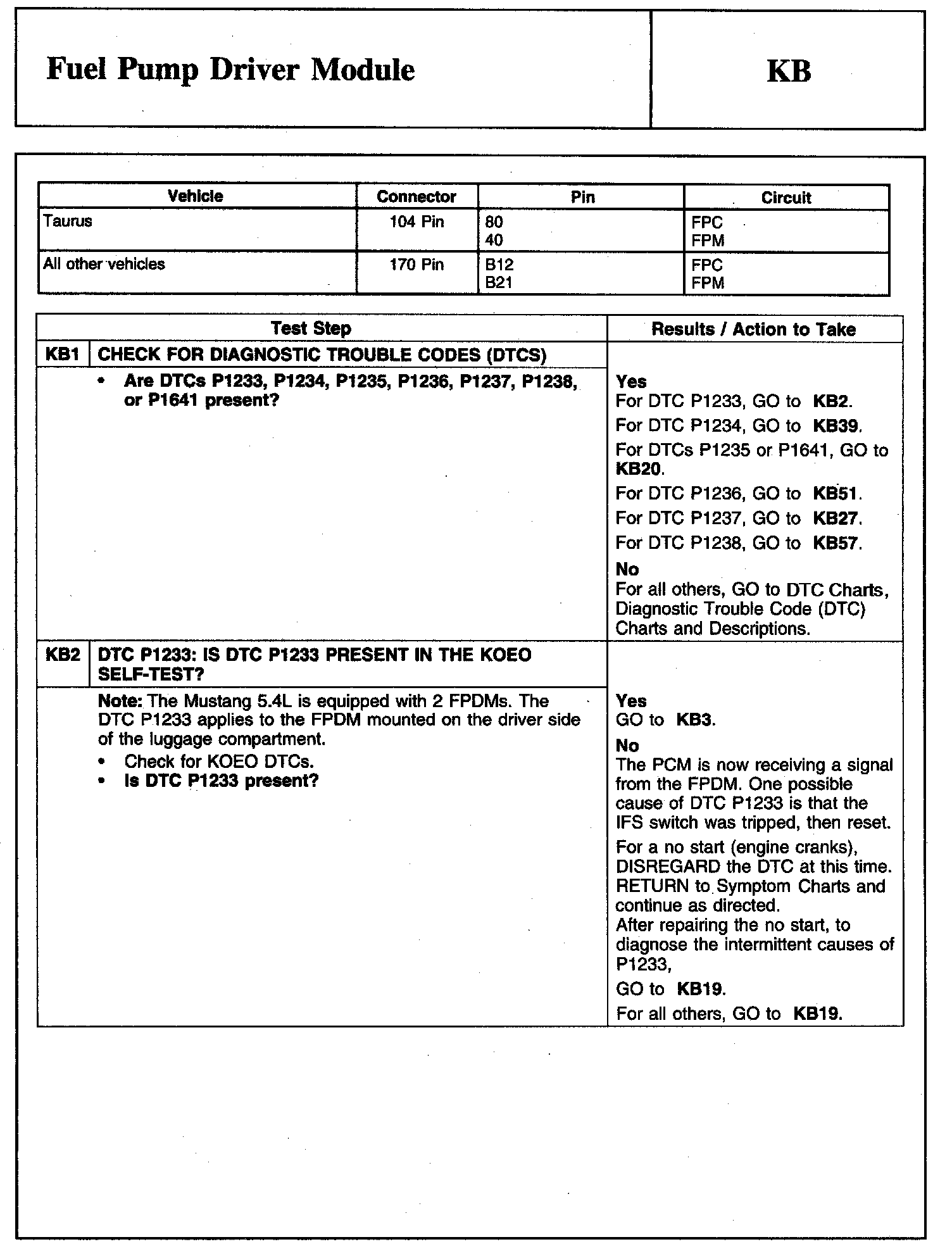

KB1-KB2:

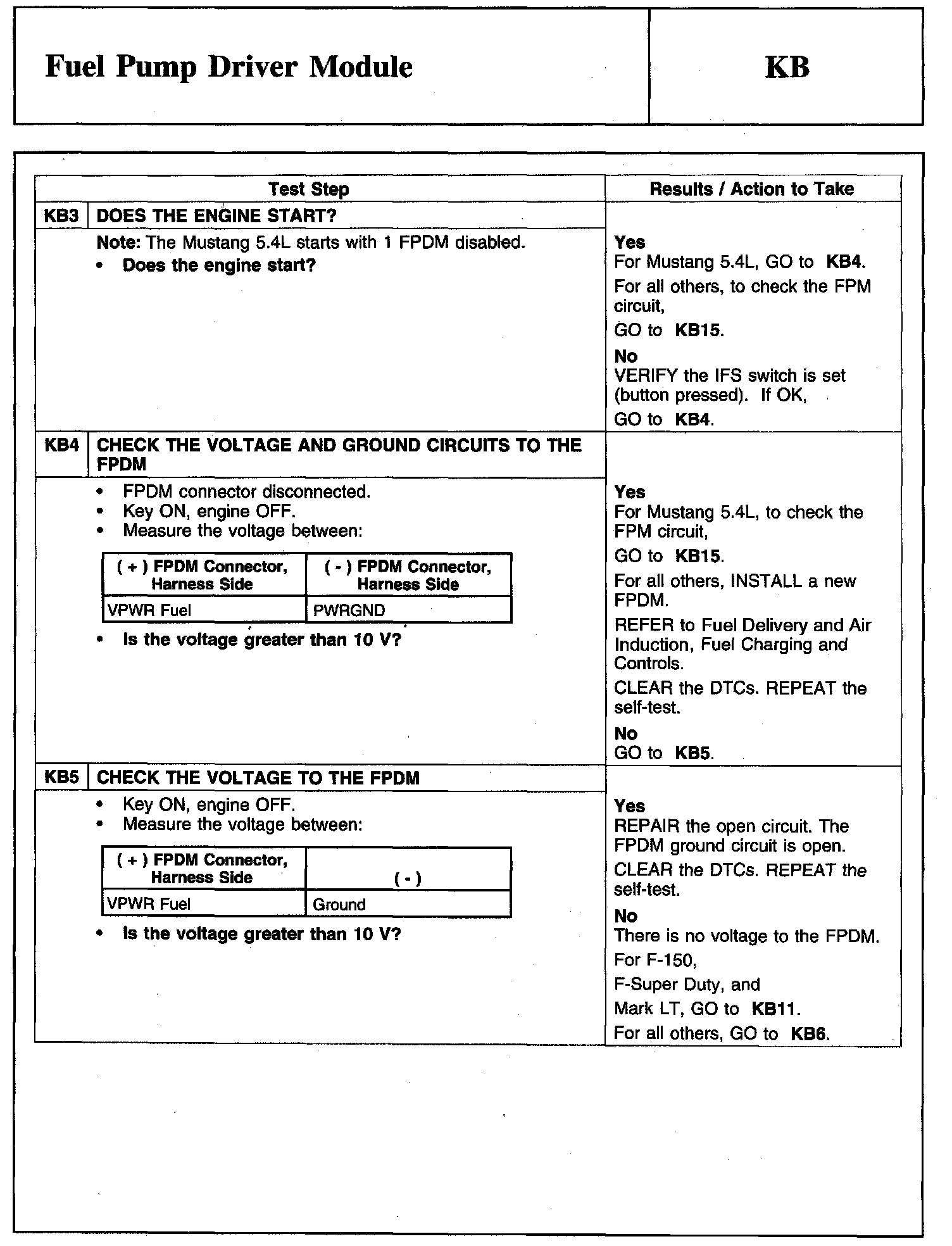

KB3-KB5:

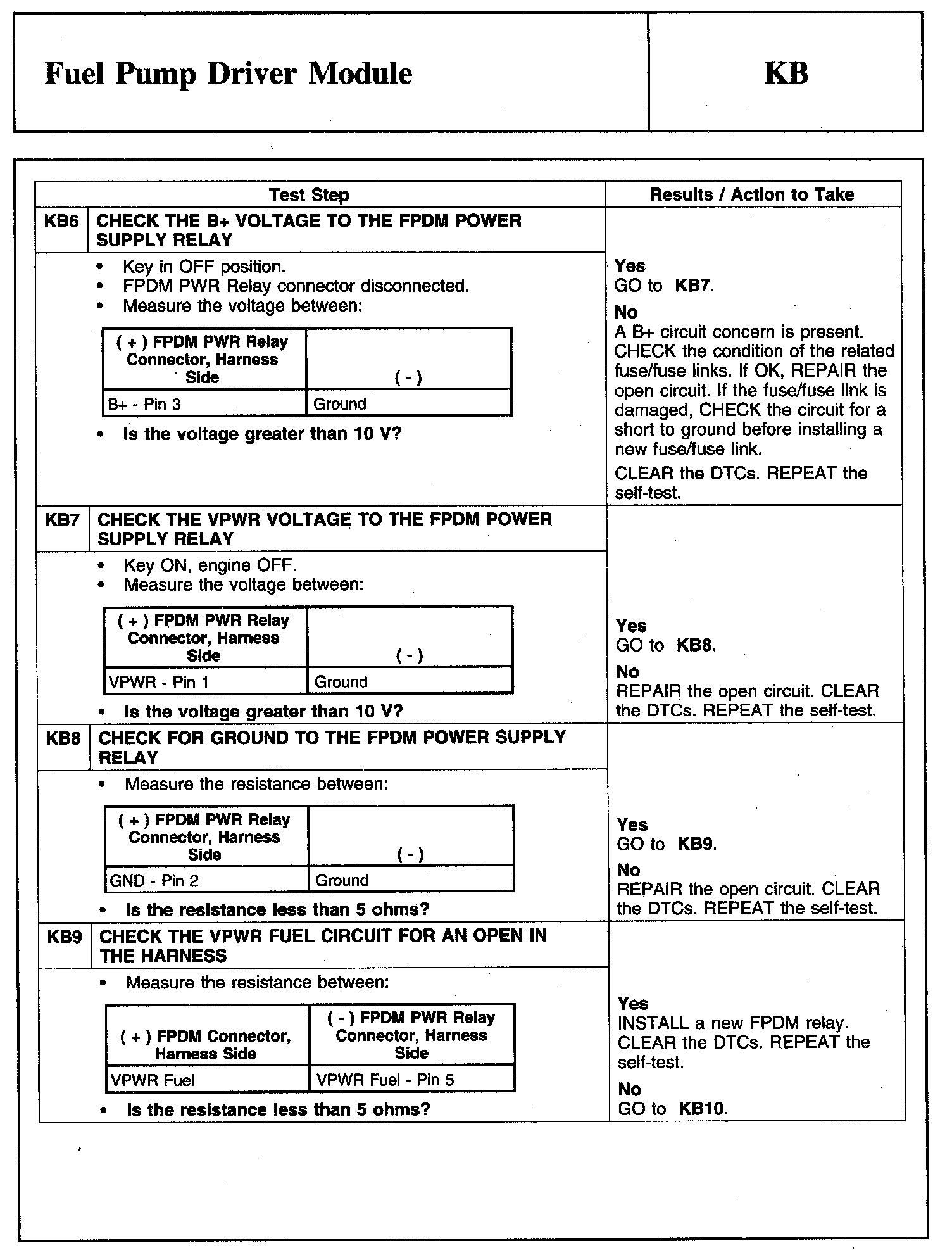

KB6-KB9:

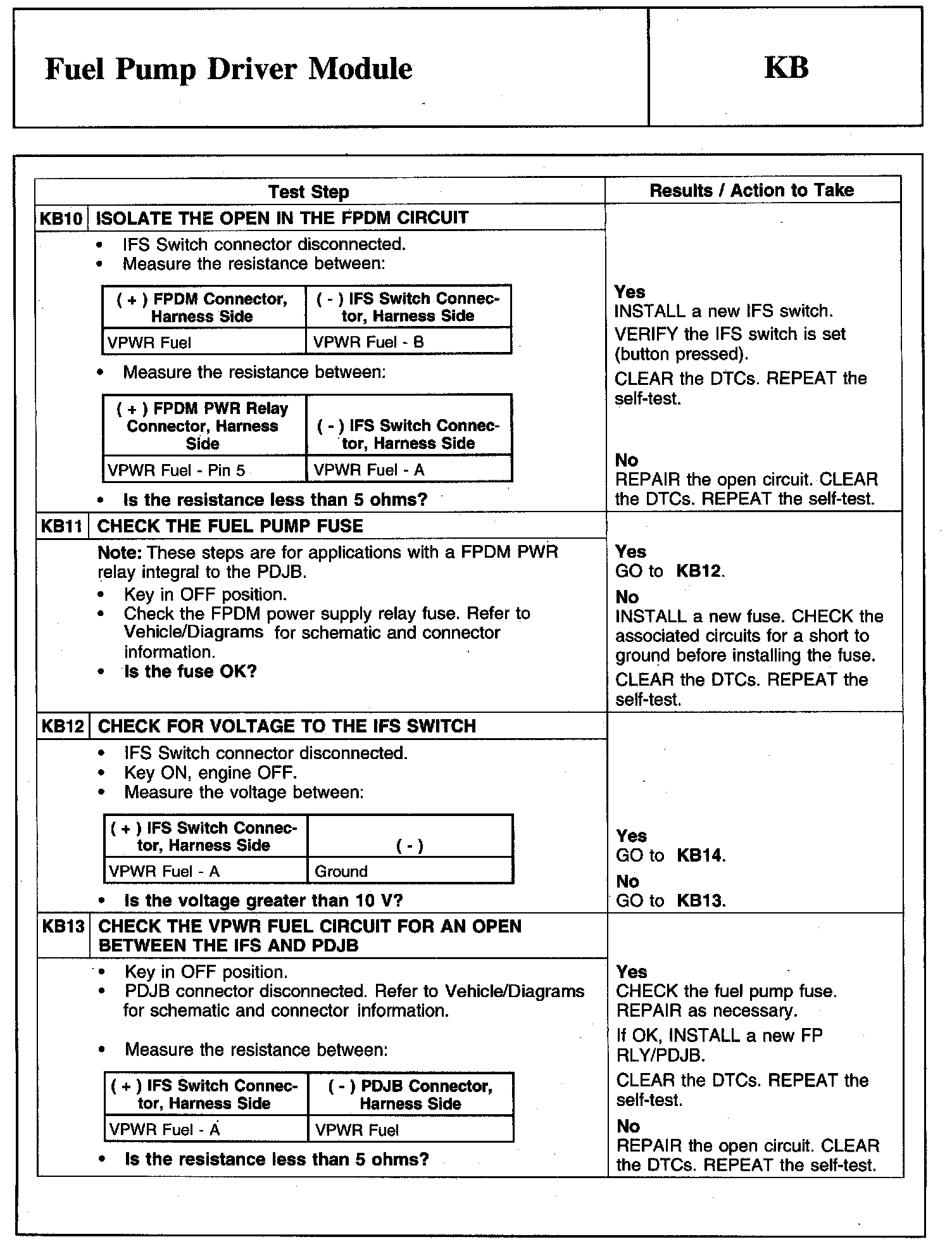

KB10-KB13:

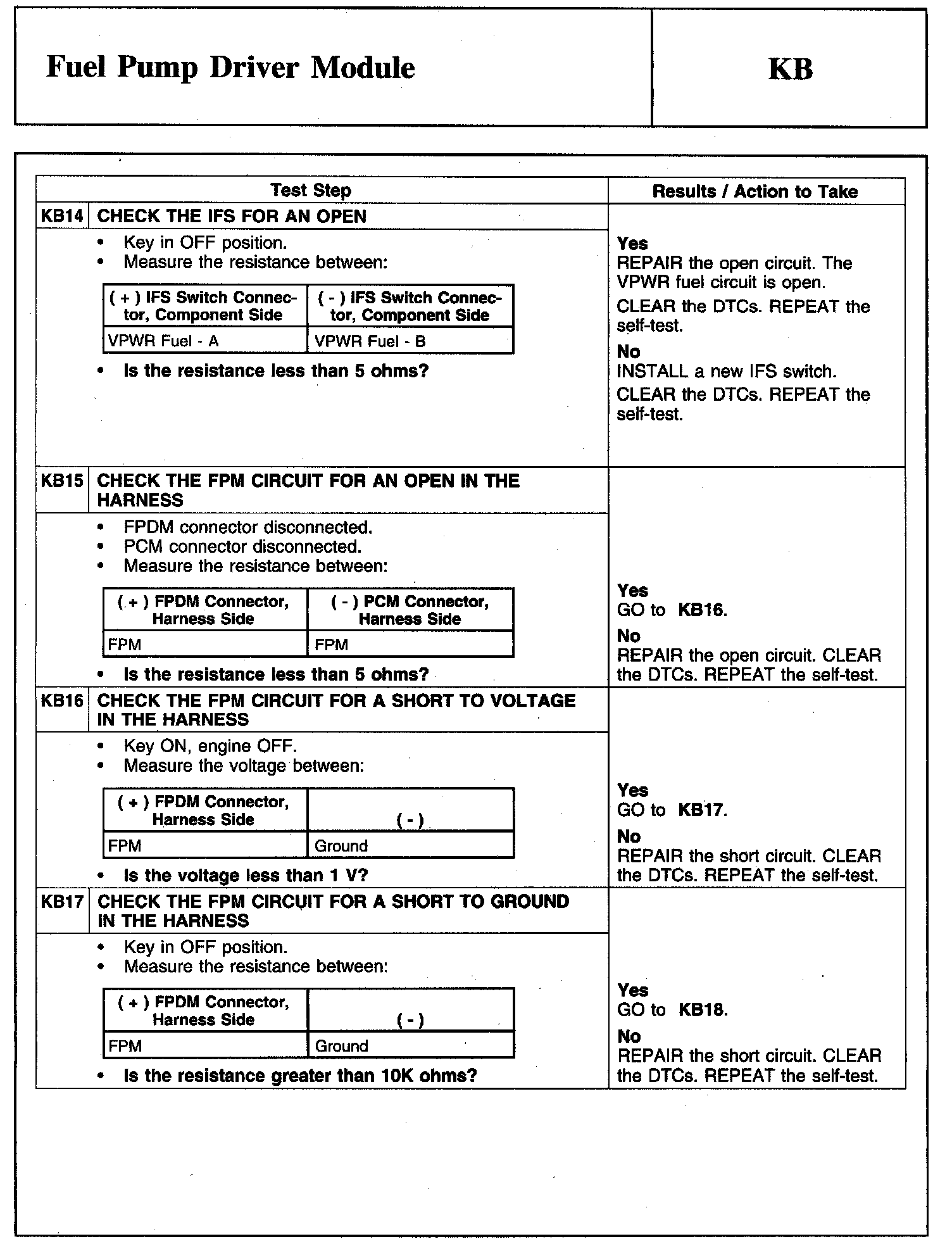

KB14-KB17:

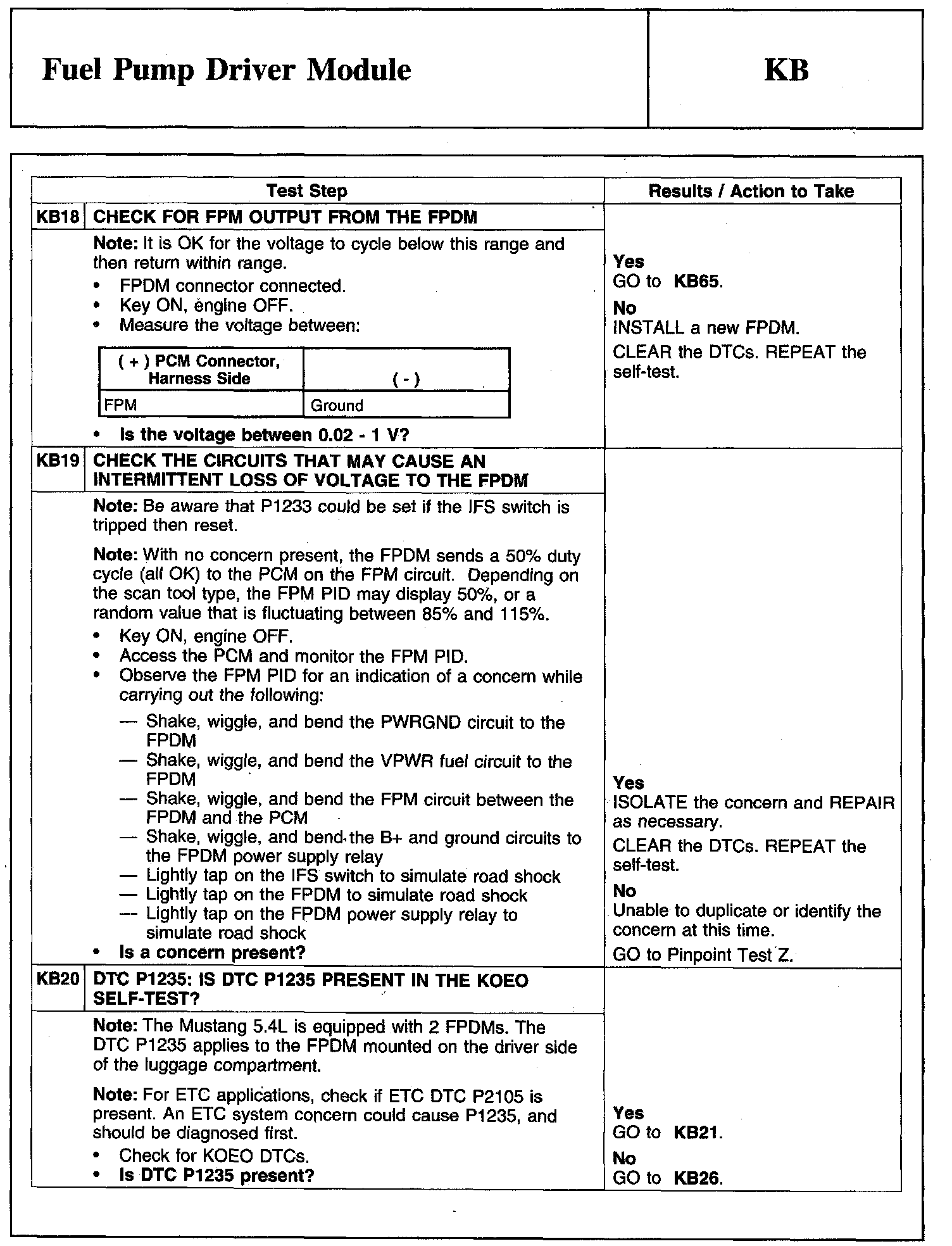

KB18-KB20:

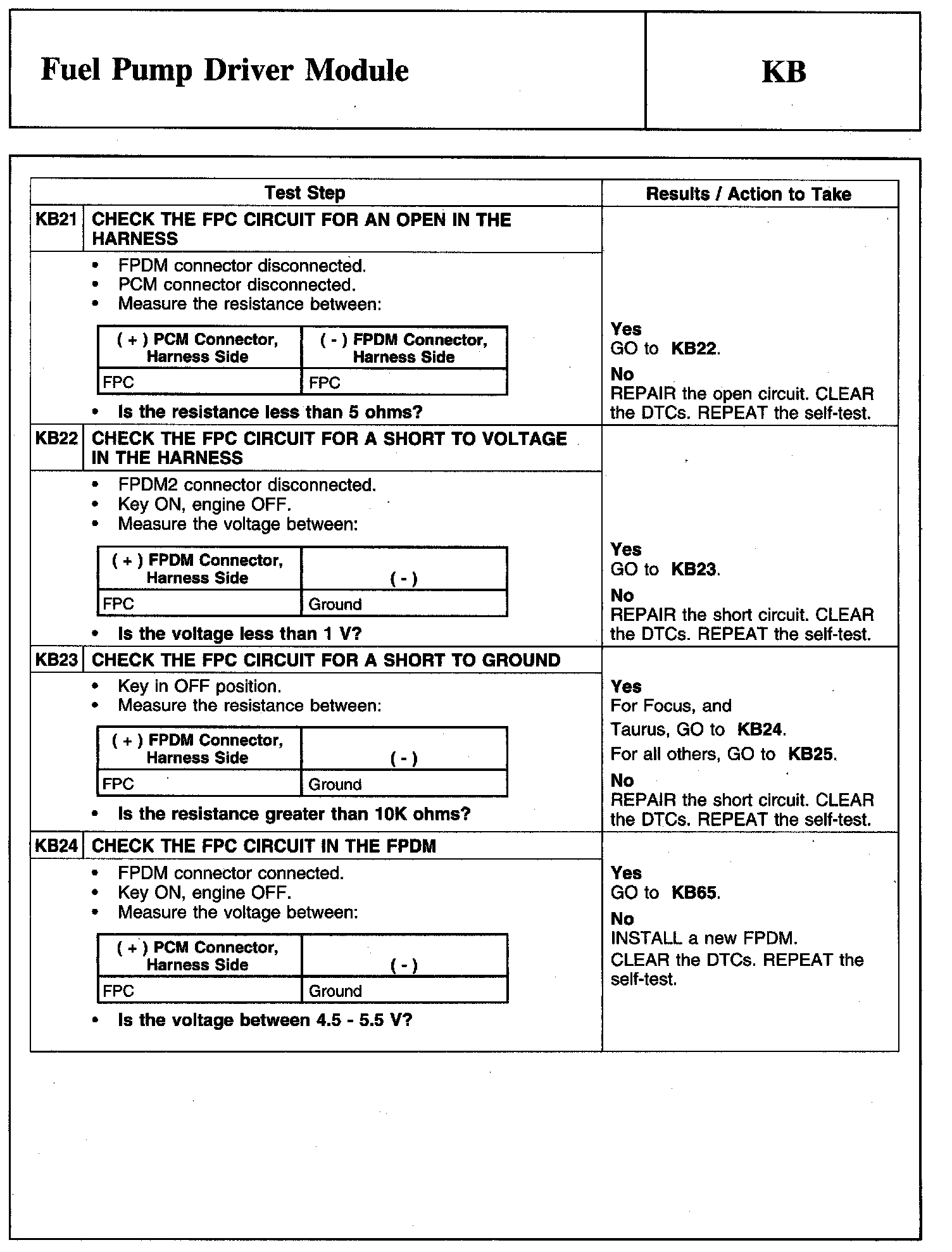

KB21-KB24:

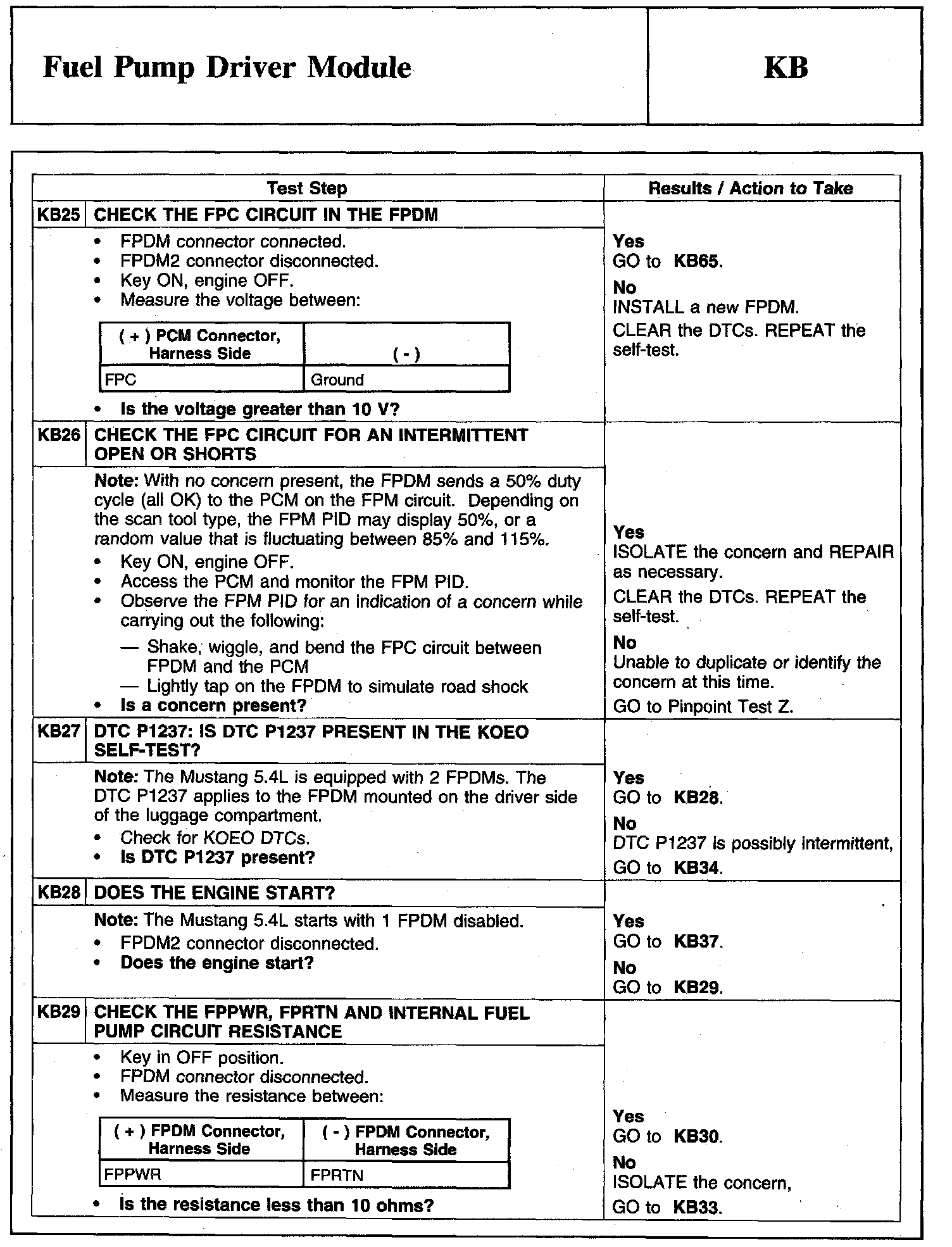

KB25-KB29:

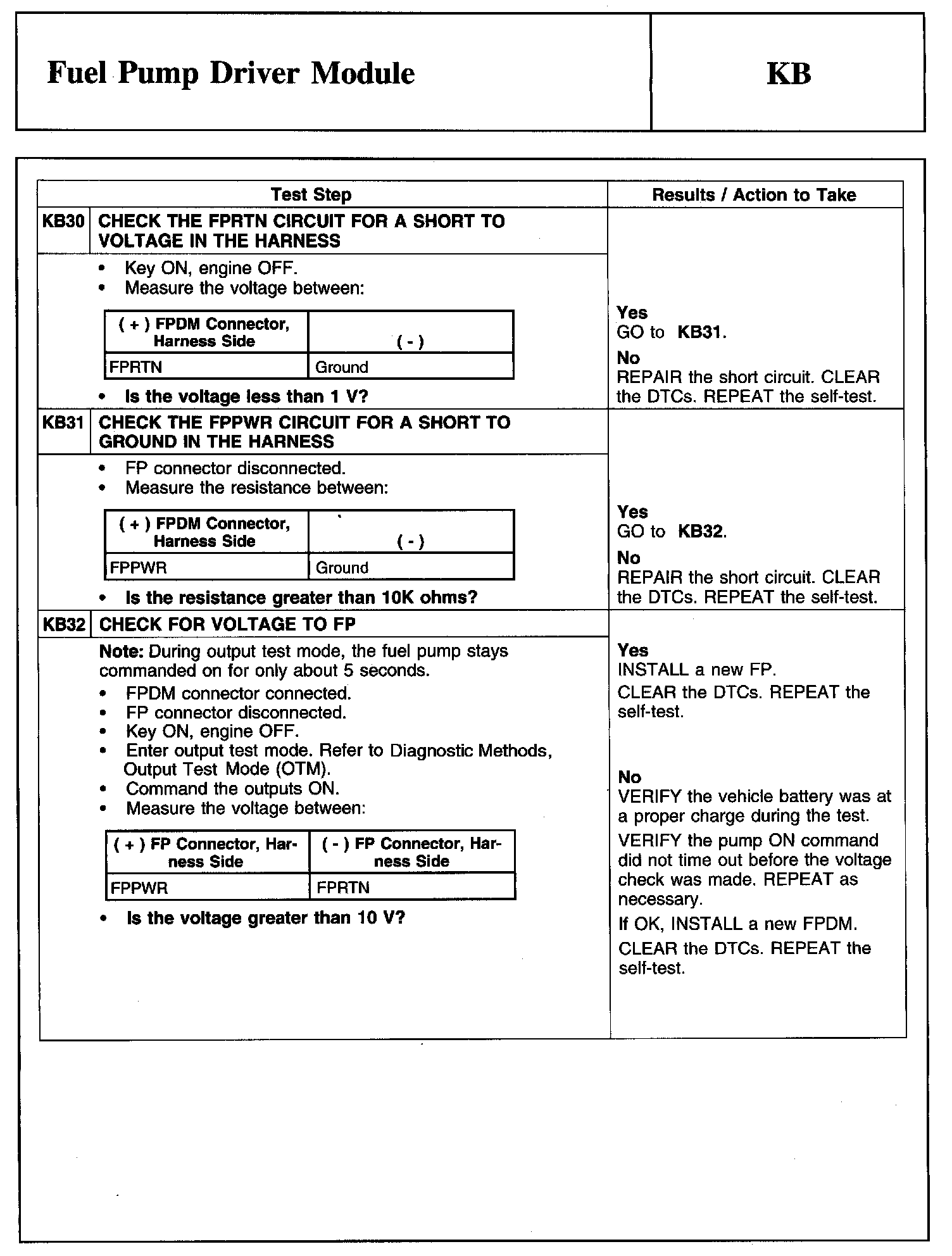

KB30-KB32:

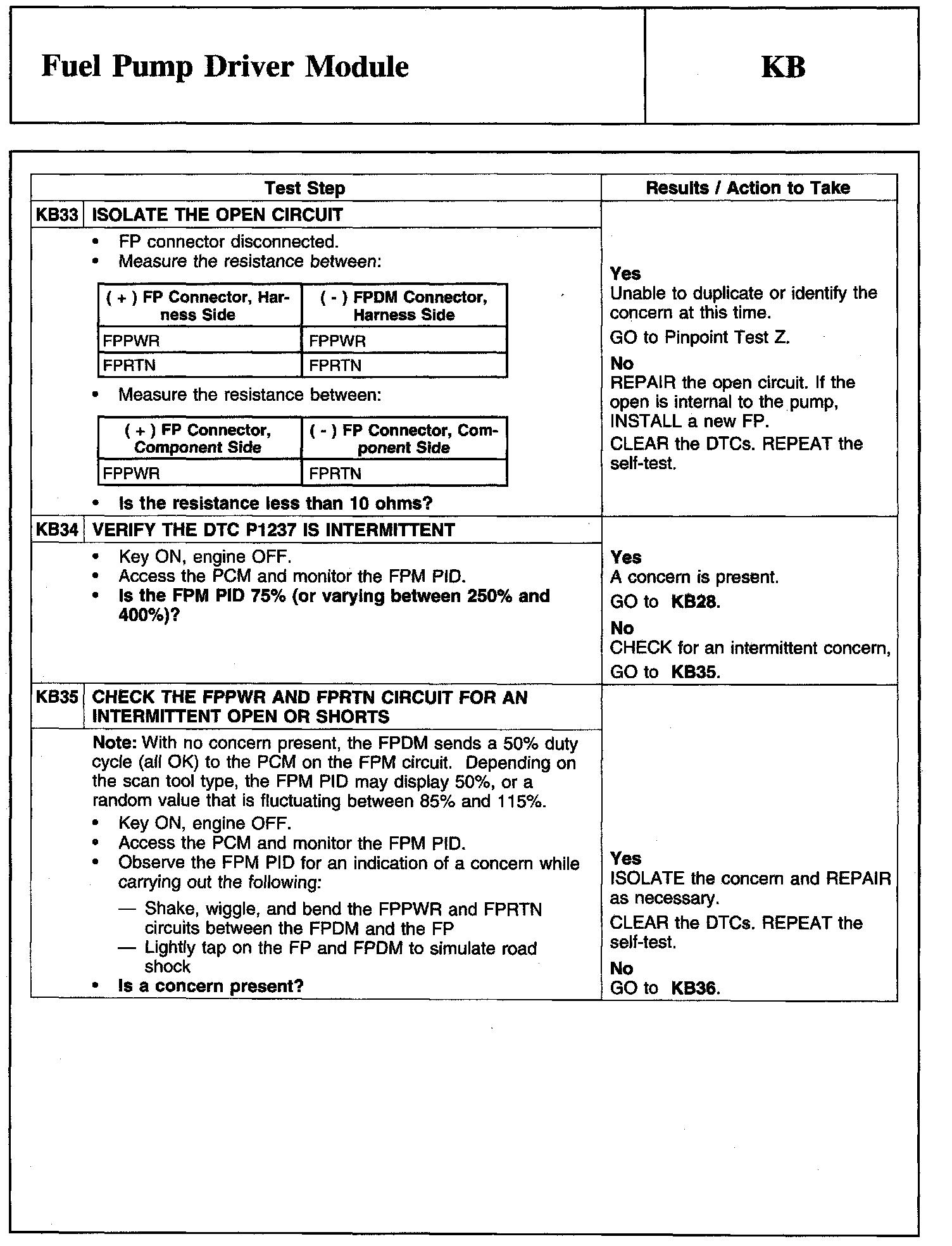

KB33-KB35:

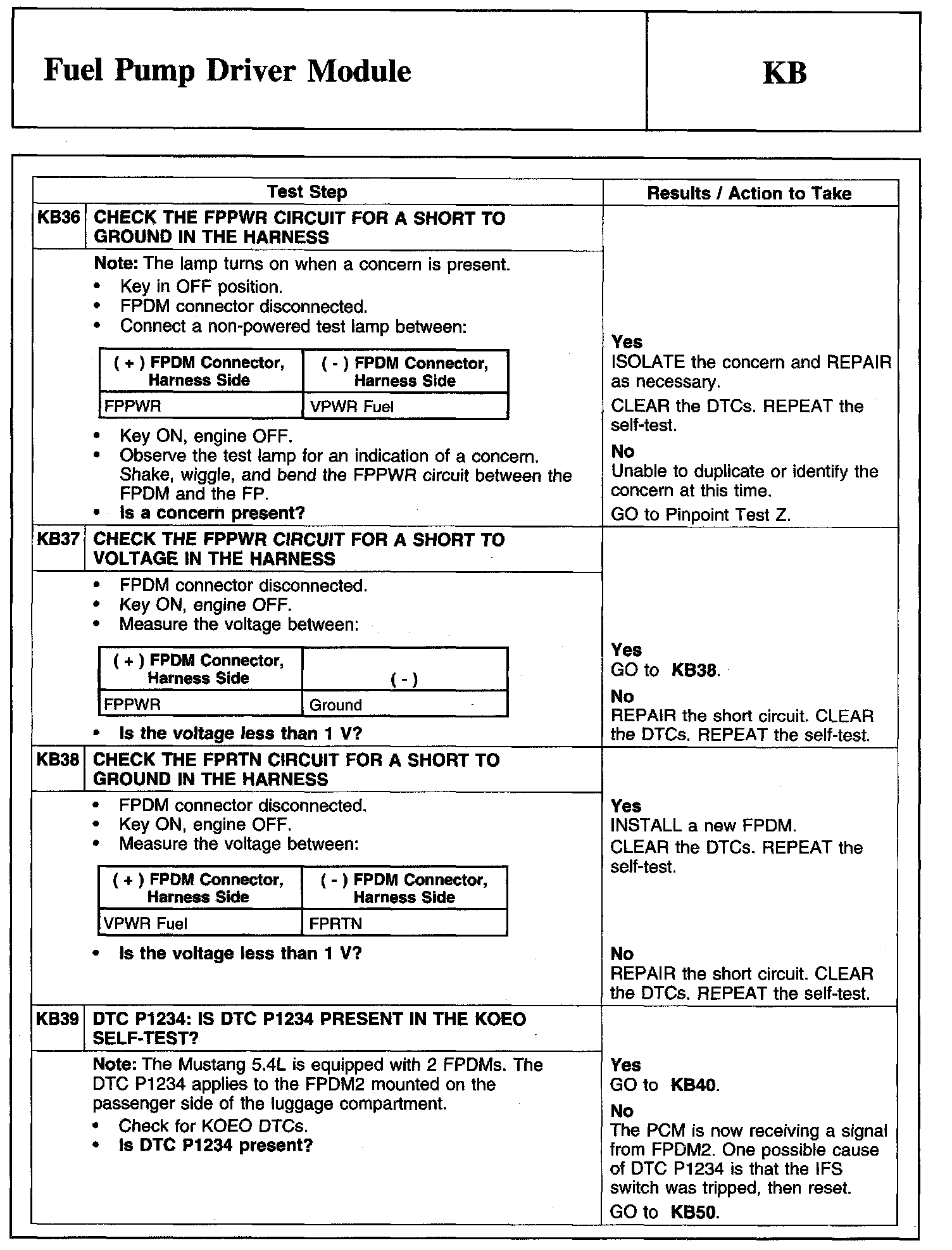

KB36-KB39:

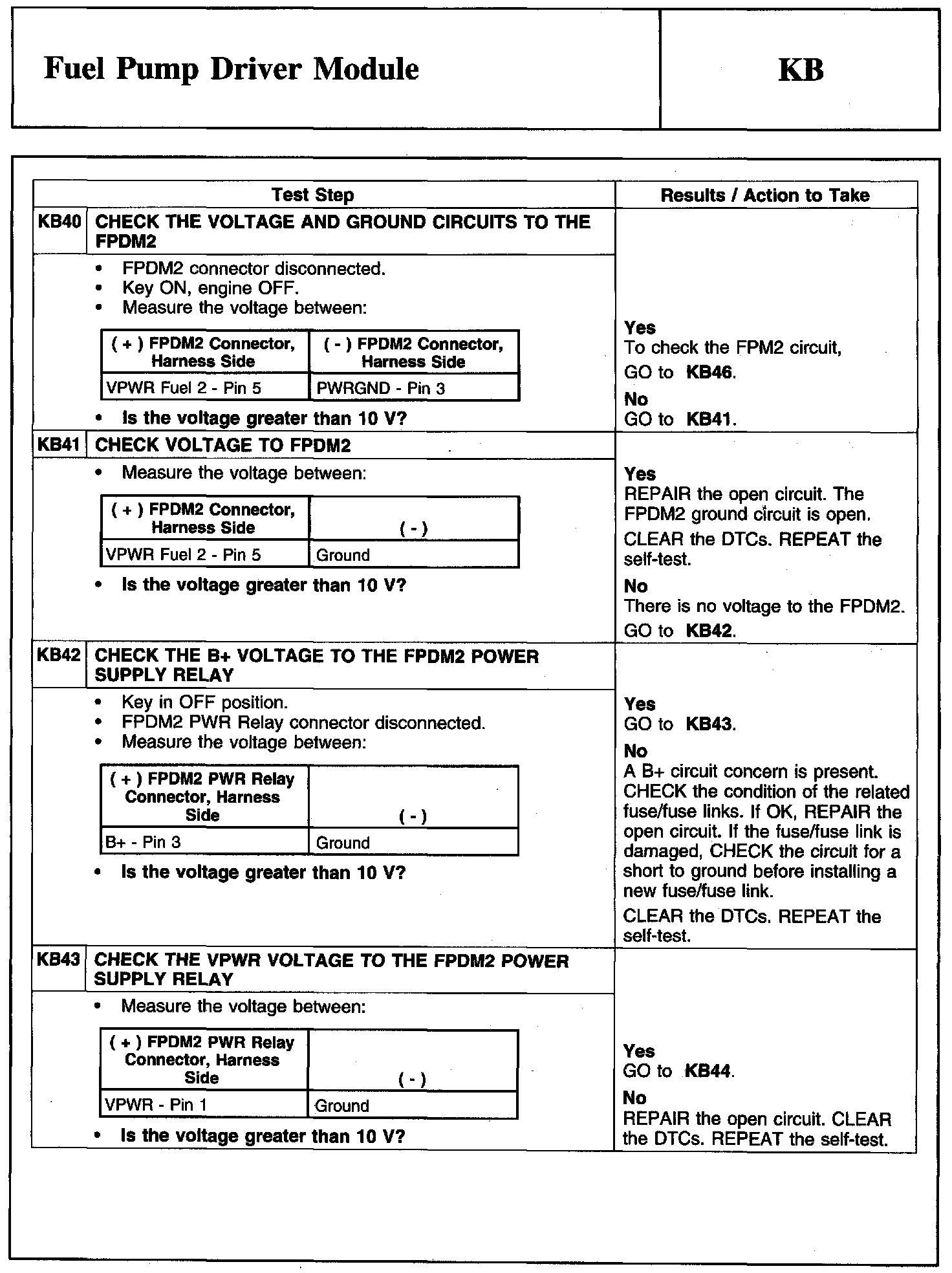

KB40-KB43:

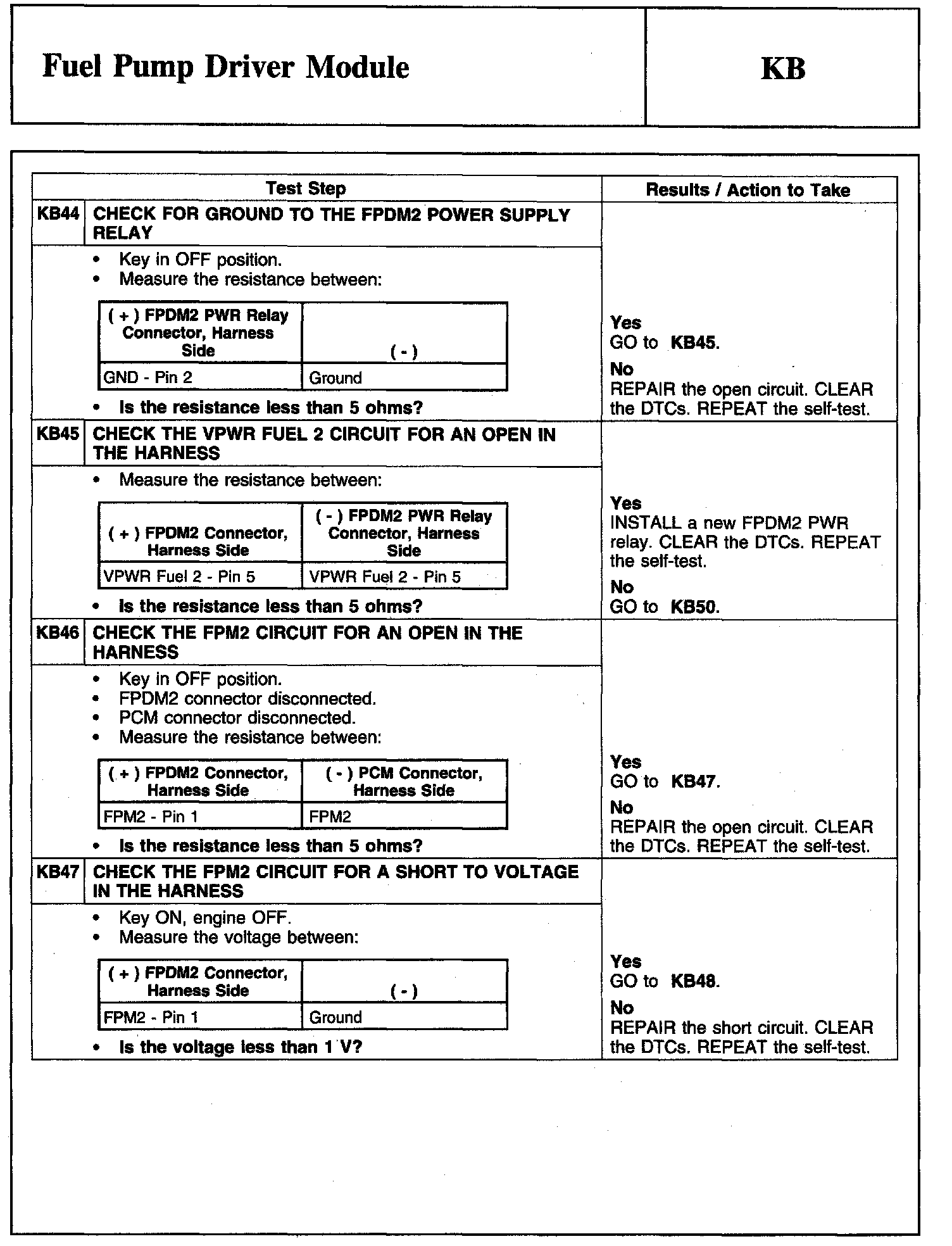

KB44-KB47:

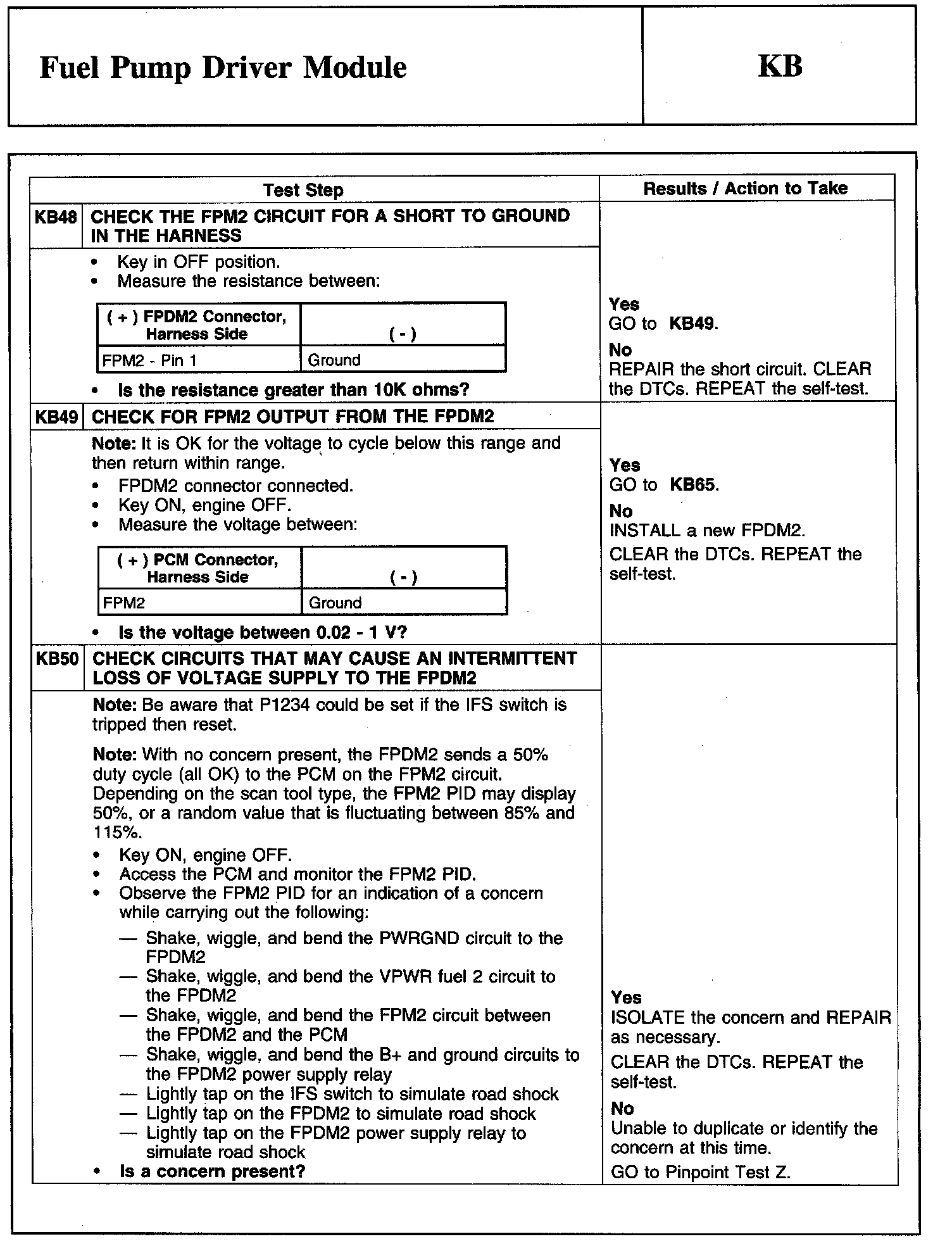

KB48-KB50:

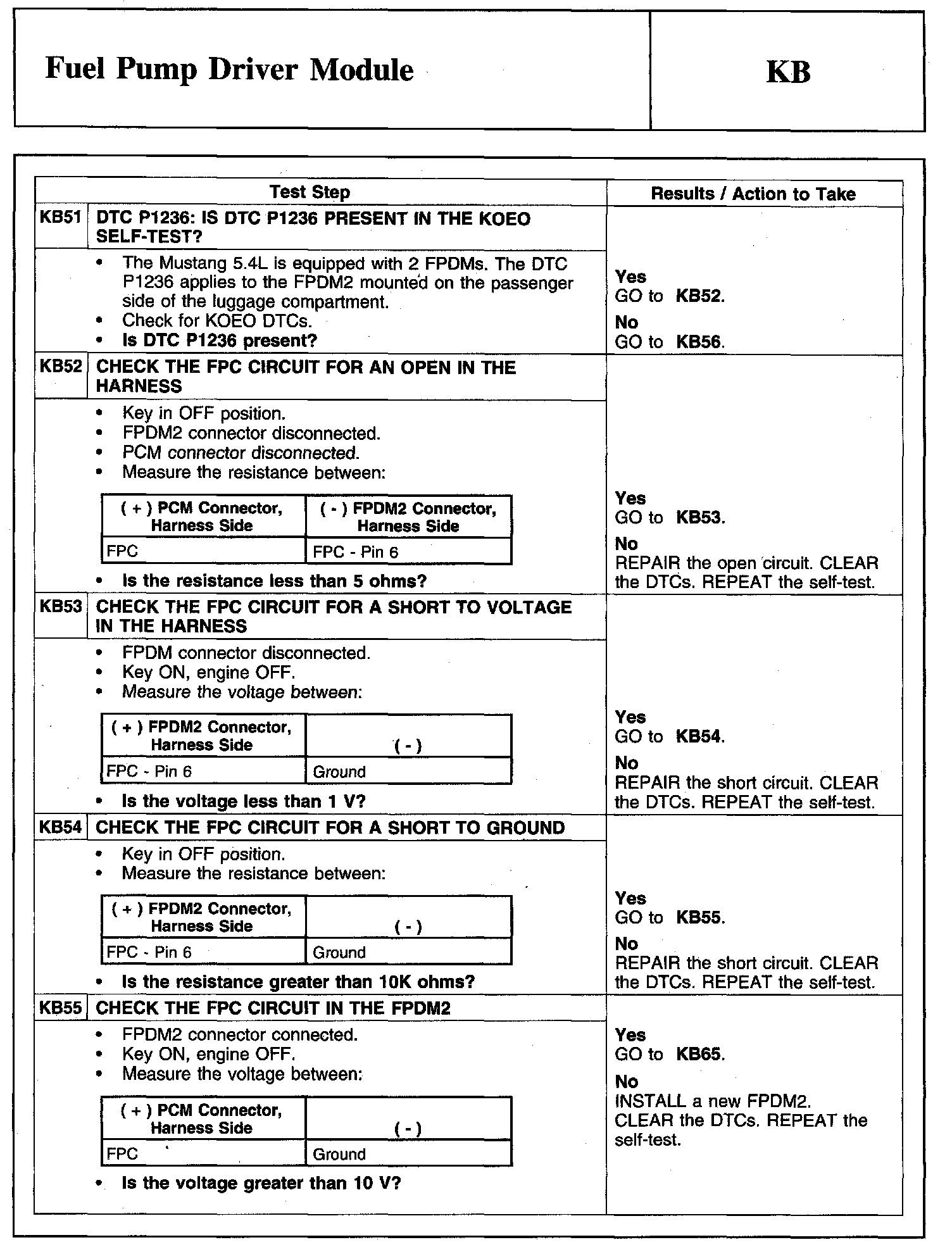

KB51-KB55:

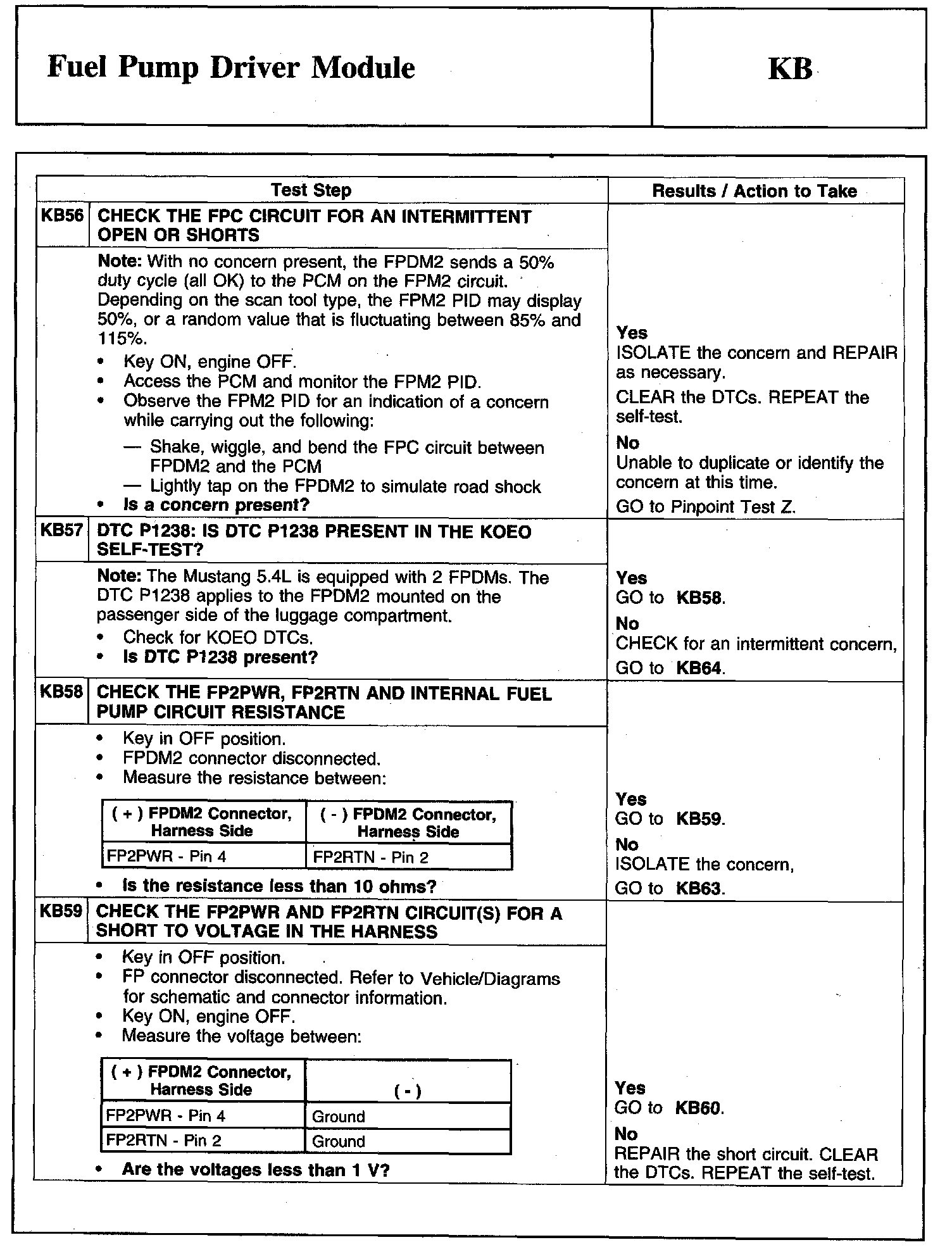

KB56-KB59:

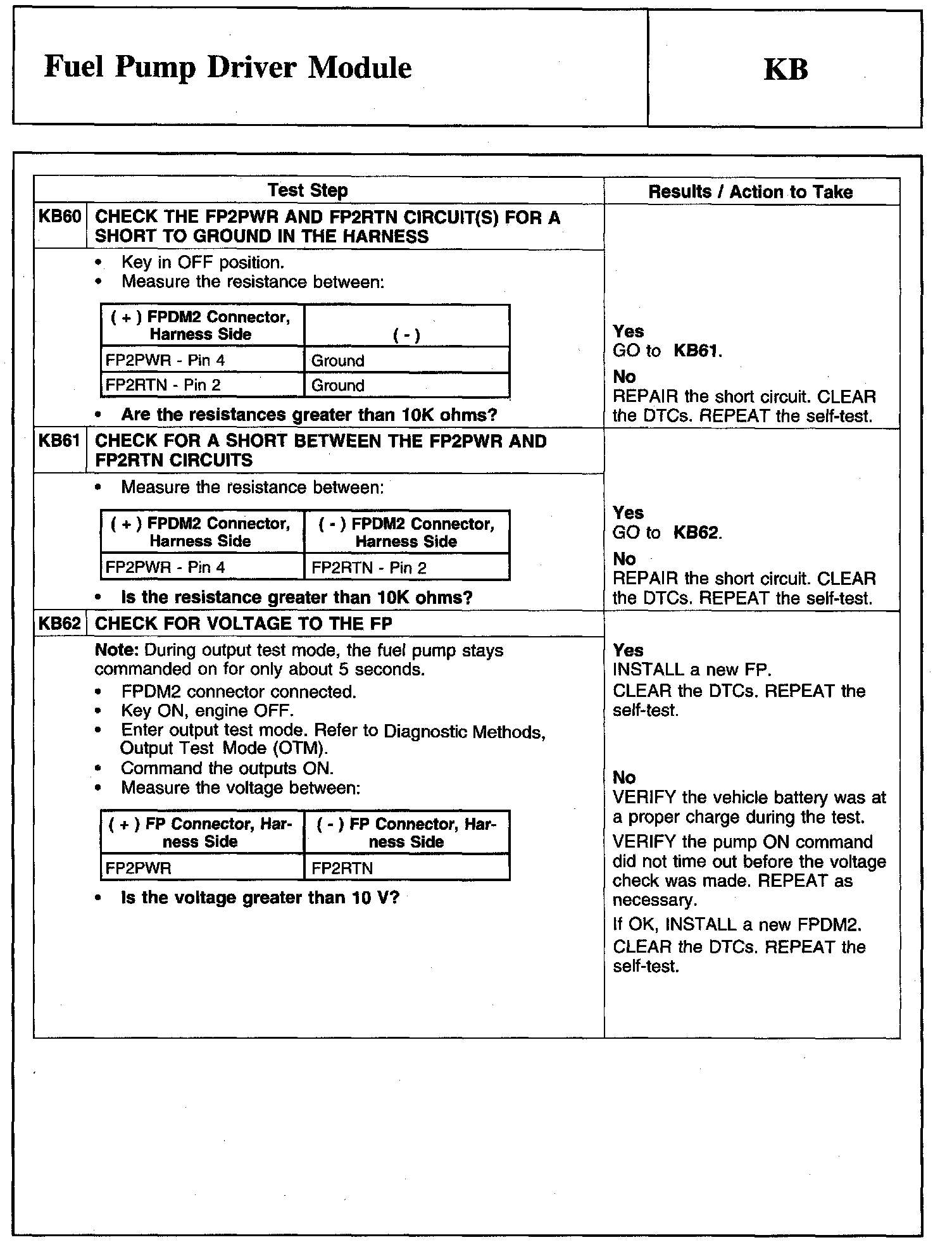

KB60-KB62:

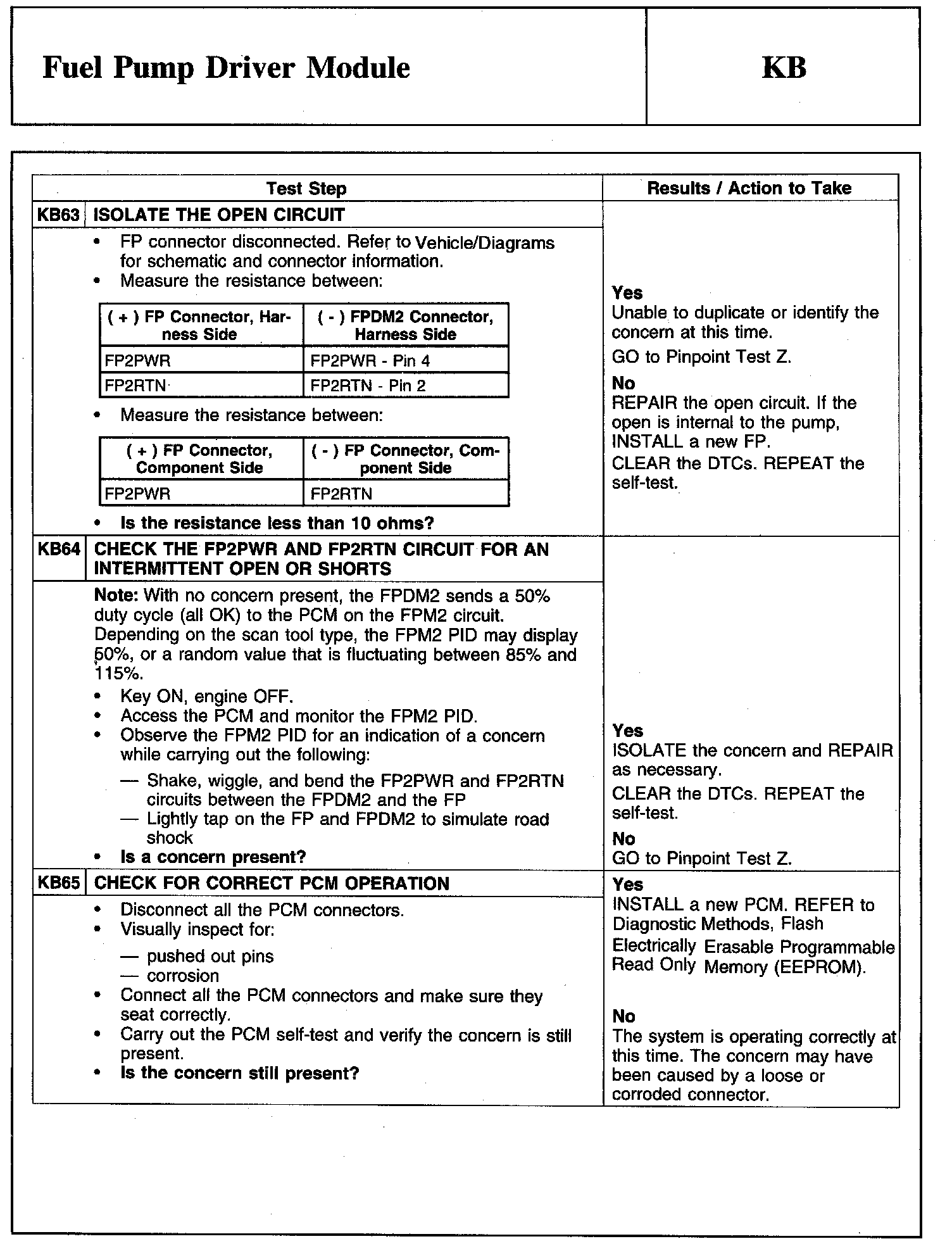

KB63-KB65:
