2007 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Test H: Fuel Control
PINPOINT TEST H: FUEL CONTROL

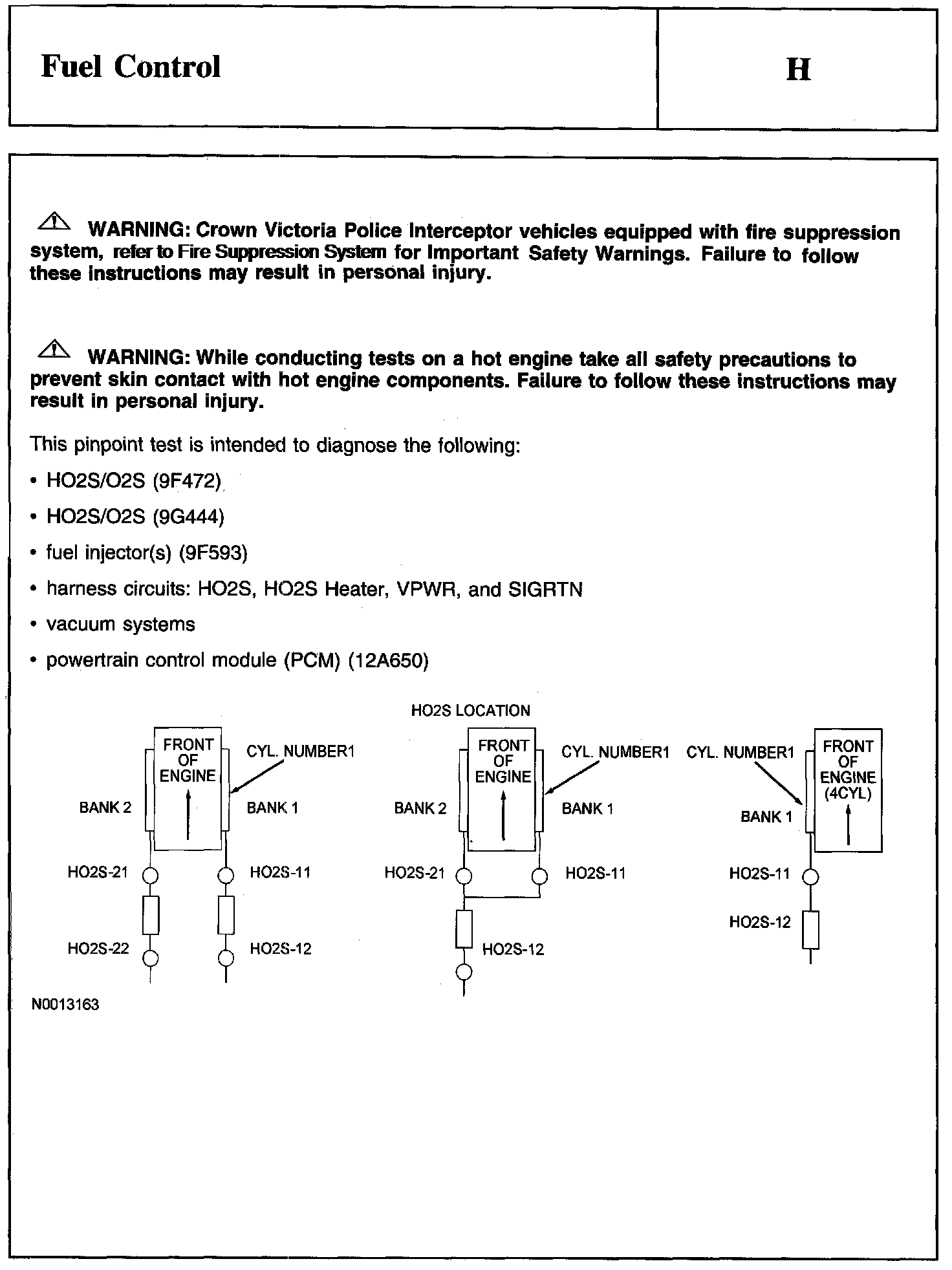

Warning And Schematic:

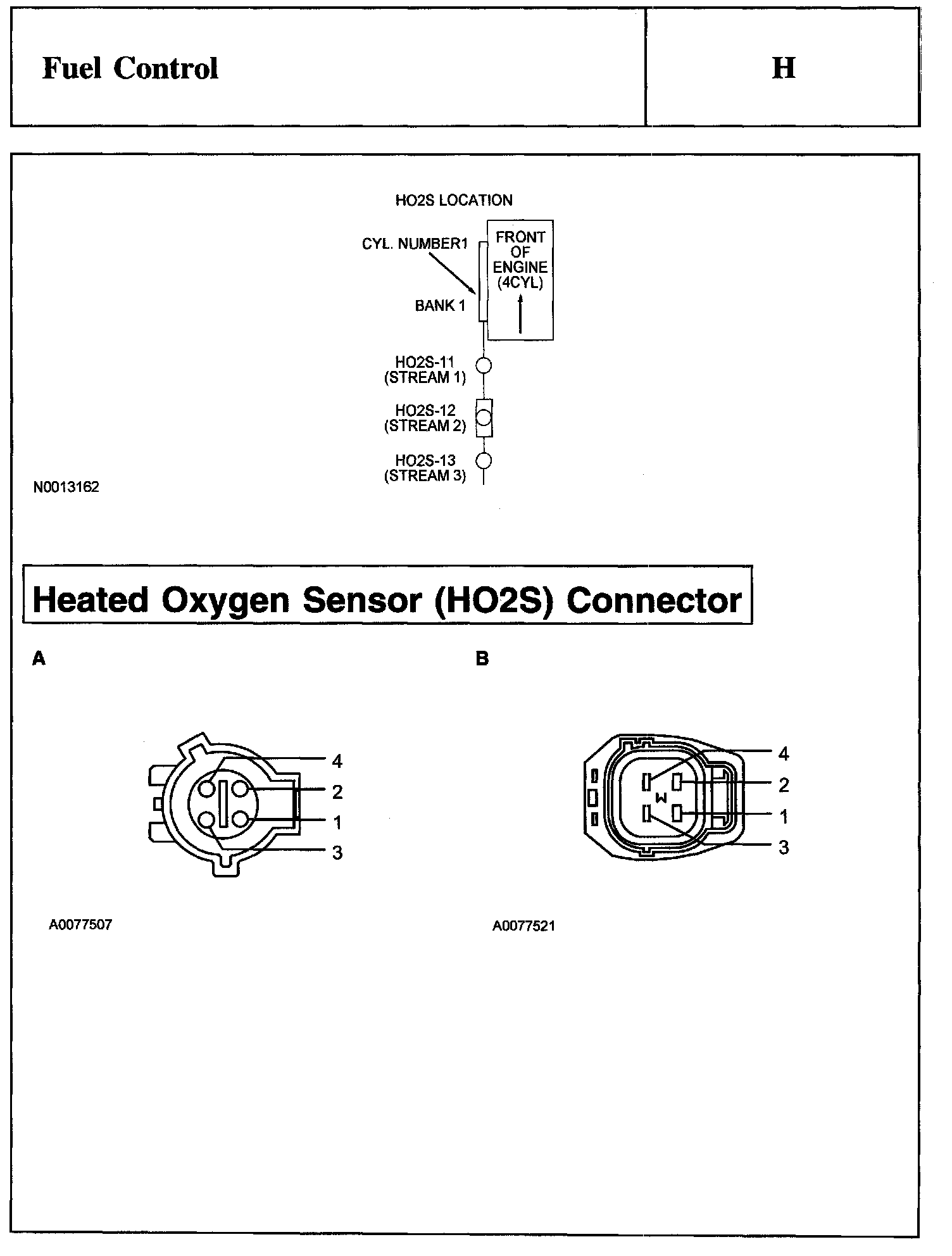

Schematic And Heated Oxygen Sensor (HO2S) Connector:

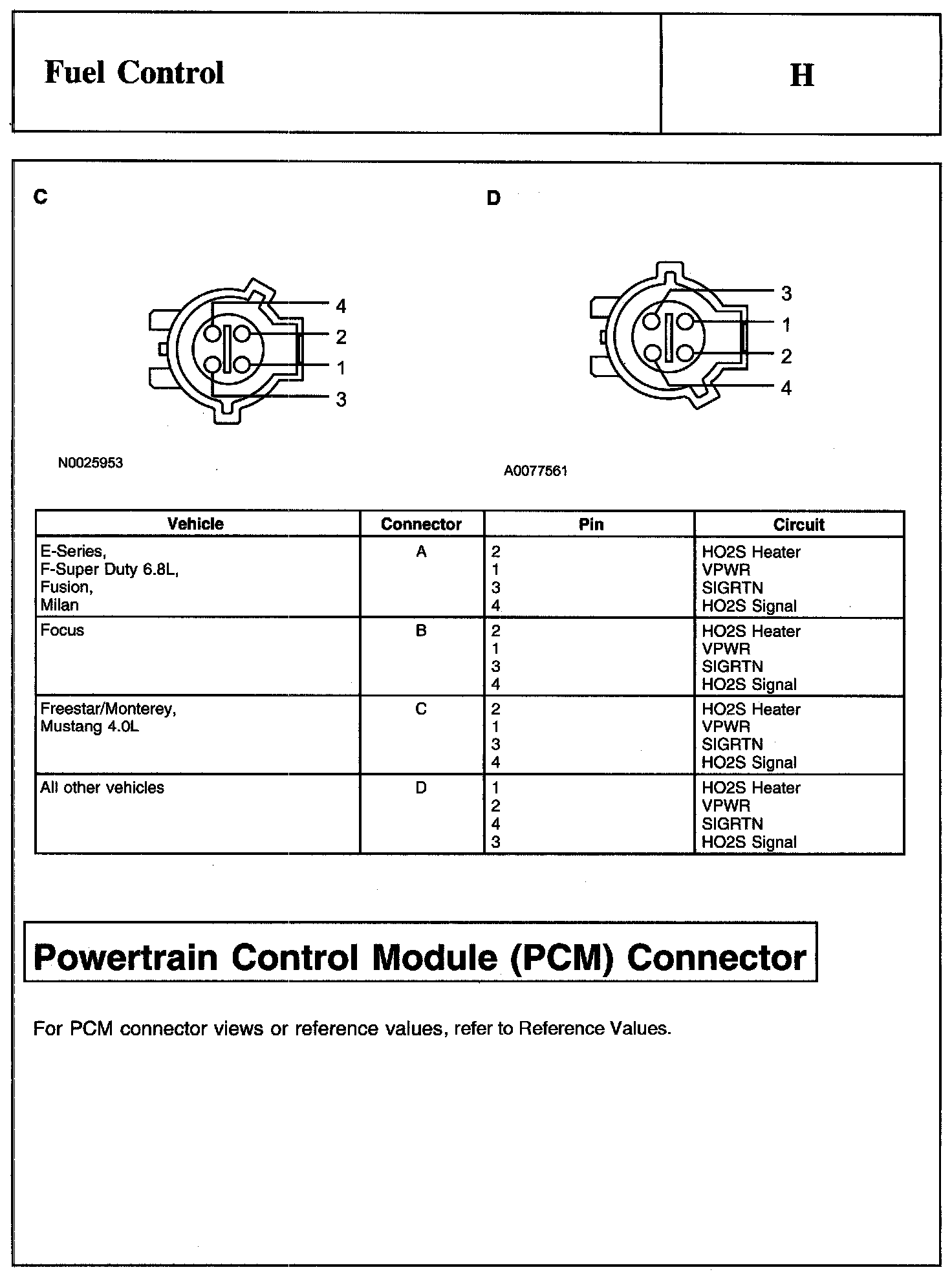

Heated Oxygen Sensor (HO2S) Connector And Powertrain Control Module (PCM) Connector:

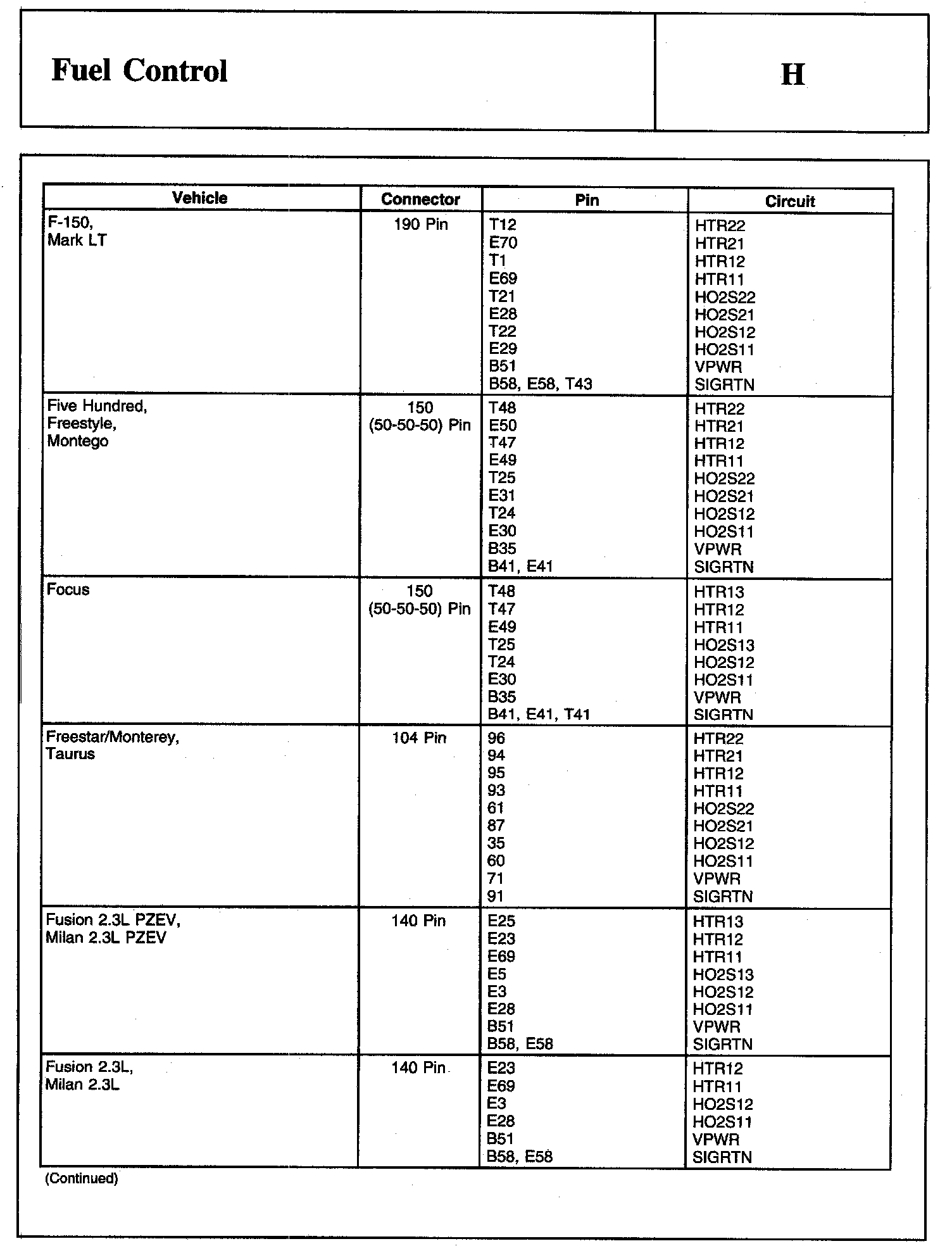

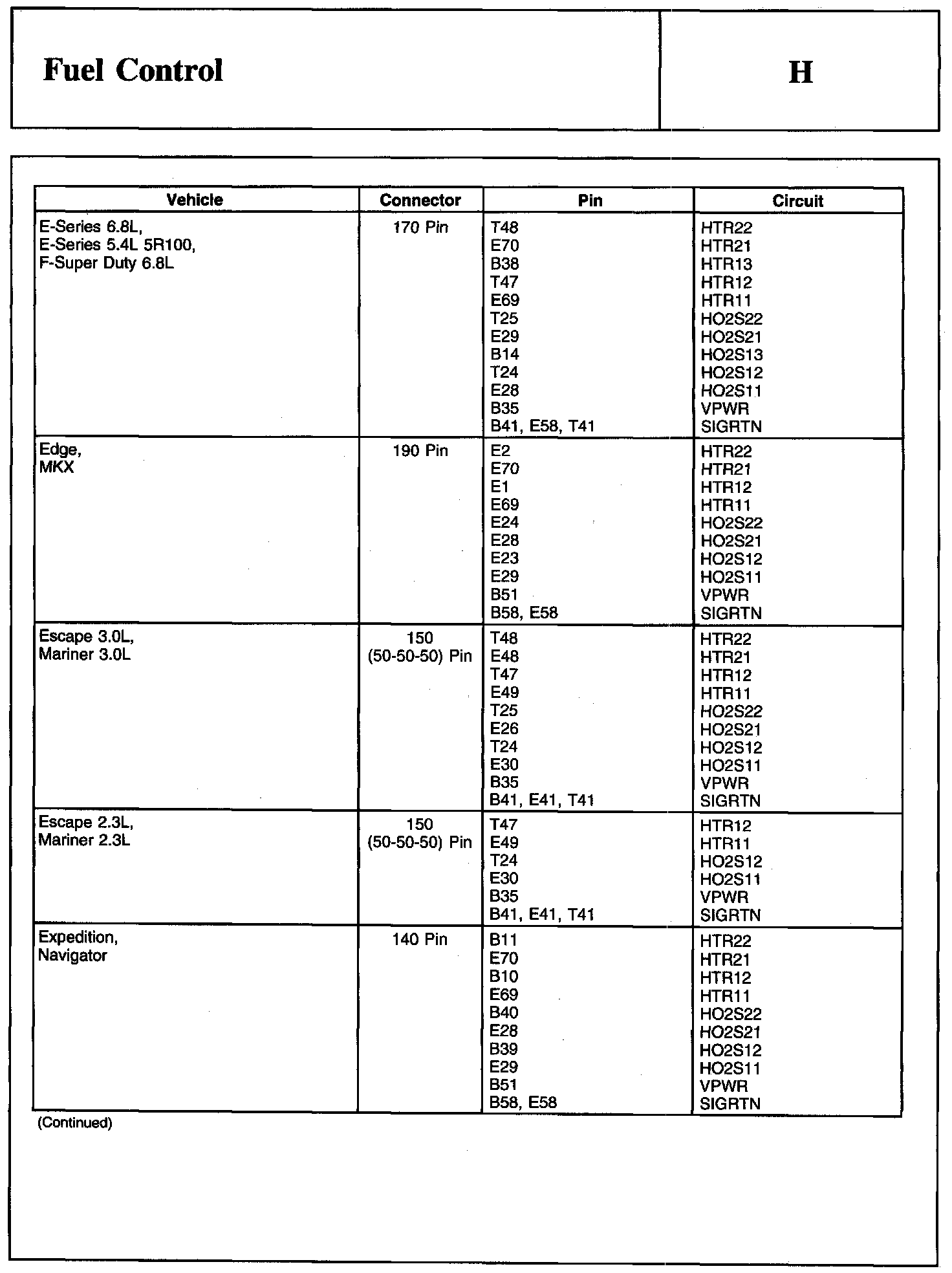

Powertrain Control Module (PCM) Connector Continued:
Powertrain Control Module (PCM) Connector Continued:

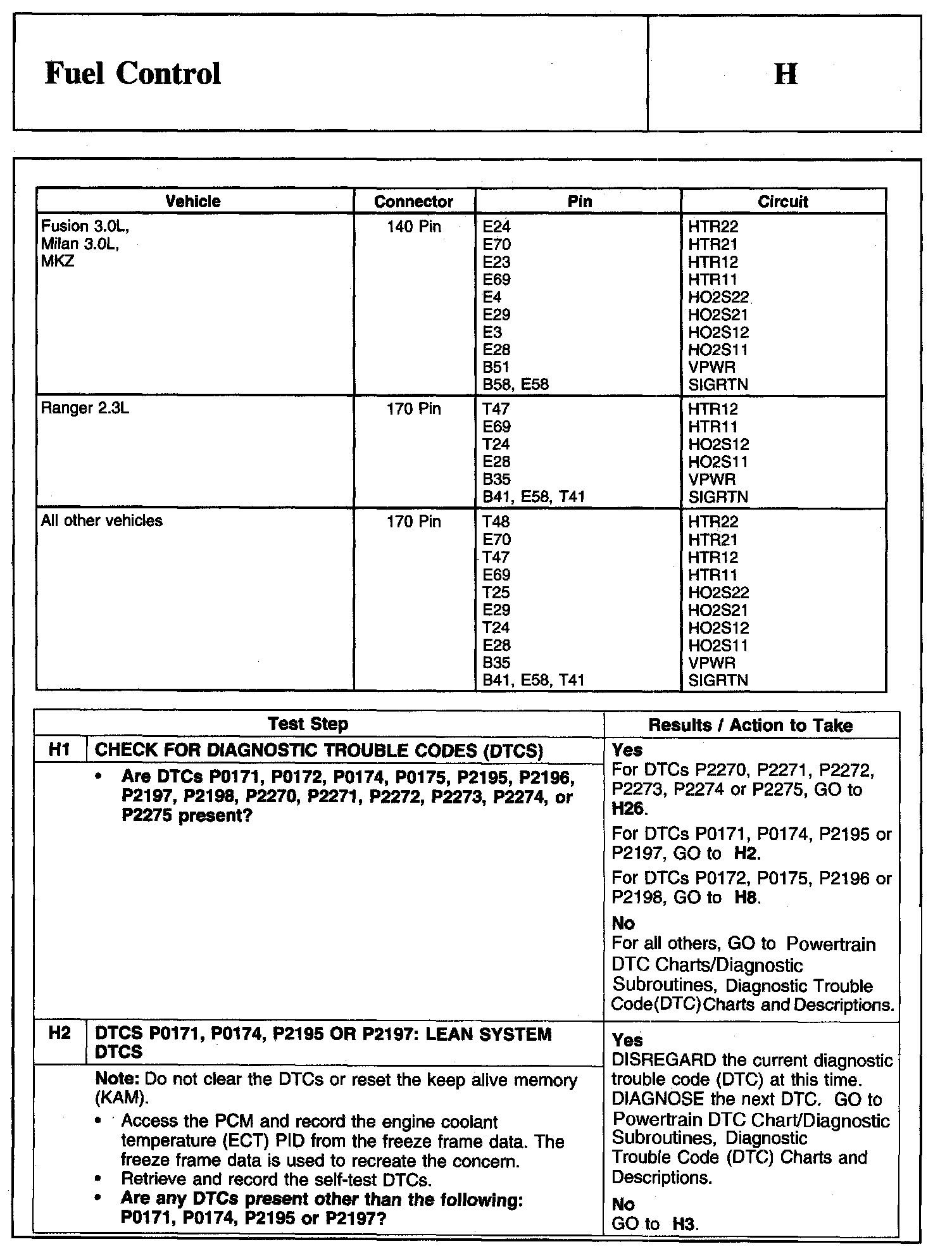

H1-H2:

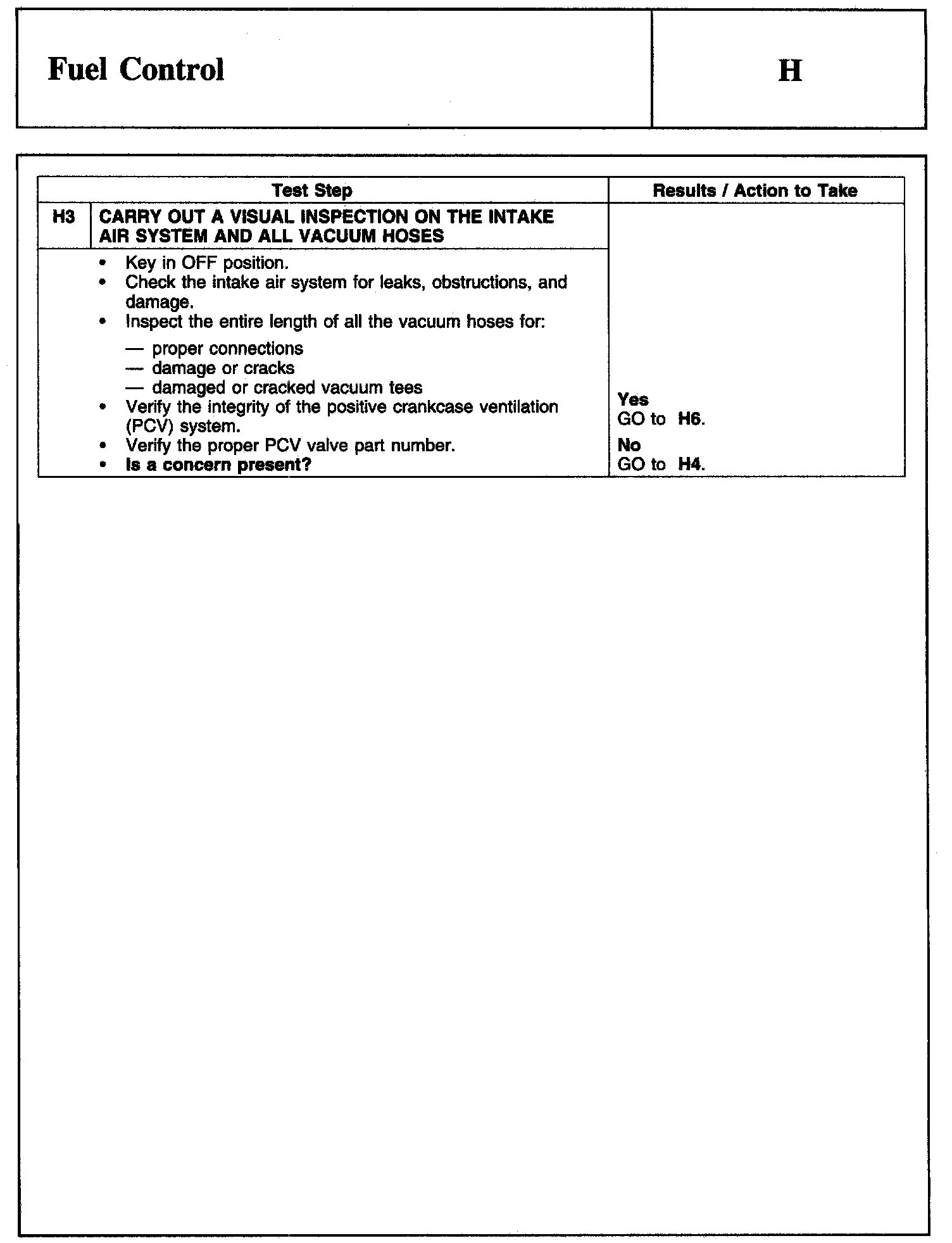

H3:

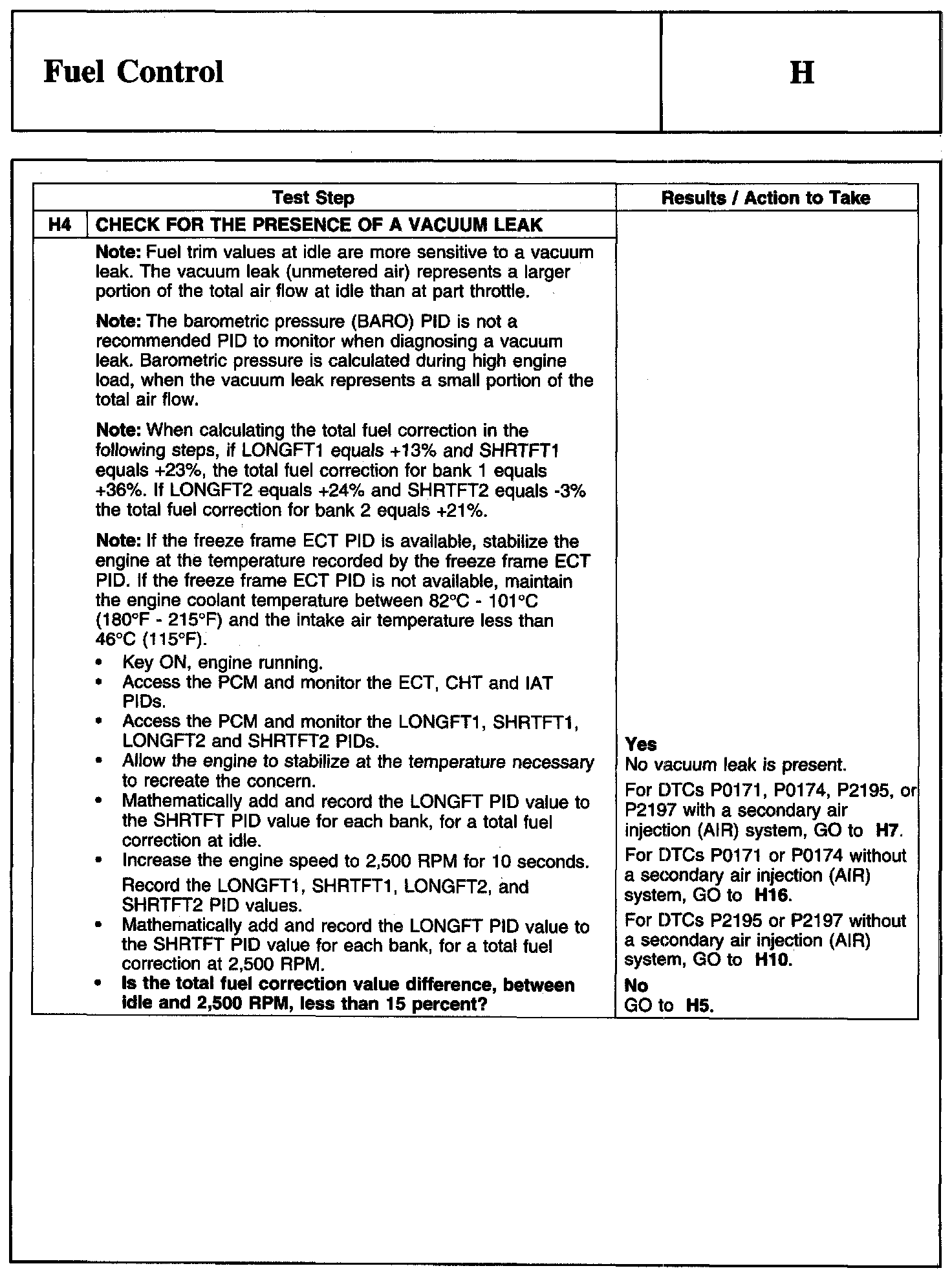

H4:

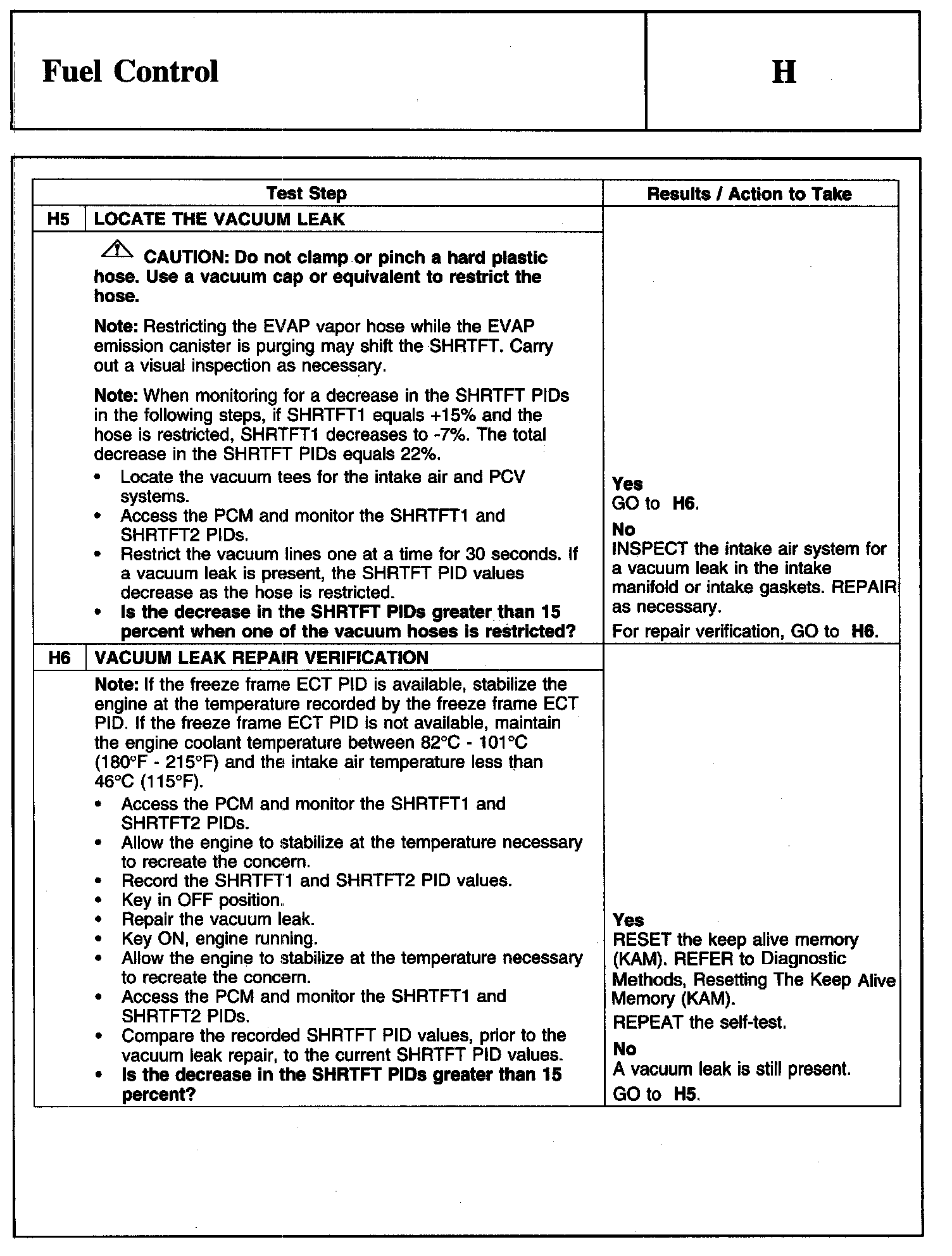

H5-H6:

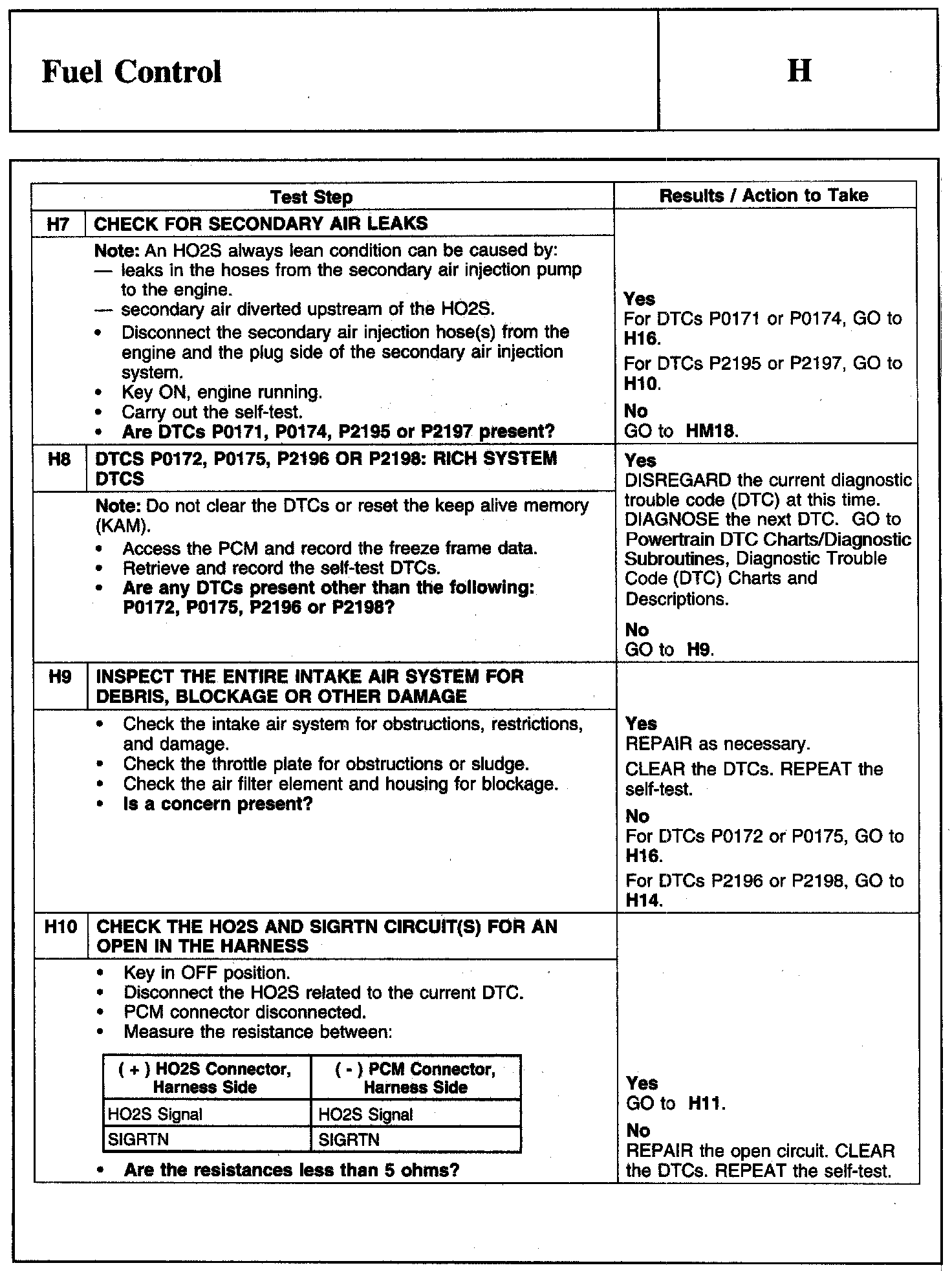

H7-H10:

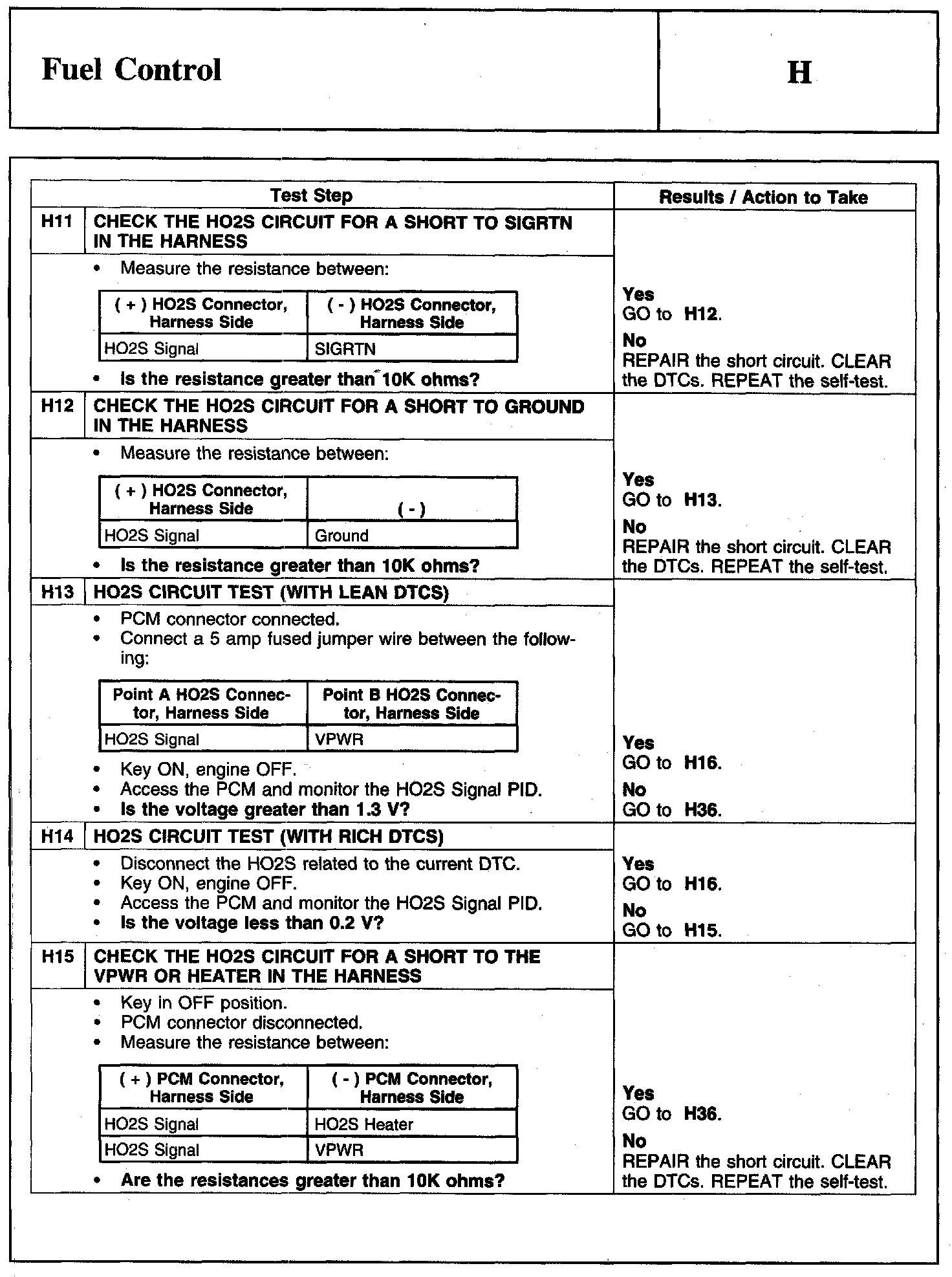

H11-H15:

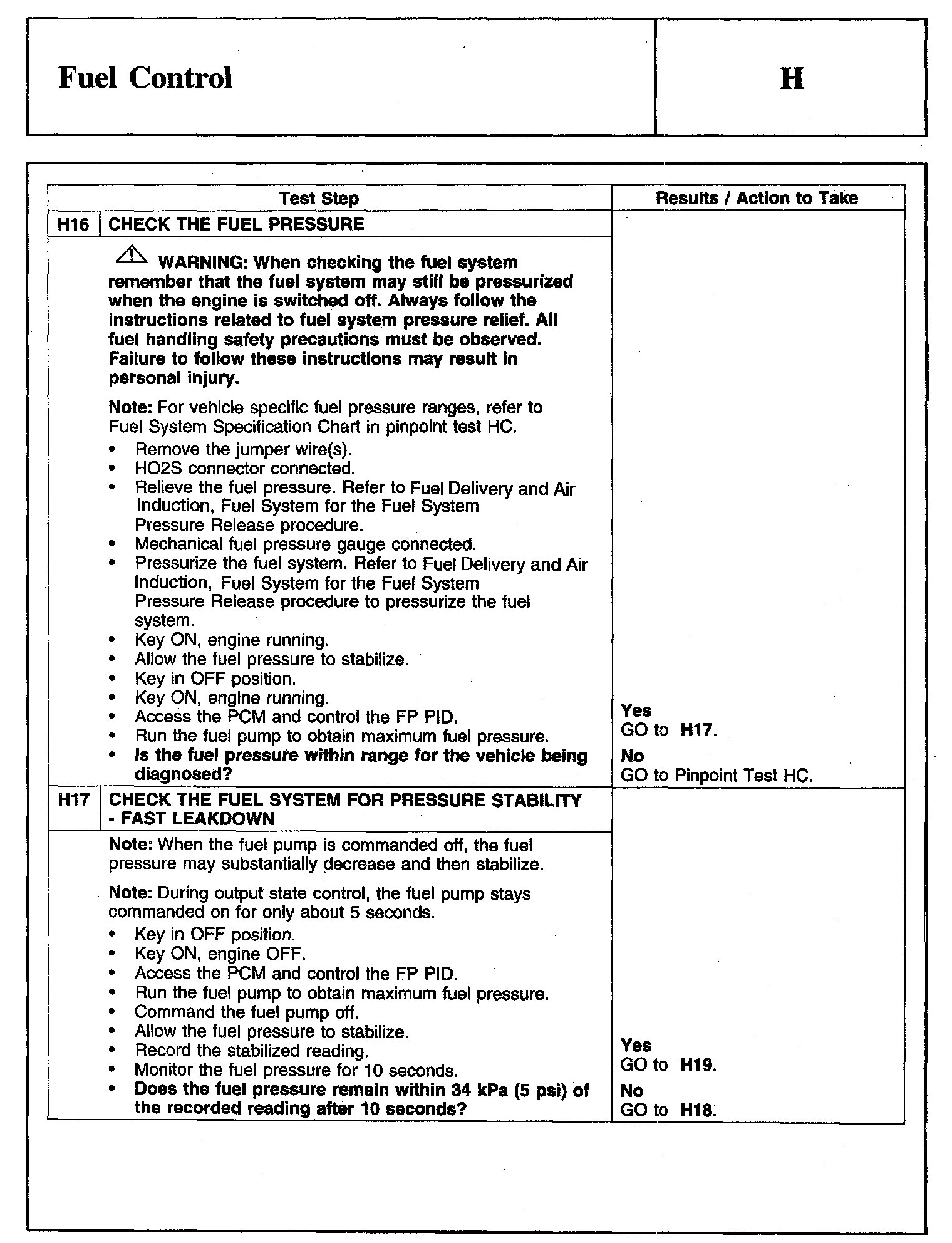

H16-H17:

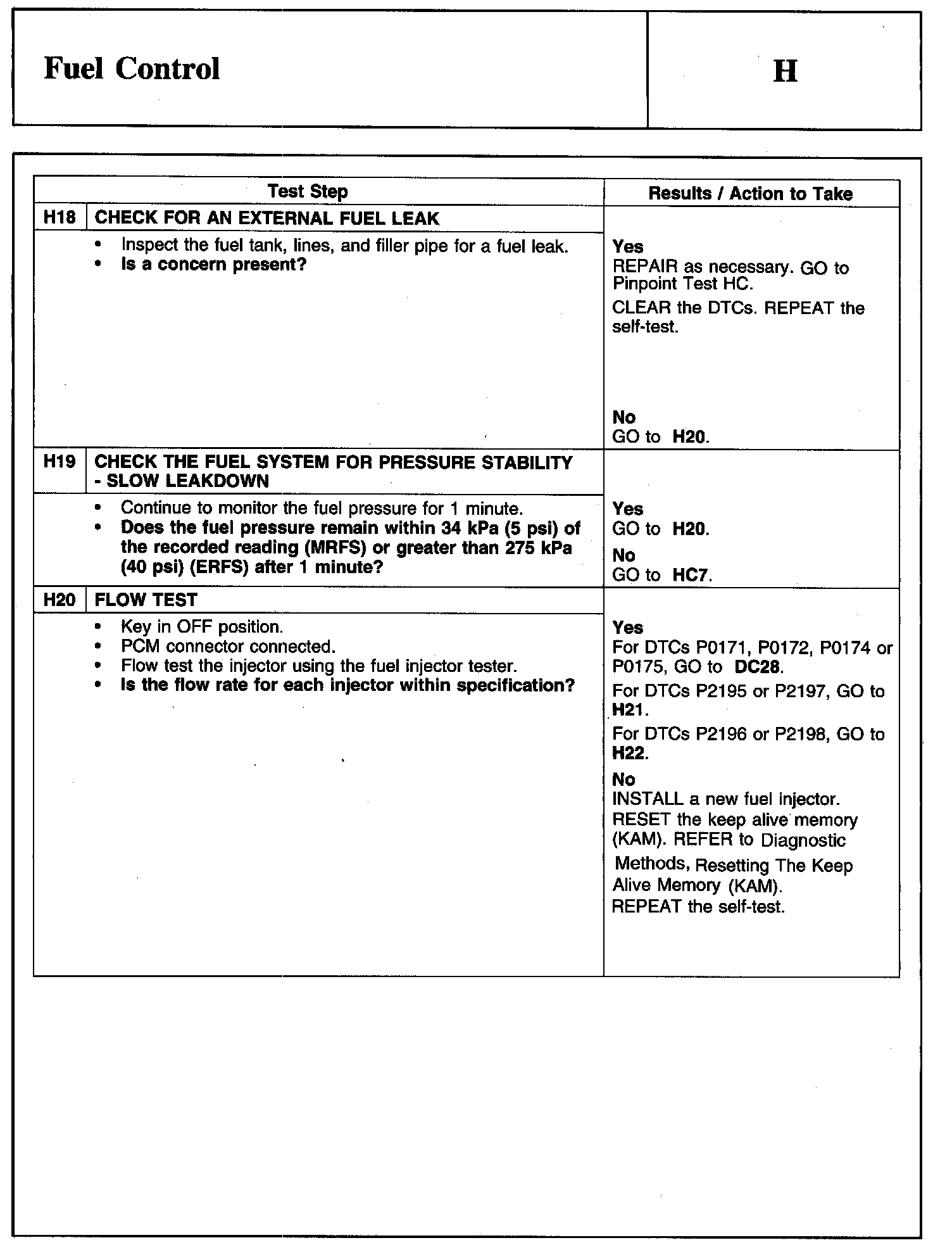

H18-H20:

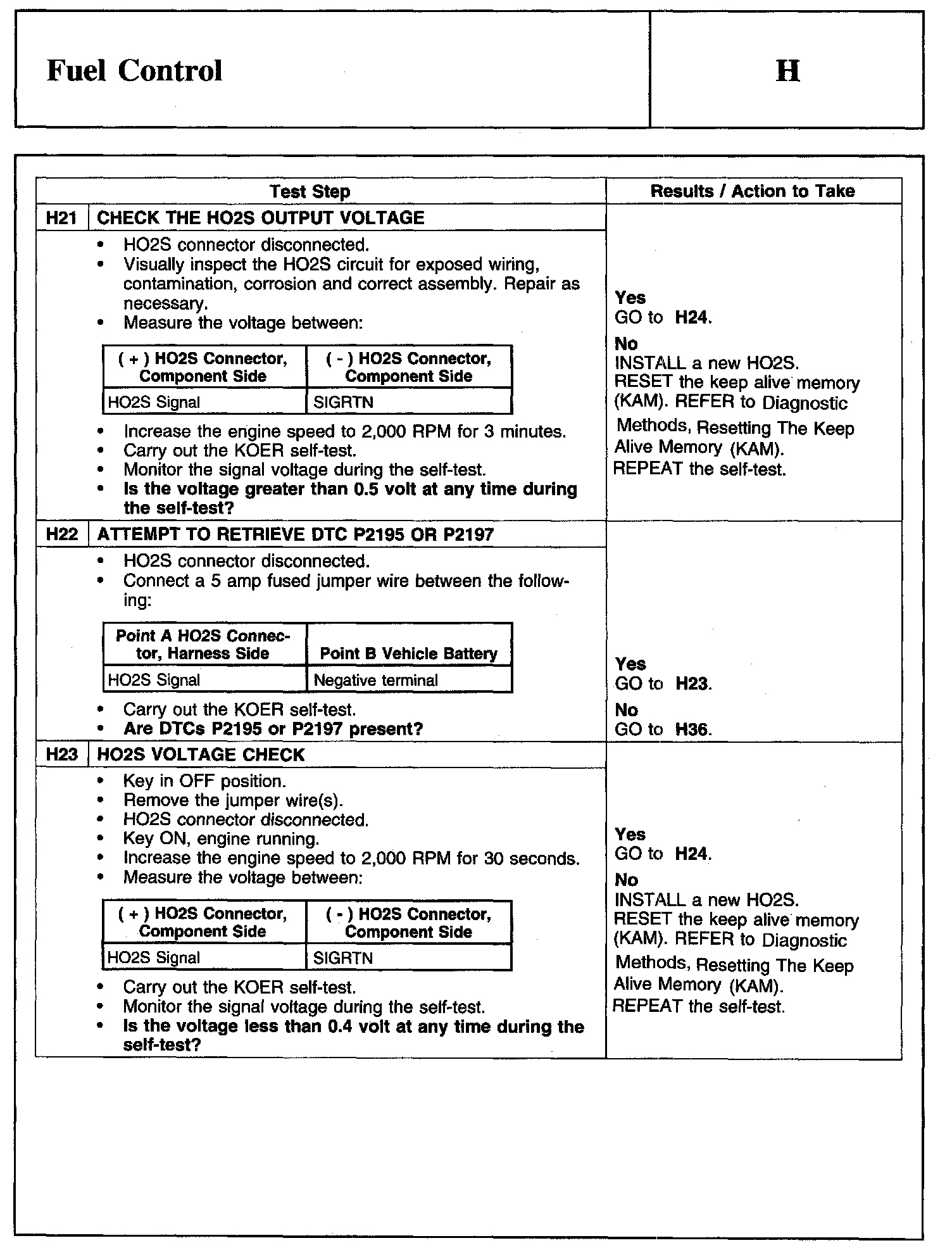

H21-H23:

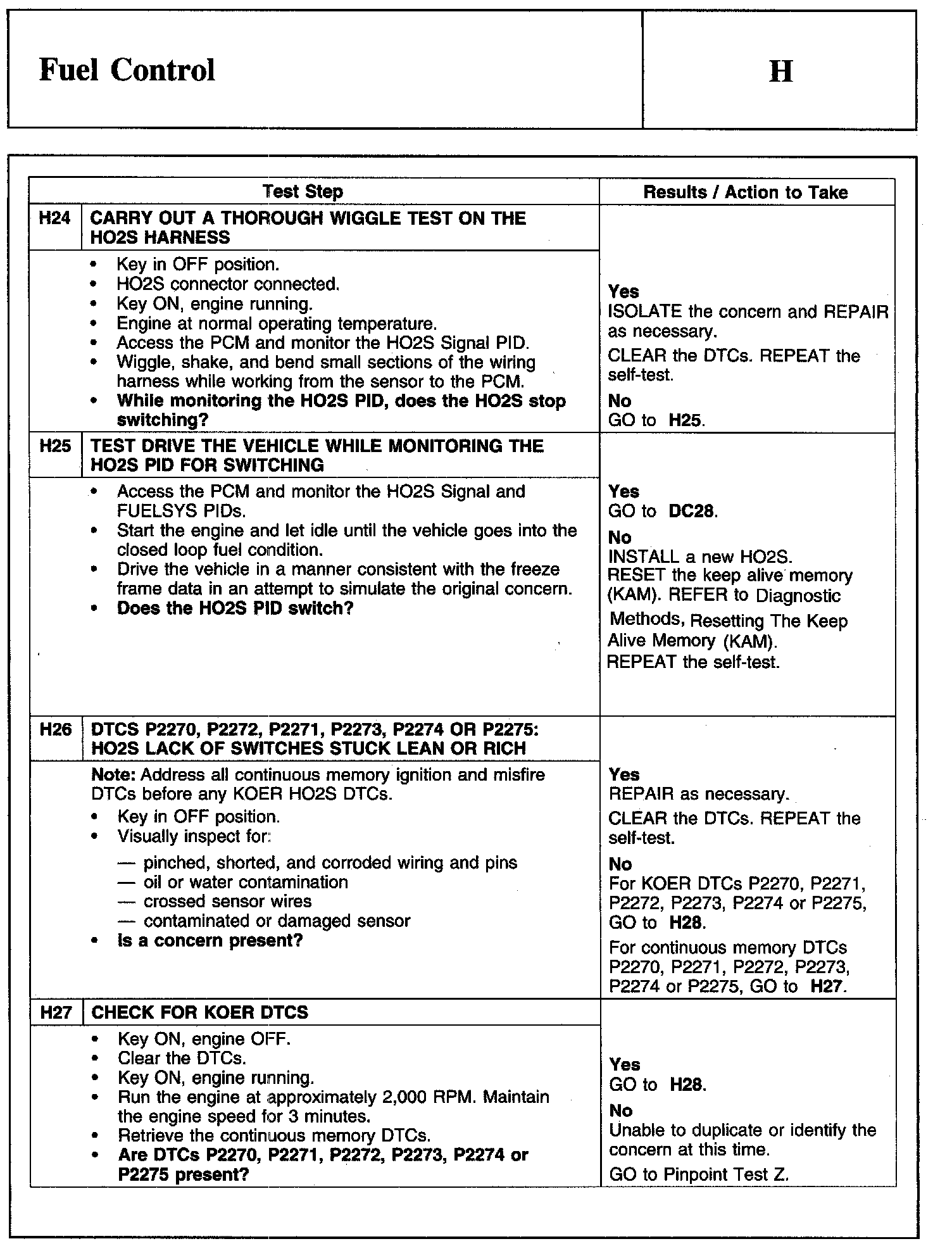

H24-H27:
H28-H29:

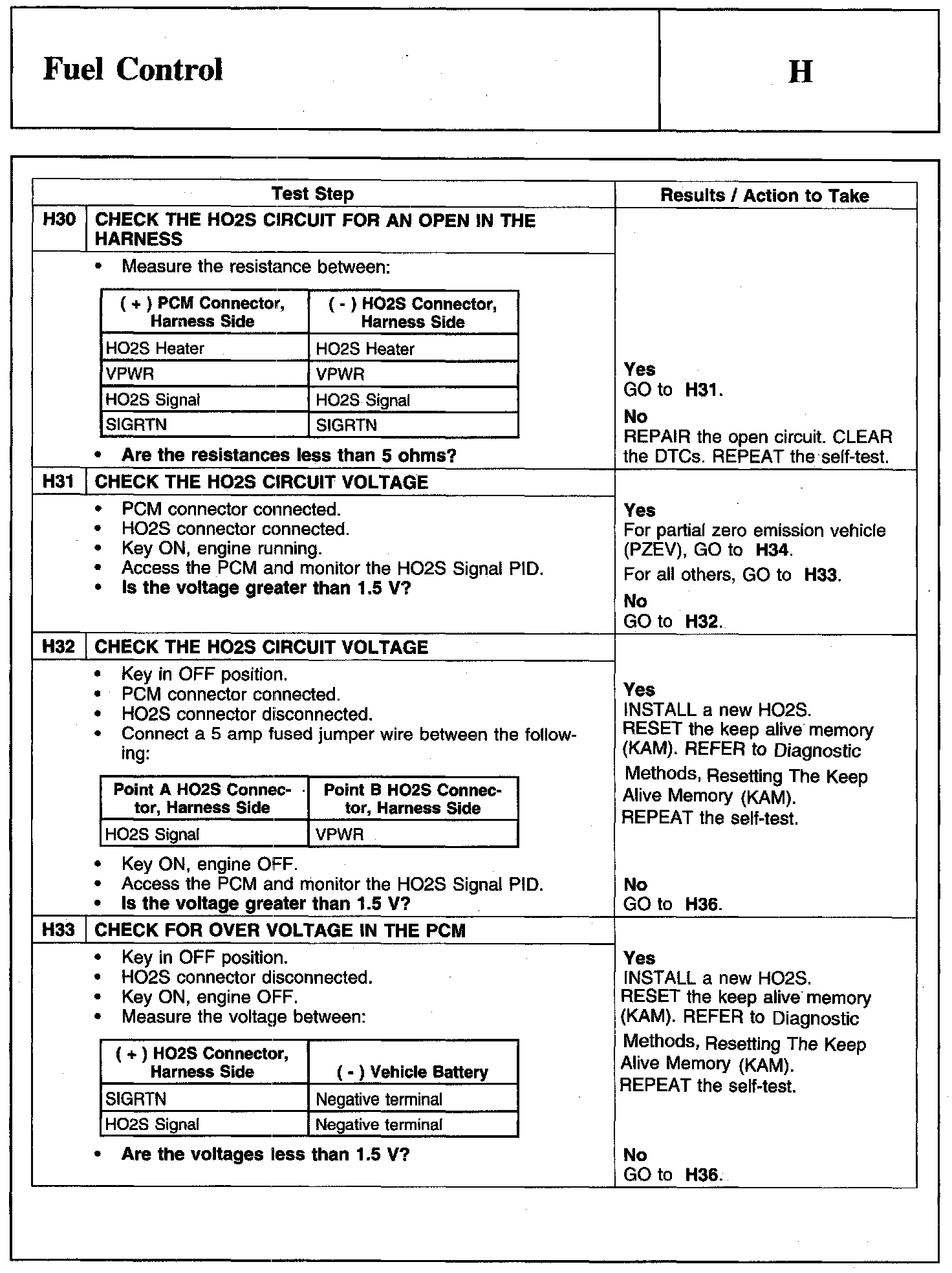

H30-H33:

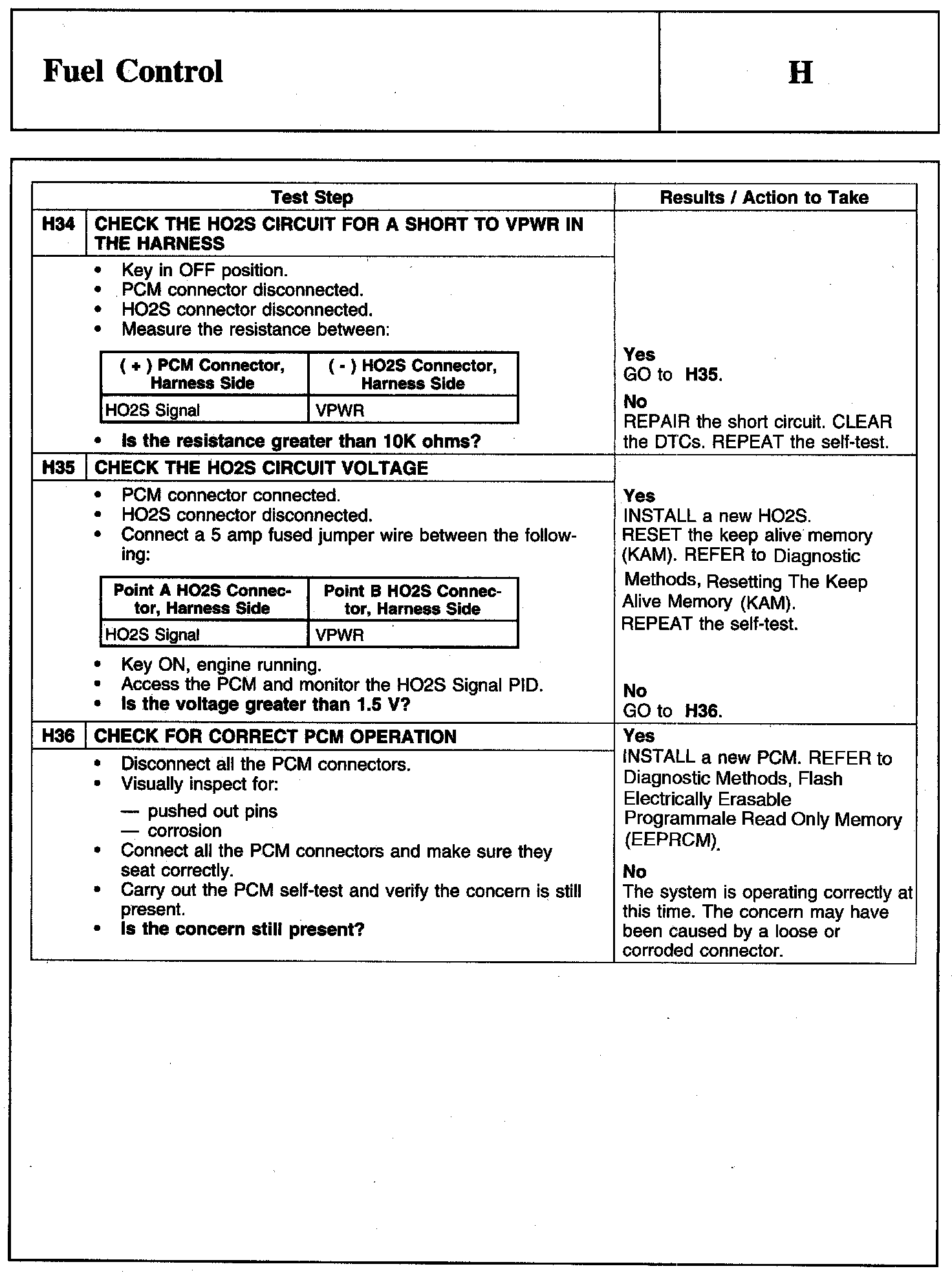

H34-H36:
